SAP mts/ato/mto/eto topic 9: front and back desk operation in m+m mode, strategy 50, preparation of raw materials and semi-finished products in advance

Today we will focus on simulation MTO Medium M+M Pattern , With configurable materials , It's standard 50 Strategy , The main features of this strategy are as follows ：

Expand the lower level requirements according to independent requirements , However, the finished product plan cannot be converted into a work order , When the sales order comes in , The number of independent demands consumed by the sales order , And generate a planned order that can be transferred to a work order , The planned order quantity is equal to the sales order quantity , At the same time, compare the quantity of independent demand with that of sales order , The big one is expanded according to that . And if the parameters of the raw materials on display are concentrated / Independent （mrp4） Set to 1. Production orders , Only for regular customers , If you want to give it to another customer , The inventory needs to be transferred to the sales order inventory of another customer .
It is generally used for final assembly with high added value , Semi finished products or raw materials can be purchased or produced according to independent needs , When the order comes in , Perform final assembly .

1 Background special configuration

1.1 Policy group configuration

1.1.1 Demand class

1.1.2 Type of demand

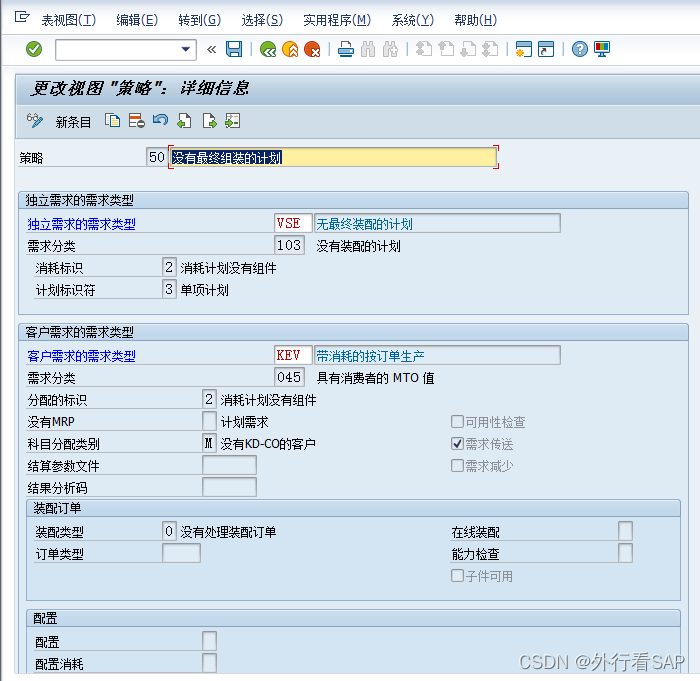

1.1.3 Production strategy

1.1.4 Strategy Group

1.2 Create a new sales order type 、 Billing type

MTO Of M+M Pattern , Except that the sales order triggers the demand , Others follow MTS almost

1.2.1 Sales organization OVX5

1.2.2 Expand customers XD01, The current extension is 10000001 and 10000008 Two customers

1.2.3 Determine the sales account VKOA

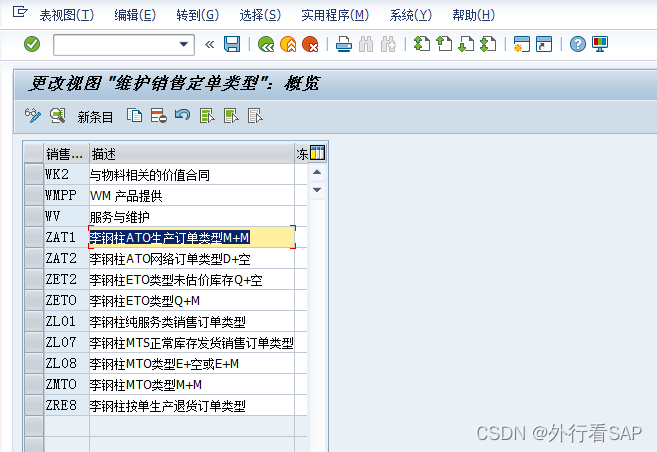

1.2.4 Create a sales order type and assign it to the company code

1.2.5 Create order line item type

1.2.6 The order to line type is determined

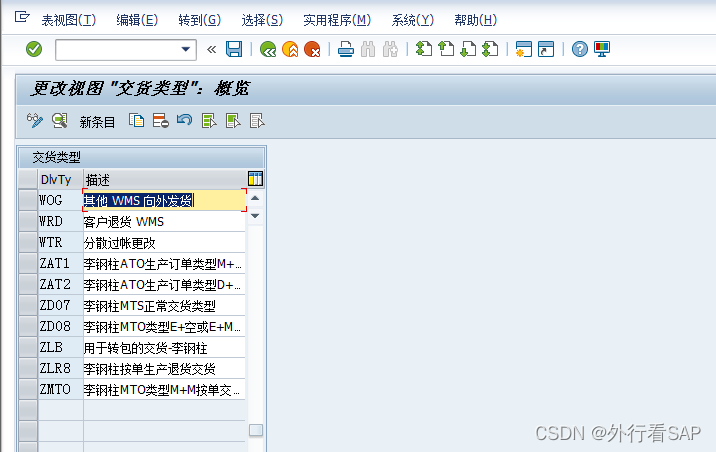

1.2.7 Define delivery type

1.2.8 Delivery item category

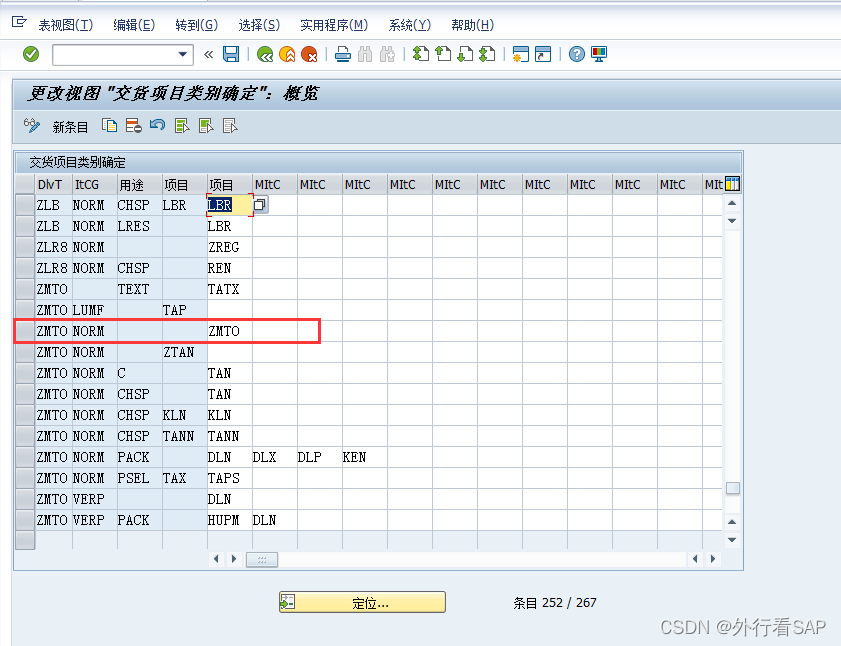

1.2.9 The delivery line category is determined

1.2.10 Define Invoicing type

2. Basic preparation

This simulation is the whole computer , But not to deliver the whole computer to the customer , It is delivered by parts .

BOM The computer contains a host 、 There are two kinds of semi-finished products for display , And the mouse 、 Keyboard raw materials . One of the hosts 、 Monitor 、 mouse 、 The keyboard is sent to the customer through project delivery .

At the same time, milestone billing , Invoicing by stages according to the billing plan

2.1 Construction materials 、BOM、 Work center 、 Process route, etc

2.1.1 The new company maintains the company code of material management

2.1.1 Construction materials MM01, The specified policy group is 50

Finished product material selection strategy

2.1.2 build BOM CS01

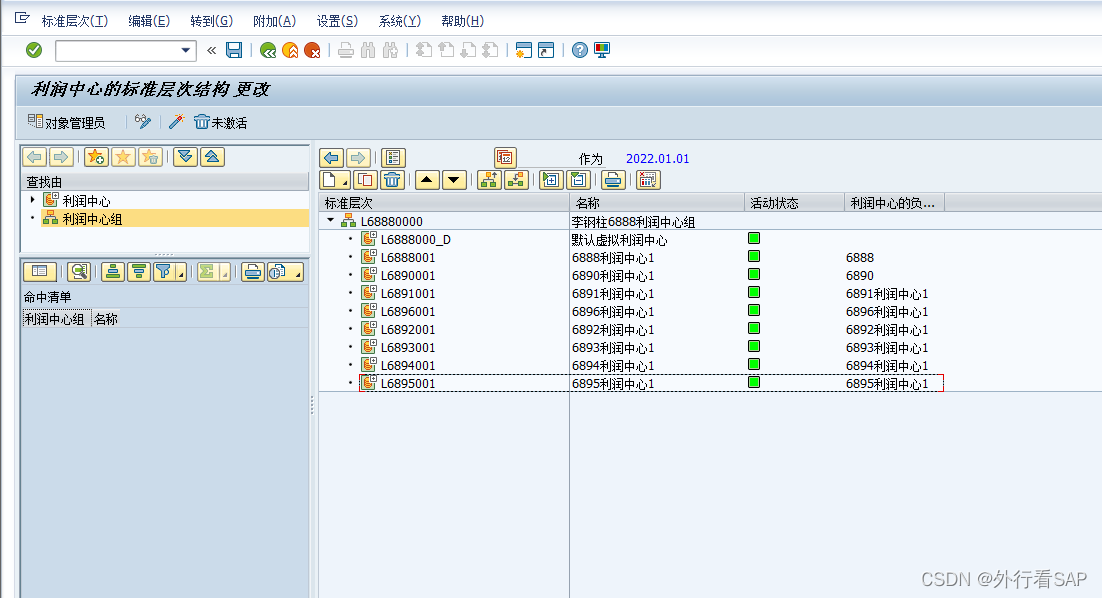

2.1.3 Build profit center and cost center

2.1.3 Assign activity to cost center , Maintenance price

2.1.4 OKEW Allocate the split structure to the assembly and manufacturing department of the direct cost center

2.1.3 Build a work center CR01

2.1.4 Build a process route CA01

2.2 Product cost estimation and evaluation

2.2.1 CK11N Evaluate the price

2.2.2 CK24 Mark and publish material prices

After the tag

2.3 Sales processing

2.3.1 Expand customers XD01

2.3.2 Shipment point configuration OVL2

2.3.3 Configure automatic posting of sales organization VKOA

3 Business processing

3.1 Make sales forecast for finished products MD61

3.2 MD41 run MRP, Generate planned orders , However, the planned order cannot be transferred to the manufacturing order

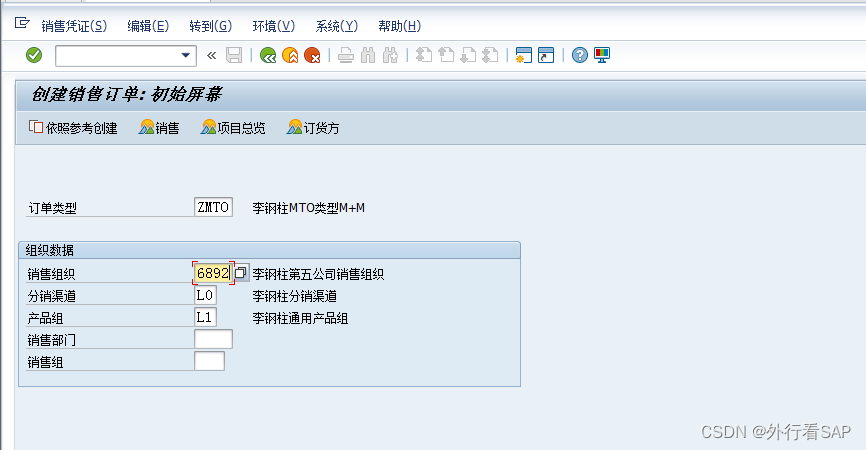

3.3 Build sales order , Plan independent requirements will be offset

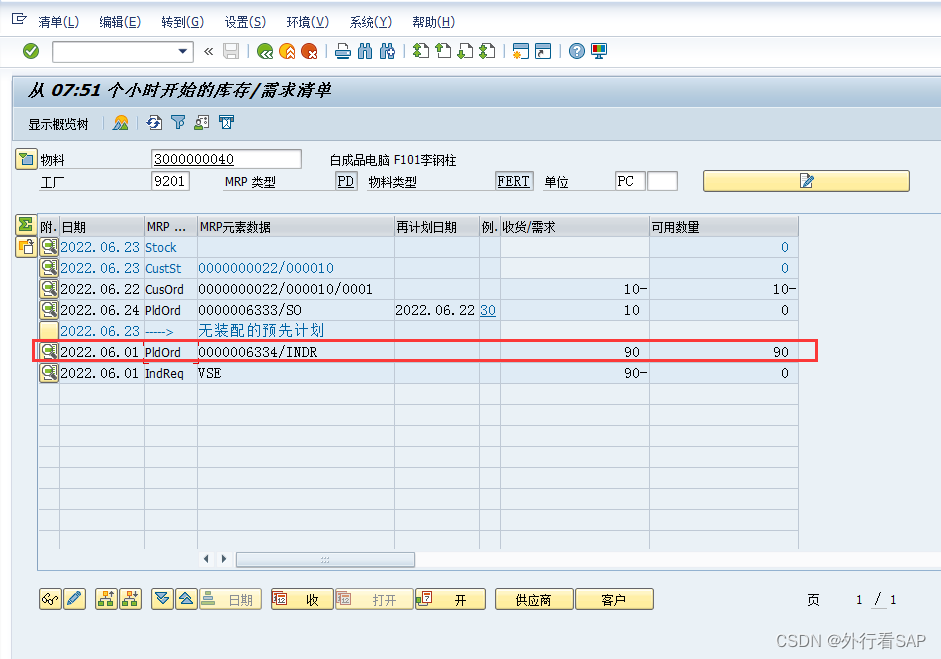

3.4 Run again MRP MD41

Planned order in SO I have , It can also be transferred to production order

3.5 Release production order , Execute production

3.6 Raw material planned orders are transferred to purchase requisitions and orders

3.7 Receiving goods

3.8 Shipment to sales order for production

3.9 View inventory

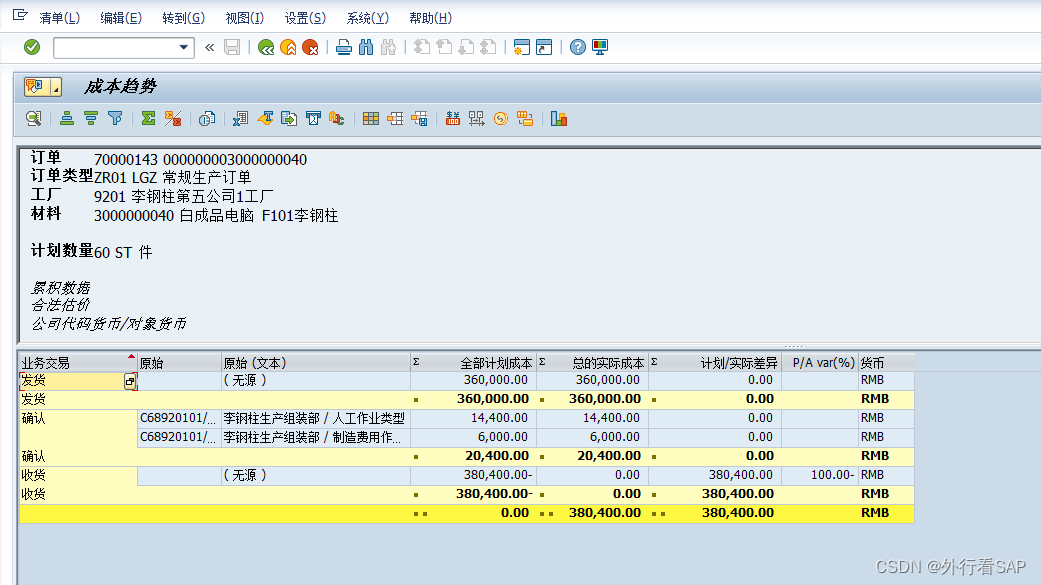

3.10 Subsequent sales shipments can be performed 、 Production order settlement and material ledger operation .
