Power Designer - Custom Comment button

power designer - Custom Comment button

VB script

Option   Explicit
ValidationMode   =   True
InteractiveMode   =   im_Batch
Dim blankStr
blankStr   =   Space(1)
Dim   mdl   ' the current model '   get   the   current   active   model
Set   mdl   =   ActiveModel
If   (mdl   Is   Nothing)   Then
      MsgBox   "There is no current Model "
ElseIf   Not   mdl.IsKindOf(PdPDM.cls_Model)   Then
      MsgBox   "The current model is not an Physical Data model. "
Else
      ProcessFolder   mdl
End   If

Private   sub   ProcessFolder(folder)
On Error Resume Next
      Dim   Tab   'running table for each Tab in folder.tables if not tab.isShortcut then tab.name = tab.comment Dim col '   running   column
                  for   each   col   in   tab.columns
                  if col.comment = "" or replace(col.comment," ", "")="" Then
                        col.name = blankStr
                        blankStr = blankStr & Space(1)
                  else
                        col.name = col.comment
                  end if
                  next
            end   if
      next

      Dim   view   'running view for each view in folder.Views if not view.isShortcut then view.name = view.comment end if next '   go   into   the   sub-packages
      Dim   f   '   running   folder
      For   Each   f   In   folder.Packages
            if   not   f.IsShortcut   then
                  ProcessFolder   f
            end   if
      Next
end   sub

Save as comment.vbs

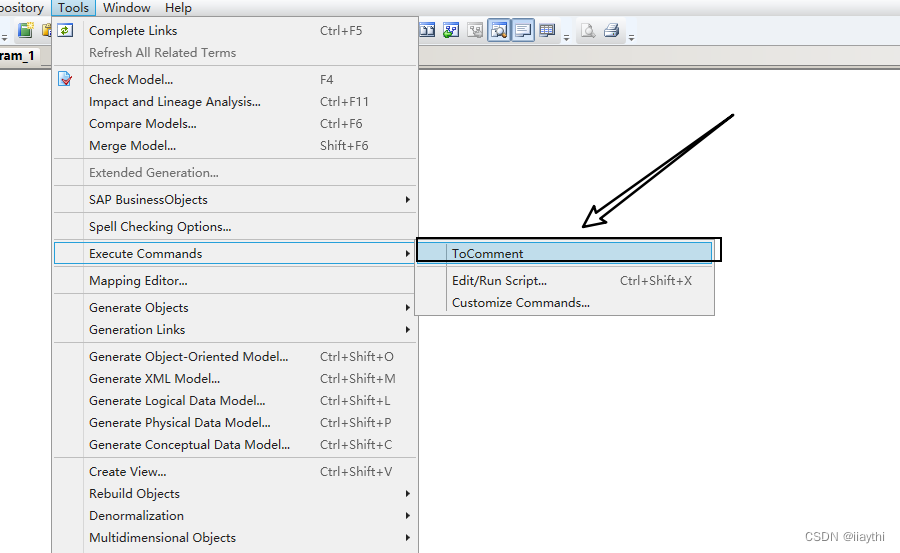

Create custom buttons

tools -> execute command -> customize command

So you can do it tools Here is the custom button we added , You don't need to execute it after each selection

good luck!!
