Stm32cubeide1.9.0\stm32cubemx 6.5 f429igt6 plus lan8720a, configure eth+lwip

2022-06-27 21:51:00 【Extremes will turn 1024】

Configured some time ago F107 Series and F7 Of LWIP function , Very smoothly , But here we are F4 series , choice ETH There was no PHY Address , Checked the ,MX 6.5 There are big changes , I sorted out various methods of various gods , Make one that can be used , Here I am. Cubeide For example

Cube When configuring, each peripheral chooses to generate its own .c .h Well organized

Some are generic SYS RCC Don't say anything about it , Open a serial port , Good configuration printf Function standby

1、 hardware configuration

Here we use the atomic development board ,F429IGT6+LAN8720A, The reset pin is connected to PCF8574 The seventh mouth of , Pin interface ：

    PC1     ------> ETH_MDC
    PA1     ------> ETH_REF_CLK
    PA2     ------> ETH_MDIO
    PA7     ------> ETH_CRS_DV
    PC4     ------> ETH_RXD0
    PC5     ------> ETH_RXD1
    PB11     ------> ETH_TX_EN
    PG13     ------> ETH_TXD0
    PG14     ------> ETH_TXD1

PCF8574 Of IIC Interface

    PH4     ------> I2C2_SCL
    PH5     ------> I2C2_SDA

2、PCF8574 Program and configuration

2、1IIC To configure

Insert picture description here
Insert picture description here
The communication rate should not be too high , The rate I tried can

2、2 PCF8574 Program

/**********************  file name ：PCF8574.c -------------------------------------------------------------  Instructions ： 1、IIC IO Expansion chip  2、 Use  PCF8574_WriteBit(0, IO_Sta%2); IO_Sta++; 3、 It needs to be initialized IIC, And use a separate file  4、ETH： PCF8574_WriteBit(7,1);// Hardware reset LAN8720 HAL_Delay(50); PCF8574_WriteBit(7,0);// End reset  ------------------------------------------------------------ -------------------------------------------------------------  Running environment ： ------------------------------------------------------------  edition ：1.0  author ：GPY  Time ：2022-Jun 8, 2022-3:24:56 PM  describe ：  Global variables ： nothing   function ：  External function ： ********************************/
#include "PCF8574.h"
#include "i2c.h"

#ifdef __STM32F4xx_HAL_I2C_H

void PCF8574_WriteBit(uint8_t IO_Num,uint8_t IO_Sta)
{

	uint8_t IO_Sta_Get[2]={
    0};
	  HAL_I2C_Master_Receive(&hi2c2, 0x40, IO_Sta_Get, 1, 1000);
	  if(IO_Sta==0)// Zero clearing
	  {

		  IO_Sta_Get[0]=IO_Sta_Get[0]&(~(1<<IO_Num));
	  }else{

		  IO_Sta_Get[0]=IO_Sta_Get[0]|(1<<IO_Num);
	  }
	  HAL_I2C_Master_Transmit(&hi2c2, 0x40, IO_Sta_Get, 1, 1000);
}

uint8_t PCF8574_ReadBit(uint8_t IO_Num)
{

	uint8_t IO_Sta_Get[2]={
    0};
	HAL_I2C_Master_Receive(&hi2c2, 0x40, IO_Sta_Get, 1, 1000);
	return IO_Sta_Get[0];
}


#endif


/**********************  file name ：PCF8574.h -------------------------------------------------------------  Instructions ： 1、IIC IO Expansion chip  2、 Use  PCF8574_WriteBit(0, IO_Sta%2); IO_Sta++; 3、 It needs to be initialized IIC, And use a separate file  4、ETH： PCF8574_WriteBit(7,1);// Hardware reset LAN8720 HAL_Delay(50); PCF8574_WriteBit(7,0);// End reset  ------------------------------------------------------------ -------------------------------------------------------------  Running environment ： ------------------------------------------------------------  edition ：1.0  author ：GPY  Time ：2022-Jun 8, 2022-3:24:44 PM  describe ：  Global variables ： nothing   function ：  External function ： ********************************/
//#include "PCF8574.h"
#ifndef PCF8574_H_
#define PCF8574_H_

#include "main.h"


#ifdef __STM32F4xx_HAL_I2C_H

void PCF8574_WriteBit(uint8_t IO_Num,uint8_t IO_Sta);
uint8_t PCF8574_ReadBit(uint8_t IO_Num);

#endif



#endif /* PCF8574_H_ */

2、3 PCF8574 Use

ETH Add... After the pin initialization is completed
stay ethernetif.c Of documents HAL_ETH_MspInit

  /* USER CODE BEGIN ETH_MspInit 1 */
	PCF8574_WriteBit(7,1);// Hardware reset LAN8720
 	HAL_Delay(50);
	PCF8574_WriteBit(7,0);// End reset
  /* USER CODE END ETH_MspInit 1 */

3、ETH To configure

Use here LAN8720A It can be used directly LAN8742 Same register description
Insert picture description here
Insert picture description here
Originally, this interface has a PHY Address of the , The new version is gone , This does not affect
Insert picture description here
Direct use LAN8742A, Don't move the bottom .
Interruptions can be switched on , You can leave it alone , Suggest tick , Check the IO ETH_TXD0,EYH_TXD1 It may not be right , It is used here PG13 PG14, The speed is the highest by default
Insert picture description here

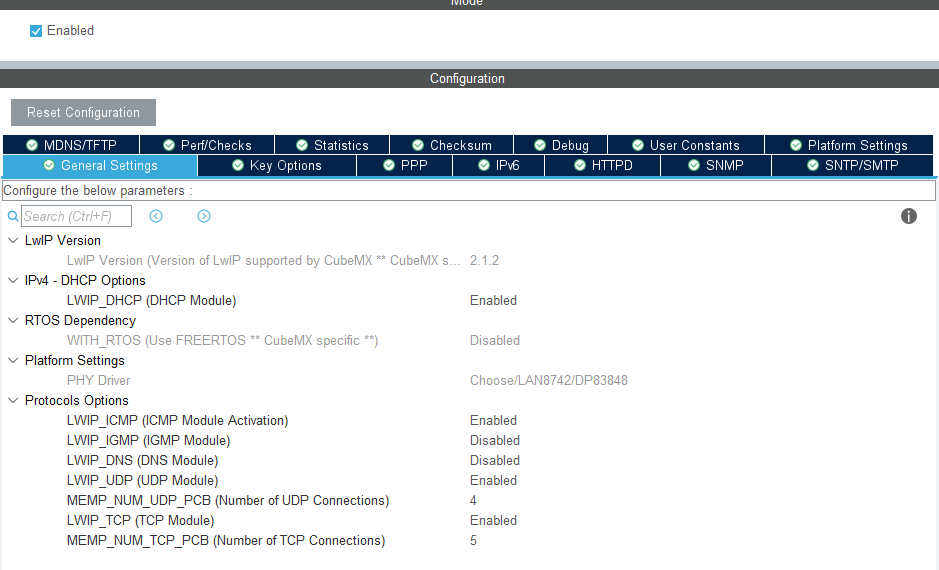

4、LWIP To configure

There are many things to pay attention to here
Many are basically default , Here, in order to prevent any omission , I'll save all the interfaces
Insert picture description here
Insert picture description here
Insert picture description here
Insert picture description here

Insert picture description here
I've never opened this , Look at them all , Haven't studied
Insert picture description here

Drive direct selection LAN8742
Then there are the things that need attention , First, remove the hardware verification
Insert picture description here
Just remove the following two enablers , Just remove the first one and change it

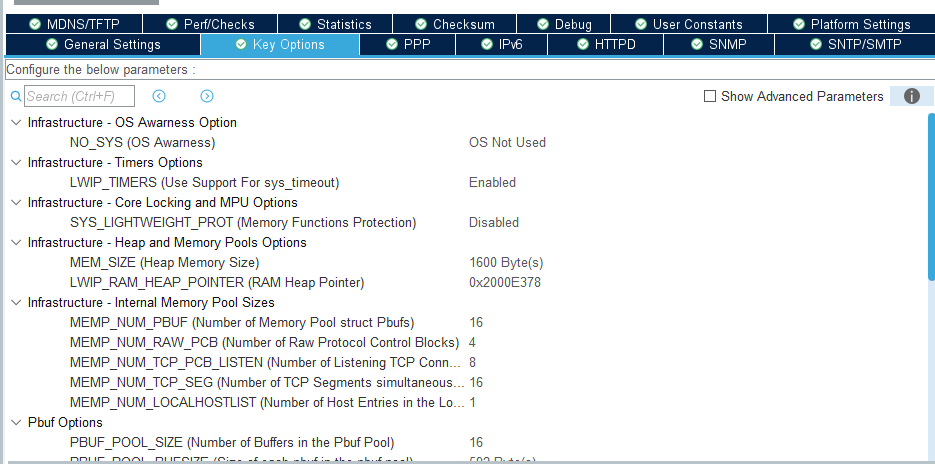

Back up there Key options The part ,
Insert picture description here
This is not the default value , Turned out to be 0x30 At the beginning , It is said that from H7 Transplanted project , This address is the address of the external extension , Direct use will prompt , But I changed it here and it didn't work , Need to be in main Redefine

Assertion "netif is not up, old style port?" failed at line 744 in ../Middlewares/Third_Party/LwIP/src/core/ipv4/dhcp.c

This should be the configuration aspect , Some later changes to the program

PS: modify , This question and the following DHCP Tips "netif is not up, old style port?" Only when the program is just finished , Reset is gone , I don't know why it's unstable .

5、 Program changes

1、 redefinition PHY Address
because cube No address in the configuration interface , Then he gave it to himself LAN8742 Set an address 1u, If yours is not 1 You can redefine ,LWIP_RAM_HEAP_POINTER You can also redefine it here

int main(void)
{

  /* USER CODE BEGIN 1 */
	// redefinition PHY Address
#ifdef LAN8742A_PHY_ADDRESS
#undef LAN8742A_PHY_ADDRESS
#define LAN8742A_PHY_ADDRESS 0U
#endif

#ifdef LWIP_RAM_HEAP_POINTER
#undef LWIP_RAM_HEAP_POINTER
#define LWIP_RAM_HEAP_POINTER 0x2000E378
#endif

	uint32_t regvalue;
  /* USER CODE END 1 */

ethernetif.c Add it to the file LAN8720A Reset of

void HAL_ETH_MspInit(ETH_HandleTypeDef* ethHandle)
{

  GPIO_InitTypeDef GPIO_InitStruct = {
    0};
  if(ethHandle->Instance==ETH)
  {

  /* USER CODE BEGIN ETH_MspInit 0 */

  /* USER CODE END ETH_MspInit 0 */
    /* Enable Peripheral clock */
    __HAL_RCC_ETH_CLK_ENABLE();

    __HAL_RCC_GPIOC_CLK_ENABLE();
    __HAL_RCC_GPIOA_CLK_ENABLE();
    __HAL_RCC_GPIOB_CLK_ENABLE();
    __HAL_RCC_GPIOG_CLK_ENABLE();
    /**ETH GPIO Configuration PC1 ------> ETH_MDC PA1 ------> ETH_REF_CLK PA2 ------> ETH_MDIO PA7 ------> ETH_CRS_DV PC4 ------> ETH_RXD0 PC5 ------> ETH_RXD1 PB11 ------> ETH_TX_EN PG13 ------> ETH_TXD0 PG14 ------> ETH_TXD1 */
    GPIO_InitStruct.Pin = GPIO_PIN_1|GPIO_PIN_4|GPIO_PIN_5;
    GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
    GPIO_InitStruct.Alternate = GPIO_AF11_ETH;
    HAL_GPIO_Init(GPIOC, &GPIO_InitStruct);

    GPIO_InitStruct.Pin = GPIO_PIN_1|GPIO_PIN_2|GPIO_PIN_7;
    GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
    GPIO_InitStruct.Alternate = GPIO_AF11_ETH;
    HAL_GPIO_Init(GPIOA, &GPIO_InitStruct);

    GPIO_InitStruct.Pin = GPIO_PIN_11;
    GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
    GPIO_InitStruct.Alternate = GPIO_AF11_ETH;
    HAL_GPIO_Init(GPIOB, &GPIO_InitStruct);

    GPIO_InitStruct.Pin = GPIO_PIN_13|GPIO_PIN_14;
    GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
    GPIO_InitStruct.Alternate = GPIO_AF11_ETH;
    HAL_GPIO_Init(GPIOG, &GPIO_InitStruct);

    /* Peripheral interrupt init */
    HAL_NVIC_SetPriority(ETH_IRQn, 0, 0);
    HAL_NVIC_EnableIRQ(ETH_IRQn);
  /* USER CODE BEGIN ETH_MspInit 1 */
	PCF8574_WriteBit(7,1);// Hardware reset LAN8720
 	HAL_Delay(50);
	PCF8574_WriteBit(7,0);// End reset
  /* USER CODE END ETH_MspInit 1 */
  }
}

lwipopts.h Add debugging information , This is very useful

/* USER CODE BEGIN 1 */
#define LWIP_DEBUG 1
#if LWIP_DEBUG
#define LWIP_DBG_TYPES_ON LWIP_DBG_ON
/* USER CODE BEGIN 1 */
#define LWIP_DBG_MIN_LEVEL LWIP_DBG_LEVEL_OFF
//#define LWIP_DBG_MIN_LEVEL LWIP_DBG_LEVEL_WARNING
//#define LWIP_DBG_MIN_LEVEL LWIP_DBG_LEVEL_SERIOUS
//#define LWIP_DBG_MIN_LEVEL LWIP_DBG_LEVEL_SEVERE

#define LWIP_DBG_TYPES_ON LWIP_DBG_ON
//#define LWIP_DBG_TYPES_ON (LWIP_DBG_ON|LWIP_DBG_TRACE|LWIP_DBG_STATE|LWIP_DBG_FRESH)

#define ETHARP_DEBUG LWIP_DBG_ON
#define NETIF_DEBUG LWIP_DBG_ON
#define PBUF_DEBUG LWIP_DBG_ON
#define API_LIB_DEBUG LWIP_DBG_ON
#define API_MSG_DEBUG LWIP_DBG_ON
#define SOCKETS_DEBUG LWIP_DBG_ON
#define ICMP_DEBUG LWIP_DBG_ON
#define IGMP_DEBUG LWIP_DBG_ON
#define INET_DEBUG LWIP_DBG_ON
#define IP_DEBUG LWIP_DBG_ON
#define IP_REASS_DEBUG LWIP_DBG_ON
#define RAW_DEBUG LWIP_DBG_ON
#define MEM_DEBUG LWIP_DBG_ON
#define MEMP_DEBUG LWIP_DBG_ON
#define SYS_DEBUG LWIP_DBG_ON
#define TCP_DEBUG LWIP_DBG_ON
#define TCP_INPUT_DEBUG LWIP_DBG_ON
#define TCP_FR_DEBUG LWIP_DBG_ON
#define TCP_RTO_DEBUG LWIP_DBG_ON
#define TCP_CWND_DEBUG LWIP_DBG_ON
#define TCP_WND_DEBUG LWIP_DBG_ON
#define TCP_OUTPUT_DEBUG LWIP_DBG_ON
#define TCP_RST_DEBUG LWIP_DBG_ON
#define TCP_QLEN_DEBUG LWIP_DBG_ON
#define UDP_DEBUG LWIP_DBG_ON
#define TCPIP_DEBUG LWIP_DBG_ON
#define PPP_DEBUG LWIP_DBG_ON
#define SLIP_DEBUG LWIP_DBG_ON
#define DHCP_DEBUG LWIP_DBG_ON
#define AUTOIP_DEBUG LWIP_DBG_ON
#define SNMP_MSG_DEBUG LWIP_DBG_ON
#define SNMP_MIB_DEBUG LWIP_DBG_ON
#define DNS_DEBUG LWIP_DBG_ON
#endif //LWIP_DEBUG
/* USER CODE END 1 */

main Add it to the function MX_LWIP_Process();

	while (1)
	{

    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
		MX_LWIP_Process();
		if (TIM_N_10ms > 50)
		{

			TIM_N_10ms = 0;
			HAL_GPIO_TogglePin(LED_R_GPIO_Port, LED_R_Pin);
		}
	}

It's almost over , I have another question here , Use DHCP Automatic access to IP When , If you do not print debugging information, you will not get IP, This may be related to the retry time , Phenomena and LAN8720A Communication failure is the same , I will study it later .
Common error tips

Assertion "netif is not up, old style port?" failed at line 744 in ../Middlewares/Third_Party/LwIP/src/core/ipv4/dhcp.c

If DHCP Automatic access to IP Always remind you if you are an old device , You can use static first IP
Insert picture description here

6、 ETH Debugging skills

I've been working on LWIP Various transplants , Although I have failed all the time , But look at other people's examples , As long as the operating environment is OK ,LWIP There is no difficulty in migrating libraries , I also tried to change the program after successful transplantation Lwip library No mistake . Mainly PHY The interface must be connected , That is, the hardware interface , Here is a verification PHY How to adjust the hardware

First of all HAL library , Direct reading LAN8720A Each register of , If you don't adjust it properly , The return values of all registers will cause 0XFFFF perhaps 0x0000

	printf("F429IG LWIP LAN8720A %s\r\n", __TIME__);
	printf("LAN8742A_PHY_ADDRESS %d \r\n", LAN8742A_PHY_ADDRESS);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, PHY_BCR, &regvalue);
	printf("PHY_BCR %d: %X\r\n", PHY_BCR, (unsigned int) regvalue);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, PHY_BSR, &regvalue);
	printf("PHY_BSR %d: %X\r\n", PHY_BSR, (unsigned int) regvalue);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, 2, &regvalue);
	printf("PHY 1 %d: %X\r\n", 2, (unsigned int) regvalue);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, 3, &regvalue);
	printf("PHY2 %d: %X\r\n", 3, (unsigned int) regvalue);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, 4, &regvalue);
	printf(" %d: %X\r\n", 4, (unsigned int) regvalue);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, 5, &regvalue);
	printf(" %d: %X\r\n", 5, (unsigned int) regvalue);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, 6, &regvalue);
	printf(" %d: %X\r\n", 6, (unsigned int) regvalue);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, 17, &regvalue);
	printf(" %d: %X\r\n", 17, (unsigned int) regvalue);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, 18, &regvalue);
	printf(" %d: %X\r\n", 18, (unsigned int) regvalue);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, 26, &regvalue);
	printf(" %d: %X\r\n", 26, (unsigned int) regvalue);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, 27, &regvalue);
	printf(" %d: %X\r\n", 27, (unsigned int) regvalue);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, 29, &regvalue);
	printf(" %d: %X\r\n", 29, (unsigned int) regvalue);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, 30, &regvalue);
	printf(" %d: %X\r\n", 30, (unsigned int) regvalue);
	HAL_ETH_ReadPHYRegister(&heth, LAN8742A_PHY_ADDRESS, 31, &regvalue);
	printf(" %d: %X\r\n-------------------------------------------\r\n", 31,
			(unsigned int) regvalue);

The old version of F1

printf("-------------------------------------\r\n");
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, PHY_BCR);
			printf("PHY_BCR %d;%X\r\n",PHY_BCR,regvalue);
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, PHY_BSR);
			printf("PHY_BSR %d;%X\r\n",PHY_BSR,regvalue);
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, 2);
			printf("%d;%X\r\n",2,regvalue);
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, 3);
			printf("%d;%X\r\n",3,regvalue);
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, 4);
			printf("%d;%X\r\n",4,regvalue);
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, 5);
			printf("%d;%X\r\n",5,regvalue);
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, 6);
			printf("%d;%X\r\n",6,regvalue);
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, 17);
			printf("%d;%X\r\n",17,regvalue);
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, 18);
			printf("%d;%X\r\n",18,regvalue);
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, 26);
			printf("%d;%X\r\n",26,regvalue);
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, 27);
			printf("%d;%X\r\n",27,regvalue);
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, 29);
			printf("%d;%X\r\n",29,regvalue);
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, 30);
			printf("%d;%X\r\n",30,regvalue);
			regvalue=ETH_ReadPHYRegister(LAN8720_PHY_ADDRESS, 31);
			printf("%d;%X\r\n",31,regvalue);
原网站

版权声明
本文为[Extremes will turn 1024]所创，转载请带上原文链接，感谢
https://yzsam.com/2022/178/202206271933376632.html

边栏推荐

猜你喜欢

随机推荐
