Preface

Contents of this study ： Original code 、 Inverse code 、 Complement code 、 The operator 、 Storage of operators in memory

---

1、 Hexadecimal and original code 、 Inverse code 、 Complement code

We all know that integers are stored in binary form in memory , Do you know how to store it ？ In fact! , It is a Complement code Stored in . Now let's have a look .

First 1 An integer takes up four bytes , Each byte takes up 8 A bit , So an integer accounts for 32 A bit , for instance ：

Integers 3, its Binary system (0～1) Is it 00000000000000000000000000000011, common 32 A bit . meanwhile 3 It can also be used. octal (0～7) Express , Hexadecimal (0～15) Express , and 2 Itself is Decimal system (0～9) It means .

So what is the original code 、 Inverse code 、 Complement code , What's the relationship between them ？

The binary representation of integers should be divided into positive integers and negative integers

Positive integer ： The original code is the same as the inverse code and the complement

Negtive integer ： Original code ： That is, the binary bit mentioned above

              Inverse code ： Keep the sign bits -> highest , Other positions are reversed by position

                        Be careful ： The highest bit is the sign bit    0-> Positive numbers    1-> negative

              Complement code ： Inverse code +1, In the memory , Integers store complements in memory

Example ：5

The original code, inverse code and complement code are ：

           00000000000000000000000000000101

Example ：-5（ The number of digits has not changed , Spacing problem ）

Original code ：10000000000000000000000000000101

Inverse code ：11111111111111111111111111111010

Complement code ：11111111111111111111111111111011

2、 Operator parsing

2.1、 Arithmetic operators

+    -    *    /    %

Be careful ：/ Fractional integer division and decimal division , To achieve decimal division ,/ There is at least one floating-point number around

          %  Both ends of the modulo operator must be integers .

2.2、 Shift operator

significance ： Shift points to move the complement of the integer left to right , Decimal shift is not supported , Nor does it support shifting negative digits or decimal places

Such as ：1.5<<1, in addition a<<-1 or a<<1.5 Also wrong

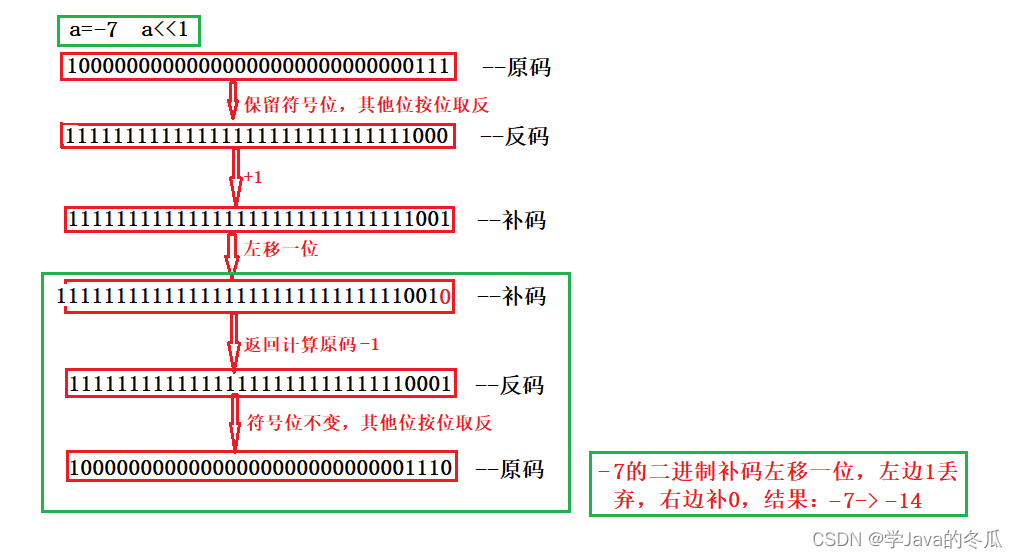

2.2.1、 Shift left operator （<<）

follow ： Left discard , The right to repair 0

Example ：

  Small conclusion ： Move left n position , amount to a*2^n

2.2.2、 Shift right operator （>>）

1、 Count right ： On the right side of the discarded , Fill in the sign on the left

2、 Logical shift right ： On the right side of the discarded , Left complement 0

Be careful ： Generally speaking , Compilers use arithmetic shift right .

Example ：

7->4

-7->-4

Moving right is similar to moving left

2.3、 Bit operators

significance ： Bit refers to the binary bit

2.3.1、&-- Bitwise AND

follow ： Yes 0 take 0, Same as 1 only 1

Example ：

2.3.2、|-- Press bit or

follow ： Yes 1 be 1, Same as 0 only 0

2.3.3、^-- Bitwise XOR

follow ： Take the same 0, Different take 1

^ Exclusive or Conclusion ：

a=3    b=-5

a^0=a         a^a=0    also ^ Satisfying the commutative law

therefore a^b^a=b       b^a^b=a

Example ：

requirement ： Do not create temporary variables to realize the exchange of two numbers

The code is as follows

#define _CRT_SECURE_NO_WARNINGS
#include<stdio.h>
// Do not create temporary variables , Realize the exchange of two numbers

// If you can create temporary variables, it is the same as usual
int main()
{
	int a = 10;
	int b = 20;
	printf(" Exchange before ：%d %d\n", a, b);

	 Law 1     Want to consider a+b Possible overflow problems
	//a = a + b;
	//b = a - b;
	//a = a - b;
	//printf(" After exchanging ：%d %d", a, b);

	// Law two
	a = a ^ b;
	b = a ^ b;       // At this time a=10^20
	a = a ^ b;
	printf(" After exchanging ：%d %d", a, b);

	return 0;
}

2.3.4、 application

Write a code ： Find a binary integer stored in memory 1 The number of

The code is as follows ：

#include<stdio.h>
int main()
{
	int a = 5;
	int cnt = 0;
	int i = 0;
	for(i=0;i<32;i++)
	{

		if(a & 1)
		{
			cnt++;
		}
		a >>= 1;

	}
	printf("%d\n", cnt);
	return 0;
}

2.4、 Monocular operators

！ Logical anti operation

-    negative

+  Comes at a time

&  Address fetch

sizeof  Find the length （ Unit is byte ）（ and strlen() Is a function to find the length of a string ）

～  Binary for a number ( Complement code ) According to the not

--    In front of 、 After

++  In front of 、 After

*      Indirect access operators （ That is, the dereference operator , Use with pointer ）

( type )  Cast

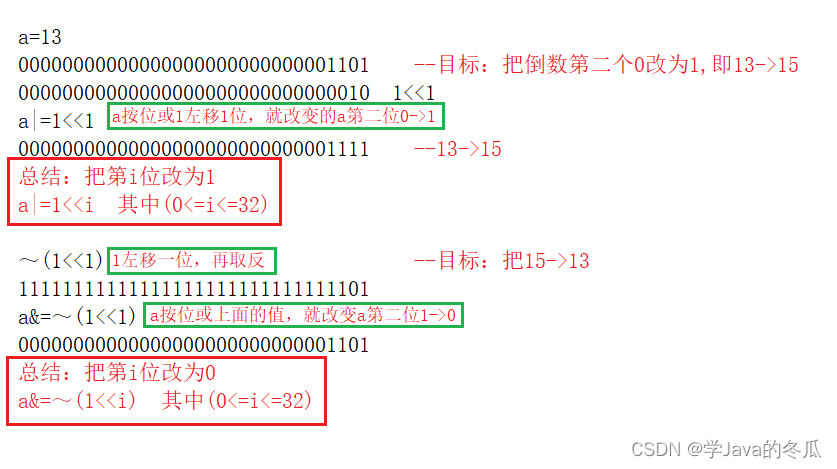

2.4.1、 application ～、&、|

Write a code ： Change the binary value of a number

summary ： The first i Bit changed to 1：a|=1<<i   among (0<=i<=32)

           The first i Bit changed to 0：a&=～(1<<i)   among (0<=i<=32)

  The code is as follows ：

#include<stdio.h>
int main()
{
	int a = 13;
	printf(" Before change ：%d\n", a);
	a |= 1 << 1;
	printf("0->1：%d\n", a);
	a &= ~(1 << 1);
	printf("1->0：%d\n", a);
	return 0;
}

demonstration ：

2.5、 Logical operators

&&    -- The left is false , Not on the right

||       -- True on the left , Not on the right

2.6、 Conditional operators

follow ：

a>b?a:b

a>b It's true , The result is a(b Don't count ), Otherwise b(a Don't count )

2.7、 Comma expression

follow ：',' The previous formula calculates in turn , The result is the result of the last expression

Such as ：a=1,b=2     c=(a>b,a=b+10,a,b=a+1)--->c=13

2.8、 Access structure operator

Such as struct Stu* p=&a   ,a It's a structure

.（ spot ）  -- Structure + Member name           (*p).

->          -- Structure pointer + Member name       p ->

2.9、 Expression evaluation

follow ： Consider priorities and associativity , One more ： Implicit type conversion

Implicit type conversion ： When character or Short It is converted to shaping before use , This situation is called Plastic surgery improves ,

2.9.1、 Plastic surgery improves

Plastic surgery improves ： High complement sign bit , The low order remains unchanged

Example ：

Such as char a=1;

Variable a There are only... In the binary complement of 8 A bit

：00000001

because a For signed char, When shaping and lifting , High complement sign bit , The result is

：00000000000000000000000000000001

The code is as follows （ Proof of plastic improvement ）：

// Proof of plastic improvement
#include<stdio.h>
int main()
{
	char c = 5;
	printf("c Size ：%d\n", sizeof(c));
	printf("c Size ：%d\n", sizeof(+c));

	return 0;
}

demonstration ：

The significance of plastic surgery Promotion ：

The shaping operation of the expression should be in CPU In the corresponding computing device of ,CPU Inside the shaper （ALU） The byte length of the operands of is generally int Byte length of , It's also CPU The length of a general-purpose register .

Universal CPU It is difficult to realize two directly 8 Direct addition of bits and bytes , therefore , Various lengths in expressions may be less than int The integer value of the length , Must be converted to int or unsigned int, Then it can be sent in CPU To perform the operation

2.9.2、 Arithmetic conversion

As opposed to plastic lifting , Type size >=int when , Arithmetic conversion occurs

---

summary

That's what we're going to talk about today , This article introduces the shift operator , Bit operators , Bitwise negation operators and their applications , There are also plastic lifting and arithmetic conversion
