lab08—PS/2 decode
DE2 There's one on PS/2 Interface , It can be connected to keyboard or mouse , This experiment uses PS/2 A keyboard is attached to the interface , And decode the keys , Press down X key ,DE2 Upper LEDG3-0 Move right ; Press down W key ,LEDG3-0 Move left , Press down Ctrl, reverse .

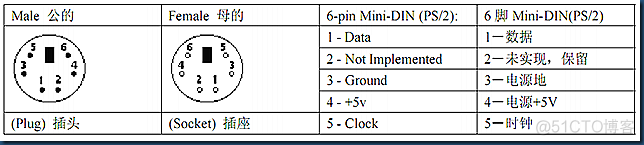

1. PS/2 brief introduction
![[ note ] Re note -- Learn by doing Verilog HDL –008_d3](/img/1b/f359bebbd3b866dbfdee1d7abca66b.png "image")
Research PS/2 decode , Just care about the data and clock pins . The picture below is PS/2 Sequence diagram of the protocol , Read data is valid on the falling edge of the clock .PS/2 The clock for is approximately 10khz.
![[ note ] Re note -- Learn by doing Verilog HDL –008_sed_02](/img/67/0ca1f4fb51b8c41eabf3b61e859b8f.png "image")
PS/2 Yizhen yes 11 position , Decoding it , Just focus on 1-8 Digit bit .
Keyboard code ：
Keyboard coding is divided into pass code and break code , Press to pass the code , Release as broken code . such as , Press down W Don't put , About output per second 10 individual 0x1d. Release W, Output 0xf0 0x1d. Encoding rules , Only one valid output at a time .
2. Design
![[ note ] Re note -- Learn by doing Verilog HDL –008_d3_03](/img/7f/0ca73446247455ac4d8f9667083a87.png "image")
ps2_module.v Including level detection module detect_module.v and ps2 Decoding module ps2_decode_module.v.detect_module.v Used to detect ps2 The falling edge of the clock ,ps2_decode_module.v For each frame of data （11 position ） Decoding and filtering , Output 8 Bit ps2_data And a high pulse ps2_done, Indicates that decoding is complete .
detect_module.v
1 /**
2 * File name: detect_module.v
3 *
4 */
5
6 module detect_module
7 (
8 clk, rst_n,
9 ps2_clk,
10 h2l_sig
11 );
12
13 input clk;
14 input rst_n;
15 input ps2_clk;
16 output h2l_sig;
17
18 reg h2l_f1;
19 reg h2l_f2;
20
21 always @(posedge clk or negedge rst_n)
22 if (!rst_n)
23 begin
24 h2l_f1 <= 1'b1;
25 h2l_f2 <= 1'b1;
26 end
27 else
28 begin
29 h2l_f1 <= ps2_clk;
30 h2l_f2 <= h2l_f1;
31 end
32
33 assign h2l_sig = h2l_f2 & !h2l_f1;
34
35 endmodule
36
- 1.
- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.
- 31.
- 32.
- 33.
- 34.
- 35.
- 36.
ps2_decode_module.v
1 /**
2 * File name : ps2_decode_module.v
3 *
4 */
5
6 module ps2_decode_module
7 (
8 clk, rst_n,
9 h2l_sig, ps2_data_in,
10 ps2_data, ps2_done
11 );
12
13 input clk;
14 input rst_n;
15 input h2l_sig;
16 input ps2_data_in;
17 output [7:0] ps2_data;
18 output ps2_done;
19
20 reg [7:0] rdata;
21 reg [4:0] i;
22 reg isshift;
23 reg isdone;
24
25 always @(posedge clk or negedge rst_n)
26 if (!rst_n)
27 begin
28 rdata <= 8'd0;
29 i <= 5'd0;
30 isdone <= 1'b0;
31 end
32 else
33 case (i)
34 5'd0:
35 if (h2l_sig) i <= i + 1'b1;
36
37 5'd1, 5'd2, 5'd3, 5'd4, 5'd5, 5'd6, 5'd7, 5'd8:
38 if (h2l_sig)
39 begin
40 i <= i + 1'b1;
41 rdata[i-1] <= ps2_data_in;
42 end
43
44 5'd9, 5'd10:
45 if (h2l_sig)
46 i <= i + 1'b1;
47
48 5'd11:
49 if (rdata == 8'hf0)
50 i <= 5'd12;
51 else
52 i <= 5'd23;
53
54 5'd12, 5'd13, 5'd14, 5'd15, 5'd16, 5'd17, 5'd18, 5'd19, 5'd20, 5'd21, 5'd22:
55 if (h2l_sig)
56 i <= i + 1'b1;
57
58 5'd23:
59 begin
60 i <= i + 1'b1;
61 isdone <= 1'b1;
62 end
63
64 5'd24:
65 begin
66 i <= 5'd0;
67 isdone <= 1'b0;
68 end
69 endcase
70
71 assign ps2_data = rdata;
72 assign ps2_done = isdone;
73
74 endmodule
75
76
77
- 1.
- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.
- 31.
- 32.
- 33.
- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40.
- 41.
- 42.
- 43.
- 44.
- 45.
- 46.
- 47.
- 48.
- 49.
- 50.
- 51.
- 52.
- 53.
- 54.
- 55.
- 56.
- 57.
- 58.
- 59.
- 60.
- 61.
- 62.
- 63.
- 64.
- 65.
- 66.
- 67.
- 68.
- 69.
- 70.
- 71.
- 72.
- 73.
- 74.
- 75.
- 76.
- 77.
ps2_decode_module.v The trick is to ignore irrelevant data bits directly , utilize i <= i + 1 skip , The first 48 Line to determine whether it is a general code , Ignore the general code after code break .
ps2_module.v
1 /**
2 * File name: ps2_module.v
3 *
4 */
5
6 module ps2_module
7 (
8 clk, rst_n,
9 ps2_clk, ps2_data_in,
10 ps2_data, ps2_done
11 );
12
13 input clk;
14 input rst_n;
15 input ps2_clk;
16 input ps2_data_in;
17 output [7:0] ps2_data;
18 output ps2_done;
19
20 wire h2l_sig;
21
22 detect_module U1
23 (
24 .clk (clk),
25 .rst_n (rst_n),
26 .ps2_clk (ps2_clk),
27 .h2l_sig (h2l_sig)
28 );
29
30 ps2_decode_module U2
31 (
32 .clk (clk),
33 .rst_n (rst_n),
34 .h2l_sig (h2l_sig),
35 .ps2_data_in (ps2_data_in),
36 .ps2_data (ps2_data),
37 .ps2_done (ps2_done)
38 );
39
40 endmodule
41
- 1.
- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.
- 31.
- 32.
- 33.
- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40.
- 41.
cmd_control_module.v
1 /**
2 * File name: cmd_control_module.v
3 *
4 */
5
6 module cmd_control_module
7 (
8 clk, rst_n,
9 ps2_done, ps2_data,
10 data_out
11 );
12
13 input clk;
14 input rst_n;
15 input ps2_done;
16 input [7:0] ps2_data;
17 output [3:0] data_out;
18
19 reg [3:0] rdata;
20
21 always @(posedge clk or negedge rst_n)
22 if (!rst_n)
23 begin
24 rdata <= 4'b0001;
25 end
26 else if (ps2_done)
27 case (ps2_data)
28 8'h1d: //W
29 rdata <= {rdata[2:0], rdata[3]};
30
31 8'h22: //X
32 rdata <= {rdata[0], rdata[3:1]};
33
34 8'h14: //Ctrl
35 rdata <= {rdata[0], rdata[1], rdata[2], rdata[3]};
36
37 endcase
38
39 assign data_out = rdata;
40
41 endmodule
42
- 1.
- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.
- 31.
- 32.
- 33.
- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40.
- 41.
- 42.
exp08_module.v
1 /**
2 * File name: exp08_module.v
3 * Function: use the ps/2 keyboard to test the de2's ps/2
4 * interface.
5 * x--right shift
6 * w--left shift
7 * ctrl--turn back
8 * Pins: PS2_DAT--X,W,Ctrl;
9 * KEY0--reset;
10 * LEDG3-0--data_out.
11 *
12 * yf.x
13 * 07-30-2011
14 *
15 */
16
17 module exp08_module
18 (
19 CLOCK_50, KEY,
20 PS2_CLK, PS2_DAT,
21 LEDG
22 );
23
24 input CLOCK_50;
25 input [0:0] KEY;
26 input PS2_CLK;
27 input PS2_DAT;
28 output [3:0] LEDG;
29
30 wire [7:0] ps2_data;
31 wire ps2_done;
32
33 ps2_module U1
34 (
35 .clk (CLOCK_50),
36 .rst_n (KEY),
37 .ps2_clk (PS2_CLK),
38 .ps2_data_in (PS2_DAT),
39 .ps2_data (ps2_data),
40 .ps2_done (ps2_done)
41 );
42
43 cmd_control_module U2
44 (
45 .clk (CLOCK_50),
46 .rst_n (KEY),
47 .ps2_done (ps2_done),
48 .ps2_data (ps2_data),
49 .data_out (LEDG)
50 );
51
52 endmodule
53
- 1.
- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.
- 31.
- 32.
- 33.
- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40.
- 41.
- 42.
- 43.
- 44.
- 45.
- 46.
- 47.
- 48.
- 49.
- 50.
- 51.
- 52.
- 53.

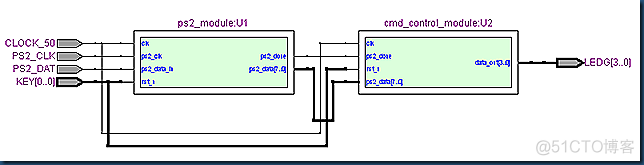

3. RTL chart
![[ note ] Re note -- Learn by doing Verilog HDL –008_ data _04](/img/3c/26b7ad88f2359819e5515eb98311cb.png "image")
![[ note ] Re note -- Learn by doing Verilog HDL –008_ data _05](/img/c8/2b28ab97d9187b6979d78a21eb7ce1.png "image")
4. Summary
PS/2 decode , The most important thing is to use the general code , Edit the general code as a valid command or trigger event . Output is just a way , Whether you want to display characters or commands .
