Learning about opencv (2)

Next, continue to opencv To study , Learning image gradient ,Canny Edge detection and image pyramid

Image gradient

sobel operator ：

# Right - Left , On - Next
# dst = cv2.Sobel(scr,ddepth,dx,dy,ksize)
#ddepth： The depth of the image     Usually -1
#dx,dy Horizontal and vertical directions respectively
#ksize yes Soble The size of the operator      commonly 3*3

  The above is right Sobel General description of operator usage .

Next are some specific applications ：

cat = cv2.imread('cat.jpg',cv2.IMREAD_GRAYSCALE)
soblex = cv2.Sobel(cat,cv2.CV_64F,1,0,ksize=3)
cv_show('a',soblex)
sobley =cv2.Sobel(cat,cv2.CV_64F,0,1,ksize=3)
cv_show('b',sobley)

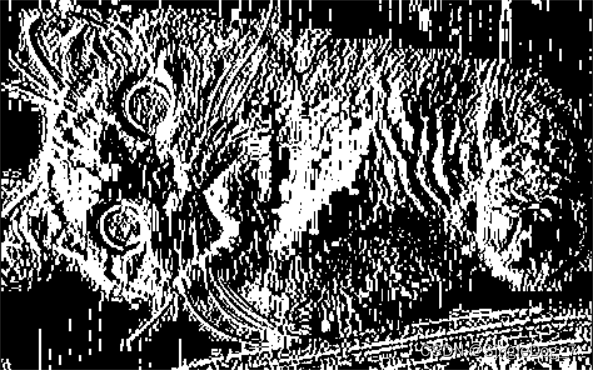

  On the left is soblex, On the right is sobley.

Negative numbers will be truncated , Taking an absolute value will make the outline clearer

# White to black is a positive number , Black to white is a negative number , Negative numbers will be 0 truncation , So take the absolute value
soblex = cv2.Sobel(cat,cv2.CV_64F,1,0,ksize=3)
soblex =cv2.convertScaleAbs(soblex)
cv_show('c',soblex)

sobley =cv2.Sobel(cat,cv2.CV_64F,0,1,ksize=3)
sobley =cv2.convertScaleAbs(sobley)
cv_show('b',sobley)

among convertScaleAbs Is to take the absolute value of the object .



   On the left is soblex, On the right is sobley.

  The following is a comparison of sum and direct sum based on the above operations ：

# Separate calculation x and y, And then sum up
soblexy=cv2.addWeighted(soblex,0.5,sobley,0.5,0)
cv_show('e',soblexy)

# Direct calculation ：
soblexy =cv2.Sobel(cat,cv2.CV_64F,1,1,ksize=3)
soblexy =cv2.convertScaleAbs(soblexy)
cv_show('g',soblexy)
# The effect may not be very good

The left figure is calculated first x,y And then sum up , On the right is direct summation .

 scharr And laplacian operator ：

scharr More sensitive to differences in results
laplacian Sensitive to noise

# More lines
img=cv2.imread('cat.jpg',cv2.IMREAD_GRAYSCALE)
scharrx = cv2.Scharr(img,cv2.CV_64F,1,0)
scharry = cv2.Scharr(img,cv2.CV_64F,0,1)
scharrx = cv2.convertScaleAbs(scharrx)
scharry = cv2.convertScaleAbs(scharry)
scharrxy = cv2.addWeighted(scharrx,0.5,scharry,0.5,0)

# It's simpler
laplacian =cv2.Laplacian(img,cv2.CV_64F)
laplacian =cv2.convertScaleAbs(laplacian)

res = np.hstack((soblexy,scharrxy,laplacian))
cv_show('v',res)

  Just a comparison of three （ among soble It's direct summation ）

Canny edge detection ：

Use Gaussian filtering , Filter out noise
Calculate the gradient and direction of pixels （soble）
Non maximum suppression
Double threshold detection

Usually, the purpose of edge detection is to preserve the original image attributes , Significantly reduce the data size of the image .

img = cv2.imread('cat.jpg',cv2.IMREAD_GRAYSCALE)
v1=cv2.Canny(img,80,150)    #80minVal  150maxVal
v2=cv2.Canny(img,50,100)    # The smaller the size, the higher the requirements , The more edge information

res = np.hstack((v1,v2))
cv_show('res',res)

  Contrast figure , For the selection of double threshold , The smaller the line, the more , The more edge information .

Image pyramid ：

The pyramid of Gauss

Enlarge or reduce the image

 Convolution before pooling
print(img.shape)

up=cv2.pyrUp(img)
cv_show('up',up)
print(up.shape)

down = cv2.pyrDown(img)
cv_show('down',down)
print(down.shape)

The original (296, 474)
Magnified (592, 948)
Smaller (148, 237)

The result is irreversible , Sample first , Take another sample , The result is different from the original , Some information will be lost

（ understand ） The pyramid of Laplace ：

down = cv2.pyrDown(img)
down_up =cv2.pyrUp(down)
l_l=img-down_up
cv_show('l_l',l_l)



 （cv_show It's a function written by myself ）
