Share several tools for designing exquisite circuit diagrams

Focus on + Star sign public Number , Don't miss the highlights

from | Remember sincerity

Drawing schematic diagram is the job of hardware engineer , In some demonstration situations , For example, report work ,PPT Document writing, etc , We may need lightweight software , Instead of a few G Of Altim Designer、PADS Logic Or is it Cadence, After all, these software installation is also more troublesome .

Today I recommend several lightweight tools , It is convenient for small partners to use later .

1、AxGlyph

AxGlyph It is a professional practical vector drawing tool , Look at these pictures below , You know the , And this software only 7M Multipoint , It's easy to install .

The circuit part concerned by hardware engineers , There are not many devices in it , Simple can also meet .

Draw a circuit diagram casually , It's like this , Isn't it good .

2、EdrawSoft

EdrawSoft Is a multi-functional tool , Mind mapping 、 Flow chart, etc .

Of course, there are also circuit related modules .

I think the advantage lies in the community , There will be some ready-made templates , Use it to change it , Of course, some are charged .

To see a Type-C Interface diagram , The painting is very beautiful , Very good .

3、drawio

draw.io Is an online mapping website , A lot of function , Mind mapping 、 flow chart 、 Network diagram, etc , The circuit diagram also has .

Many drawings inside can be set to sketch style , It's cool .

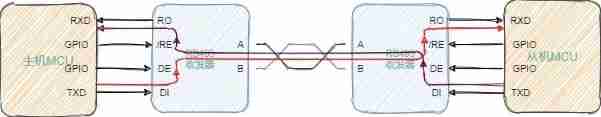

I've been using this software , In previous articles, many drawings were drawn with it , As the following two .

4、fritzing

fritzing This circuit design software , Personal makers use a lot , Support multiple languages , At the same time, bread board 、 Schematic diagram 、PCB Three views , And in any design , The software will automatically generate the other two views synchronously .

AxGlyph Download address ：

https://www.amyxun.com/

EdrawSoft Download address ：

https://www.edrawsoft.cn/edrawmax/

drawio Online address ：

https://app.diagrams.net/

fritzing Download address ：

https://fritzing.org/download/
