Bloom filter

Prior to Distributed cache In the article , As mentioned, one solution for cache penetration is the bloan filter . This article will give a detailed introduction to bloom filter .

---

Principle of bloon filter

The bloon filter (BloomFilter) It is actually a data structure , It includes a long binary vector and a series of random mapping functions . It is mainly used to retrieve whether an element is in a collection .

The advantage is that both space efficiency and query time efficiency are very high , The disadvantage is that there is a certain misjudgment rate , And element deletion is not supported .

Inside the bron filter , A single digit group is maintained bitArray. At the beginning, all bits are 0.

When inserting an element , Calculate the hash value of this element through multiple hash functions , At the index of the array corresponding to the hash value , take 0 Set as 1.

Here is an example to illustrate . The initial array is as follows ：

0	0	0	0	0	0	0

Insert the first element a, Suppose three hash functions are used to calculate , The hash values obtained are 1,2,3, Then the array ( from 1 Start ) On the corresponding position 0 Set up 1, Get the new array as follows ：

1	1	1	0	0	0	0

Then insert the second element b, Suppose three hash functions are used to calculate , The hash values obtained are 4,5,6, Then... At the corresponding position of the array 0 Set up 1, Get the new array as follows ：

1	1	1	1	1	1	0

Now judge the element a Is it in the filter , Then view the array 1,2,3 The number in position , All for 1 explain a In the filter .

To judge elements c Is it in the bloom filter , After three hash functions, the hash value is obtained 1,5,7. Check the array 1,5,7 Is there 0, Location of discovery 7 The number is 0, So it was decided c be not in .

So if the element c The hash value calculated by three hash functions is 1,5,6 Well ？ At this point, the result is the element c In this filter , This is miscalculation .
Anyone who knows the hash table knows ,c The reason why elements are misjudged is calculation c Hash collision occurred when the hash value of , And the three hash values collided .

A conclusion can be drawn from the above example ： The bloom filter can accurately determine that an element does not exist , But you can't judge the existence of an element 100% .

When more and more elements are added to the bloom filter , Occupied bit More and more , At this time, the probability of hash collision is higher , The probability of miscarriage of justice increases .

When all bit All bits are set to 1 when , At this time, the bloom filter loses its filtering function , At this point, any element will be judged to exist . therefore , It is very important to choose a suitable filter length .

It is also easy to understand that element deletion is not supported , Because the hash value of the element may have hash collision ( Only when all hash values collide will it be misjudged ).

Such as element c The hash value of 1,5,7. among ,1 And element a Hash value collision ,5 And element b Hash value collision ,7 No collision .

If you delete an element c, Also is to 1,5,7 Set as 0, Obviously, at this time, the element a And elements b Your judgment will be wrong .

accuracy

To improve the accuracy of Bloom filter , There are two main points ：

• Multiple hash functions , Reduce hash The probability of collision .
• Expand the array range , send hash Values are evenly distributed , Reduce hash The probability of collision .

Although Bloom filters have been reduced as much as possible hash The probability of collision , But it can't be completely eliminated . About the array size of Bloom filter and the corresponding hash The choice of the number of functions , The specific derivation process is not detailed here , Give a direct conclusion ：

(1) set up m Is the size of the array ,n Is the number of elements , For fixed m/n, The best number of hash functions is ：k = (m/n)ln2（ The more the number, the more the bloom filter bit The position is 1 The faster , And the lower the efficiency of the bloom filter ）.

(2) The misjudgment rate and the values of each parameter are as follows ：

stay redis Application in

Redis stay 4.0 In later versions, the bloom filter plug-in is provided , Its functions can be used after installation .
stay https://github.com/RedisBloom/RedisBloom Download the latest release Source code , Decompress and compile in the compilation server to get the dynamic library ：redisbloom.so
Copy the dynamic library to redis Under the table of contents . modify redis.conf:

################################## MODULES #####################################

# Load modules at startup. If the server is not able to load modules
# it will abort. It is possible to use multiple loadmodule directives.
loadmodule /usr/local/redis-5.0.5/redisbloom.so
# loadmodule /path/to/my_module.so
# loadmodule /path/to/other_module.so

Load... In the configuration file redisbloom This module.

stay redis Specify the configuration file at startup ：nohup ./redis-server /usr/local/redis-5.0.5/redis.conf &

Of course , In production environment redis You can't just restart , You can hot load directly through commands redis plug-in unit , As shown in the figure below ：

127.0.0.1:6379> module list
(empty list or set)
127.0.0.1:6379> module load /usr/local/redis-5.0.5/redisbloom.so
OK
127.0.0.1:6379> module list
1) 1) "name"
   2) "bf"
   3) "ver"
   4) (integer) 999999

The module is called bf, The module version number is 999999.

The operation command of the bron filter is as follows ：

• bf.add: Additive elements
• bf.exists: Query whether the element exists
• bf.madd: Add multiple elements
• bf.mexists: Query whether multiple elements exist

Add elements and determine whether they exist ：

127.0.0.1:6379> bf.add users 2
(integer) 1
127.0.0.1:6379> bf.exists users 1
(integer) 0
127.0.0.1:6379> bf.exists users 2
(integer) 1

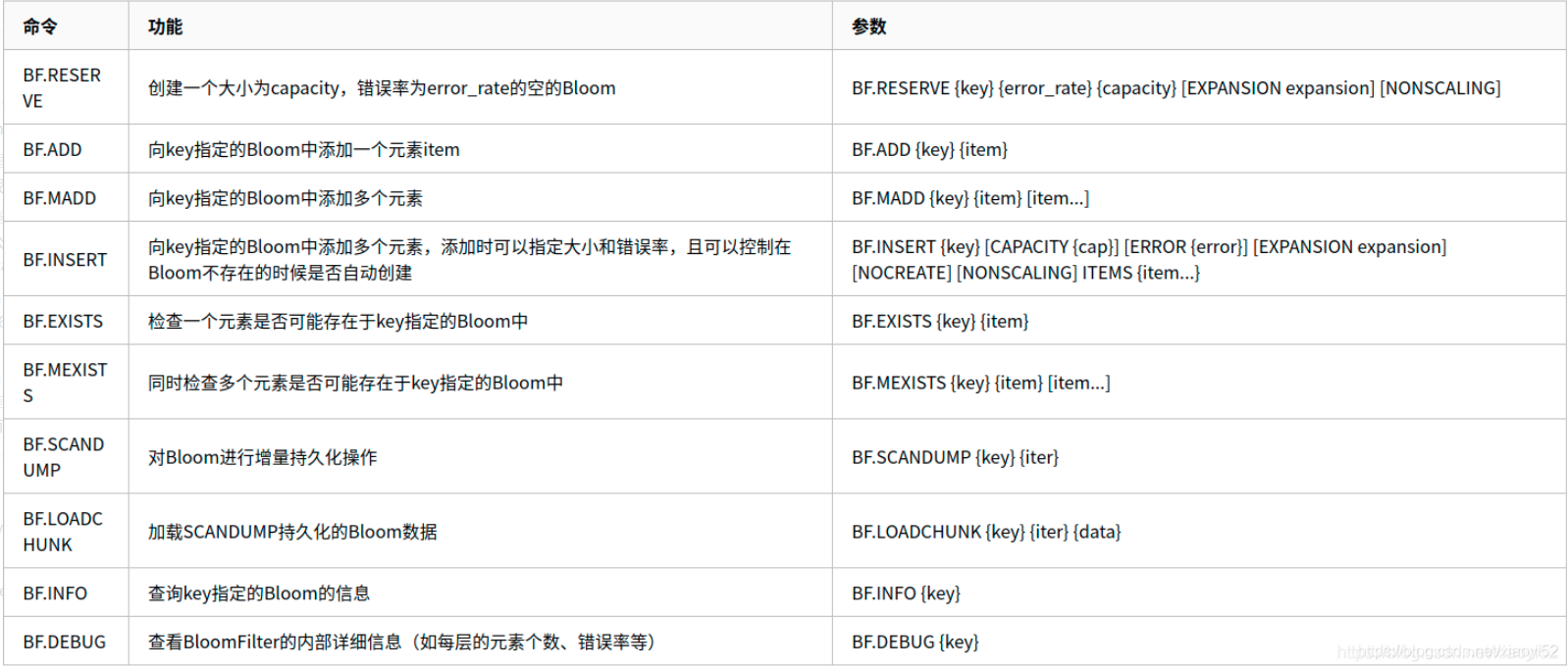

Detailed command ：

Java Bloom filter in

stay google Of guava The toolkit implements BloomFilter：

import com.google.common.base.Charsets;
import com.google.common.hash.BloomFilter;
import com.google.common.hash.Funnels;

public class GuavaBloomFilter {
    public static void main(String[] args) {
        BloomFilter<String> bloomFilter = BloomFilter.create(Funnels.stringFunnel(Charsets.UTF_8), 100000, 0.01);

        bloomFilter.put("10086");

        System.out.println(bloomFilter.mightContain("123456"));
        System.out.println(bloomFilter.mightContain("10086"));
    }
}

Reference material

[1]. https://www.zhihu.com/question/38573286
[2]. https://www.jianshu.com/p/f04edbded1b9
