[Chapter 10: a website digital verification code recognition based on moment invariants matlab deep learning practical application case]

【 The first 10 Chapter Digital verification code recognition based on moment invariants MATLAB In depth study of practical application cases 】

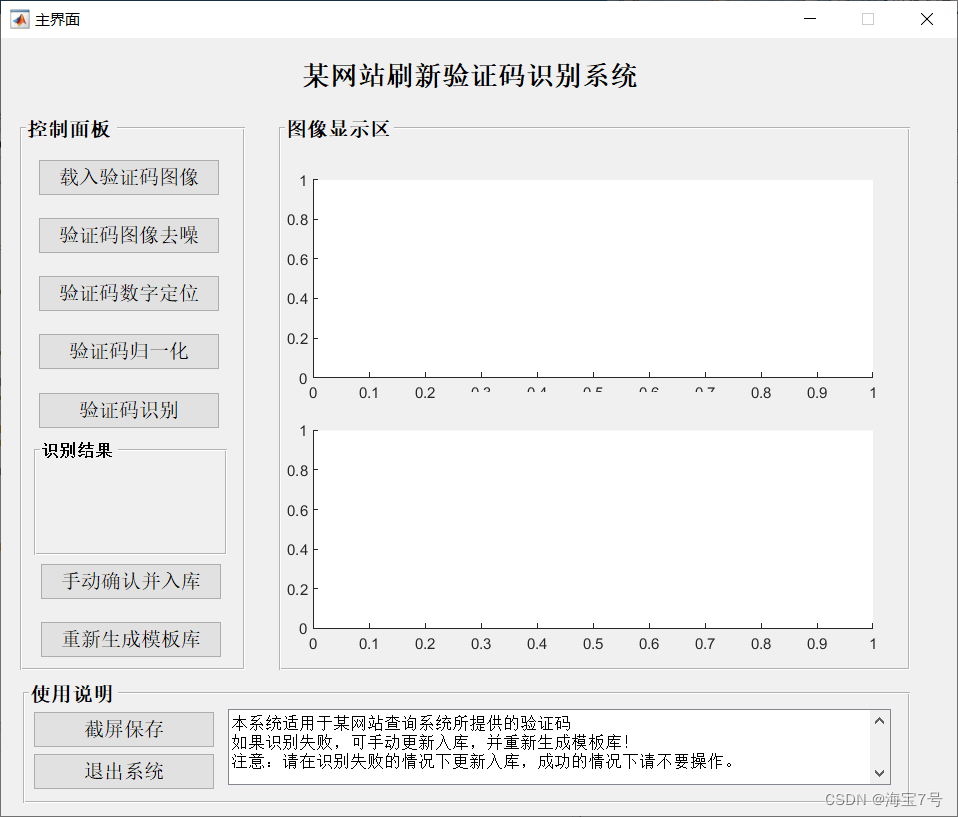

GUI The interface effect is shown in the figure





Subfunction
invmoments.m file

function res = invmoments(x)

x = double(x);
[M,N,~] = size(x);
[X,Y] = meshgrid(1:M, 1:N);
X = X(:);
Y = Y(:);
x = x(:);
m.m00 = sum(x);
m.m10 = sum(X.*x);
m.m01 = sum(Y.*x);
m.m11 = sum(X.*Y.*x);
m.m20 = sum(X.^2.*x);
m.m02 = sum(Y.^2.*x);
m.m30 = sum(X.^3.*x);
m.m03 = sum(Y.^3.*x);
m.m12 = sum(X.*Y.^2.*x);
m.m21 = sum(X.^2.*Y.*x);
xbar = m.m10/m.m00;
ybar = m.m01/m.m00;
e.hp11 = (m.m11 - ybar*m.m10) / m.m00^2;
e.hp20 = (m.m20 - xbar*m.m10) / m.m00^2;
e.hp02 = (m.m02 - ybar*m.m01) / m.m00^2;
e.hp30 = (m.m30 - 3*xbar*m.m20 + 2*xbar^2*m.m10) / m.m00^2.5;
e.hp03 = (m.m03 - 3*ybar*m.m02 + 2*ybar^2*m.m01) / m.m00^2.5;
e.hp21 = (m.m21 - 2*xbar*m.m11 -ybar*m.m20 + 2*xbar^2*m.m01) / m.m00^2.5;
e.hp12 =  (m.m12 - 2*ybar*m.m11 -xbar*m.m02 + 2*ybar^2*m.m10) / m.m00^2.5;
res(1) = e.hp20 + e.hp02;
res(2) = (e.hp20 - e.hp02)^2 + 4*e.hp11^2;
res(3) = (e.hp30 - 3*e.hp12)^2 + (3*e.hp21 - e.hp03)^2;
res(4) = (e.hp30 + e.hp12)^2 + (e.hp21 + e.hp03)^2;
res(5) = (e.hp30 - 3*e.hp12)*(e.hp30 + e.hp12)*...
    ((e.hp30 + e.hp12)^2 - 3*(e.hp21 + e.hp03)^2)+...
    (3*e.hp21 - e.hp03)*(e.hp21 + e.hp03)*...
    (3*(e.hp30 + e.hp12)^2 - (e.hp21 + e.hp03)^2);
res(6) = (e.hp20 - e.hp02) * ((e.hp30 + e.hp12)^2-...
    (e.hp21 + e.hp03)^2)+...
    4*e.hp11*(e.hp30 + e.hp12)*(e.hp21 + e.hp03);
res(7) = (3*e.hp21 - e.hp03) * (e.hp30 + e.hp12) * ...
    ( (e.hp30 + e.hp12)^2 - 3*(e.hp21 + e.hp03)^2) +...
    (3*e.hp12 - e.hp30)*(e.hp21 + e.hp03)*...
    (3*(e.hp30 + e.hp12)^2 - (e.hp21 + e.hp03)^2);

Subfunctions GetAllFiles.m

function fileList = GetAllFiles(dirName)

dirData = dir(dirName);
dirIndex = [dirData.isdir];
fileList = {
    dirData(~dirIndex).name}';
if ~isempty(fileList)
    fileList = cellfun(@(x) fullfile(dirName,x),...
        fileList,'UniformOutput',false);
end
subDirs = {
    dirData(dirIndex).name};
validIndex = ~ismember(subDirs,{
    '.','..'});
for iDir = find(validIndex)
    nextDir = fullfile(dirName,subDirs{
    iDir});
    fileList = [fileList; GetAllFiles(nextDir)];
end

end

function
GetDatabase

function GetDatabase()
files = dir(fullfile(pwd, 'images/*.jpg'));
for i = 0 : 9
    foldername = fullfile(pwd, sprintf('Databse/%d', i));
    if ~exist(foldername, 'dir')
        mkdir(foldername);
    end
end
h = waitbar(0,' Dealing with , Please wait ...', 'Name', ' Generate template library ');
steps = length(files);

for fi = 1 : length(files)
    filename = fullfile(pwd, sprintf('images/%s', files(fi).name));
    [pathstr, name, ext] = fileparts(filename);
    name = name(1:4);
    Img = imread(filename);
    hsv = rgb2hsv(Img);
    h = hsv(:, :, 1);
    s = hsv(:, :, 2);
    v = hsv(:, :, 3);
    bw1 = h > 0.16 & h < 0.30;
    bw2 = s > 0.65 & s < 0.80;
    bw = bw1 & bw2;
    Imgr = Img(:, :, 1);
    Imgg = Img(:, :, 2);
    Imgb = Img(:, :, 3);
    Imgr(bw) = 255;
    Imgg(bw) = 255;
    Imgb(bw) = 255;
    Imgbw = cat(3, Imgr, Imgg, Imgb);
    Ig = rgb2gray(Imgbw);
    Ibw = im2bw(Ig, 0.8);
    sz = size(Ibw);
    cs = sum(Ibw, 1);
    mincs = min(cs);
    maxcs = max(cs);
    masksize = 16;
    S1 = []; E1 = [];
    flag = 1;
    s1 = 1;
    tol = maxcs;

    while s1 < sz(2)
        for i = s1 : sz(2)
            s2 = i;
            if cs(s2) < tol && flag == 1
                flag = 2;
                S1 = [S1 s2-1];
                break;
            elseif cs(s2) >= tol && flag == 2
                flag = 1;
                E1 = [E1 s2];
                break;
            end
        end
        s1 = s2 + 1;
    end
    Ibw = ~Ibw;
    Ibw = bwmorph(Ibw, 'thin', inf);
    for i = 1 : length(S1)
        Ibwi = Ibw(:, S1(i):E1(i));
        [L, num] = bwlabel(Ibwi);
        stats = regionprops(L);
        Ar = cat(1, stats.Area);
        [maxAr, ind_maxAr] = max(Ar);
        recti = stats(ind_maxAr).BoundingBox;
        recti(1) = recti(1) + S1(i) - 1;
        recti(2) = recti(2);
        recti(3) = recti(3);
        recti(4) = recti(4);
        Ibwi = imcrop(Ibw, recti);
        rate = masksize/max(size(Ibwi));
        Ibwi = imresize(Ibwi, rate, 'bilinear');
        ti = zeros(masksize, masksize);
        rsti = round((size(ti, 1)-size(Ibwi, 1))/2);
        csti = round((size(ti, 2)-size(Ibwi, 2))/2);
        ti(rsti+1:rsti+size(Ibwi,1), csti+1:csti+size(Ibwi,2))=Ibwi;
        Ti{
    i} = ti;
    end
    for i = 1 : length(Ti)
        namei = name(i);
        outfilenamei = fullfile(pwd, sprintf('Databse/%s/%s_%d_%d.jpg', namei, namei, fi, i));
        imwrite(Ti{
    i}, outfilenamei);
    end
    fprintf('\n Disposed of %d------%d\n', fi, length(files));
    h = waitbar(fi / steps);
end
close(h) ;

database

Case image




High accuracy
