What is the receptive field

The receptive field is defined as the region in the input space that a particular CNN’s feature is looking at (i.e. be affected by).

—— A guide to receptive field arithmetic for Convolutional Neural Networks

Feel the field （Receptive Field）, It refers to the neurons in the neural network “ What you see ” Input area , In a convolutional neural network ,feature map The calculation of an element on the input image is affected by an area on the input image , This area is the receptive field of this element .

In convolutional neural networks , The deeper the neurons, the larger the input area , As shown in the figure below ,kernel size Are all 3×3,stride Are all 1, The green mark is Layer2 The area each neuron sees , The yellow mark is Layer3 The area you see , In particular ,Layer2 Every neuron can see Layer1 On 3×3 Size area ,Layer3 Every neuron sees Layer2 On 3×3 Size area , This area can see again Layer1 On 5×5 Size area .

https://www.researchgate.net/publication/316950618_Maritime_Semantic_Labeling_of_Optical_Remote_Sens

therefore , Receptive field is a relative concept , A layer feature map The elements on the front see that the range of areas on different layers is different , Usually without special designation , The receptive field refers to seeing the area on the input image .

To calculate the receptive field , Here we use the concept of visual system ：

receptive field=center+surround

Calculate the receptive field accurately , I need to answer two questions , That is, where is the center of vision and how wide is the field of vision .

Only to see ” The right range of information ” To make the right judgment , Otherwise, it's possible “ elephant ” perhaps “ The hills are small ”;

In the problem of target recognition , We need to know which area the neurons see , Then we can reasonably infer where the object is and judge what it is .

however , There are many kinds of network architecture , The parameter configuration of each layer is also different , How to calculate the feeling field ？

Appointment

Before the official calculation , First, make the following conventions for mathematical symbols ：

https://medium.com/mlreview/a-guide-to-receptive-field-arithmetic-for-convolutional-neural-networks-e0f514068807

k：kernel size

p：padding size

s：stride size

Layer： use Layer Express feature map, Specially ,Layer0 Input image for ;

Conv： use Conv For convolution ,k、p、s Is the super parameter of the convolution layer ,Convl The input and output of are Layerl−1 and Layerl+1;

n：feature map size by n×n, It is assumed that height=width;

r：receptive field size by r×r, It is assumed that the receptive field is square ;

j：feature map The pixel distance between the upper adjacent elements , namely take feature map Elements on the input image with Layer0 When the center of the receptive field is aligned , The pixel distance between adjacent elements on the input image , It can also be understood as feature map Go ahead 1 Step is equivalent to how many pixels forward on the input image , As shown in the figure below ,feature map Go ahead 1 Step , It's equivalent to moving forward on the input image 2 Pixel ,j=2;

https://github.com/vdumoulin/conv_arithmetic/blob/master/gif/padding_strides.gif

start：feature map Top left element Center coordinates of the receptive field on the input image (start,start), namely Coordinates of the center of the field of view , In the diagram above , The center coordinate of the perception field of the green block in the upper left corner is (0.5,0.5), That is, the coordinates of the center of the blue block in the upper left corner , The coordinates of the center of the white dotted block in the upper left corner are (−0.5,−0.5);

l：l The presentation layer , The convolution layer is Convl, Its input feature map by Layerl−1, Output is Layerl.

All layers are assumed to be convoluted .

Feel the size of the field

The calculation of the size of the receptive field is a recursive formula .

Look at the moving picture above , If feature map   A member of alpha A notice feature map Layer1 The upper range is 3×3（ Green block in the picture ）, Its size is equal to kernel size k2, therefore ,A The range of feeling fields seen r2 Equivalent to Layer1 On 3×3 What I see in the window Layer0 Range , On this basis, adjacent Layer Feel the wild relationship , As shown below , among rl by Layerl Feeling field of ,rl−1 by  Layerl−1 Feeling field of ,

Layerl The feeling field of an element rl Equivalent to Layerl−1 On k×k A stack of feeling fields ;

Layerl−1 The feeling of the last element is rl−1;

Layerl−1 Continuous on k The feeling field of each element can be seen as , The first 1 Experience field seen by elements plus surplus k−1 Step swept range ,Layerl−1 Go ahead 1 Elements are equivalent to moving forward on the input image jl−1 Pixel , The result is equal to the rl−1+(k−1)×jl−1

The visualization is shown in the figure below ,

receptive field size

The following question is ,jin How to ask for ？

Layerl  Go ahead 1 The elements are equivalent to Layerl−1 Go ahead sl Elements , Convert to pixels in

among ,sl by Convl Of kernel stay Layerl−1 The step of sliding up , Input the s0=1.

According to the recurrence formula, we can know ,

Layerl Go ahead 1 Elements , It's like moving forward in the input image Pixel , That is, all the layers in front stride The tandem of .

Further, we can get ,Layerl The size of the receptive field is ：

402 Payment Required

Feel wild Center

The calculation of the center of the receptive field is also a recursive formula .

Calculated in the previous section , Express feature map Layerl Go ahead 1 The number of elements is equal to the number of pixels advancing on the input image , If you will feature map The upper element is aligned with the center of the receptive field , be jl To feel the pixel distance between the center of the field . As shown in the figure below ,

receptive field center

among , On all levels kernel size、padding、stride The super parameters have been marked in the figure , On the right is feature map Aligned with the center of the receptive field .

adjacent Layer between , The relationship between the receptive field center is ：

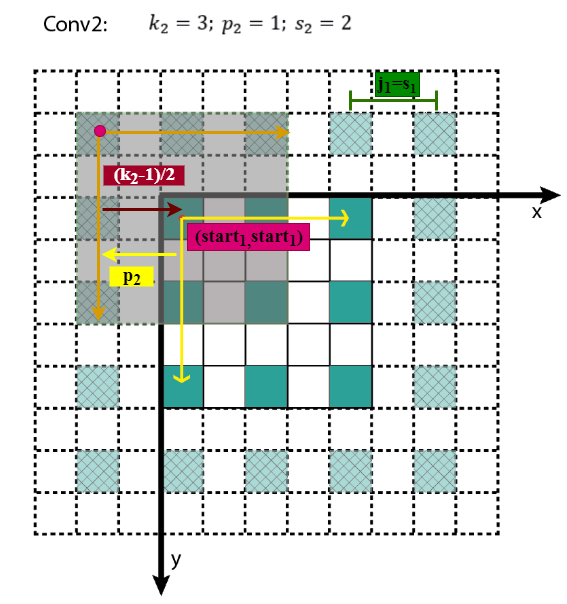

be-all start All coordinates are relative to the input image coordinate system . among ,start0=(0.5,0.5), The center coordinates of the pixels in the upper left corner of the input image ,startl−1 Express Layerl−1 The central coordinate of the receptive field of the element in the upper left corner ,(2kl−1−pl) by Layerl And Layerl−1 Feel wild Center be relative to Layerl−1 The deviation of the coordinate system , This deviation needs to be converted to the input image coordinate system , Its value needs to be multiplied by jl−1, namely Layerl−1 Pixel distance between adjacent elements , The result of multiplication is (2kl−1−pl)∗jl−1, That is, the pixel distance between the center of the sensory field —— Relative to the input image coordinate system . thus , adjacent Layer The relationship between the central coordinates of the receptive field is not difficult , The process is visualized as follows .

receptive field center calculation

got it Layerl The central coordinate of the receptive field of the element in the upper left corner (startl,startl), The pixel distance between adjacent elements through the layer jl We can calculate the central coordinates of other elements .

Summary

Summarize the calculation of receptive field ：

From the recurrence formula above , You can calculate the receptive field from front to back , The code can be found in computeReceptiveField.py, For online visualization calculation, please refer to Receptive Field Calculator.

Last , There are a few more points to note ：

Layerl The size of the receptive field and sl、pl irrelevant , At present feature map The size of the receptive field of the element is independent of the pixel distance between adjacent elements of the layer ;

In order to simplify the , Will usually padding size Set to kernel The radius of , namely p=2k−1, Available startl=startl−1, bring feature map Layerl On (x,y) The element of location , The central coordinate of the receptive field is (xjl,yjl);

about Cavity convolution dilated convolution, It's equivalent to changing the size of the convolution kernel , If it contains dilation rate Parameters , Just put the kl Replace with dilation rate∗(kl−1)+1 ,dilation rate=1 Time is normal convolution ;

about pooling layer , It can be regarded as a special convolution layer , It also exists kernel size、padding、stride Parameters ;

The nonlinear activation layer is element by element operation , Do not change the feeling field .

above .

Reference material

wiki-Receptive field

wiki-Receptive Field Calculator

arXiv-Understanding the Effective Receptive Field in Deep Convolutional Neural Networks

medium-A guide to receptive field arithmetic for Convolutional Neural Networks

medium-Topic DL03: Receptive Field in CNN and the Math behind it

ppt-Convolutional Feature Maps: Elements of Efficient (and Accurate) CNN-based Object Detection

SIGAI- A summary of the receptive field

Calculating Receptive Field of CNN
