TCP.IP

HTTP

Hypertext transfer protocol , It is the most widely used network protocol on the Internet

The request message consists of three parts ：

a、 Request line ： Include request method 、URI、HTTP Version information

b、 Request first field

c、 Request content entity

The response message consists of three parts ：

a、 Status line ： contain HTTP edition 、 Status code 、 Reason phrase for status code

b、 Response first field

c、 Response content entity

Network status code

• 2XX： success
• 3XX： Further operation , Redirect etc.
• 4XX： Request error
• 5XX： Service processing error
• 301： Jump forever
• 403： Blocking access , Not enough permissions
• 404： The page requested by the client could not be found
• 502： Bad gateway
• 504： gateway timeout

New version features ：

a、 Default persistent connections save traffic , As long as either end of the client server does not explicitly propose to disconnect TCP Connect , Just keep connected , Can send multiple times HTTP request

b、 Pipelining , The client can send multiple HTTP request , Instead of waiting for a response one by one

c、 Breakpoint continuation principle

HTTPS

HTTP Security version , stay HTTP Lower join SSL layer ,HTTPS The safety basis of SSL, So the details of encryption need to be SSL agreement

Communication process

1. Client initiated url request
2. The server returns the public key
3. The client verifies the public key , Correct is the next step , Errors are warnings
4. The client generates random values , Use public key encryption
5. Send to server , The server decrypts the random value with the private key
6. Random values are used as secret keys for symmetric encryption
7. Send to client , Decrypt with random values

common problem ：

Q:HTTP And HTTPS difference ?

A: 1.HTTPS Need to apply to buy CA certificate , HTTP Unwanted

2.HTTP It's plaintext transmission , unsafe , HTTPS Is in HTTP On the basis of SSL layer , More secure

3.HTTPS Low efficiency ,HTTP Efficient

Q:HTTPS Transmission process ?

A: Client initiated HTTPS request , The server returns the certificate , Client verifies certificate , After the verification, the random number used to modify the symmetric encryption algorithm is generated locally , The random number is encrypted and transmitted to the server through the public key in the certificate , After receiving it, the server decrypts it through the private key to get the random number , After the data interaction through symmetric encryption algorithm encryption and decryption .

Q: Why certificates are needed ?

A: To prevent attacks by intermediaries , Verify the identity of the server

Q: How to prevent tampering ?

A: The certificate is public , Although the middleman can get the certificate , But the private key cannot be obtained , The public key cannot infer the private key , Therefore, private key encryption cannot be used after tampering , Forced encryption customers can not decrypt , Forcibly modify the content , This will cause the certificate content to not match the fingerprint in the signature

TCP/IP

TCP/IP Protocol set includes application layer , Transport layer , The network layer , Network access layer

TCP/UDP

TCP Connection oriented , Reliable transmission , Occupy more system resources , Slow speed , Low efficiency , Use when there are requirements for network quality

UDP It's disconnected , Transmission is unreliable , Less system resources , Fast , Efficient , There are no special requirements for data security

About detecting network connections

 Statistics 80 Number of port connections
netstat -nat|grep -i “80”|wc -l

 Statistics httpd Number of protocol connections
ps -ef|grep httpd|wc -l

 Find out which IP Maximum address connections
netstat -na|grep ESTABLISHED|awk {print $5}|awk -F： {print $1}|sort|uniq -c|sort -r +0n

 see nginx Current concurrent accesses ：
netstat -apn|grep 'nginx: worker'|wc -l

 see apache Current concurrent accesses ：
netstat -an | grep ESTABLISHED | wc -l

 see http How many processes are there ：
ps aux|grep httpd|wc -l

 For connected IP Sort by number of connections :
netstat -ntu | awk '{print $5}' | cut -d: -f1 | sort | uniq -c | sort -n

 see TCP Connection status :
netstat -nat |awk '{print $6}'|sort|uniq -c|sort -rn
netstat -n | awk '/^tcp/ {++S[$NF]};END {for(a in S) print a, S[a]}'
netstat -n | awk '/^tcp/ {++state[$NF]}; END {for(key in state) print key,"\t",state[key]}'
netstat -n | awk '/^tcp/ {++arr[$NF]};END {for(k in arr) print k,"\t",arr[k]}'
netstat -n |awk '/^tcp/ {print $NF}'|sort|uniq -c|sort -rn
netstat -ant | awk '{print $NF}' | grep -v '[a-z]' | sort | uniq -c

 see 80 The most port connections 20 individual IP:
netstat -anlp|grep 80|grep tcp|awk '{print $5}'|awk -F: '{print $1}'|sort|uniq -c|sort -nr|head -n20
netstat -ant |awk '/:80/{split($5,ip,":");++A[ip[1]]}END{for(i in A) print A,i}' |sort -rn|head -n20

 use tcpdump Sniffing 80 Port access to see who is the highest :
tcpdump -i eth0 -tnn dst port 80 -c 1000 | awk -F"." '{print $1"."$2"."$3"."$4}' | sort | uniq -c | sort -nr |head -20

 Find more time_wait Connect :
netstat -n|grep TIME_WAIT|awk '{print $5}'|sort|uniq -c|sort -rn|head -n20

 Find out more SYN Connect :
netstat -an | grep SYN | awk '{print $5}' | awk -F: '{print $1}' | sort | uniq -c | sort -nr | more

Three handshakes

key word

SYN Set up a connection sign

ACK Confirm the connection identification

Seq Sequence number , Randomly generate numbers , Prevent interception

ack Confirmation number

FIN end

Why not four times, not two times, three times

Because four times before , The server will send a syn And a ack To the client , But the two packets are almost synchronized , So merge into one package

Not twice because , The client should confirm the server , The server should also confirm the client before establishing a two-way connection

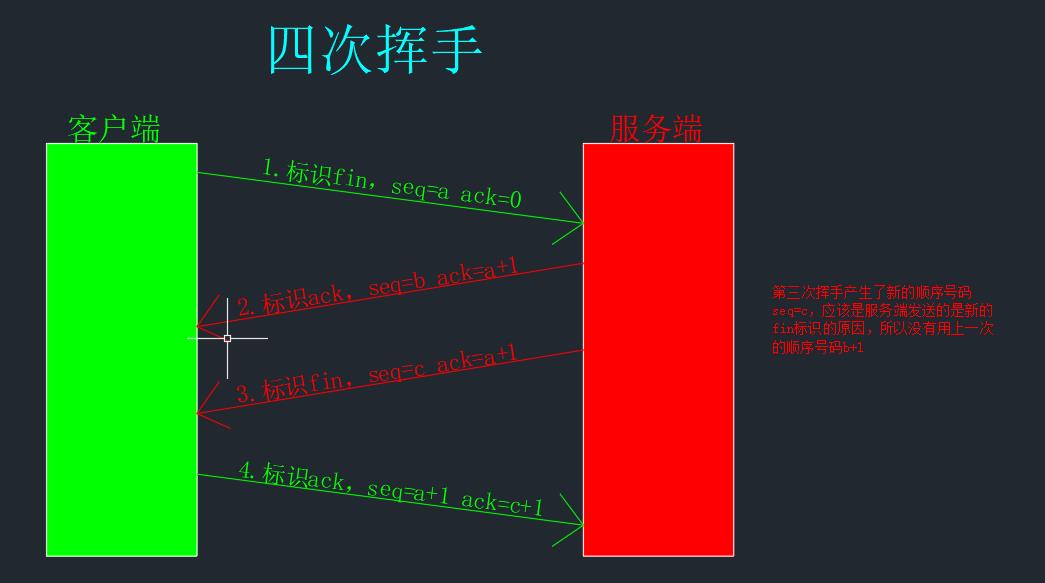

Four waves

Why four waves, not three

Theoretically speaking, you can wave your hand three times ,2 and 3 And merge into a packet and send it to the client , But there are some problems , Because data transmission may be unidirectional ,2 and 3 And merge into a packet, that is, the confirmation and end connection identification must be sent together , Suppose the server is transmitting data to the client , The client can end the one-way connection, but the server cannot end the connection , At this moment, if the confirmation and end connection packets are sent together , It will cause the transmission of the server to be terminated

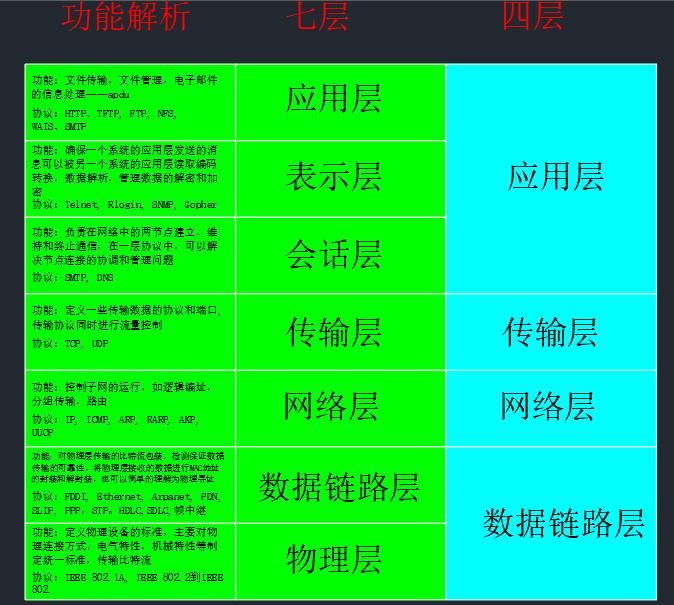

OSI Seven layer and four layer models

Detailed seven layer model

This picture is reproduced , I don't remember the address , Reprint , Invasion and deletion

Simplify the seven tier and four tier models
