3dslicer import cone beam CT image

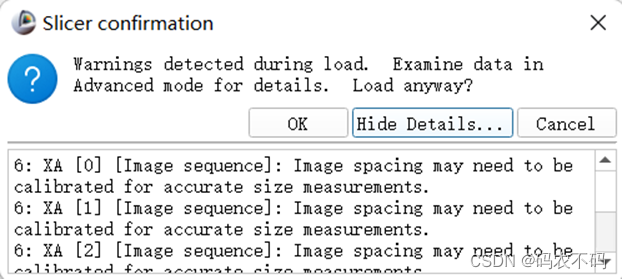

because 3DSlicer Cannot directly align cone beam CT DICOM Determine the interlayer distance of image sequence , Therefore, software warnings will be triggered when importing data , And the image cannot be displayed after the incoming data .

Solution ：
adopt Mango Software or dcm2nii The software will dcm File conversion to nii file , Recommended Mango Software , Close test effectively . The website links ：Research Imaging Institute — Mango (uthscsa.edu)

Download directly from the official website Windows Version can . It is recommended to install the software on slicer Under the same directory, it is convenient to use and manage .

How to use Mango？

open Mango, The interface is as follows , Click on “ menu bar ” Medium Open

choice “Open DICON Folder”

choice dcm The folder where the sequence is located and select “ open ”

stay DICOM Folder Select in the interface “open”

Select... In the new interface “Save As”

stay Save As Select in the interface “ preservation ”, Note whether some attribute settings on the right are consistent with the following figure

In the original image data folder, a suffix named “.nii.gz” The file of , We just need to put it in slicer You can import data in the normal way .
After data import, our slicer The interface is as shown in the figure ：
