Samba service setup

Catalog

One 、samba brief introduction

Two 、samba Characteristics of service

3、 ... and 、samba The main application of

Four 、 Comparison of common file server software

5、 ... and 、samba Service establishment

1、 install Samba service

 2、 Start the service

3、 Create user

4、pdbebit Parameter description

5、 Modify the configuration file

6、 Create a shared folder

7、 Set up samba User login password

6、 ... and 、windows Client authentication

  7、 ... and 、 summary

---

Preface ：Samba Is in Linux and UNIX Implemented on the system SMB A free software of the agreement , Composed of server and client programs . Original SMB Agreement is windows and windows（ Online neighbors ） An agreement to share resources between .Linux Find Microsoft , I also want to use this agreement in window and Linux On the file share of , But Microsoft didn't agree , therefore Linux Through the reverse method SMB agreement , In order to SMB Distinguish and name it SAMBA agreement .
Let's start with samba Installation and use of server

One 、samba brief introduction

Samba Is in Linux and UNIX Implemented on the system SMB A free software of the agreement , Composed of server and client programs .SMB（Server Messages Block, Information service block ） It is a communication protocol of sharing files and printers on LAN , It provides file and printer sharing services for different computers in LAN .SMB Protocol is client / Server protocol , The client can access the shared file system on the server through this protocol 、 Printers and other resources . By setting “NetBIOS over TCP/IP” bring Samba It can not only share resources with LAN hosts , And share resources with computers all over the world .

Two 、samba Characteristics of service

smaba The biggest feature is that it can be used for linux and windows File sharing and printer sharing between samba Not just for linux and windows Between
samba It can also be used for two sets linux To share
because linux The platform gave birth to a better tool ,nfs Network file sharing system , Dedicated to linux File data sharing between ● therefore samba It's more about using linux and windows Between

3、 ... and 、samba The main application of

1. File sharing ( The main function is )
2. Print server
3. samba Login authentication
4. because samba be based on Netbios, So we can do windows Host name resolution for

Four 、 Comparison of common file server software

The service name	Using range	Server side	client	limitations
FTP	LAN and public network	Windows Linux	Windows Linux	Data cannot be modified directly on the server
Samba	Intranet	Windows Linux	Windows Linux	It can only be used on the intranet
NFS	Intranet and public network	Linux	Linux	Only in Linux Used between

5、 ... and 、samba Service establishment

The experiment purpose

stay linux Virtual machine （centos7 Environmental Science ） Building a samba Service and in windows Client access

1、 install Samba service

yum install -y samba        // install samba  service


yum list samba            // List package information
yum remove samba          // Uninstall package
yum check-update samba    // Check for updatable packages
yum update samba          // to update samba software package

 2、 Start the service

systemctl start smb.service
systemctl enable smb.service

systemctl stop firewalld
setenforce 0

3、 Create user

groupadd test
useradd -M liy -s /sbin/nologin/ -g test
useradd -M yong -s /sbin/nologin/ -g test

id liy
id yong

4、pdbebit Parameter description

 -a, --create                        newly build samba user
  -r, --modify                        modify samba user
  -x, --delete                        Delete samba user
  -L, --list                          List all samba user , Read passdb.tdb Database files
  -v, --verbose                       Show details
  -c, --account-control=STRING        Account control value
 -w, --smbpasswd-style               With smbpasswd Format output
  -u, --user=USER                     Users used
  -N, --account-desc=STRING           Set account description
  -f, --fullname=STRING               Set full name
  -h, --homedir=STRING                Set home directory
  -D, --drive=STRING                  Set up home devices
  -S, --script=STRING                 Set login script
  -p, --profile=STRING                Set profile path
  -I, --domain=STRING                 Set user domain name
  -U, --user SID=STRING               Set user SID or RID
  -M, --machine SID=STRING            Set up the device SID or RID
  -m, --machine                       An account is a device account
  -b, --backend=STRING                Use different passdb As the default backend
  -i, --import=STRING                 Specify the following segment to import user accounts
  -e, --export=STRING                 Export user accounts to the specified backend
  --policies-reset                    Restore the default policy
  -P, --account-policy=STRING         Value of account policy ( Such as maximum password validity )
  -C, --value=LONG                    Set account policy value
  --force-initialized-passwords       Forced initialization passdb Back end
  -z, --bad-password-count-reset      Reset the wrong password
  -Z, --logon-hours-reset             Reset login time
  --time-format=STRING                Format of time parameter
  -t, --password-from-stdin           Get the password from standard input
  -K, --kickoff-time=STRING           Set the start time
  --set-nt-hash=STRING                from nt-hash Set the password
  -d, --debuglevel=DEBUGLEVEL         Set up debug Level
  -s, --configfile=CONFIGFILE         Use an alternate configuration file
  -l, --log-basename=LOGFILEBASE      Set the basic name of the log file
  -V, --version                       Output version number
  --option=name=value                 Set from the command line smb.conf Options
  -?, --help                          Display help information
  --usage                             Display brief usage information

5、 Modify the configuration file

  Edit profile , Add a to test A shared directory as a network shared file name .

[test]                 # Shared file name （ That is, the name you can see when accessing the client ）
        comment = this is test        # Description of the shared folder
        path = /home/ceshi             # Shared folder path
        public = yes                    # Whether to allow guest Account access
        writable =yes                # Whether you have permission to write
        directory mask = 0777        # Default create directory permission
        create mask = 0777             # Default create file permissions
        valid users = @test,root  # Set the users who are allowed to access the shared directory @ Followed by group name , If you don't write this line, it will be open to all users
        write list = @test,root        # Set the user with write permission @ Followed by the group name
        browseable = yes                 # The specified shared directory is browsable
        available = yes                      # This specifies that shared resources can be used

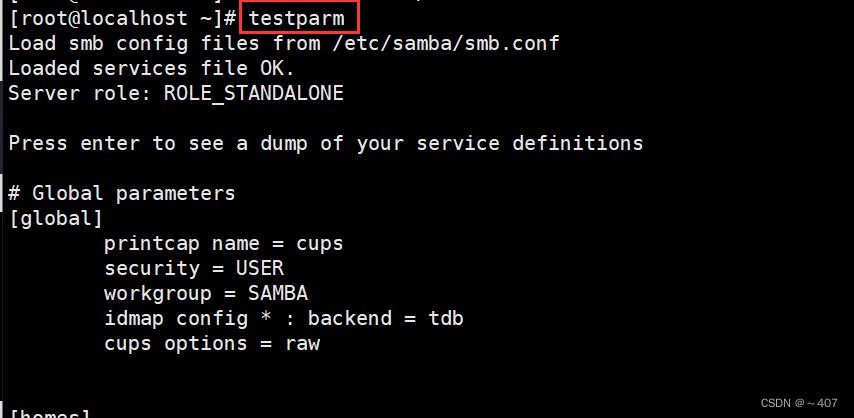

 testparm It can be used to detect whether there are syntax errors in the configuration file

testparm

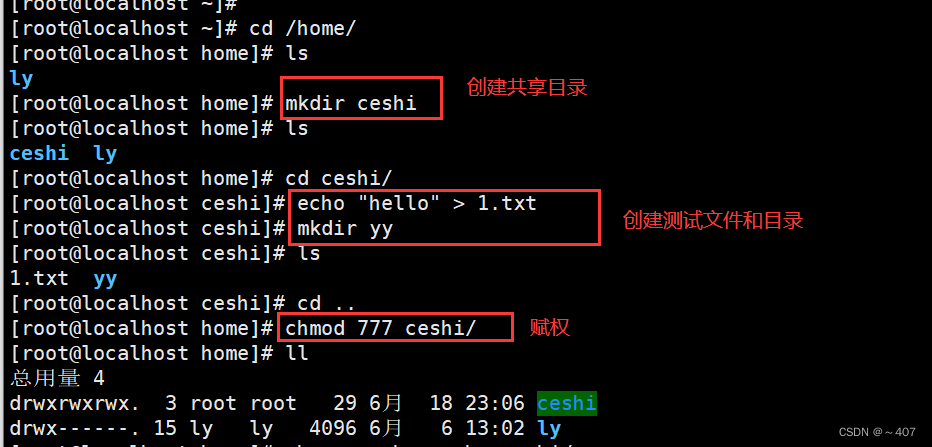

6、 Create a shared folder

mkdir ceshi
cd ceshi/
echo "hello" > 1.txt
mkdir yy
chmod 777 ceshi/

systemctl  restart smb.service  Start the service
systemctl  reload smb.service  Load profile

7、 Set up samba User login password

smbpasswd -a liy         #  Follow local users samba User mapping
smbpasswd -a yong

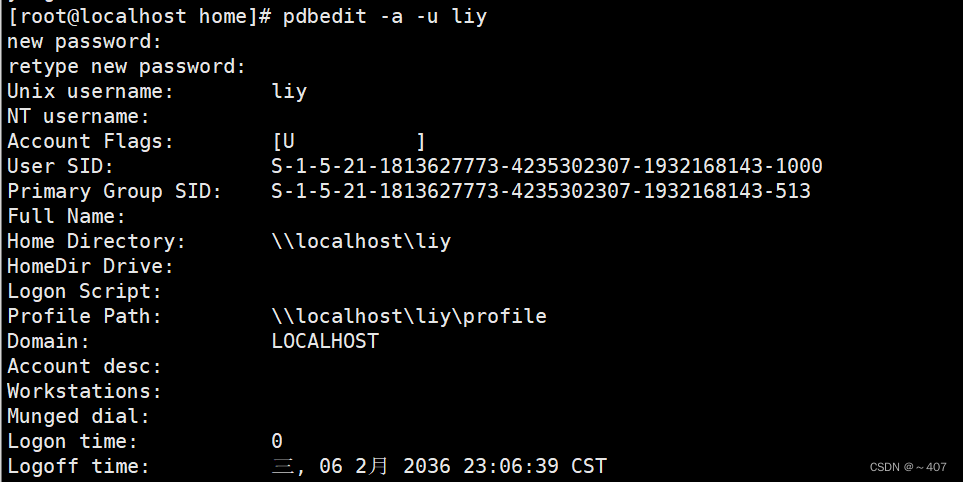

pdbedit -a -u liy
pdbedit -a -u yong

pdbedit -L            # View join samba Users of the service

6、 ... and 、windows Client authentication

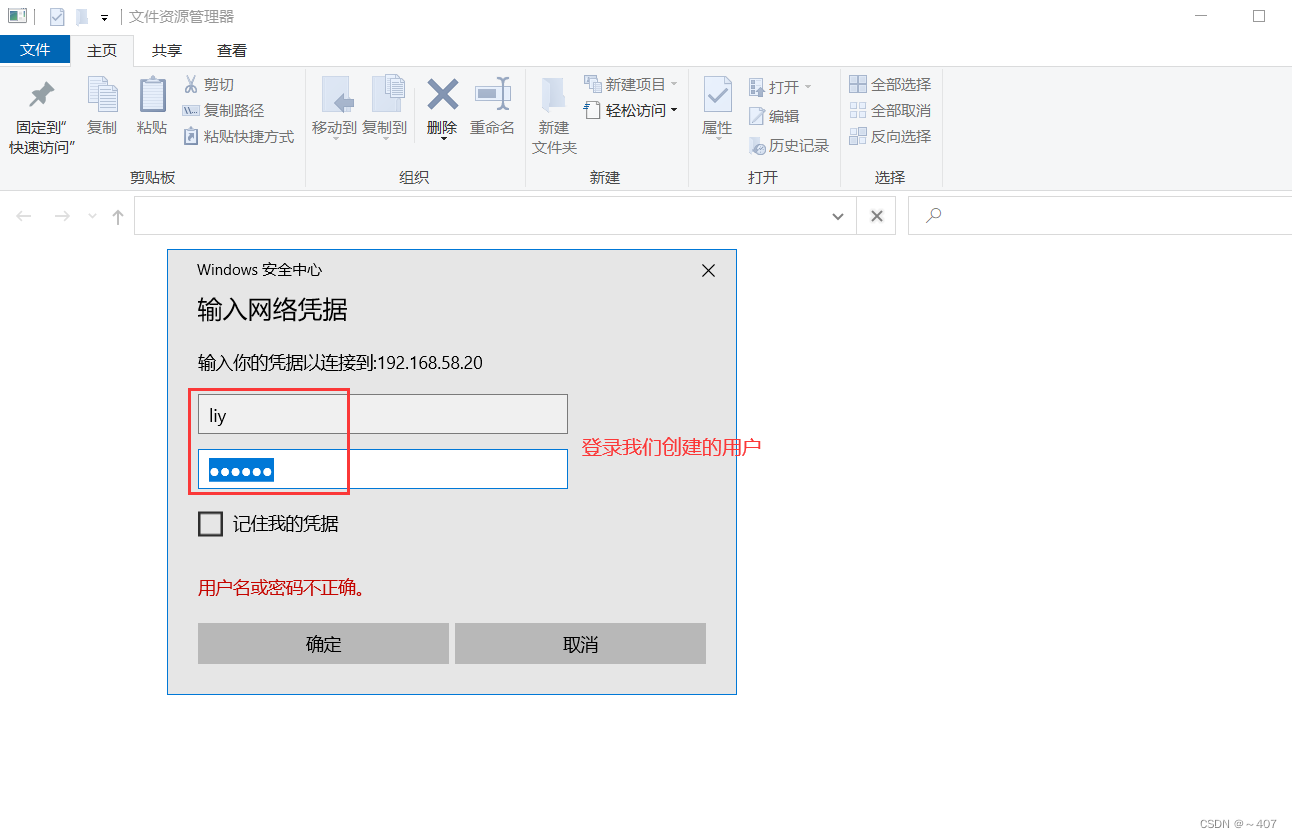

win+R \\192.168.58.20

  Successful landing

  Create a file test on the client

Test success

  7、 ... and 、 summary

Samba It's based on SMB Protocol implemented , It is mainly used for Windows and Linux Sharing resources between .139 The port is in NBT On the basis of the agreement , close NBT agreement 139 Is waste . and 445 The port is in TCP/IP On the basis of the agreement , Nowadays, there should be few people in the network who don't use TCP/IP Agreed . Finally, if the host supports both protocols （ such as windowsxp Future operating systems ） Then the priority of port usage during shared access is ：445＞139, So now UNC Path access ip Addresses are used 445 port , The form of accessing host name is 139 port （ Now it's almost useless ）.
close 139 Method of port ：“ network connections / attribute /TCPIP agreement / attribute / senior /WINS Enable or disable NBT（NetBIOS over TCP/IP）
close 445 Method of port ： Firewall blocking 445 Port or disable server Service was ok .
