Jenkins+webhooks- multi branch parametric construction-

Jenkins+webhooks- Multi branch parametric construction -

demand ：

 I'm here because the company has a static resource , The completion of the construction needs to be placed in nginx Published catalog , But it's not very convenient to build manually every time , What I have here is webhook Updating code triggers automatic build , But our environment is divided into formal environment and test environment , You need to build and publish to different environments and servers

 My solution ：
 Scheme 1 ：
 The first way is to create two pipeline, Trigger for different branches webhook, It is not recommended to use too much memory
 Option two ：
 If there are two branches , Development - test
 hold jenkinsfile Write complete , Put it in the development branch ,jenkins-webhook Recognize that the development branch has been updated , Then pull the development branch code , Recognize the inside jenkinsfile, Will build and release as required

Senior boss document

https://xie.infoq.cn/article/600f642fcb26f0c280a7acf59

https://www.cnblogs.com/testopsfeng/p/15139538.html

https://blog.csdn.net/weixin_39637661/article/details/110087309?spm=1001.2101.3001.6650.7&utm_medium=distribute.pc_relevant.none-task-blog-2%7Edefault%7EBlogCommendFromBaidu%7ERate-7-110087309-blog-106900128.pc_relevant_antiscanv3&depth_1-utm_source=distribute.pc_relevant.none-task-blog-2%7Edefault%7EBlogCommendFromBaidu%7ERate-7-110087309-blog-106900128.pc_relevant_antiscanv3&utm_relevant_index=14

https://blog.csdn.net/shm19990131/article/details/107529357

https://gitbook.curiouser.top/origin/jenkins-generic-webhook-trigger%E6%8F%92%E4%BB%B6.html

Adopt the second scheme

pipeline adopt Custom parameters （This project is parameterized - String Parame）, To build the deployment .

( notes ： Parametric construction - String parameters )

One 、 Implementation content

Gitlab -- perhaps gitea The main branch 、 From branch After the code is modified , adopt webhook Trigger jenkins.

jenkins Can pass Branch variables To build the deployment .

Two 、 Implementation steps

1、 stay pipeline Pipeline project starts parameterized construction

Here I define two

2、 modify pipeline Of Jenkinsfile file , Specify variables to pull code

Be careful ： What is used here is Jenkinsfile - pipeline, Each branch needs such a file

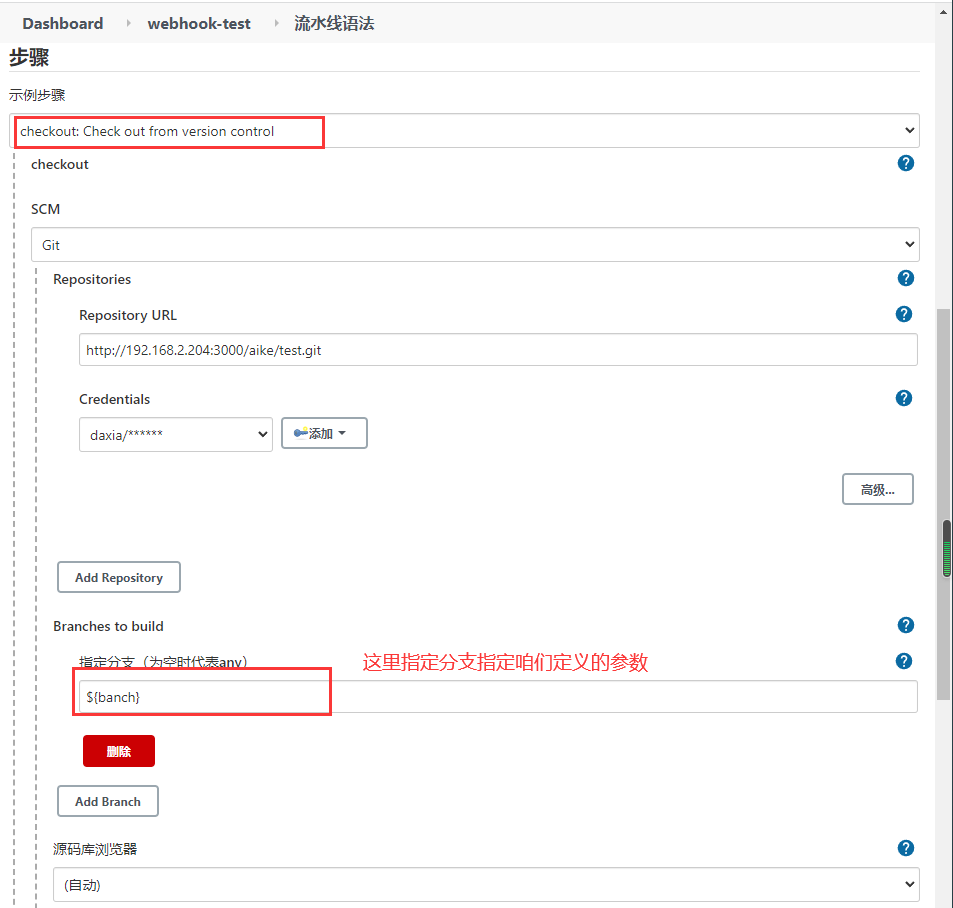

pipeline grammar

pipeline {

   agent any
   stages {

      stage(' Pull the code ') {

          steps {

              checkout([$class: 'GitSCM', branches: [[name: '${branch}']], extensions: [], userRemoteConfigs: [[credentialsId: '7f49313d-880d-4a5e-836f-cef4bf2ec37a', url: 'http://192.168.2.204:3000/aike/test.git']]])
            }
        }
      stage(' choice node Version compilation and packaging ') {

             steps {

              nodejs('node') {

                sh '''cd ${single_project_name}
                      npm  install
                      npm run build
                      tar -zcvf  ./front.end-levee.tar.gz   ./dist'''
              }
            }
        }
      stage(' Publish to server ') {

             steps {

              sshPublisher(publishers: [sshPublisherDesc(configName: '192.168.2.204', transfers: [sshTransfer(cleanRemote: false, excludes: '', execCommand: '''
            cd /a
            tar -xzf front.end-levee.tar.gz -C ./
            cp -r dist/* ./
            rm -rf   front.end-levee.tar.gz''', execTimeout: 120000, flatten: false, makeEmptyDirs: false, noDefaultExcludes: false, patternSeparator: '[, ]+', remoteDirectory: '/a', remoteDirectorySDF: false, removePrefix: '', sourceFiles: 'front.end-levee.tar.gz')], usePromotionTimestamp: false, useWorkspaceInPromotion: false, verbose: false)])
            }
        }
   }
}

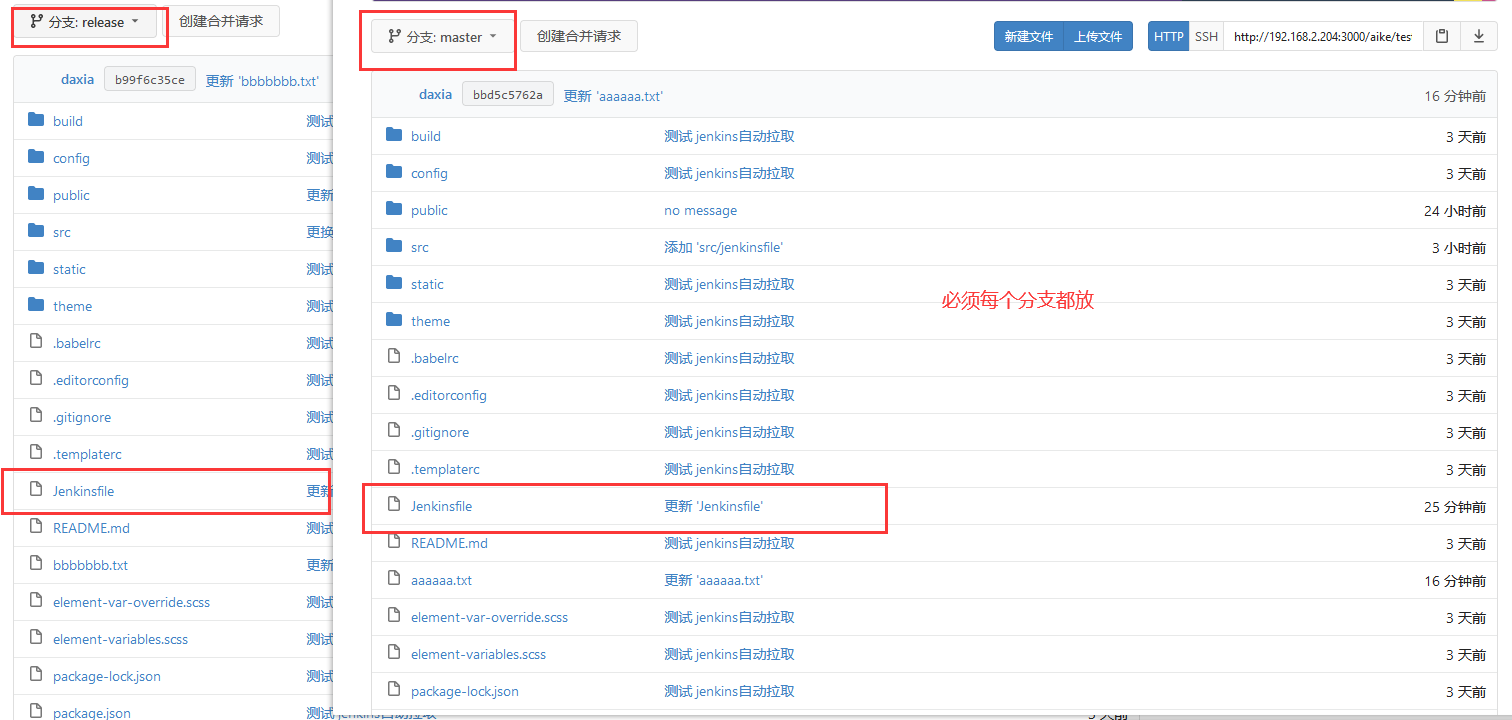

Code warehouse

Put this code , Upload to each branch

Look at the code

①、 To configure webhook, Notice that there are several branches , Just drive a few webhook

The main branch webhook：

To configure jenkins - Pipeline Build tasks

Build trigger

The problem summary

 The above build , Basically, trigger automatic construction has been realized , But the only drawback is that each build pulls by default master Branch code

Full version

stay Jenkinsfile in , Add the configuration ： Detailed explanation of variables

triggers {

    GenericTrigger (
            //  Title during construction
            causeString: 'Triggered by $ref',
            //  obtain POST Variables in parameters ,key Refers to the variable name , adopt $ref To access the corresponding value ,value refer to JSON Match the value （ Reference resources Jmeter Of JSON Extractor ）
            // ref Refers to the push Branch , The format is as follows ：refs/heads/master
            genericVariables: [[key: 'ref', value: '$.ref']],
            //  Print the obtained variable key-value, Here will be printed as ：ref=refs/heads/master
            printContributedVariables: true,
            //  Print POST Parameters passed
            printPostContent: true,
            // regexpFilterExpression And regexpFilterExpression Use in pairs
            //  When the two are equal , It will trigger the construction of the corresponding branch
            regexpFilterExpression: '^refs/heads/(master|production)$',
            regexpFilterText: '$ref',
            //  And webhook Configured in token Consistent parameter values
            token: 'mytoken'
    )
}

Sort out your ideas

 This multi pipeline construction , Manage a lot pipeline Assembly line , There are only a few pipelines to manage
 But you have to Jenkinsfile Put the file in your code , To recognize ,J It's capital

Identified

Code repository configuration

Pipeline configuration

 Here is the pipeline created

Defining variables

Post content parameters Middle configuration

For example, here we want to get ref The value of can be configured in this way

#  Custom variable name
Variable: ref

#  The expression uses  JSONPath  The way
Expression: $.ref      # ref  value

#  Expression get value filter and match , for example  refs/tags/Test_cet_v1.0.0 ,  When the configuration is as follows ref Its value is  Test_cet_v1.0.0
Value filter: refs/tags/

#  Does not match the default value
Default value：master

To configure token

Cause To configure

Triggered by  $ref

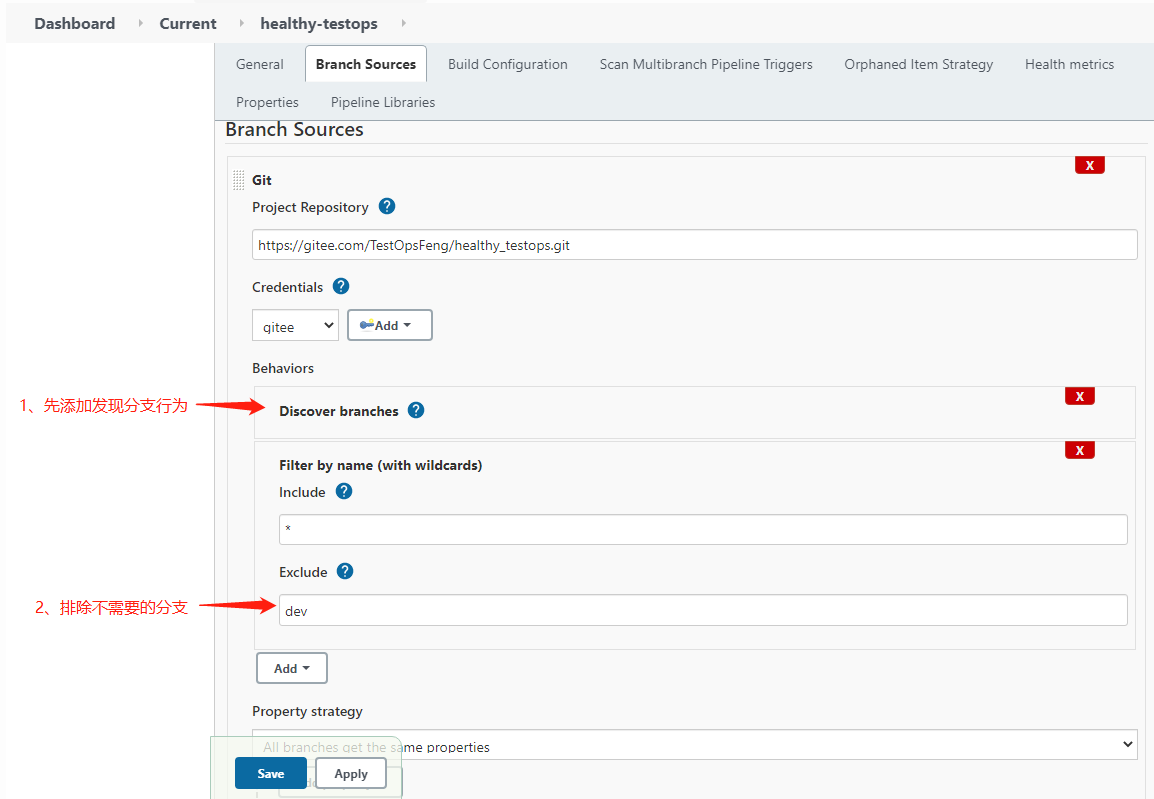

Ignore some branches

It can be done by Filter by name (with wildcards) Realization ：

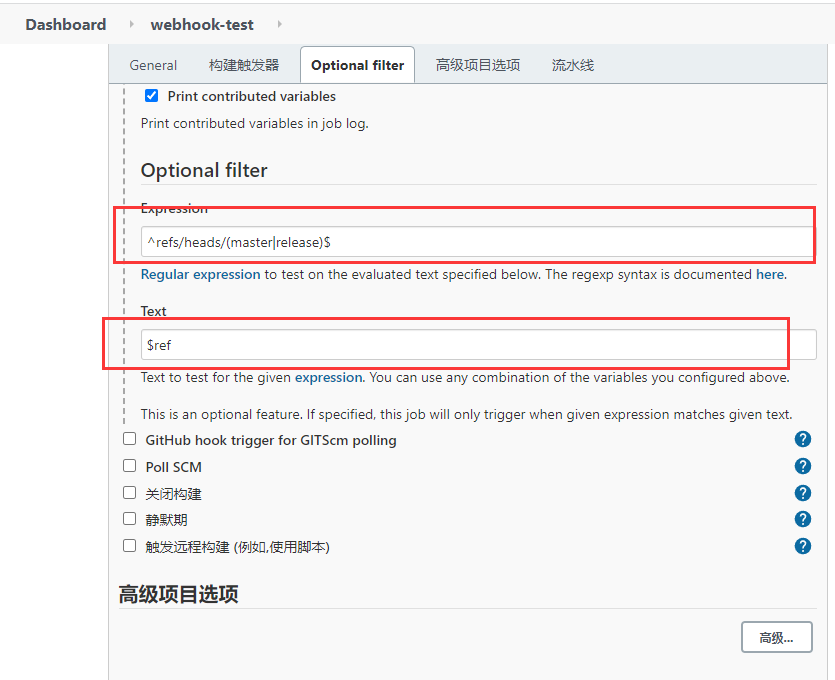

To configure Optional filter

^refs/heads/(master|release)$

complete jenkinsfile You can refer to

pipeline {

   agent any
      triggers {

    GenericTrigger (
            //  Title during construction
            causeString: 'Triggered by $ref',
            //  obtain POST Variables in parameters ,key Refers to the variable name , adopt $ref To access the corresponding value ,value refer to JSON Match the value （ Reference resources Jmeter Of JSON Extractor ）
            // ref Refers to the push Branch , The format is as follows ：refs/heads/master
            genericVariables: [[key: 'ref', value: '$.ref']],
            //  Print the obtained variable key-value, Here will be printed as ：ref=refs/heads/master
            printContributedVariables: true,
            //  Print POST Parameters passed
            printPostContent: true,
            // regexpFilterExpression And regexpFilterExpression Use in pairs
            //  When the two are equal , It will trigger the construction of the corresponding branch
            regexpFilterExpression: '^refs/heads/(master|release)$',
            regexpFilterText: '$ref',
            //  And webhook Configured in token Consistent parameter values
            token: 'aikeya'
    )
}
   stages {

    	stage(" Test the deployed ") {

            when {

                branch 'release'
            }
    	    steps {

                echo 'release branch'
    	    }
    	}
    	stage(" Production deployment ") {

            when {

                branch 'master'
            }
    	    steps {

                echo 'master branch'
    	    }
    	}
        stage(' choice node Version compilation and packaging ') {

             steps {

              nodejs('node') {

                sh '''cd ${single_project_name}
                      npm  install
                      npm run build
                      tar -zcvf  ./front.end-levee.tar.gz   ./dist'''
              }
            }
        }
        stage(' Publish to server ') {

             steps {

              sshPublisher(publishers: [sshPublisherDesc(configName: '192.168.2.204', transfers: [sshTransfer(cleanRemote: false, excludes: '', execCommand: '''
            cd /b
            tar -xzf front.end-levee.tar.gz -C ./
            cp -r dist/* ./
            rm -rf   front.end-levee.tar.gz''', execTimeout: 120000, flatten: false, makeEmptyDirs: false, noDefaultExcludes: false, patternSeparator: '[, ]+', remoteDirectory: '/a', remoteDirectorySDF: false, removePrefix: '', sourceFiles: 'front.end-levee.tar.gz')], usePromotionTimestamp: false, useWorkspaceInPromotion: false, verbose: false)])
            }
        }
   }
}

efaultExcludes: false, patternSeparator: ‘[, ]+’, remoteDirectory: ‘/a’, remoteDirectorySDF: false, removePrefix: ‘’, sourceFiles: ‘front.end-levee.tar.gz’)], usePromotionTimestamp: false, useWorkspaceInPromotion: false, verbose: false)])
}
}
}
}

######  Configuration complete   Test it
