Day 6 script and animation system

2022-06-28 10:14:00 【Code Knight】

One 、 Basic concepts of animation system

1、 The basic concept of animation

（1） frame

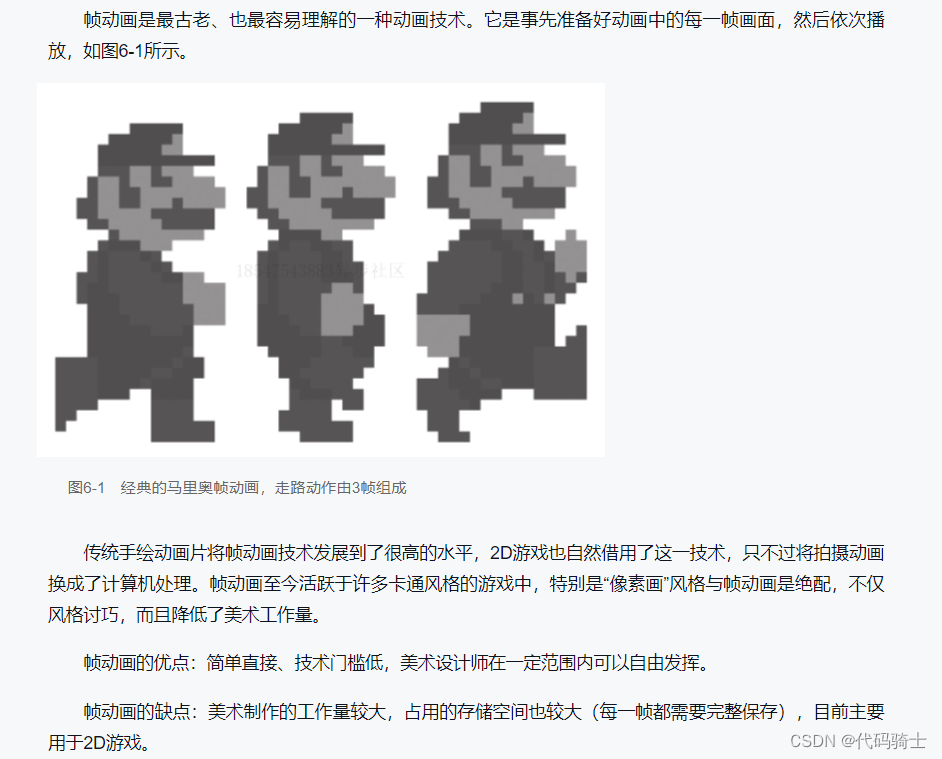

（2） Frame animation

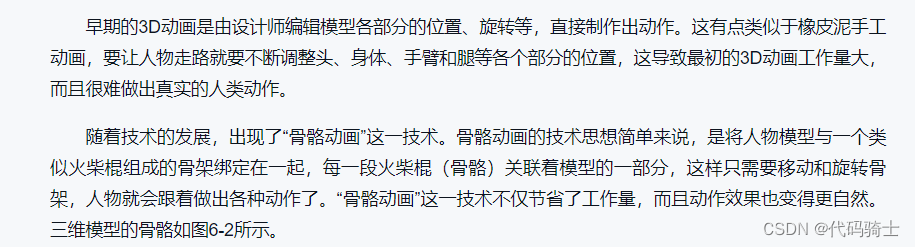

（3）3D Skeletal animation

（4）2D Skeletal animation

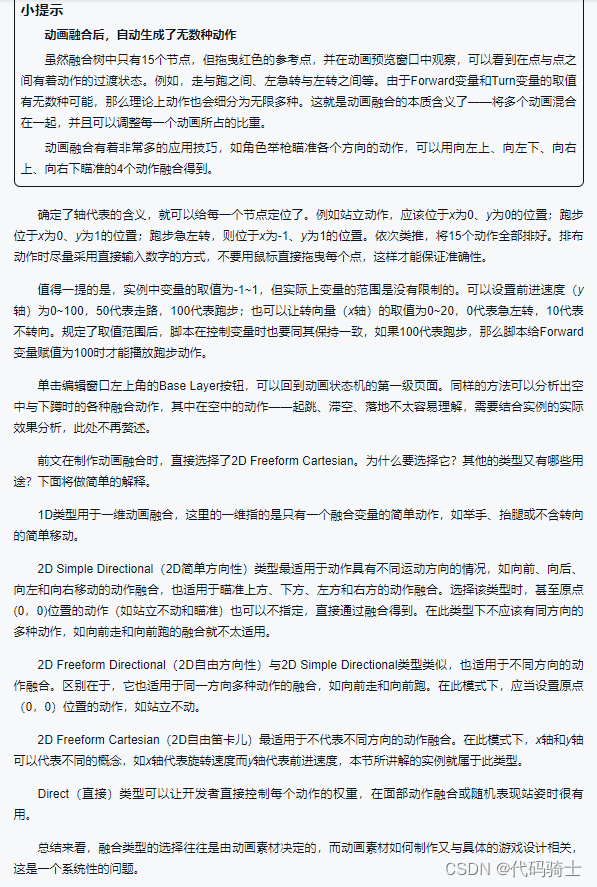

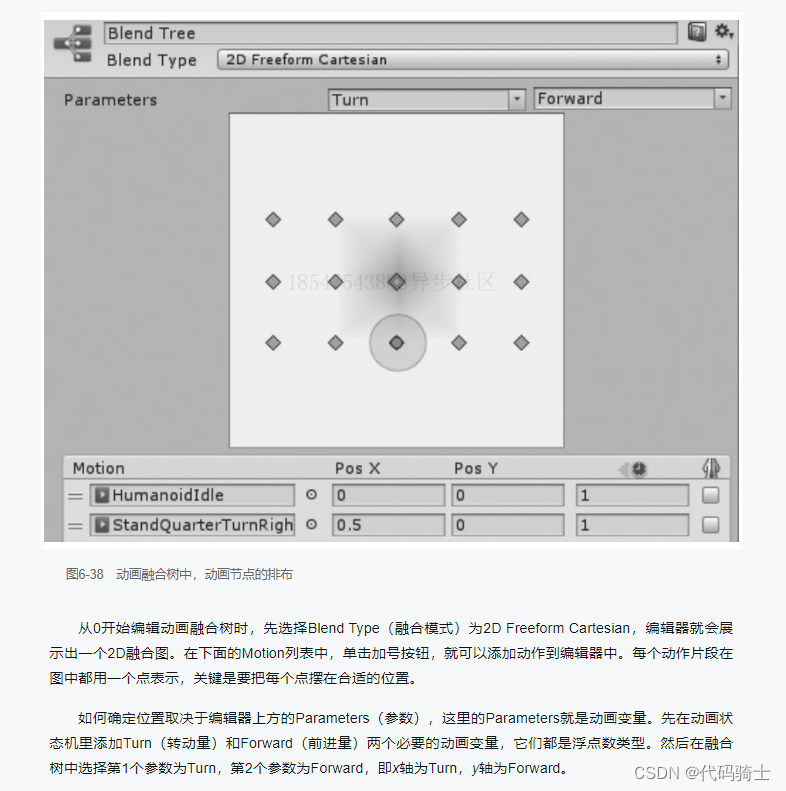

2、 Animation fusion

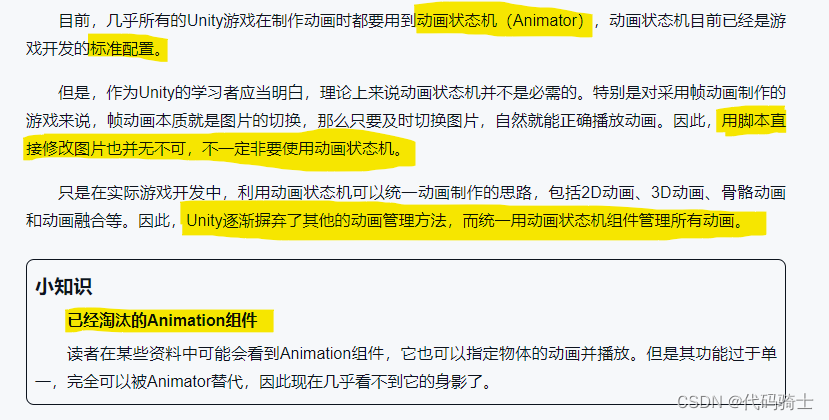

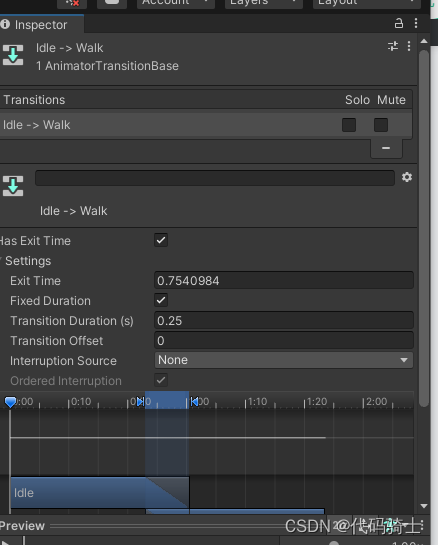

3、 Animation state machine

（1） Understand animation state machine

（2） Animation state machine design example

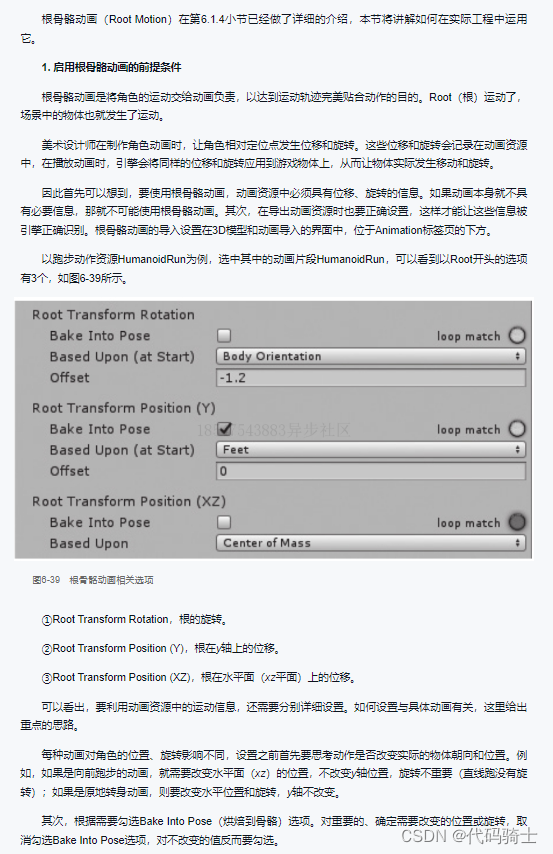

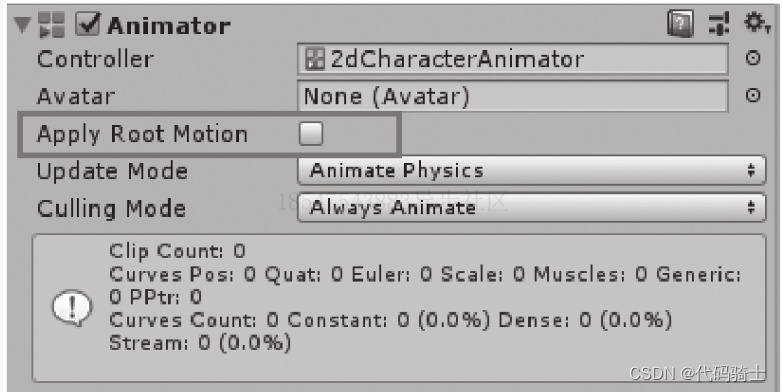

4、 Root bone animation

Two 、2D Animation example analysis

1、 preparation

（1） Download resources

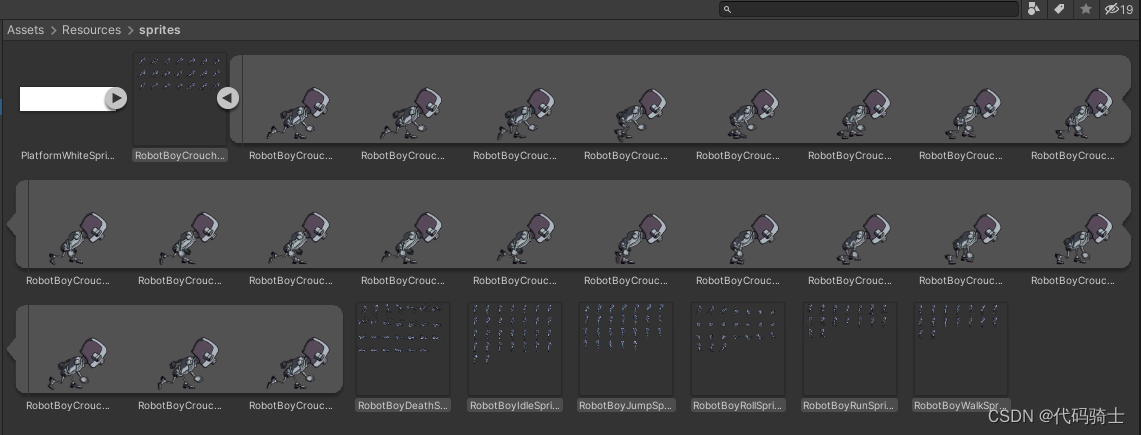

（2） Organize resources

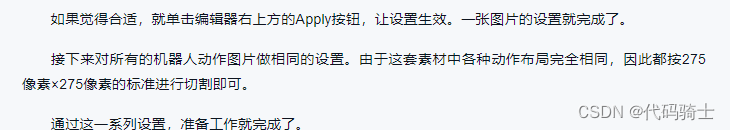

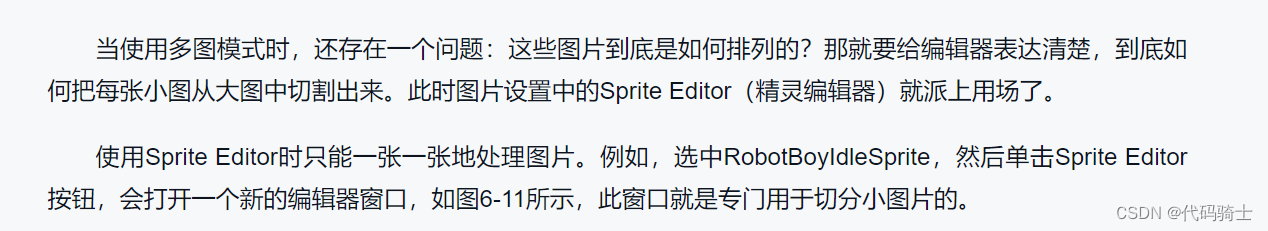

（3） Picture settings

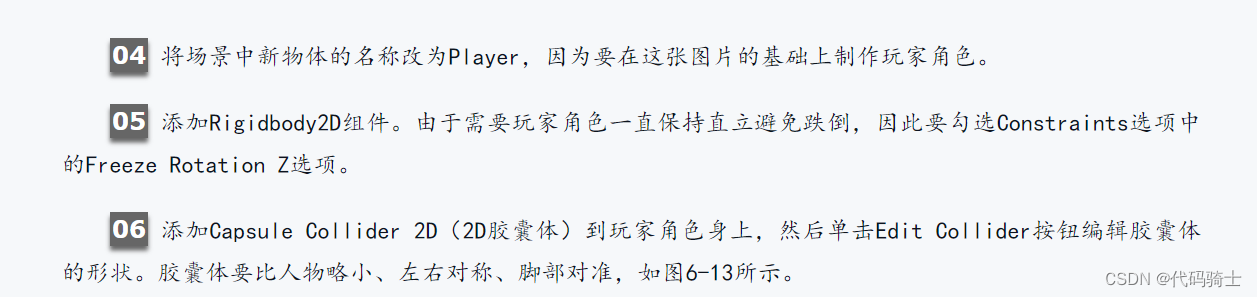

2、 The production steps of roles and controls

（1） Download resources

You need to modify the following code to demonstrate ：

SimpleActivatorMenu.cs

using System;
using UnityEngine;

#pragma warning disable 618
namespace UnityStandardAssets.Utility
{
    public class SimpleActivatorMenu : MonoBehaviour
    {
        // An incredibly simple menu which, when given references
        // to gameobjects in the scene
        //public GUIText camSwitchButton;
        public GameObject[] objects;


        private int m_CurrentActiveObject;


        private void OnEnable()
        {
            // active object starts from first in array
            m_CurrentActiveObject = 0;
           // camSwitchButton.text = objects[m_CurrentActiveObject].name;
        }


        public void NextCamera()
        {
            int nextactiveobject = m_CurrentActiveObject + 1 >= objects.Length ? 0 : m_CurrentActiveObject + 1;

            for (int i = 0; i < objects.Length; i++)
            {
                objects[i].SetActive(i == nextactiveobject);
            }

            m_CurrentActiveObject = nextactiveobject;
          //  camSwitchButton.text = objects[m_CurrentActiveObject].name;
        }
    }
}

PlatformerCharacter2D.cs

using System;
using UnityEngine;

#pragma warning disable 649
namespace UnityStandardAssets._2D
{
    public class PlatformerCharacter2D : MonoBehaviour
    {
        [SerializeField] private float m_MaxSpeed = 10f;                    // The fastest the player can travel in the x axis.
        [SerializeField] private float m_JumpForce = 400f;                  // Amount of force added when the player jumps.
        [Range(0, 1)] [SerializeField] private float m_CrouchSpeed = .36f;  // Amount of maxSpeed applied to crouching movement. 1 = 100%
        [SerializeField] private bool m_AirControl = false;                 // Whether or not a player can steer while jumping;
        [SerializeField] private LayerMask m_WhatIsGround;                  // A mask determining what is ground to the character

        private Transform m_GroundCheck;    // A position marking where to check if the player is grounded.
        const float k_GroundedRadius = .2f; // Radius of the overlap circle to determine if grounded
        private bool m_Grounded;            // Whether or not the player is grounded.
        private Transform m_CeilingCheck;   // A position marking where to check for ceilings
        const float k_CeilingRadius = .01f; // Radius of the overlap circle to determine if the player can stand up
        private Animator m_Anim;            // Reference to the player's animator component.
        private Rigidbody2D m_Rigidbody2D;
        private bool m_FacingRight = true;  // For determining which way the player is currently facing.

        public bool m_JumpReset = false;

        private void Awake()
        {
            // Setting up references.
            m_GroundCheck = transform.Find("GroundCheck");
            m_CeilingCheck = transform.Find("CeilingCheck");
            m_Anim = GetComponent<Animator>();
            m_Rigidbody2D = GetComponent<Rigidbody2D>();
        }


        private void FixedUpdate()
        {
            m_Grounded = false;

            // The player is grounded if a circlecast to the groundcheck position hits anything designated as ground
            // This can be done using layers instead but Sample Assets will not overwrite your project settings.
            Collider2D[] colliders = Physics2D.OverlapCircleAll(m_GroundCheck.position, k_GroundedRadius, m_WhatIsGround);
            for (int i = 0; i < colliders.Length; i++)
            {
                if (colliders[i].gameObject != gameObject)
                {
                    if (colliders[i].gameObject.tag == "JumpPoint")
                    {
                        m_JumpReset = true;
                        Destroy(colliders[i].gameObject);
                    }
                    else
                    {
                        m_Grounded = true;
                    }
                }
            }
            m_Anim.SetBool("Ground", m_Grounded);

            // Set the vertical animation
            m_Anim.SetFloat("vSpeed", m_Rigidbody2D.velocity.y);
        }


        public void Move(float move, bool crouch, bool jump)
        {
            // If crouching, check to see if the character can stand up
            if (!crouch && m_Anim.GetBool("Crouch"))
            {
                // If the character has a ceiling preventing them from standing up, keep them crouching
                if (Physics2D.OverlapCircle(m_CeilingCheck.position, k_CeilingRadius, m_WhatIsGround))
                {
                    crouch = true;
                }
            }

            // Set whether or not the character is crouching in the animator
            m_Anim.SetBool("Crouch", crouch);

            //only control the player if grounded or airControl is turned on
            if (m_Grounded || m_AirControl)
            {
                // Reduce the speed if crouching by the crouchSpeed multiplier
                move = (crouch ? move * m_CrouchSpeed : move);

                // The Speed animator parameter is set to the absolute value of the horizontal input.
                m_Anim.SetFloat("Speed", Mathf.Abs(move));

                // Move the character
                m_Rigidbody2D.velocity = new Vector2(move * m_MaxSpeed, m_Rigidbody2D.velocity.y);

                // If the input is moving the player right and the player is facing left...
                if (move > 0 && !m_FacingRight)
                {
                    // ... flip the player.
                    Flip();
                }
                // Otherwise if the input is moving the player left and the player is facing right...
                else if (move < 0 && m_FacingRight)
                {
                    // ... flip the player.
                    Flip();
                }
            }
            // If the player should jump...
            if ((m_Grounded || m_JumpReset) && jump)
            {
                // Add a vertical force to the player.
                m_Grounded = false;
                m_JumpReset = false;
                m_Anim.SetBool("Ground", false);

                Vector2 resetVlocity = m_Rigidbody2D.velocity;

                resetVlocity.y = Mathf.Max(0, resetVlocity.y);

                m_Rigidbody2D.velocity = resetVlocity;

                m_Rigidbody2D.AddForce(new Vector2(0f, m_JumpForce));
            }
        }


        private void Flip()
        {
            // Switch the way the player is labelled as facing.
            m_FacingRight = !m_FacingRight;

            // Multiply the player's x local scale by -1.
            Vector3 theScale = transform.localScale;
            theScale.x *= -1;
            transform.localScale = theScale;
        }
    }
}

demonstration ：
