Build a vc2010 development environment and create a tutorial of "realizing Tetris game in C language"
2022-07-01 13:21:00 【perseverance52】
build VC2010 development environment , establish 《C Language implementation of Tetris game 》 course
- Affirming ： The game comes from 《C Language implementation Tetris 》
build VC2010 development environment
- Please refer to ： 《 Installation and configuration VC2010 Step by step 》
install Visual C++ 2010 Express
Install first VC2010 Chinese version , Then install SP1 Patch pack .
- VC2010 Chinese version
Download address ：https://pan.baidu.com/s/1IBaNrOtdx3b7wz7nq7BeEA
Extraction code ：7cou
- SP1 Patch pack
Download address ：https://pan.baidu.com/s/1JK-InWFnURSmNlucyoy3hQ
Extraction code ：d5ei
install EasyX
- https://easyx.cn/easyx
- Click the Install button .
C Language implementation Tetris
- This altar friend's 《C Language implementation Tetris 》 Game code

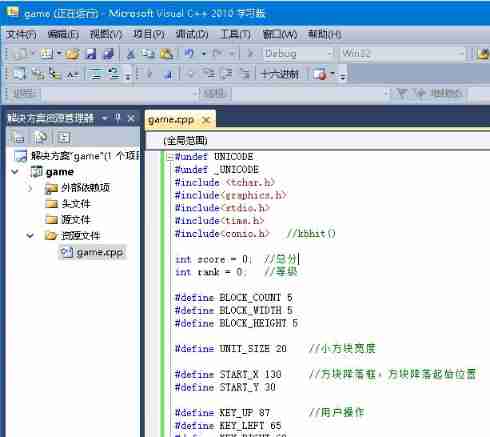

== Be careful ： You need to add cancel in front of the code Unicode Macro definition and additiontchar.hThe header file , The complete code is as follows ：
#undef UNICODE
#undef _UNICODE
#include <tchar.h>
#include<graphics.h>
#include<stdio.h>
#include<time.h>
#include<conio.h> //kbhit()
int score = 0; // Total score
int rank = 0; // Grade
#define BLOCK_COUNT 5
#define BLOCK_WIDTH 5
#define BLOCK_HEIGHT 5
#define UNIT_SIZE 20 // Small square width
#define START_X 130 // Square landing box , Square landing starting position
#define START_Y 30
#define KEY_UP 87 // The user action
#define KEY_LEFT 65
#define KEY_RIGHT 68
#define KEY_DOWN 83
#define KEY_SPACE 32
#define MinX 30 // The upper left corner of the game
#define MinY 30
int speed = 500; // Square landing speed
int NextIndex = -1; // Next block
int BlockIndex = -1; // Current box
typedef enum {
// The square faces
BLOCK_UP,
BLOCK_RIGHT,
BLOCK_LEFT,
BLOCK_DOWN
}block_dir_t;
typedef enum {
// The moving direction of the square
MOVE_DOWN,
MOVE_LEFT,
MOVE_RIGHT
}move_dir_t;
// Square color
int color[BLOCK_COUNT] = {
GREEN,
CYAN,
MAGENTA,
YELLOW,
BROWN
};
int visit[30][15]; // Access array visit[i][j] = 1 Indicates that there is a square in this position
int markColor[30][15]; // Corresponding position color
int block[BLOCK_COUNT * 4][BLOCK_WIDTH][BLOCK_HEIGHT] = {
// | Shape of square
{
0,0,0,0,0,0,0,1,0,0,0,0,1,0,0,0,0,1,0,0,0,0,0,0,0 },
{
0,0,0,0,0,0,0,0,0,0,0,1,1,1,0,0,0,0,0,0,0,0,0,0,0 },
{
0,0,0,0,0,0,0,1,0,0,0,0,1,0,0,0,0,1,0,0,0,0,0,0,0 },
{
0,0,0,0,0,0,0,0,0,0,0,1,1,1,0,0,0,0,0,0,0,0,0,0,0 },
// L Shape of square
{
0,0,0,0,0,0,0,1,0,0,0,0,1,0,0,0,0,1,1,0,0,0,0,0,0 },
{
0,0,0,0,0,0,0,0,0,0,0,1,1,1,0,0,1,0,0,0,0,0,0,0,0 },
{
0,0,0,0,0,0,1,1,0,0,0,0,1,0,0,0,0,1,0,0,0,0,0,0,0 },
{
0,0,0,0,0,0,0,0,1,0,0,1,1,1,0,0,0,0,0,0,0,0,0,0,0 },
// field Shape of square
{
0,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0 },
{
0,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0 },
{
0,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0 },
{
0,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0 },
// T Shape of square
{
0,0,0,0,0,0,1,1,1,0,0,0,1,0,0,0,0,0,0,0,0,0,0,0,0 },
{
0,0,0,0,0,0,0,0,1,0,0,0,1,1,0,0,0,0,1,0,0,0,0,0,0 },
{
0,0,0,0,0,0,0,1,0,0,0,1,1,1,0,0,0,0,0,0,0,0,0,0,0 },
{
0,0,0,0,0,0,1,0,0,0,0,1,1,0,0,0,1,0,0,0,0,0,0,0,0 },
// Z Shape of square
{
0,0,0,0,0,0,1,1,0,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0 },
{
0,0,0,0,0,0,0,1,0,0,0,1,1,0,0,0,1,0,0,0,0,0,0,0,0 },
{
0,0,0,0,0,0,1,1,0,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0 },
{
0,0,0,0,0,0,0,1,0,0,0,1,1,0,0,0,1,0,0,0,0,0,0,0,0 },
};
/*************************** * function ： The welcome page * Input ： * nothing * return ： * nothing **************************/
void welcome() {
//1. Initialize canvas
initgraph(550, 660);
system("pause");
//2. Set the window title
HWND window = GetHWnd();// Get the window , Get the current window
SetWindowText(window, _T(" tetris Here comes Xiao Ming ")); // Set title
//3. Set the game initial page
setfont(40, 0, _T(" Microsoft YaHei ")); // Set the font style of the text ( high , wide （0 It means adaptive ）, typeface ）
setcolor(WHITE); // Set the color
outtextxy(205, 200, _T(" Russian method "));
setfont(20, 0, _T(" Regular script "));
setcolor(WHITE); // Set the color
outtextxy(175, 300, _T(" Programming , Start with Tetris "));
Sleep(3000);
}
/*************************** * function ： Initialize the game scene * Input ： * nothing * return ： * nothing **************************/
void initGameSceen() {
char str[16]; // Store scores
//1. Clear the screen
cleardevice();
//2. Painting scene
rectangle(27, 27, 336, 635); // Box landing frame outer frame
rectangle(29, 29, 334, 633); // Box landing box inside the box
rectangle(370, 50, 515, 195); // Box prompt
setfont(24, 0, _T(" Regular script ")); // Write “ next ”
setcolor(LIGHTGRAY); // gray
outtextxy(405, 215, _T(" next ："));
setcolor(RED); // Write score
outtextxy(405, 280, _T(" fraction ："));
// In the specified format , take score write in str
sprintf_s(str, 16, "%d", score);
// Here, set the character set to multi character , Guarantee outtextxy You can write out variables str
outtextxy(415, 310, str);
outtextxy(405, 375, _T(" Grade ：")); // Grade
// In the specified format , take rank write in str
sprintf_s(str, 16, "%d", rank);
// Here, set the character set to multi character , Guarantee outtextxy You can write out variables str
outtextxy(415, 405, str);
setcolor(LIGHTBLUE); // Operation instructions
outtextxy(390, 475, " Operation instructions :");
outtextxy(390, 500, "↑: rotate ");
outtextxy(390, 525, "↓: falling ");
outtextxy(390, 550, "←: Move left ");
outtextxy(390, 575, "→: Move right ");
outtextxy(390, 600, " Space : Pause ");
}
/***************************************** * function ： Clear the box in the box prompt box * Input ： * nothing * return ： * nothing ****************************************/
void clearBlock() {
setcolor(BLACK);
setfont(23, 0, " Regular script ");
for (int i = 0; i < BLOCK_HEIGHT; ++i) {
for (int j = 0; j < BLOCK_WIDTH; ++j) {
int x = 391 + j * UNIT_SIZE;
int y = 71 + i * UNIT_SIZE;
outtextxy(x, y, "■");
}
}
}
/***************************************** * function ： Clear the blocks during landing * Input ： * x,y - The coordinates of the square （ The position of the upper left corner of the two-dimensional array ） * block_dir_t - Square direction * return ： * nothing ****************************************/
void clearBlock(int x, int y, block_dir_t blockDir) {
setcolor(BLACK);
// setfont(23, 0, " Regular script ");
int id = BlockIndex * 4 + blockDir;
for (int i = 0; i < BLOCK_HEIGHT; ++i) {
for (int j = 0; j < BLOCK_WIDTH; ++j) {
if (block[id][i][j] == 1) {
int x2 = x + j * UNIT_SIZE;
int y2 = y + i * UNIT_SIZE;
outtextxy(x2, y2, "■");
}
}
}
}
/***************************************** * function ： In the prompt box And Draw a square at the starting position of the landing box * Input ： * x,y - The coordinates of the square （ The position of the upper left corner of the two-dimensional array ） * return ： * nothing ****************************************/
void drawBlock(int x, int y) {
setcolor(color[NextIndex]);
setfont(23, 0, " Regular script ");
for (int i = 0; i < BLOCK_HEIGHT; ++i) {
for (int j = 0; j < BLOCK_WIDTH; ++j) {
if (block[NextIndex * 4][i][j] == 1) {
int x2 = x + j * UNIT_SIZE;
int y2 = y + i * UNIT_SIZE;
outtextxy(x2, y2, "■");
}
}
}
}
/***************************************** * function ： Draw the square during the descent * Input ： * x,y - The coordinates of the square （ The position of the upper left corner of the two-dimensional array ） * block_dir_t - Square direction * return ： * nothing ****************************************/
void drawBlock(int x, int y, block_dir_t dir) {
setcolor(color[BlockIndex]);
setfont(23, 0, " Regular script ");
int id = BlockIndex * 4 + dir;
for (int i = 0; i < BLOCK_HEIGHT; ++i) {
for (int j = 0; j < BLOCK_WIDTH; ++j) {
if (block[id][i][j] == 1) {
// Erase the... Of the box i Xing di j Column
outtextxy(x + j * UNIT_SIZE, y + i * UNIT_SIZE, "■");
}
}
}
}
/***************************************** * function ： A new box is generated in the box prompt * Input ： * nothing * return ： * nothing ****************************************/
void nextblock() {
clearBlock();
// Generate random numbers , Randomly select the box
srand((unsigned)time(NULL)); // Use the return value of the time function , As a random seed
NextIndex = rand() % BLOCK_COUNT; // produce 0~5 The random number
drawBlock(391, 71);
}
/***************************************** * function ： Judge whether it can move in the specified direction at the specified position * Input ： * x,y - Square position * moveDir - The direction you want to move next * blockDir - The direction of the current square * return ： * true - Can be moved * false - Can't move ****************************************/
bool moveable(int x0, int y0, move_dir_t moveDir, block_dir_t blockDir) {
// The upper left corner of the calculation box is 30×15 Location of the game area （ How many lines , How many columns ）
int x = (y0 - MinY) / UNIT_SIZE;
int y = (x0 - MinX) / UNIT_SIZE;
int ret = 1;
int id = BlockIndex * 4 + blockDir;
if (moveDir == MOVE_DOWN) {
for (int i = 0; i < BLOCK_HEIGHT; ++i) {
for (int j = 0; j < BLOCK_WIDTH; ++j) {
// The condition of not moving down ： The solid square has reached the bottom （x+i+1==30）, Or there are squares at the bottom
if (block[id][i][j] == 1 &&
(x + i + 1 == 30 || visit[x + i + 1][y + j] == 1)) {
ret = 0;
}
}
}
}
else if (moveDir == MOVE_LEFT) {
for (int i = 0; i < BLOCK_HEIGHT; ++i) {
for (int j = 0; j < BLOCK_WIDTH; ++j) {
// The condition of not moving to the left ： The solid box has reached the left boundary (y+j==0), Or there is a square on the left
if (block[id][i][j] == 1 &&
(y + j <= 0 || visit[x + i][y + j - 1] == 1)) {
ret = 0;
}
}
}
}
else if (moveDir == MOVE_RIGHT) {
for (int i = 0; i < BLOCK_HEIGHT; ++i) {
for (int j = 0; j < BLOCK_WIDTH; ++j) {
// The condition of not moving down ： The solid box has reached the right boundary （y+j+1>=15), Or there is a square on the right
if (block[id][i][j] == 1 &&
(y + j + 1 >= 15 || visit[x + i][y + j + 1] == 1)) {
ret = 0;
}
}
}
}
return ret;
}
/***************************** * function ： Check whether the game is over * Input ： * nothing * return ： * nothing *****************************/
void failCheck() {
// The end condition of the game is that the newly drawn box at the top will “ curing ”, The newly drawn square at the top faces upward , The direction of motion is downward
if (!moveable(START_X, START_Y, MOVE_DOWN, (block_dir_t)BLOCK_UP)) {
setcolor(WHITE);
setfont(45, 0, " Official script ");
outtextxy(75, 300, "Game Over！");
Sleep(1000);
system("pause");
closegraph();
exit(0);
}
}
/************************** * function ： Delay waiting for * Input ： * * return ： * nothing *************************/
void wait(int interval) {
int count = interval / 10;
for (int i = 0; i < count; ++i) {
Sleep(10);
// If the user has a key during sleep , Then sleep ends
if (_kbhit()) {
return;
}
}
}
/***************************************** * function ： Judge whether the current square can rotate in the specified direction * Input ： * x,y - Square position （ Two dimensional array coordinates ） * dir - The direction of rotation of the square * return ： * true - Can rotate * false - Do not rotate ****************************************/
bool rotatable(int x, int y, block_dir_t dir) {
// First, judge whether you can continue to move down
if (!moveable(x, y, MOVE_DOWN, dir)) {
return false;
}
int x2 = (y - MinY) / UNIT_SIZE;
int y2 = (x - MinX) / UNIT_SIZE;
int id = BlockIndex * 4 + dir;
for (int i = 0; i < BLOCK_HEIGHT; ++i) {
for (int j = 0; j < BLOCK_WIDTH; ++j) {
// Cannot rotate condition ： The left and right boundaries are out of bounds or there are blocks “ stop ”
if (block[id][i][j] == 1 && (y2 + j < 0 || y2 + j >= 15 || visit[x2 + i][y2 + j] == 1)) {
return false;
}
}
}
return true;
}
/***************************************** * function ： * Input ： * * return ： * nothing ****************************************/
void mark(int x, int y, block_dir_t dir) {
int id = BlockIndex * 4 + dir;
int x2 = (y - MinY) / UNIT_SIZE;
int y2 = (x - MinX) / UNIT_SIZE;
for (int i = 0; i < BLOCK_HEIGHT; ++i) {
for (int j = 0; j < BLOCK_WIDTH; ++j) {
if (block[id][i][j] == 1) {
visit[x2 + i][y2 + j] = 1;
markColor[x2 + i][y2 + j] = color[BlockIndex];
}
}
}
}
/***************************************** * function ： Read user actions , Update the landing box from time to time * Input ： * nothing * return ： * nothing ****************************************/
void move() {
int x = START_X; // Square start position
int y = START_Y;
int k = 0;
block_dir_t blockDir = (block_dir_t)BLOCK_UP;
int curSpeed = speed; // Define the current square landing speed
// Judge whether the game is over before reading the user's operation
failCheck();
// Keep falling down
while (1) {
int curSpeed = speed; // Define the current square landing speed
// Clear the box
clearBlock(x, k + y, blockDir);
// Judge the direction of choice
if (_kbhit()) {
int key = _getch();
if (key == KEY_SPACE) {
system("pause");
}
else if (key == KEY_UP) {
block_dir_t nextDir = (block_dir_t)((blockDir + 1) % 4);
if (rotatable(x, y + k, nextDir)) {
blockDir = nextDir;
}
}
else if (key == KEY_LEFT) {
if (moveable(x, y + k + 20, MOVE_LEFT, blockDir)) {
x -= UNIT_SIZE;
}
}
else if (key == KEY_RIGHT) {
if (moveable(x, y + k + 20, MOVE_RIGHT, blockDir)) {
x += UNIT_SIZE;
}
}
else if (key == KEY_DOWN) {
curSpeed = 50;
}
}
k += 20;
// Draw box
drawBlock(x, y + k, blockDir);
// Sleep
wait(curSpeed);
// Curing treatment of blocks , After the block is fixed, end the cycle , Of the current box move completion of enforcement
if (!moveable(x, y + k, MOVE_DOWN, blockDir)) {
mark(x, y + k, blockDir);
break;
}
}
}
/***************************************** * function ： Draw the square that just landed from the top , Update the box in the prompt box , Call the block landing function move() * Input ： * nothing * return ： * nothing ****************************************/
void newblock() {
BlockIndex = NextIndex;
// Draw the square just falling from the top
drawBlock(START_X, START_Y);
// Let the new box pause for a while
Sleep(200);
// Draw the next box in the upper right corner
nextblock();
// The box landed
move();
}
/***************************************** * function ： Eliminate section i That's ok , And move all the lines down * Input ： * nothing * return ： * nothing ****************************************/
void down(int x) {
for (int i = x; i > 0; --i) {
for (int j = 0; j < 15; ++j) {
if (visit[i - 1][j] == 1) {
visit[i][j] = 1;
markColor[i][j] = markColor[i - 1][j];
setcolor(markColor[i][j]);
outtextxy(20 * j + MinX, 20 * i + MinY, "■");
}
else {
visit[i][j] = 0;
setcolor(BLACK);
outtextxy(20 * j + MinX, 20 * i + MinY, "■");
}
}
}
// Clear the top grid
setcolor(BLACK);
for (int j = 0; j < 15; ++j) {
visit[0][j] = 0;
outtextxy(20 * j + MinX, MinY, "■");
}
}
/***************************************** * function ： Update score * Input ： * nothing * return ： * nothing ****************************************/
void addScore(int lines) {
char str[32];
score += lines * 10;
sprintf_s(str, 32, "%d", score);
setcolor(RED);
outtextxy(415, 310, str);
}
/************************* * function ： Update level * Input ： * nothing * return ： * nothing *************************/
void updateGrade() {
// Update level
// hypothesis 50 Level by level
rank = score / 50;
char str[32];
sprintf_s(str, 32, "%d", rank);
setcolor(RED);
outtextxy(415, 405, str);
// Update speed
if (speed <= 100) {
speed = 100;
}
else {
speed = 500 - rank * 20;
}
}
/************************* * function ： Check if there is a full line of squares * Input ： * nothing * return ： * nothing *************************/
void check() {
int i, j;
int clearLines = 0;
for (i = 29; i >= 0; i--) {
// Check the i Is the line full
for (j = 0; j < 15 && visit[i][j]; j++);
// At this point , There are two situations ：
// 1. The first i The line is not full , That means there is a vacancy here j<15
// 2. The first i The line is full , here j>=15
if (j >= 15) {
// here , The first i The line is full , We need to eliminate i That's ok
down(i); // Eliminate section i That's ok , And move the top lines down
i++; // Because there is... In the outermost cycle i--, So we first i++, Make the next cycle , Check this one again
clearLines++;
}
}
// Update score
addScore(clearLines);
// Update level ( Update level prompt , Update speed ）
updateGrade();
}
int main() {
welcome();
initGameSceen();
// Create a new square
nextblock();
// system("pause");
Sleep(800);
// Initialize access array
memset(visit, 0, sizeof(visit));
while (1) {
newblock();
// Eliminate full lines , And update scores and speed
check();
}
system("pause");
closegraph();
return 0;
}
Specific creation methods and steps
- New projects

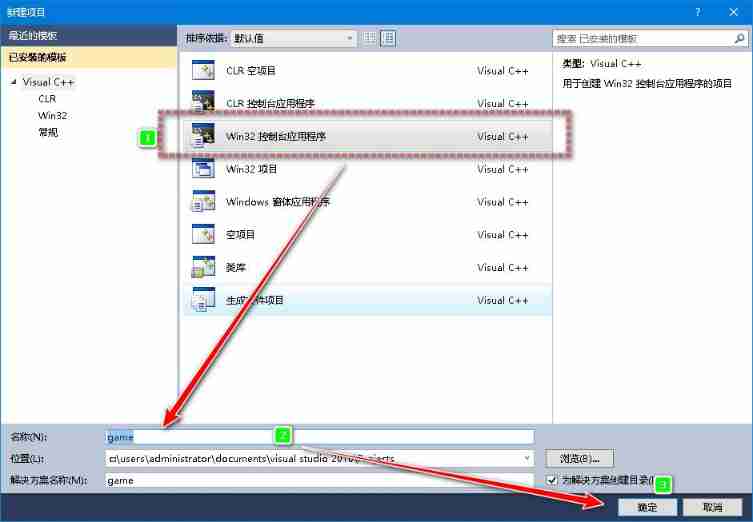

2. establish Win32 Console Application
3. next step

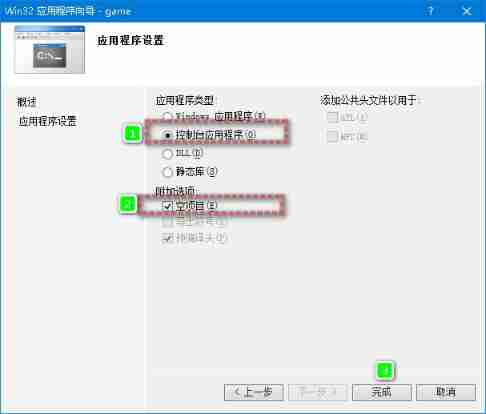

4. choice Console Application and Empty item
5. stay Resource file Right click on the folder , One choice add to - New item
5. choice C++ file , Input file name , There is no need to add a suffix
6. Add code
Copy and paste the complete code above . If you use the original author's code, you need to add or cancel Unicode Macro definition and addition tchar.h The header file .
7. After adding the code ,VC2010 The program will load automatically External dependencies , Wait for loading , Click the run debug icon button .
8, Debug window , The interface is black , Press any key , Start entering the game
8. When the game starts , The keyboard needs to be switched to uppercase input mode , That is to say CapsLk Key , To control the game .
9. Key ：A S W D also Space Key ,
- Related macro definitions of control keys , It can be set according to the keyboard of personal computer .
#define KEY_UP 87 // The user action
#define KEY_LEFT 65
#define KEY_RIGHT 68
#define KEY_DOWN 83
#define KEY_SPACE 32
边栏推荐
- Qtdeisgner, pyuic detailed use tutorial interface and function logic separation (nanny teaching)
- spark源码阅读总纲
- Svg diamond style code
- Redis exploration: cache breakdown, cache avalanche, cache penetration
- MySQL statistical bill information (Part 2): data import and query
- Shangtang technology crash: a script written at the time of IPO
- JS变色的乐高积木
- Fiori applications are shared through the enhancement of adaptation project
- Professor Li Zexiang, Hong Kong University of science and technology: I'm wrong. Why is engineering consciousness more important than the best university?
- Sharing with the best paper winner of CV Summit: how is a good paper refined?
猜你喜欢
Introduction to reverse debugging PE structure input table output table 05/07
软件测试中功能测试流程
啟動solr報錯The stack size specified is too small,Specify at least 328k
Jenkins+webhooks-多分支参数化构建-
Feign ＆ Eureka ＆ Zuul ＆ Hystrix 流程
SVG钻石样式代码
Feign & Eureka & zuul & hystrix process
8 popular recommended style layout
MySQL六十六问，两万字+五十图详解！复习必备
不同的测试技术区分
随机推荐
The 14th five year plan of China's environmental protection industry and the report on the long-term goals for 2035 Ⓖ 2022 ~ 2028
不同的测试技术区分
Colorful five pointed star SVG dynamic web page background JS special effect
c语言学习
Cs5268 advantages replace ag9321mcq typec multi in one docking station scheme
shell脚本导入存储过程到数据库
minimum spanning tree
nexus搭建npm依赖私库
Analysis report on the development trend and Prospect of new ceramic materials in the world and China Ⓐ 2022 ~ 2027
2.15 summary
Example code of second kill based on MySQL optimistic lock
8 popular recommended style layout
Look at the sky at dawn and the clouds at dusk, and enjoy the beautiful pictures
mysql统计账单信息(下)：数据导入及查询
新手准备多少钱可以玩期货？农产品可以吗？
Report on the "14th five year plan" and investment strategy recommendations for China's industrial robot industry 2022 ~ 2028
Project deployment is not difficult at all!
Have you ever encountered the problem that flynk monitors the PostgreSQL database and checkpoints cannot be used
Jenkins+webhooks-多分支参数化构建-
声明一个抽象类Vehicle，它包含私有变量numOfWheels和公共函数Vehicle(int)、Horn()、setNumOfWheels(int)和getNumOfWheels()。子类Mot
