Ribbon load balancing service call

summary

spring cloud ribbon Is based on Netflix Ribbon Implement a set of client load balancing tools .

In short ,ribbon yes Netflix Published open source projects , The main function is to provide the software load balancing algorithm and service call of the client .ribbon The client component provides a complete set of configuration items such as connection timeouts 、 Retry etc. . In short , This is listed in the configuration file load balancer（ abbreviation LB） All the machines in the back ,Ribbon Will automatically help you based on certain rules （ Such as simple polling , Random connection, etc ） To connect the machines . It's easy for us to use Ribbon Implement custom load balancing algorithm .

Load balancing is to evenly distribute users' requests to multiple services , So as to achieve systematic HA（ High availability ）. Common load balancing software includes Nginx、LVS etc. .

Nginx It's server load balancing , All client requests are delivered to Nginx, Then from Nginx Implement forwarding request . That is to say, the load balance is realized by the server .（ Centralized LB）

Ribbon It's local load balancing , When calling the microservice interface , The registration information service list will be retrieved from the registry and then cached to JVM Local , So that it can be implemented locally RPC Remote procedure call technology .（ In process LB）

Centralized LB： I.e. use independent... Between consumers and providers of services LB facilities （ It can be hardware , Such as F5, It can also be software , Such as Nginx）, The facility is responsible for forwarding access requests through some policy to the service provider .

In process LB： take LB Logic is integrated into the consumer , The consumer knows from the service registry what addresses are available , Then I choose a suitable server from these addresses .

Ribbon Load balancing and Rest call

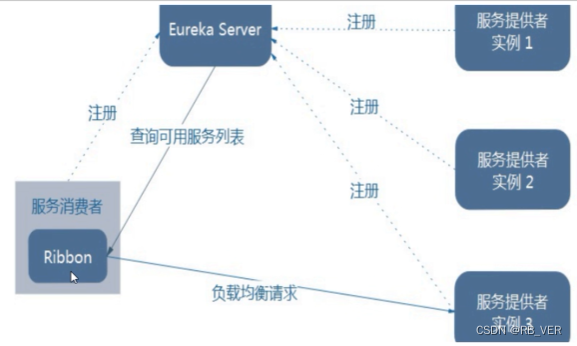

Ribbon It's actually a load balanced client component , It can be used in conjunction with other clients that need to request .

Ribbon Working time: two steps ：
The first step is to choose Eureka Server, It gives priority to those who are less responsible in the same area server.
The second step is according to the policy specified by the user , In from server Select an address from the service registration list obtained .

spring-cloud-starter-netflix-eureka-client Bring it with you spring-cloud-starter-ribbon quote .

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

Ribbon Default built-in load rules

IRule Interface ： Select a service to access from the list of services according to the specific algorithm .

Realization IRule The built-in common rules of the interface ：

• com.netflix.loadbalancer.RoundRobinRule： polling .（ Default ）
• com.netflix.loadbalancer.RandomRule： Random .
• com.netflix.loadbalancer.RetryRule： First according to RoundRobinRule The strategy to get services , If it fails to get the service, it will try again within the specified time , Get available services .
• WeightedResponseTimeRule： Yes RoundRobinRule An extension of , The faster the response speed, the greater the weight of instance selection , The easier it is to be chosen .
• BestAvailableRule： Services in the breaker trip state due to multiple access failures will be filtered out first , Then choose a service with the least amount of concurrency .
• AvailabilityFilteringRule： Filter the fault instance first , Then select the instance with smaller concurrency .
• ZoneAvoidanceRule： The default rules , Composite judgment server The performance of the region server The availability of select server .

Load rule replacement

Custom configuration class cannot be placed in @ComponentScan Under the current package and sub package scanned , Otherwise, our custom configuration class will be owned by all Ribbon Shared by the client , Can't achieve the purpose of special customization .
cloud-consumer-order80 Module directory structure ：

MySelfRule

package com.qrxqrx.myrule;

import com.netflix.loadbalancer.IRule;
import com.netflix.loadbalancer.RandomRule;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class MySelfRule {


    @Bean
    public IRule myRule() {

        return new RandomRule();
    }

}

OrderMain80

package com.qrxqrx.springcloud;

import com.qrxqrx.myrule.MySelfRule;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.netflix.ribbon.RibbonClient;

@SpringBootApplication
@EnableEurekaClient
@RibbonClient(name = "CLOUD-PAYMENT-SERVICE",configuration = MySelfRule.class)
public class OrderMain80 {


    public static void main(String[] args) {

        SpringApplication.run(OrderMain80.class,args);
    }

}

Ribbon Principle of default load balancing algorithm

rest The number of requests for the interface % Total number of server clusters = The actual call server location subscript

After every service restart rest Interface count from 1 Start .

RoundRobinRule Source code analysis

RandomRule Of choose Method ：

    public Server choose(ILoadBalancer lb, Object key) {

        if (lb == null) {

            log.warn("no load balancer");
            return null;
        } else {

            Server server = null;
            int count = 0;

            while(true) {

                if (server == null && count++ < 10) {

                    List<Server> reachableServers = lb.getReachableServers();
                    List<Server> allServers = lb.getAllServers();
                    int upCount = reachableServers.size();
                    int serverCount = allServers.size();
                    if (upCount != 0 && serverCount != 0) {

                        int nextServerIndex = this.incrementAndGetModulo(serverCount);
                        server = (Server)allServers.get(nextServerIndex);
                        if (server == null) {

                            Thread.yield();
                        } else {

                            if (server.isAlive() && server.isReadyToServe()) {

                                return server;
                            }

                            server = null;
                        }
                        continue;
                    }

                    log.warn("No up servers available from load balancer: " + lb);
                    return null;
                }

                if (count >= 10) {

                    log.warn("No available alive servers after 10 tries from load balancer: " + lb);
                }

                return server;
            }
        }
    }

Ribbon Handwritten polling algorithm

stay cloud-provider-payment8001 and cloud-provider-payment8002 Revision in China controller

    @GetMapping(value = "/payment/lb")
    public String getPaymentLB() {

        return serverPort;
    }

modify cloud-consumer-order80 modular , Comment out the configuration class @LoadBalanced

@Configuration
public class ApplicationContextConfig {


    @Bean
    //@LoadBalanced
    public RestTemplate getRestTemplate() {

        return new RestTemplate();
    }

}

Realization LoadBalancer

package com.qrxqrx.springcloud.lb;

import org.springframework.cloud.client.ServiceInstance;

import java.util.List;

public interface LoadBalancer {


    ServiceInstance instances(List<ServiceInstance> serviceInstances);

}

Realization

package com.qrxqrx.springcloud.lb;

import org.springframework.cloud.client.ServiceInstance;
import org.springframework.stereotype.Component;

import java.util.List;
import java.util.concurrent.atomic.AtomicInteger;

@Component
public class MyLB implements LoadBalancer {


    private AtomicInteger atomicInteger = new AtomicInteger(0);

    @Override
    public ServiceInstance instances(List<ServiceInstance> serviceInstances) {

        int index = getAndIncrement() % serviceInstances.size();
        return serviceInstances.get(index);
    }

    public final int getAndIncrement() {

        int current;
        int next;

        do {

            current = this.atomicInteger.get();
            next = current >= 2147483647 ? 0 : current + 1;
        } while(this.atomicInteger.compareAndSet(current,next));
        System.out.println(" The first "+next+" visit ");
        return next;
    }
}

modify OrderController

    @GetMapping(value = "/consumer/payment/lb")
    public String getPaymentLB() {

        List<ServiceInstance> instances = discoveryClient.getInstances("CLOUD-PAYMENT-SERVICE");
        if (instances == null || instances.size() <= 0) {

            return null;
        }
        ServiceInstance serviceInstance = loadBalancer.instances(instances);
        URI uri = serviceInstance.getUri();
        return restTemplate.getForObject(uri+"/payment/lb",String.class);
    }
