One 、 Experimental principle
n individual 1 Bit full adder （FA） It can be cascaded into one n Bit traveling wave carry adder .M Control input line for mode , When M=0 when , add （A＋B） operation ; When M=l when , subtracting （A-B） operation , In the latter case ,A-B Operation into [A] repair +[-B] Complement operation , The process of making up consists of B＋1 To achieve . Therefore, the starting carry input of the full adder on the right is connected to the function mode line M On , In subtraction M=l, It is equivalent to adding 1. In addition, the left side of the figure also shows the overflow detection logic of the single sign bit method : When Cn
=Cn-1
when , Operation without overflow ; And when Cn≠Cn-1
when , The operation overflows , Overflow signal is generated through XOR gate .
Two binary numbers Ai
,Bi
And a carry input Ci
Add up , Generate a and output Si
, And a carry output Ci+1
.
Input | Output | |||
Ai | Bi | Ci | Si | Ci+1 |
0 | 0 | 0 | 0 | 0 |
0 | 0 | 1 | 1 | 0 |
0 | 1 | 0 | 1 | 0 |
0 | 1 | 1 | 0 | 1 |
1 | 0 | 0 | 1 | 0 |
1 | 0 | 1 | 0 | 1 |
1 | 1 | 0 | 0 | 1 |
1 | 1 | 1 | 1 | 1 |
According to the truth table shown in the above table , Three inputs and two inputs can be connected according to the following logic equation ：
Si ＝Ai ⊕Bi
⊕Ci
Ci+1 ＝AiBi
＋BiCi
＋AiCi
For a full adder (FA) Come on ,Si
The time delay of is 6T( XOR gate delay per stage 3T),Ci+1
The time delay of is 5T, among T Is defined as the unit gate delay corresponding to a single-stage logic circuit .T Usually a “ And non ” Door or one “ Or not ” The time delay of the gate is used as the unit of measurement .

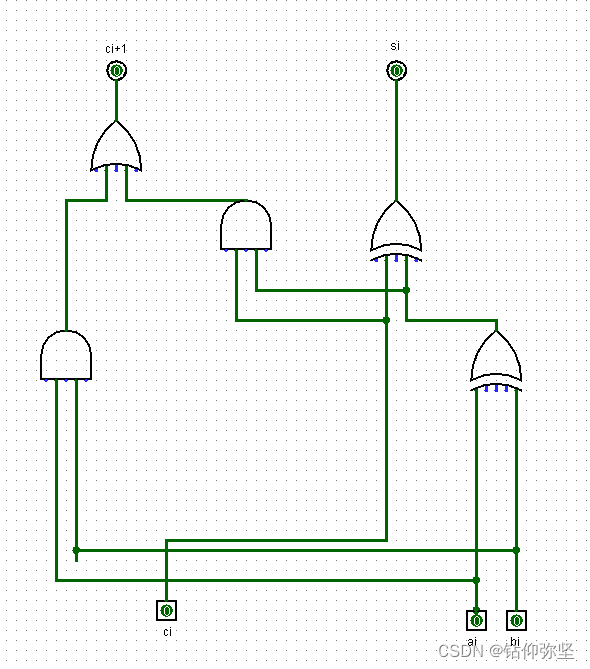

The circuit diagram is as follows ：
Two 、 Serial controllable addition / Subtracter test
Initial circuit diagram ：
Sub circuit diagram ：
（1）FA： Full adder
Example 1 ： Add
- Don't spill
1000000000000000+0110000000000000=1110000000000000
- Can overflow
1000000000000000+1000000000000000=10000000000000000
Example 2 ： Subtraction ：
1110000000000000-1000000000000000=0110000000000000
3、 ... and 、 Experimental code
