实验6 BGP联邦综合实验

目录

 1.配IP地址

2.配置路由 BGP IGP协议

 3.发布路由

 4.聚合，发布私网路由

 5.配置VPN

  1.配IP地址

[r1]int l0
[r1-LoopBack0]ip address 192.168.1.1 24
[r1-LoopBack0]int l1
[r1-LoopBack1]ip address 10.0.0.1 24
[r1-LoopBack1]int g 0/0/0
[r1-GigabitEthernet0/0/0]ip address 12.0.0.1 24

[r2]int g 0/0/0
[r2-GigabitEthernet0/0/0]ip address 12.0.0.2 24
[r2-GigabitEthernet0/0/0]int g 0/0/1
[r2-GigabitEthernet0/0/1]ip address 172.16.1.1 29
[r2-GigabitEthernet0/0/1]int g 0/0/2
[r2-GigabitEthernet0/0/2]ip address 172.16.1.9 29
[r2-GigabitEthernet0/0/2]int l0
[r2-LoopBack0]ip address 172.16.2.1 24

[r3]int g 0/0/0
[r3-GigabitEthernet0/0/0]ip address 172.16.1.2 29
[r3-GigabitEthernet0/0/0]int g 0/0/1
[r3-GigabitEthernet0/0/1]ip address 172.16.1.17 29
[r3-GigabitEthernet0/0/1]int l0
[r3-LoopBack0]ip address 172.16.3.1 24


[r4]int g 0/0/0
[r4-GigabitEthernet0/0/0]ip address 172.16.1.18 29
[r4-GigabitEthernet0/0/0]int g 0/0/1
[r4-GigabitEthernet0/0/1]ip address 172.16.1.25 29
[r4-GigabitEthernet0/0/1]int l0
[r4-LoopBack0]ip address 172.16.4.1 24


[r5]int g 0/0/0
[r5-GigabitEthernet0/0/0]ip address 172.16.1.10 29
[r5-GigabitEthernet0/0/0]int g 0/0/1
[r5-GigabitEthernet0/0/1]ip address 172.16.1.33 29
[r5-GigabitEthernet0/0/1]int l0
[r5-LoopBack0]ip address 172.16.5.1 24


[r6]int g 0/0/0
[r6-GigabitEthernet0/0/0]ip address 172.16.1.34 29
[r6-GigabitEthernet0/0/0]int g 0/0/1
[r6-GigabitEthernet0/0/1]ip address 172.16.1.41 29
[r6-GigabitEthernet0/0/1]int l0
[r6-LoopBack0]ip address 172.16.6.1 24

[r7]int g 0/0/0
[r7-GigabitEthernet0/0/0]ip address 172.16.1.42 29
[r7-GigabitEthernet0/0/0]int g 0/0/1
[r7-GigabitEthernet0/0/1]ip address 172.16.1.26 29
[r7-GigabitEthernet0/0/1]int l0
[r7-LoopBack0]ip address 172.16.7.1 24
[r7-LoopBack0]int g 0/0/2
[r7-GigabitEthernet0/0/2]ip address 78.0.0.1 24


[r8]int g 0/0/0
[r8-GigabitEthernet0/0/0]ip address 78.0.0.2 24
[r8-GigabitEthernet0/0/0]int l0
[r8-LoopBack0]ip address 192.168.2.1 24
[r8-LoopBack0]int l1
[r8-LoopBack1]ip address 11.0.0.1 24

2.配置路由 BGP IGP协议

①配置IGP协议 (R2-R3-R4-R5-R6-R7配置方法相同)

[r2]ospf 1 router-id 2.2.2.2
[r2-ospf-1]a 0
[r2-ospf-1-area-0.0.0.0]network 172.16.0.0 0.0.255.255

display ip routing-table protocol ospf

 ②配置BGP协议

[r1]bgp 1
[r1-bgp]router-id 1.1.1.1
[r1-bgp]peer 12.0.0.2 as-number 2


[r2]bgp 64512
[r2-bgp]router-id 2.2.2.2
[r2-bgp]confederation id 2
[r2-bgp]confederation peer-as 64513
[r2-bgp]peer 12.0.0.1 as-number 1

[r2-bgp]peer 172.16.3.1 as-number 64512
[r2-bgp]peer 172.16.3.1 connect-interface LoopBack 0

[r2-bgp]peer 172.16.5.1 as-number 64513
[r2-bgp]peer 172.16.5.1 connect-interface LoopBack 0
[r2-bgp]peer 172.16.5.1 ebgp-max-hop

[r3]bgp 64512
[r3-bgp]router-id 3.3.3.3
[r3-bgp]confederation id 2
[r3-bgp]peer 172.16.2.1 as-number 64512
[r3-bgp]peer 172.16.2.1 connect-interface LoopBack 0
[r3-bgp]peer 172.16.4.1 as 64512
[r3-bgp]peer 172.16.4.1 connect-interface LoopBack 0

[r4]bgp 64512
[r4-bgp]router-id 4.4.4.4
[r4-bgp]confederation id 2
[r4-bgp]confederation peer-as 64513
[r4-bgp]peer 172.16.3.1 as 64512
[r4-bgp]peer 172.16.3.1 connect-interface LoopBack 0
[r4-bgp]peer 172.16.7.1 as 64513
[r4-bgp]peer 172.16.7.1 connect-interface LoopBack 0
[r4-bgp]peer 172.16.7.1 ebgp-max-hop


[r5]bgp 64513
[r5-bgp]router-id 5.5.5.5
[r5-bgp]confederation id 2
[r5-bgp]confederation peer-as 64512
[r5-bgp]peer 172.16.2.1 as-number 64512
[r5-bgp]peer 172.16.2.1 connect-interface LoopBack 0
[r5-bgp]peer 172.16.2.1 ebgp-max-hop
[r5-bgp]peer 172.16.6.1 as-number 64513
[r5-bgp]peer 172.16.6.1 connect-interface LoopBack 0

[r6]bgp 64513
[r6-bgp]router-id 6.6.6.6
[r6-bgp]confederation id 2
[r6-bgp]peer 172.16.5.1 as 64513
[r6-bgp]peer 172.16.5.1 connect-interface LoopBack 0
[r6-bgp]peer 172.16.7.1 as 64513
[r6-bgp]peer 172.16.7.1 connect-interface LoopBack 0

[r7]bgp 64513
[r7-bgp]router-id 7.7.7.7
[r7-bgp]confederation id 2
[r7-bgp]confederation peer-as 64512
[r7-bgp]peer 172.16.6.1 as 64513
[r7-bgp]peer 172.16.6.1 connect-interface LoopBack 0
[r7-bgp]peer 172.16.4.1
[r7-bgp]peer 172.16.4.1 as 64512
[r7-bgp]peer 172.16.4.1 connect-interface LoopBack 0
[r7-bgp]peer 172.16.4.1 ebgp-max-hop
[r7-bgp]peer 78.0.0.2 as 3

[r8]bgp 3
[r8-bgp]router-id 8.8.8.8
[r8-bgp]peer 78.0.0.1 as 2

 3.发布路由

[r1]bgp 1
[r1-bgp]network 10.0.0.0 24

[r2]bgp 64512
[r2-bgp]peer 172.16.3.1 next-hop-local
[r2-bgp]peer 172.16.5.1 next-hop-local

 因为IBGP水平分割,将R3-R6配置为路由反射器RR

[r3]bgp 64512
[r3-bgp]peer 172.16.2.1 reflect-client

[r6]bgp 64513
[r6-bgp]peer 172.16.7.1 reflect-client





 注意：双向配置!

[r8]bgp 3
[r8-bgp]network 11.0.0.0 24

[r7]bgp 64513
[r7-bgp]peer 172.16.6.1 next-hop-local
[r7-bgp]peer 172.16.4.1 next-hop-local

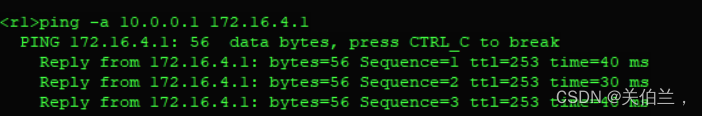

 4.聚合，发布私网路由

[r2]ip route-static 172.16.0.0 21 NULL 0
[r2]bgp 64512
[r2-bgp]network 172.16.0.0 21

[r7]ip route-static 172.16.0.0 21 NULL 0
[r7]bgp 64513
[r7-bgp]network 172.16.0.0 21

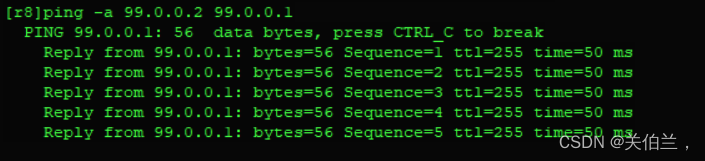

 5.配置VPN

[r8]int t 0/0/0
[r8-Tunnel0/0/0]ip address 99.0.0.2 24
[r8-Tunnel0/0/0]tunnel-protocol gre
[r8-Tunnel0/0/0]source 11.0.0.1
[r8-Tunnel0/0/0]destination 10.0.0.1

[r8-Tunnel0/0/0]ip route-static 192.168.1.0 24 99.0.0.1


[r1]int t 0/0/0
[r1-Tunnel0/0/0]ip address 99.0.0.1 24

[r1-Tunnel0/0/0]tunnel-protocol gre
[r1-Tunnel0/0/0]source 10.0.0.1
[r1-Tunnel0/0/0]destination 11.0.0.1

[r1-Tunnel0/0/0]ip route-static 192.168.2.0 24 99.0.0.2
