Two position relay HJWS–9440

1. purpose

It is used in various protection and automatic control devices for AC and DC operation , As a switching locking element .

2. Installation structure

Guide rail installation 9, Guide rail installation E The shell has two structures , See the overall dimension drawing for specific dimensions .

3． Product model

HJ WS Model description of two position relay

4. Main technical parameters

(1). Rated voltage ：220VDC、110VDC、220VAC、110VAC

(2). Auxiliary power supply ： This model can be disconnected from the auxiliary power supply .

(3). Action value ： The closing coil shall not be greater than 70% Rated voltage . The tripping coil shall not be less than 70% Rated voltage .

(4). Contact capacity ： It can be connected for a long time 5A electric current , When the voltage is not greater than 250VDC In the DC circuit of , Can be disconnected τ=5ms

50W DC inductive load ; When the voltage is not greater than 250VAC In the AC circuit of , Can be disconnected COSФ=0.4 250VA Of

AC load .

(5). work Consumption ： No more than 5W.

(6). There are movement instructions .

(7). Action time ： At rated voltage , The action time shall not be greater than 30ms.

(8). Insulation resistance ： Use open circuit voltage 500V Use a megger to measure the distance between each exposed live terminal and the housing , The insulation resistance is not small

On 300MΩ.

(9). Medium strength ： Each outgoing live terminal and shell can withstand power frequency 2KV（ Valid values ）50Hz, after 1 Minutes no

breakdown , No flashover .

5. Conditions of use

(1). ambient temperature ：-15℃ ～ 55℃;

(2). No conductive gas , No corrosive gas , No strong vibration ;

(3). Working voltage ： No more than 120% Rated voltage ;

(4). Working position ： arbitrarily ;

(5). The intensity of the surrounding magnetic field ： Less than 0.5mT;

(6). No rain or snow , Anti fog 、 dustproof 、 Windbreak facilities .

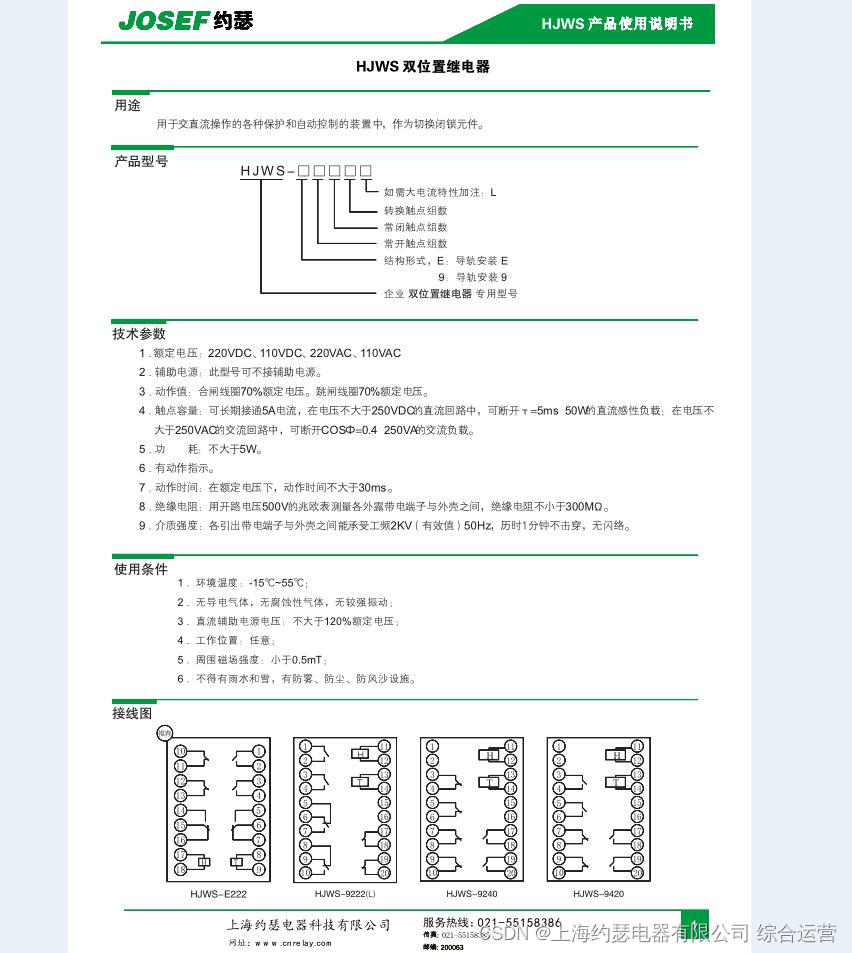

6. Wiring diagram

HJWS Wiring diagram of two position relay

notes ： The contact state of the wiring diagram is “T” The state of the coil after it is energized , To change the contact state, you need to give “H” The coil is energized .

Two position relay HJWS–9440

Ordering instructions

The relay model and specification must be indicated when ordering 、 Structural form code 、 Wiring mode before or after the board 、 Quantity and other requirements .

Two position relay , As the name suggests, it means that the relay has two positions , At the same time, it can keep itself in both positions . actually , The two position relay is a magnetic holding relay with two coils .

coil A After power on , Relay contacts act , Even if it loses power , The contacts do not return ; coil B After power on , Relay contact return , Even if it loses power , The contacts will no longer act . in other words , If the contact position of the two position relay is reversed , There must be a coil live .

Two position relay is common in secondary circuit of substation , Mostly used to maintain status 、 In the circuit with high reliability requirements . Such as voltage switching circuit of double bus connection and voltage parallel circuit .
