Quartus II 13.1 detailed installation steps

2022-06-23 13:37:00 【Little monster】

Quartus II 13.1 Detailed installation steps

Catalog

This article mainly introduces Quartus II 13.1 Installation and related simple use .

One 、quartus download

Baidu online disk download link ：
https://pan.baidu.com/s/1vaMfrHw4IfamREKiVAsSGw .
Extraction code ：82eh

Folders obtained after downloading
Insert picture description here

Two 、quartus install

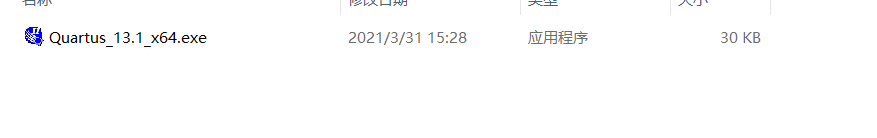

Unzip the downloaded corresponding file
Insert picture description here
Double click Run application , Enter the installation guide interface （ Right mouse click , Operate as a pipeline operator ）
Insert picture description here

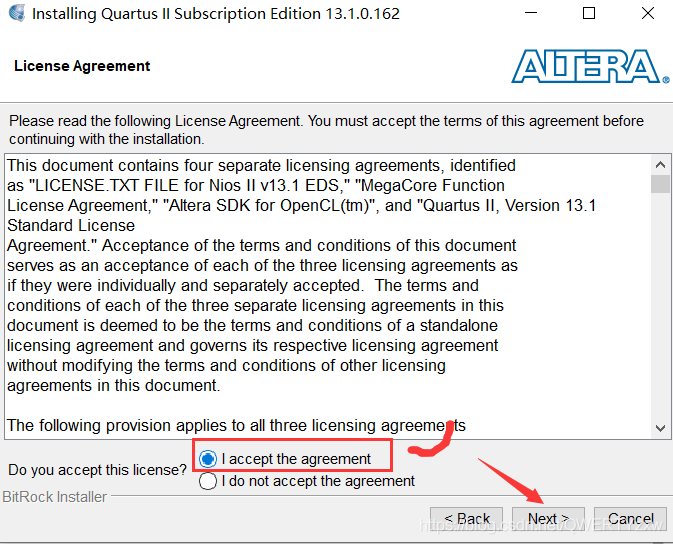

Check I accept the agreement
Insert picture description here
Custom installation path
Insert picture description here
This interface has been checked , Click on next
Insert picture description here

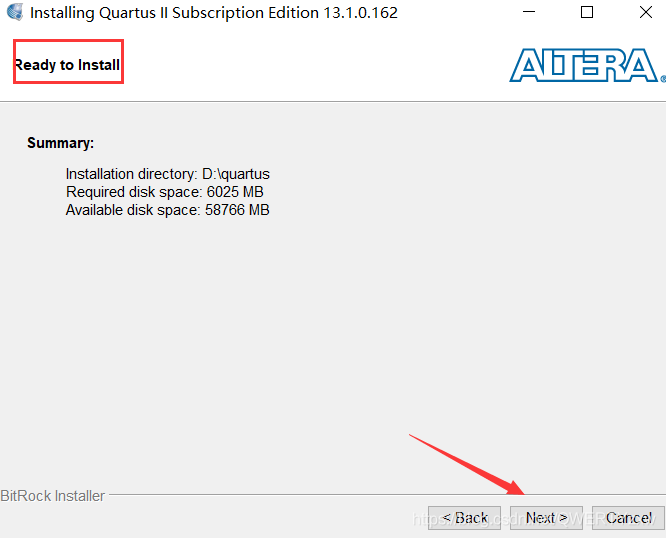

Ready to install , Click on next
Insert picture description here
Waiting for the installation
Insert picture description here

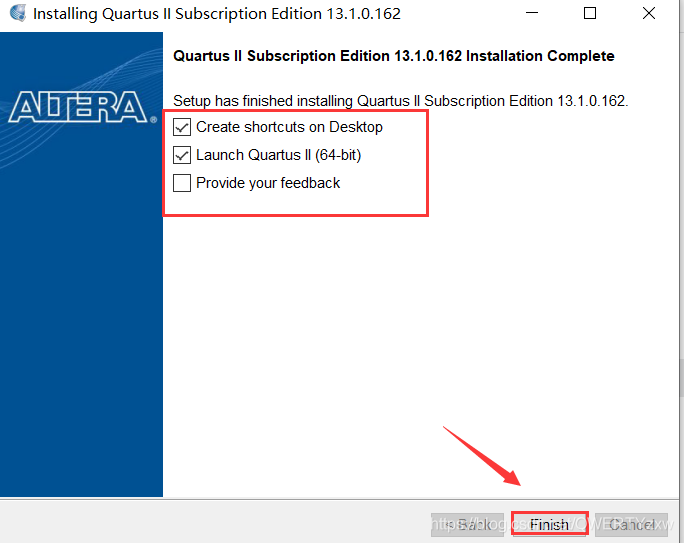

installation is complete , Click on finish
Insert picture description here
choice OK
Insert picture description here

3、 ... and 、quartus register

1、 Download the cracker file
Network disk link ：
https://pan.baidu.com/s/16GnGbr4v-EFKF0VZYUArsg.
Extraction code ：766d
Insert picture description here

2、 Use of cracker
take quartus Crack files placed in quartus/bin64 Under the folder , And extract to the current folder Insert picture description here

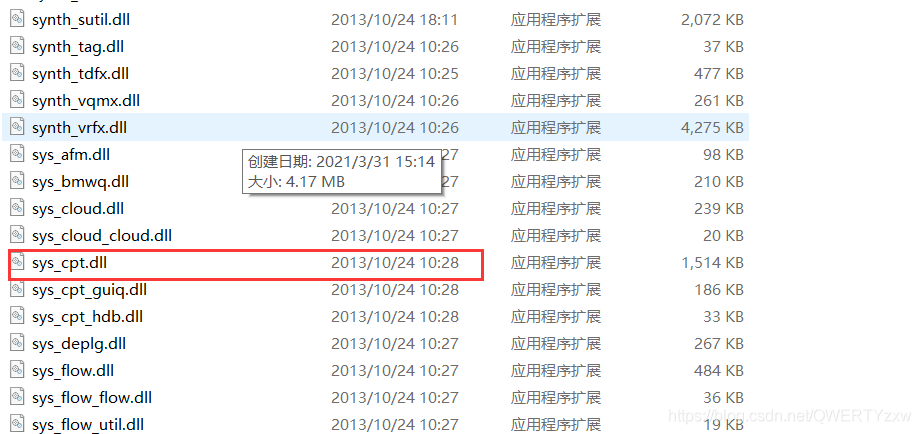

find sys_cpt.dll file
Insert picture description here
It doesn't seem to work , We directly double-click to crack the file , Click application
Insert picture description here
Automatic generation license.dat file , Click save
![ Insert picture description here ](https://img-blog.csdnimg.cn/20210331160153102.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L1FXRVJUWXp4dw==,size_16,color_FFFFFF,t_70
Click to exit
Insert picture description here

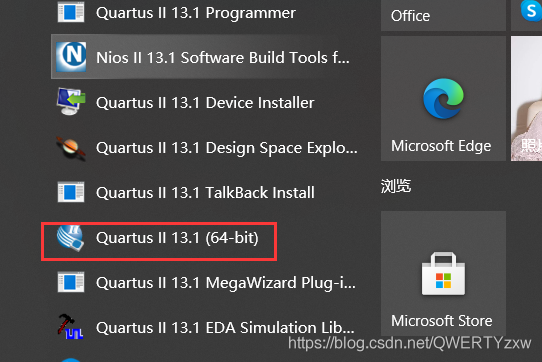

function Quartus II 13.1, Choose the second , Click on ok

Insert picture description here
Insert picture description here
choice “tools” At the bottom of the “license setup”
Insert picture description here
Copy the... Of the pop-up window id（ Choose one of them ）
Insert picture description here
Find... In the installation directory license file , Will duplicate id Replace
Insert picture description here
Insert picture description here
id Replace , Click save
Insert picture description here
open Tool --> License Setup
Insert picture description here
thus , The installation and registration are completed .

Four 、 Summary and references

1、 summary

This article mainly introduces quartus Installation and registration of , For relevant use , Later in the learning process, I will introduce .

2、 Reference material

Quartus.
quartus Detailed installation tutorial .
