Preface

• This section explains Basic but most commonly used controls —— Button (Button )
• Demonstrate hardware and software environment Win11 x64 ; CANoe 11 SP2 x64


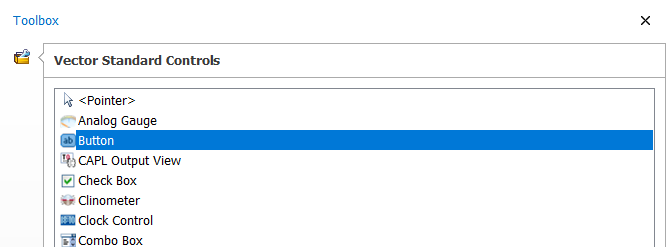

Button (Button )

• 1️⃣ Button Is a control that can trigger a specified action .

---

Button Level signal of control

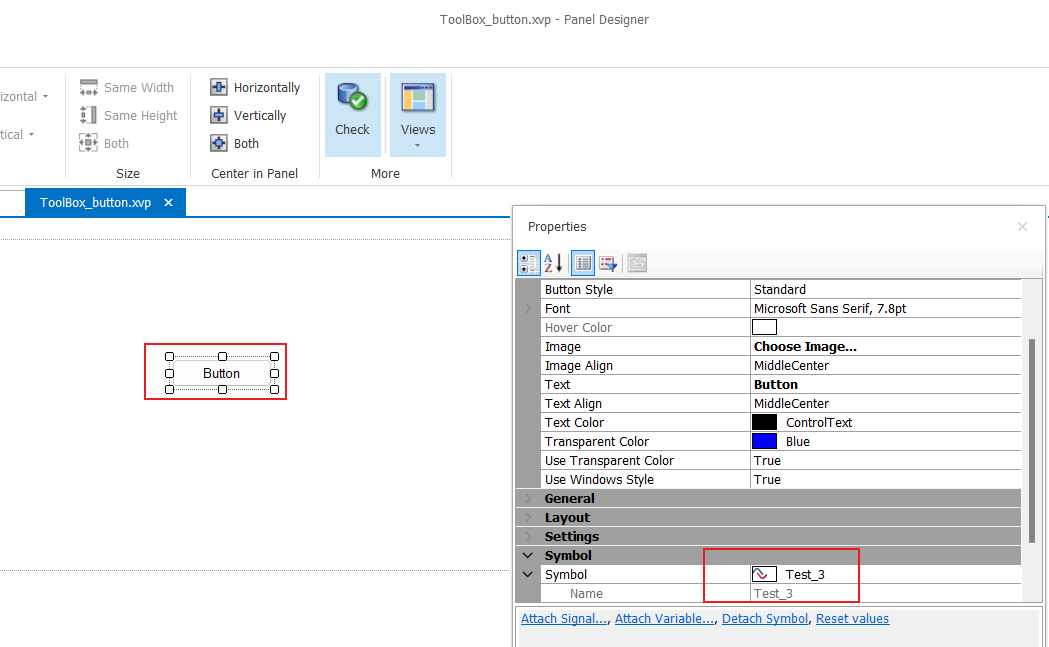

1️⃣ Here's the picture , Create a new panel , name ToolBox_button , And set the Association symbol System variables Test_3,

---

2️⃣ Run CANoe , Click on it. Button System variables Test_3 The value is set to 1, Just don't let go , The value remains the same , Then let go ,Test_3 The value of is set to 0

• So Button Control is self restoring
• So in us CAPL Script response Button Pay attention to adding non-zero judgment to your code , Otherwise, it will trigger repeatedly

---

on sysvar Panel::Test_3
{

  if(@this)
  {

    //do somethng
  }

}

---

name and text Attribute distinction

1️⃣

• name ： Is the identification of the control ID, yes CAPL Parameters recognized when the script controls the control

• text： Description of the control , Display information during interaction ,Font Property is set for Text Of

• All the following controls will no longer explain this

---

button How to design fancy

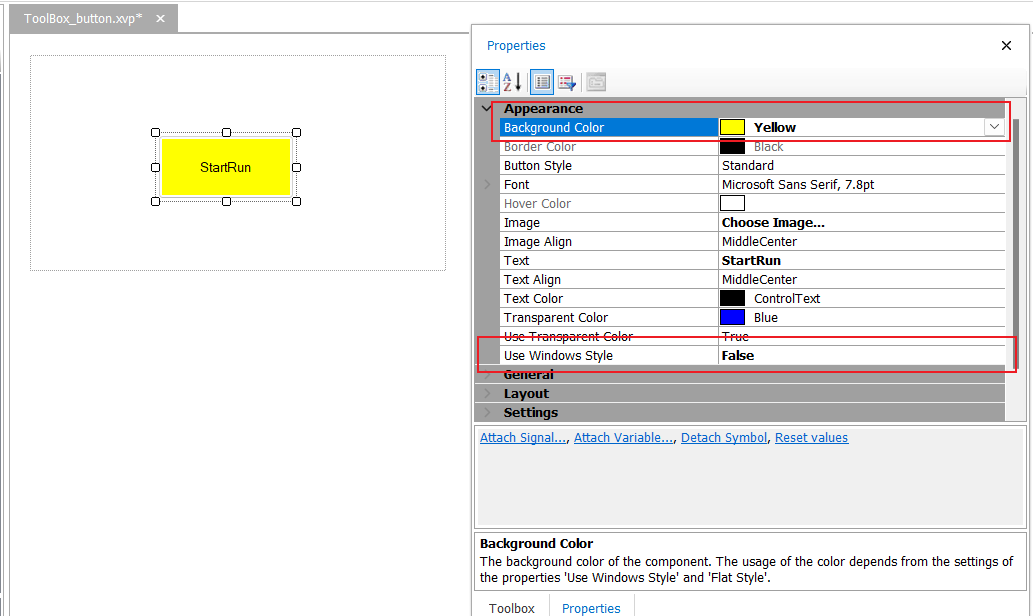

1️⃣ By default Use Windows Style The options are True , Background Color The attribute is gray and not optional , In this way button It's not very beautiful

---

2️⃣ take Use Windows Style The option is set to False, Background Color Attributes can be used

---

3️⃣ Attention, everyone , Default Button Style The property of is Standard Of , There are still many attribute numbers that are not selectable , So we can take Button Style choice CostomFlat Pattern , So we can set button Of Border color (Border Color) and Mouse hover color (Hover Color) 了 .

• Hovering the mouse changes the color
