NFS service and Samba service deployment

NFS The concept of

NFS( Network file system ) Provide one in UNIX The method of sharing files on the system . at present ,NFS There are three versions ：NFSv2、NFSv3、NFSv4,Centos7 By default NFSv4 Provide services .

Its advantage is to provide stateful connection , Easier to track connection status , Enhance security .

NFS Monitor in 2049 On port , Users can mount the shared data to the local directory by mounting .

NFS Related documents of

• Primary profile ：/etc/exports

  This is a NFS The main configuration file of . The file is blank , Some systems may not have this file , It is mainly established manually .NFS The configuration of is generally only configured in this file .

• NFS File system maintenance instructions ：/usr/sbin/exportfs

  This is maintenance NFS Instructions for sharing resources , You can use this command to re share /etc/exports Changed directory resources 、 take NFS Server Remove or re share the shared directory .

• Login file for sharing resources ：/var/lib/nfs/*tab

  stay NFS The login files of the server are placed in /var/lib/nfs/ Inside the directory , There are two important login files in this directory , One is etab , It mainly records NFS The full permission setting value of the shared directory ; the other one xtab Then the record has been linked to this NFS Server related client data .

• The client queries the server for instructions to share resources ：/usr/sbin/showmount

  This is another important NFS Instructions .exportfs It's for NFS Server End , and showmount It is mainly used in Client End .showmount It can be used to see NFS Shared directory resources .

NFS actual combat

• Environmental preparation

ip	Host name	node
192.168.0.20	nfs-server	NFS Service node
192.168.0.21	nfs-client	NFS Customer node

• NFS install

[[email protected] ~]# hostnamectl set-hostname nfs-server
[[email protected] ~]# bash
[[email protected] ~]# yum install -y nfs-utils rpcbind

[[email protected] ~]# hostnamectl set-hostname nfs-client
[[email protected] ~]# bash
[[email protected] ~]# yum install -y nfs-utils rpcbind

• stay NFS Set up on the server for NFS Directory for file sharing , And set up enough permissions to make sure that other people have write permissions

[[email protected] ~]# mkdir /nfsfile
[[email protected] ~]# chmod -R 777 /nfsfile
[[email protected] ~]# echo 1232424 > /nfsfile/test

• To configure NFS Parameters of the service program configuration file


[[email protected] ~]# vim /etc/exports
[[email protected] ~]# cat /etc/exports
/nfsfile 192.168.0.0/24(rw,sync,root_squash)

• NFS Client-side configuration
  Use showmount Command query NFS Remote sharing information of server

[[email protected] ~]# showmount -e 192.168.0.20
Export list for 192.168.0.20:
/nfsfile 192.168.0.0/24

• Client mount use

[[email protected] ~]# mkdir /nfsfile
[[email protected] ~]# mount -t nfs 192.168.0.20:/nfsfile /nfsfile
[[email protected] ~]# df -Th
Filesystem              Type      Size  Used Avail Use% Mounted on
/dev/mapper/centos-root xfs        18G  1.1G   17G   7% /
devtmpfs                devtmpfs  1.9G     0  1.9G   0% /dev
tmpfs                   tmpfs     1.9G     0  1.9G   0% /dev/shm
tmpfs                   tmpfs     1.9G  8.6M  1.9G   1% /run
tmpfs                   tmpfs     1.9G     0  1.9G   0% /sys/fs/cgroup
/dev/sda1               xfs       497M  124M  373M  25% /boot
tmpfs                   tmpfs     378M     0  378M   0% /run/user/0
/dev/sr0                iso9660   4.2G  4.2G     0 100% /cdrom
192.168.0.20:/nfsfile   nfs4       18G  1.1G   17G   7% /nfsfile
[[email protected] ~]# cat /nfsfile/test
1232424

CIFS service

CIFS The concept of

cifs The service implements a file system that shares services for you Ji'an , The main implementation window File sharing in the system , stay linux Less is used in the system , commonly linux Use in cifs When realizing file sharing samba service ,smaba Is to make linux Support SMB/CIFS The group software package of the Protocol .samba The service is linux and window Build a bridge between the two systems .

Samba The function of

Samba The software included in the service includes Samba,samba-client,samba-common. The software package consists of smbd and nmbd Two daemons .samba Provide 4 A service ： Document printing service , Authorized and authorized , Name resolution , Browsing Services . The first two are smbd The daemons provide , Later by nmbd The daemons provide .

smbd Process listening port ：TCP 139 (NeBIOS over TCP/IP) and TCP 445 (SMBoverTCP/CIFS) port
nmbd Process listening port ：UDP 137 (NeBIOS-ns) and UDP 138 (NetBIOS-dgm) port

The main functions are ：

1、 Share file and printer Services

2、 It can provide user login samba Host authentication , To provide individual data of users with different identities

3、 Can be done windows Host name resolution on the network

4、 You can share devices

samba actual combat

• install samba service
  • Modify hostname

[[email protected] ~]# hostnamectl set-hostname samba
[[email protected] ~]# bash
[[email protected] ~]#

-  install samba service

[[email protected] ~]# yum install samba -y

• To configure samba service
  • Samba Parameters and functions in the service program


  • To configure samba Configuration file for /etc/samba/smb.conf, Delete unnecessary parameters
  • Add the information of the shared file at the end of the configuration file
  • Parameter description
    【share】： Share name
    path: Path to shared directory
    browseable ： Operating authority
    public： Access right
    writable： Permission to operate the file
    commment: Tips for this share

[[email protected] ~]# cat /etc/samba/smb.conf
# See smb.conf.example for a more detailed config file or
# read the smb.conf manpage.
# Run 'testparm' to verify the config is correct after
# you modified it.

[global]
        workgroup = SAMBA
        security = user

        passdb backend = tdbsam
[share]
        path = /opt/share
        browseable = yes
        public = yes
        writable = yes


• Create directories and give permissions , Restart the service

[[email protected] ~]# mkdir /opt/share
[[email protected] ~]# chmod 777 /opt/share
[[email protected] ~]# systemctl restart smb
[[email protected] ~]# systemctl restart nmb

• Check the port status

[[email protected] ~]# netstat -ntpl
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:139             0.0.0.0:*               LISTEN      22365/smbd
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      1187/sshd
tcp        0      0 127.0.0.1:25            0.0.0.0:*               LISTEN      2302/master
tcp        0      0 0.0.0.0:445             0.0.0.0:*               LISTEN      22365/smbd
tcp6       0      0 :::139                  :::*                    LISTEN      22365/smbd
tcp6       0      0 :::22                   :::*                    LISTEN      1187/sshd
tcp6       0      0 ::1:25                  :::*                    LISTEN      2302/master
tcp6       0      0 :::445                  :::*                    LISTEN      22365/smbd

• establish samba user
  • pdbedit Command for management Samba Account information database of service program , The format is “pdbedit [ Options ] Account ”. When writing account information to the database for the first time, you need to use -a Parameters , Change password later 、 This parameter is no longer needed for operations such as deleting accounts . in addition ,Samba The database of the service program requires that the account must already exist in the current system , Otherwise, creating a file in the future will lead to confusion of permission properties of the file , This leads to mistakes .


[[email protected] ~]# useradd user1
[[email protected] ~]# echo 123456 | passwd --stdin user1
Changing password for user user1.
passwd: all authentication tokens updated successfully.
[[email protected] ~]# id user1
uid=1000(user1) gid=1000(user1) groups=1000(user1)
[[email protected] ~]# pdbedit -a -u user1
new password:
retype new password:
Unix username:        user1
NT username:
Account Flags:        [U          ]
User SID:             S-1-5-21-982865867-531351322-2816181876-1000
Primary Group SID:    S-1-5-21-982865867-531351322-2816181876-513
Full Name:
Home Directory:       \\samba\user1
HomeDir Drive:
Logon Script:
Profile Path:         \\samba\user1\profile
Domain:               SAMBA
Account desc:
Workstations:
Munged dial:
Logon time:           0
Logoff time:          Wed, 06 Feb 2036 10:06:39 EST
Kickoff time:         Wed, 06 Feb 2036 10:06:39 EST
Password last set:    Tue, 12 Jul 2022 05:30:47 EDT
Password can change:  Tue, 12 Jul 2022 05:30:47 EDT
Password must change: never
Last bad password   : 0
Bad password count  : 0
Logon hours         : FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF
[[email protected] ~]# pdbedit -L
user1:1000:

- smbpasswd Command addition samba user

[[email protected] ~]# smbpasswd  -a root
New SMB password:
Retype new SMB password:
Added user root.
[[email protected] ~]# pdbedit -L
user1:1000:
root:0:root

• Restart the service

[[email protected] ~]# systemctl restart smb
[[email protected] ~]# systemctl restart nmb

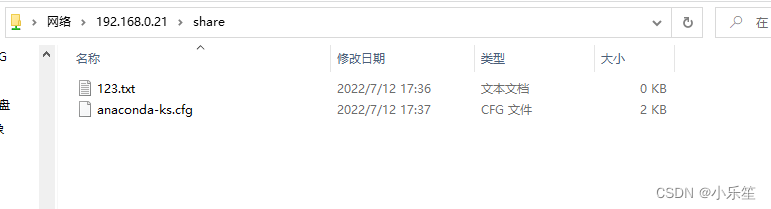

• Use samba service





[[email protected] ~]# cp anaconda-ks.cfg /opt/share/
