WCF deployed on IIS

2022-07-26 07:28:00 【51CTO】

author ：jiankunking

One 、 Environmental Science vs2010,WCF Applications ,server 2008

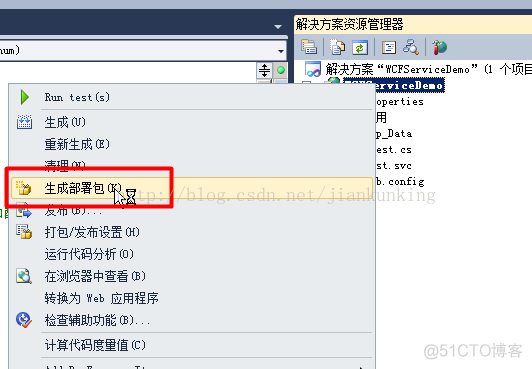

First step ：WCF Right click the item , Select build deployment package , Here's the picture ：

WCF Deployed in IIS On _WCF

The second step ：WCF Right click item , choice ： stay windows Open folder in Explorer , Here's the picture ：

WCF Deployed in IIS On _2008_02

The third step ： The second step ： Find... In the file directory where your project is located Package Folder , This is where our deployment package is . In this package Under the folder is a packageTmp.

WCF Deployed in IIS On _2008_03

WCF Deployed in IIS On _ Deploy _04

Step four ： stay IIS Create a new virtual directory on , Point the physical address to this folder .

1、windows server 2008 There is no Microsoft .NET Framework 4, So you need to download it online , Manual installation , During installation, right-click to select run as administrator .

Download address ： http://www.microsoft.com/zh-cn/download/details.aspx?id=17718

2、 complete .NET Framework 4 after , Restart the server

3、 stay IIS Create a new virtual directory on

WCF Deployed in IIS On _IIS_05

WCF Deployed in IIS On _server_06

Click ok , complete

4、 Fourth parts ： End of deployment . You can view our deployed WCF 了 .

WCF Deployed in IIS On _2008_07

ha-ha , result ....

WCF Deployed in IIS On _2008_08

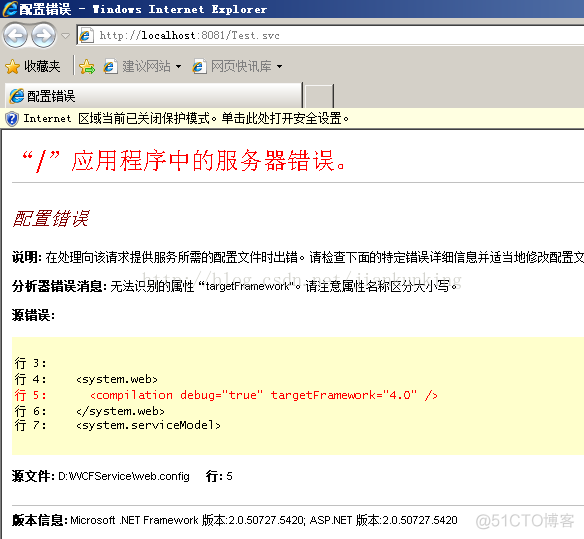

This should be the default net Wrong version , The modification method is as follows ：

WCF Deployed in IIS On _WCF_09

After modification , Right click to browse , The effect is as follows ：

WCF Deployed in IIS On _WCF_10

In the picture above http://localhost/Test.svc?wsdl That is, the service address we want to refer to .

Be careful ： If you reference this machine on another machine WCF The service , Need to put localhost Replace with ip

Two 、 Environmental Science win10 vs2015

Today on this plane iis wcf When , I met the following problems ：

WCF HTTP error 404.3 - Not Found（ The page you requested could not be provided due to an extension configuration problem . If the page is a script , Please add a handler . If you should download the file , Please add MIME mapping .）

WCF Use registration outside the application level as allowDefinition='MachineToApplication' The section of is wrong .

WCF Type not found “WcfServiceStudy.WcfService”, It's in ServiceHost The instruction provides for Servi

Built wcf yes ：WCF Applications , The specific code is as follows ：

Interface ：


       namespace

       WcfServiceStudy

{

       //  Be careful :  Use “ restructure ” On the menu “ rename ” command , You can change both the code and the interface name in the configuration file “IWcfService”.

    [

       ServiceContract]

       public

       interface

       IWcfService

    {

        [

       OperationContract]

       string

       DoWork();

    }

}

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

Realization ：


       namespace

       WcfServiceStudy

{

       //  Be careful :  Use “ restructure ” On the menu “ rename ” command , You can change the code at the same time 、svc  And the class name in the configuration file “WcfService”.

       //  Be careful :  In order to start the  WCF  Test the client to test this service , Please select... In solution explorer  WcfService.svc  or  WcfService.svc.cs, Then start debugging .

       public

       class

       WcfService :

       IWcfService

    {

       public

       string

       DoWork()

        {

       return

       "hello world!";

        }

    }

}

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.

The configuration file is as follows ：


       <?xml

       version="1.0" encoding="utf-8"?>

       <

       configuration

       >

       <

       appSettings

       >

       <

       add

       key=

       "aspnet:UseTaskFriendlySynchronizationContext"

       value=

       "true"

       />

       </

       appSettings

       >

       <

       system.web

       >

       <

       compilation

       debug=

       "true"

       targetFramework=

       "4.5.2"

       />

       <

       httpRuntime

       targetFramework=

       "4.5.2"

       />

       </

       system.web

       >

       <

       system.serviceModel

       >

       <

       bindings

       >

       <

       basicHttpBinding

       >

       <

       binding

       maxBufferSize=

       "2147483647"

       maxReceivedMessageSize=

       "2147483647"

       name=

       "MyServiceBinding"

       >

       <

       readerQuotas

       maxArrayLength=

       "2147483647"

       maxBytesPerRead=

       "2147483647"

       maxDepth=

       "2147483647"

       maxNameTableCharCount=

       "2147483647"

       maxStringContentLength=

       "2147483647"

       />

       </

       binding

       >

       </

       basicHttpBinding

       >

       </

       bindings

       >

       <

       services

       >

       <

       service

       name=

       "WcfServiceStudy.WcfService"

       >

       <

       endpoint

       address=

       "Management"

       binding=

       "basicHttpBinding"

       bindingConfiguration=

       "MyServiceBinding"

       contract=

       "WcfServiceStudy.IWcfService"

       >

       </

       endpoint

       >

       </

       service

       >

       </

       services

       >

       <

       behaviors

       >

       <

       serviceBehaviors

       >

       <

       behavior

       >

       <!--  To avoid leaking metadata information , Please set the following values to... Before deployment  false -->

       <

       serviceMetadata

       httpGetEnabled=

       "true"

       httpsGetEnabled=

       "true"

       />

       <!--  To receive fault exception details for debugging , Please set the following values to  true. Set to... Before deployment  false  To avoid the leakage of abnormal information  -->

       <

       serviceDebug

       includeExceptionDetailInFaults=

       "true"

       />

       </

       behavior

       >

       </

       serviceBehaviors

       >

       </

       behaviors

       >

       <

       serviceHostingEnvironment

       aspNetCompatibilityEnabled=

       "true"

       multipleSiteBindingsEnabled=

       "true"

       />

       <

       protocolMapping

       >

       <

       add

       binding=

       "basicHttpsBinding"

       scheme=

       "https"

       />

       </

       protocolMapping

       >

       </

       system.serviceModel

       >

       <

       system.webServer

       >

       <

       modules

       runAllManagedModulesForAllRequests=

       "true"

       />

       <!--

        To browse during debugging  Web  Application root , Please set the following values to  True.

        Set this value to... Before deployment  False  Avoid leakage  Web  Application folder information .

       -->

       <

       directoryBrowse

       enabled=

       "true"

       />

       </

       system.webServer

       >

       </

       configuration

       >

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.

The deployment steps are ：

WCF Deployed in IIS On _ Deploy _11

WCF Deployed in IIS On _server_12

take WCF After the application is compiled dll And config, Put them in corresponding positions

WCF Deployed in IIS On _2008_13

But in iis When browsing in , Encountered the above three problems .

Solve the problem according to your own construction steps , I feel the problem is ： Right click to create a new website . I didn't add an application under my new website , Instead, you directly point the physical path of the website to your newly created folder JianKunKingServices in . The step of adding an application under the website is missing , A series of problems have emerged , Finally, by adding your own folder JianKunKingServices Converted to application solved .
