Flume配置4——自定义Source+Sink

自定义Source

1.说明

• 官方提供的source类型已经很多，但是有时候并不能满足实际开发当中的需求，此时我们就需要根据实际需求自定义某些Source
• Source 的目的是从外部客户端接收数据并将其存储到配置的 Channels 中

2.自定义步骤(参考官方文档)

• class MySource extends AbstractSource implements Configurable,PollableSource
• 方法

getBackOffSleepIncrement()//暂不用
getMaxBackOffSleepInterval()//暂不用
configure(Context context)//初始化context，即读取配置文件中的信息，每个信息对应一个配置项
process()//获取数据，封装成Event并写入Channel，这个方法被循环调用
stop()//关闭相关的资源

3.案例需求

• flume收集数据，并给每条数据添加前缀与后缀，若不添加则使用默认，最后输出到控制台

4.原理图

5.实现

• 添加依赖

<dependency>
    <groupId>org.apache.flume</groupId>
    <artifactId>flume-ng-core</artifactId>
    <version>1.8.0</version>
</dependency>

• MySource代码

import org.apache.flume.Context;
import org.apache.flume.Event;
import org.apache.flume.EventDeliveryException;
import org.apache.flume.PollableSource;
import org.apache.flume.conf.Configurable;
import org.apache.flume.event.SimpleEvent;
import org.apache.flume.source.AbstractSource;

import java.util.HashMap;
import java.util.Map;

/** * @program: Flume-MyISS * @description: * @author: 作者 * @create: 2022-06-26 21:21 */
public class MySource extends AbstractSource implements Configurable, PollableSource {

    //前缀，后缀
    private String prefix;
    private String subfix;
    private Long delay;


    @Override//初始化配置信息，获取.conf中的配置
    public void configure(Context context) {

        prefix = context.getString("pre", "pre-");//第二个参数是给出的默认值
        subfix = context.getString("sub");//未给出则没有默认值,即配置文件中未配置时默认没有
        delay = context.getLong("delay", 2000L);//延迟时间
    }

    @Override
    public Status process() throws EventDeliveryException {

        Event event = new SimpleEvent();
        Map<String, String> headers = new HashMap<>();

        try {
    //ctrl+alt+t
            //循环创建Event，输出给Channel
            for (int i = 0; i < 5; i++) {

                event.setHeaders(headers);
                event.setBody((prefix + "hello" + subfix).getBytes());
                getChannelProcessor().processEvent(event);
                /** * source提交event会先经过拦截器--->读源码processEvent * event = this.interceptorChain.intercept(event);//经过拦截器拦截 * if (event != null) {//如果拦截器返回的不是null才会进入if，继续执行 * List<Channel> requiredChannels = this.selector.getRequiredChannels(event);//selector是一个channel选择器，返回list是因为可能需要传给多个channel * Iterator var3 = requiredChannels.iterator();//需要遍历channel * while(var3.hasNext()) { * Channel reqChannel = (Channel)var3.next(); * Transaction tx = reqChannel.getTransaction();//获取事务 * Preconditions.checkNotNull(tx, "Transaction object must not be null"); * try { * tx.begin();//开启事务 * reqChannel.put(event); * tx.commit();//提交事务 * } catch (Throwable var17) { * tx.rollback();//发生异常则会回滚 * ...... * }.... */
            }
            Thread.sleep(delay);//一旦得到返回值是READY，又立马调用process函数
            return Status.READY;
        } catch (Exception e) {

            e.printStackTrace();
            return Status.BACKOFF;
        }
    }

    @Override
    public long getBackOffSleepIncrement() {

        return 0;
    }

    @Override
    public long getMaxBackOffSleepInterval() {

        return 0;
    }
}

• 项目jar放入flume的lib目录下



• /jobs/t7下编写配置文件mysource-flume-logger.conf

vim mysource-flume-logger.conf
---------------------------------
# Name the components on this agent
a1.sources = r1
a1.sinks = k1
a1.channels = c1

# Describe/configure the source
a1.sources.r1.type = com.yc.source.MySource
a1.sources.r1.delay = 4000
#a1.sources.r1.pre = pre-pre
#a1.sources.r1.sub = sub

# Describe the sink
a1.sinks.k1.type = logger

# Use a channel which buffers events in memory
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100

# Bind the source and sink to the channel
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1

• 启动顺序flume

bin/flume-ng agent --conf conf --conf-file jobs/t7/mysource-flume-logger.conf --name a1 -Dflume.root.logger==INFO,console

• 未设置前缀与后缀

• 设置前缀与后缀


自定义Sink

1.说明

• Sink 不断地轮询 Channel 中的事件且批量地移除它们，并将这些事件批量写入到存储或索引系统、或者被发送到另一个 FlumeAgent
• Sink 是完全事务性的

在从 Channel 批量删除数据之前，每个 Sink 用 Channel 启动一个事务
批量事件一旦成功写出到存储系统或下一个 Flume Agent，Sink 就利用 Channel 提交事务
事务一旦被提交，该 Channel 从自己的内部缓冲区删除事件

• 官方提供的 Sink 类型已经很多，但是有时候并不能满足实际开发当中的需求，此时我们就需要根据实际需求自定义某些 Sink

2.自定义步骤(参考官方文档)

• extends AbstractSink implements Configurable
• 方法

configure(Context context)//初始化context，即读取配置文件中的信息，每个信息对应一个配置项
process()//获取数据，封装成Event并写入Channel，这个方法被循环调用

3.案例需求

• flume 接收数据，并给每条数据添加前缀与后缀(若不添加则使用默认)输出到控制台

4.原理图

5.实现

• 添加依赖

<dependency>
    <groupId>org.apache.flume</groupId>
    <artifactId>flume-ng-core</artifactId>
    <version>1.8.0</version>
</dependency>

• MySink代码

import org.apache.flume.*;
import org.apache.flume.conf.Configurable;
import org.apache.flume.sink.AbstractSink;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

/** * @program: Flume-MyISS * @description: * @author: 作者 * @create: 2022-06-26 22:39 */
public class MySink extends AbstractSink implements Configurable {

    //创建 Logger 对象
    private static final Logger LOG = LoggerFactory.getLogger(MySink.class);
    private String prefix;
    private String subfix;

    @Override
    public void configure(Context context) {

        //读取配置文件内容，有默认值
        prefix = context.getString("pre", "pre-hello:");
        //读取配置文件内容，无默认值
        subfix = context.getString("sub");
    }

    @Override
    public Status process() throws EventDeliveryException {

        //1.获取channel，开启事务
        Channel channel = getChannel();
        Transaction transaction = channel.getTransaction();
        transaction.begin();

        //2.从channel中抓去数据，打印到控制台
        try {

            //2.1抓取数据
            Event event;
            while (true) {
    //抓取不到数据就一直循环的抓取
                event = channel.take();
                if (event != null) {

                    break;
                }
            }
            //2.2处理数据
            LOG.info(new String(prefix + event.getBody() + subfix));

            //2.3提交事务
            transaction.commit();
            return Status.READY;
        } catch (Exception e) {

            //回滚
            transaction.rollback();
            return Status.BACKOFF;
        } finally {

            transaction.close();
        }
    }
}

• 项目jar放入flume的lib目录下



• /jobs/t8下编写配置文件netcat-flume-mysink.conf

vim netcat-flume-mysink.conf
------------------------------
# Name the components on this agent
a1.sources = r1
a1.sinks = k1
a1.channels = c1

# Describe/configure the source
a1.sources.r1.type = netcat
a1.sources.r1.bind = localhost
a1.sources.r1.port = 44444

# Describe the sink
a1.sinks.k1.type = com.yc.sink.MySink
#a1.sinks.k1.pre = pre-pre
#a1.sinks.k1.sub = sub

# Use a channel which buffers events in memory
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100

# Bind the source and sink to the channel
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1

• 启动顺序flume

bin/flume-ng agent --conf conf --conf-file jobs/t8/netcat-flume-mysink.conf --name a1 -Dflume.root.logger==INFO,console

• 端口发送数据

telnet localhost 44444

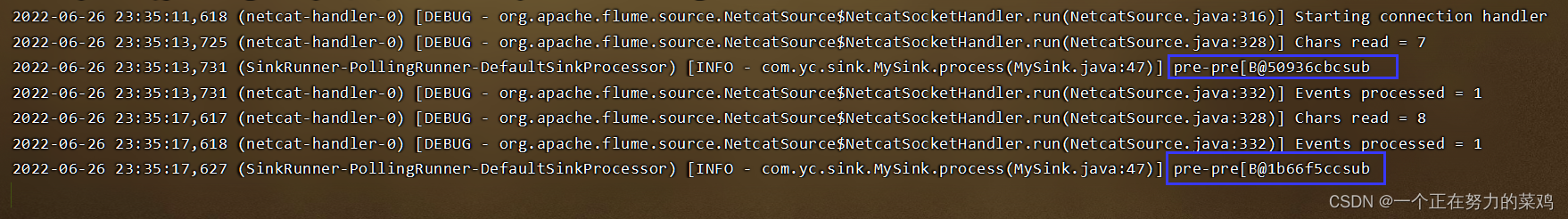

• 未设置前缀与后缀

• 设置前缀与后缀
