Porting RT thread to s5p4418 (V): thread communication

RT-Thread Three inter thread communication modes are implemented , mailbox （mailbox）、 Message queue （messagequeue）、 and The signal （signal）.

mailbox

Each email in the mailbox can only hold fixed 4 Byte content . Any thread can send or receive mail messages .

Mailbox control block

struct rt_mailbox
{

    struct rt_ipc_object parent;

    rt_uint32_t* msg_pool;                 /*  Start address of mailbox buffer  */
    rt_uint16_t size;                       /*  Size of mailbox buffer  */

    rt_uint16_t entry;                       /*  The number of messages in the mailbox  */
    rt_uint16_t in_offset, out_offset;    /*  Incoming and outgoing pointer of mailbox buffer  */
    rt_list_t suspend_sender_thread;      /*  Send thread's pending wait queue  */
};
typedef struct rt_mailbox* rt_mailbox_t;

New Mailbox

rt_mailbox_t rt_mb_create(const char *name, rt_size_t size, rt_uint8_t flag)

• .msg_pool It's a circular queue ,FIFO, adopt .in_offset, .out_offset Record the entry and exit position subscript .
• .suspend_sender_thread When the mailbox is full , The sending thread will hang on the chain .

Send E-mail

rt_err_t rt_mb_send_wait (rt_mailbox_t mb, rt_uint32_t value)
When sending mail , It can only be sent when the mailbox is not full , If the mailbox is full , You can wait according to the waiting time set by the user , When mail in the mailbox is collected and space is made available , Waiting for the suspended sending thread to be awakened to continue the sending process , When the waiting time is up and the email has not been sent yet , Or wait time is not set , Failed to send mail at this time , The thread sending the mail or the interrupt program will receive an error code （ -RT_EFULL）. If the email is sent successfully , It will arouse the thread waiting to receive mail . Threads can send mail with blocking , But you can't send mail in any way with blocking during interruption .

• ipc.c: 670

Take mail

rt_err_t rt_mb_recv(rt_mailbox_t mb, rt_ubase_t *value, rt_int32_t timeout)
When receiving mail , According to... In the mailbox control block entry Determine whether there are messages in the queue , If the email in the mailbox is not empty , Then according to out_offset Find the mail that was first sent to the mailbox and receive it . When receiving, if the mailbox is empty , If the user sets the wait timeout , The system will suspend the current thread , When the set timeout is reached , When the email is still not received , Then the thread will wake up and return -RT_ETIMEOUT. If there is a message in the mailbox , Then the receiving thread will copy the 4 Bytes of mail to the receiving thread . If the reception is successful , It will arouse the thread waiting for sending .

• ipc.c: 752

Engineering documents

• rtt2a9_mailbox
  Threads 2 Send E-mail , Threads 1 Wait for the key press event to receive the mail message .

---

Message queue

Message queuing is another common way of inter thread communication , Is an extension of the mailbox . It can be used in many occasions ： Message exchange between threads 、 Use serial port to receive variable length data, etc .

• Compared to mailbox , Message queues can send messages of variable length , But there is no pending list of sending threads .
• Support sending emergency messages , The emergency message will be added directly to the right person .

Message queuing control block

struct rt_messagequeue
{

    struct rt_ipc_object parent;

    void* msg_pool;            /*  Pointer to the buffer where the message is stored  */

    rt_uint16_t msg_size;    /*  The length of each message  */
    rt_uint16_t max_msgs;    /*  The maximum number of messages that can be accommodated  */

    rt_uint16_t entry;        /*  Number of messages already in the queue  */

    void* msg_queue_head;    /*  Message chain header  */
    void* msg_queue_tail;    /*  The end of the message chain  */
    void* msg_queue_free;    /*  Idle message linked list  */
};
typedef struct rt_messagequeue* rt_mq_t;

Create a message queue

rt_mq_t rt_mq_create(const char *name,
                     rt_size_t   msg_size,
                     rt_size_t   max_msgs,
                     rt_uint8_t  flag);

.msg_size Pay attention to alignment . After creation , The entire linked list is a free block ,.msg_queue_free Point to the meter head ,.msg_queue_head and .msg_queue_tail Point to RT_NULL.

• ipc.c: 902


Send a message

rt_err_t rt_mq_send(rt_mq_t mq, void *buffer, rt_size_t size);
Remove from the free linked list .msg_queue_free Free block to , Add to the end of the message queue . If the message queue is empty , Update .msg_queue_head and .msg_queue_tail. When sending an emergency message , Add the message directly to the right end .

• ipc.c: 957


receive messages

rt_err_t rt_mq_recv(rt_mq_t    mq,
                    void      *buffer,
                    rt_size_t  size,
                    rt_int32_t timeout);

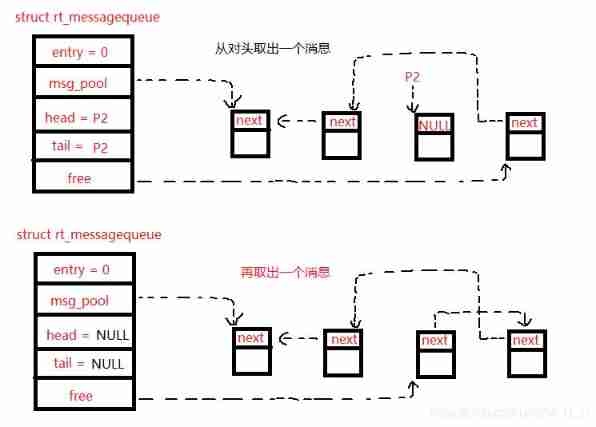

adopt .entry Determine whether there are messages in the queue , No, , Suspend or return directly . Yes , Then get the message from the header , After copying the data, hang the memory block to the idle queue .

Engineering documents

Threads 2 Send a message , There is a semaphore in the message , For threads 1 Notify the thread after receiving the message 2 Keep sending messages .

• rtt2a9_messagequeue

---

The signal

The signal （ Also called soft interrupt signal ）, At the software level, it is a simulation of interrupt mechanism , In principle , A thread receiving a signal is similar to a processor receiving an interrupt request .
Signal related structure ：

struct siginfo
{

    rt_uint16_t si_signo;
    rt_uint16_t si_code;

    union sigval si_value;
};
typedef struct siginfo siginfo_t;

struct rt_slist_node
{

    struct rt_slist_node *next;                         /**< point to next node. */
};
typedef struct rt_slist_node rt_slist_t;                /**< Type for single list. */

struct siginfo_node
{

    siginfo_t si;       /*  Signal value ;  Signal type  */
    struct rt_slist_node list;      /* list.next  Point to next siginfo_node */
};

static struct rt_mempool *_rt_siginfo_pool;

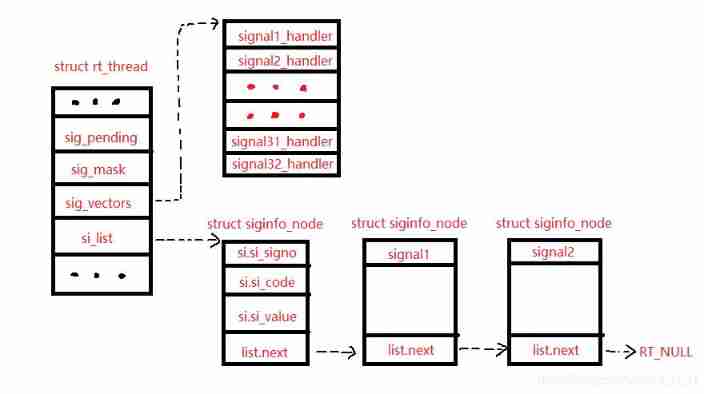

Signal related attributes in thread control block ：

#if defined(RT_USING_SIGNALS)
    rt_sigset_t     sig_pending;    /**< the pending signals */
    rt_sigset_t     sig_mask;       /**< the mask bits of signal */

    void            *sig_ret;       /**< the return stack pointer from signal */
    rt_sighandler_t *sig_vectors;   /**< vectors of signal handler */
    void            *si_list;       /**< the signal infor list */
#endif

• .sig_pending,32bit Express 32 Medium signal , Set up 1 Indicates that the relevant signal occurs , be in pending state .
• .sig_mask, Shield bit , Set up 1, Indicates interest in related signals .
• .sig_ret, Record the top value of the original stack .
• .sig_vectors, Similar to the exception vector table , Record the address of each signal processing function .
• .si_list, Hang untreated siginfo_node node


Signal initialization

Apply for a memory pool , The size of each memory block is sizeof(struct siginfo_node).

int rt_system_signal_init(void){

    _rt_siginfo_pool = rt_mp_create("signal", RT_SIG_INFO_MAX, sizeof(struct siginfo_node));
    if (_rt_siginfo_pool == RT_NULL)
    {

        // LOG_E("create memory pool for signal info failed.");
        RT_ASSERT(0);
    }

    return 0;
}

Installing signals for threads

rt_sighandler_t rt_signal_install(int signo, rt_sighandler_t handler);
If the thread wants to process a signal , Then install the signal in the thread . The interface is based on handler Modify the thread's .sig_vectors surface ,SIG_IGN Indicates that the signal is ignored ,SIG_DFL Indicates that the signal is processed in the system default way , Or pass in the handler address specified by the user . Successfully return the... Before installing the signal handler value .

• signal.c: 220

Blocking signals

void rt_signal_mask(int signo);
Will thread the sig_mask Corresponding position 0, Indicates no interest in the signal . The signal will not be processed after it occurs .

• signal.c: 193

Unblock the signal

void rt_signal_unmask(int signo);
Will thread the sig_mask Corresponding position 1, Indicates interest in the signal . stay RT-Thread During installation of medium signal , The default is blocked . If the signal is found to be suspended after the signal blocking is removed , Call immediately void _signal_deliver(rt_thread_t tid) Signal transmission .

_signal_deliver The function is ：

• If the target thread is suspended , Will wake up the thread , And set the signal status bit of the thread .

• If the target thread is ready ( Waiting to be dispatched ), And the target thread is the current thread , Call void rt_thread_handle_sig(rt_bool_t clean_state); To process the signal ; If the target thread is not the current thread , First initialize the context of the signal processing function , then rt_schedule().

• signal.c: 204

Sending signal

int rt_thread_kill(rt_thread_t tid, int sig);
Send a signal to the target thread through this interface . After sending the signal, the signal node of the thread control block points to .

• If the signal is not suspended , Then suspend , Then apply siginfo_node node , And hang the node on tid->si_list On .
• If the signal is suspended , Update relevant information .
• signal.c: 346

signal processing

void rt_thread_handle_sig(rt_bool_t clean_state);

• First, judge whether the signal is suspended , And tid->sig_mask Location 1.
• And then from tid->si_list Remove the signal control node from the chain , from tid->sig_vectors Get the address of the function processing the signal in the table .
• Clear the pending flag bit after processing .
• signal.c: 141

Timing of signal processing ：

1. When the thread is scheduled . Would call rt_thread_handle_sig(RT_TRUE); Check thread status .
2. When sending a signal . adopt _signal_deliver(rt_thread_t tid); Transmitting signals .

Engineering documents

• 111_rtt2a9_signal
  In the last project ( Message queue ) On the basis of modification , Key 2 To thread 1 send out SIGUSR1 The signal . Threads 1 Print the signal value after receiving the installed signal .
