You can understand the detailed introduction and understanding of inheritance

The concept and definition of inheritance

Inheritance is also one of the three characteristics of object-oriented , It is an important means for code reuse , It enables us to expand on the basis of the original class features , Generate new functions , Such a class we become a derived class , The original class is called base class . Inheritance is the same as our previous function reuse , Only this time, the reuse belongs to the design level .

Define format

for example ：

class Person {

public:
	string _name = "mingzi";
};

class Student :public Person{

public:
	void print() {

		cout << "name" << _name << endl;
		cout << "stid" << _stid << endl;
	}
private:
	int _stid = 202238;// Student number
};
int main() {

	Student stdt;
	stdt.print();
}

here Student and Person It becomes a parent-child relationship ,Person It is called base class , Also called a parent class ,Students It is called a derived class , Also called subclass , and public Is called inheritance method . In the above code, we can find that the subclass reuses the members of the parent class , And we can use the member variables of the parent class in the subclass , This is because it uses public Method of inheritance
The inheritance method and access qualifier are the same , Respectively public,protected,private Three

Inherit the change of access mode of base class members

Members of the class / Inheritance method	public Inherit	protected Inherit	private Inherit
The base class public member	Of a derived class public member	Of a derived class protected member	Of a derived class private member
The base class protected member	Of a derived class protected member	Of a derived class protected member	Of a derived class private member
The base class private member	Not visible in derived classes	Not visible in derived classes	Not visible in derived classes

Now we can see that , No matter what type of member or inheritance , The last subclass obtains the one with the smallest range, that is public>protected>private,protect It is called protection member qualifier , Because of inheritance . simply ,private The difference between invisible and , If the derived class is invisible, the subclass cannot use the parent class private member , and private It belongs to the class and can be used , But it cannot be used outside the class . and protected, Of the parent class protected Member subclasses can use , But it cannot be used outside the class .
However, we usually use public

Base class and derived class object assignment conversion

// The same as the previous class
int main(){

	Person p;
	Student s;
	//public Inherit
	p=s;// Parent class = Subclass
	s=p;// Can not be
	Person* ptr=&s;// The pointer
	Person& ref=s;// quote
	return 0;
}

We assign a subclass object to a parent object / The pointer / The act of quoting is called cutting , Natural behavior , There is no type conversion （ No, const Temporary variable ）. Figuratively speaking, there are all members of the parent class in the subclass , Put the superfluous （ It belongs to its own subclass ） The part of is cut off , You can assign values to the parent class in turn from the members in the subclass

Scope in inheritance

Both base and derived classes have independent scopes , When there is a member with the same name in the subclass and parent , Child class members hide parent class members , This situation is called hiding , Also called redefinition

class Person {

public:
	string _name = "mingzi";
	int _stid=111;
};

class Student :public Person{

public:
	void print() {

		cout << "name" << _name << endl;
		cout << "stid" << _stid << endl;
		// If you want to print the parent class, you can use  Person::_stid
	}
private:
	int _stid = 202238;// Student number
};
int main() {

	Student stdt;
	stdt.print();
}

This will print 202238, Because the member functions of subclasses will call their own member variables first , Hide the parent class （ notes ： Try not to duplicate names , But it's different in virtual functions , Later, I will talk about ）

class A{

public:
	void fun(){

		cout << "func" <<endl;
	}
};
class B : public A{

public:
	void fun(int i){
    }
};
int main(){

	B b;
	b.fun(10);
	//b.fun();
	b.A::fun();
	return 0;
}

here A Classes and B Two properties of class fun Functions form hidden relationships （ As long as the function name is the same , Regardless of the parameters , Is to hide the relationship ）, The same function name in inheritance is hidden It is worth noting that , The overload condition is in the same scope .

Default member functions for derived classes

Constructor of subclass —— We don't write , The compiler generates by default , here
1. Inherited parent class members as a whole —— Call the default constructor of the parent class to initialize
2. Own custom type members —— Call its default constructor
3. Own built-in type members —— Don't deal with （ Unless a default value is given in the declaration ）

The same is true for the copy constructor of subclasses —— We don't write , The compiler generates by default , here
1、 Inherited parent class members as a whole —— Call the copy construction of the parent class
2、 Own custom type members —— Call its copy construct
3、 Own built-in type members —— Value copy

The same is true for the copy assignment function of subclasses —— We don't write , The compiler generates by default

Subclass destructor – We don't write , The compiler generates by default —— here
1、 Inherited parent class members as a whole – Call the destructor of the parent class
2、 Own custom type members – Call its destructor
3、 Own built-in type members – Don't deal with
The subclass destructor and the parent destructor form a hidden relationship
Because the compiler will do special processing on the destructor name , The destructor names of all classes will be processed into a unified name destructor(). Why should the compiler do this , Polymorphism will talk about
The destructor of the subclass will be executed after the meeting , It will automatically call the destructor of the parent class

class Person
{

public:
	Person(const char* name = "peter")
	//Person(const char* name) The default constructor is deliberately not given , At this time, the constructor of the subclass is needed to initialize
		: _name(name)
		{

		cout << "Person()" << endl;
		}

	Person(const Person& p)// When passing subclass objects , Here comes the slice
		: _name(p._name)
	{

		cout << "Person(const Person& p)" << endl;
	}

	Person& operator=(const Person& p)
	{

		cout << "Person operator=(const Person& p)" << endl;
		if (this != &p)
			_name = p._name;

		return *this;
	}

	~Person()
	{

		cout << "~Person()" << endl;
	}
protected:
	string _name; //  full name
	//int _age;
};
class Student : public Person
{

public:
	//  We need to implement the subclass constructor ourselves
	//  Note that the parent class as a whole , Call the constructor of the parent class to initialize
	Student(const char* name)
		:Person(name)// You can't give it alone _name Assign a value
		, _id(id)
		, _address(address)
	{
    }
	// When we write a copy constructor
	// In general, it is not necessary to write the copy construction of subclasses , Unless the member variables in the subclass have deep and shallow copy problems , Will need it
	Student(const Student& s)
		:_id(s._id)
		, _address(s._address)// It is worth noting that , here address Using a copy of a custom type
		// structure , namely string Copy construction of , Because there is no collapse during the decomposition , The description is a deep copy
		, Person(s)// Here we can directly pass subclass objects , Reference the parent class , Slices occur here
	{
    }
	// If the copy construct of the child class does not call the copy construct of the parent class （ That is, no Person(s)）, A copy construct is also a constructor
	// Count , Constructor specifies , If you don't call custom types , That will call its default construction ,（ Different from that generated by the compiler ）
	// When we write the copy assignment function
	Student& operator=(const Student& s){

		if (this != &s){

			_id = s._id;
			_address = s._address;
			Person::operator=(s); //  We show the call = Function of , At this time, both parent and child classes have = overloaded ,
			// Constitute a hidden relationship , Otherwise, I will adjust myself , So we need to specify the class domain , section
		}
		return *this;
	}

	~Student(){

		//Person::~Person();Student And the parent class destruct to form a hidden
		//  Clean up your resources
	} //  It will automatically call the destructor of the parent class
private:
	int _id;
	string _address;
};
int main(){

	Student s1(" Zhang San ", 1, " Xi'an City ");
	Student s2(s1);
	Student s3(" Zhang Si ", 2, " The Beijing municipal ");
	s1 = s3;  // This will print Person()
			  // Person(const Person& p)
			  // Person()
			  // Person operator=(const Person& p)
			  // ~Person()
			  // ~Person()
			  // ~Person()  In the case of subclass decomposition , Sequential parent constructor child constructor destructor parent destructor
}

When the constructor of the parent class is parameterless or a full default constructor is given , The constructor of subclasses can also be the default constructor （ Or not ）, To call the default constructor of the parent class . But when the parent class is not the default constructor （ Subclasses cannot use the default constructor ）, The constructor of a subclass must be integral to the parent class , To initialize （ Such as ：Person(name), Just like the default ）
The order of the statements , Is the initialization sequence , So the initialization list of subclasses （ The order in which the list appears is not important , What matters is the order of declarations ）, Regardless of parent class Person In which position , The parent class is initialized first
PS: It's rather wordy here , If you don't understand the comments in the code, you can see this .

Copy structure ： It is worth noting that , here address It uses a copy structure of custom type , namely string Copy construction of , Because there is no collapse during the decomposition , The description is a deep copy

Inheritance and friends

Display Function is declared as friend , therefore Display Functions can use member variables in classes , But for subclasses , Friends cannot inherit , That is, base class friends cannot access private and protected members of subclasses

class Student;
class Person{

public:
	friend void Display(const Person& p, const Student& s);
protected:
	string _name; //  full name
};
class Student : public Person{

	friend void Display(const Person& p, const Student& s);
protected:
	int _stuNum; //  Student number
};
void Display(const Person& p, const Student& s){

	cout << p._name << endl;
	cout << s._stuNum << endl;
}

void main(){

	Person p;
	Student s;
	Display(p, s);
}

Inheritance and static members

The base class defines static Static members , Then there is only one such member in the whole inheritance system , Subclasses will not have such static Members of , And we can use the class name to access static members （ Shared by all objects of this class ）, Class name :: Variable name

Complex diamond inheritance and diamond virtual inheritance

Single inheritance ： When a subclass has only one direct parent class, the whole inheritance relationship is called single inheritance
Multiple inheritance ： When a subclass has two or more parent classes, the whole inheritance relationship is called multiple inheritance
diamond inheritance ： A special case of multiple inheritance

class A{

public:
	int _a;
};
class B : public A{

public:
	int _b;
};
class C : public A{

public:
	int _c;
};
class D : public B, public C{

public:
	int _d;// Class produces two A Class a Member variables
};
int main(){

	D x;
	//x._a=0;// Error will be reported at this time , Because there is ambiguity
	x.A::_a=0
	x.B::_a=0;// This can temporarily solve the problem , You need to display the specified access

In this case, how should we solve such a problem ？

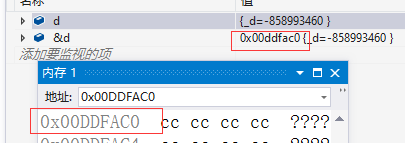

First of all, we know D Class has two _a Member variables of , At this time, we can debug , Use memory to see their data , First of all, let's take d The address of

We can see d The memory and the monitored address are the same

We can find it in B Classes and C There is one in each class space _a member
here , We can go through virtual, Virtual inheritance solves ambiguity and data redundancy

//... A little
class B : virtual public A
class C : virtual public A
class D : virtual public B, public C
//.. A little
int main(){

	D d;
	d.B::_a = 1;
	d.C::_a = 2;
	d._b = 3;
	d._c = 4;
	d._d = 5;

	d._a = 0;
}

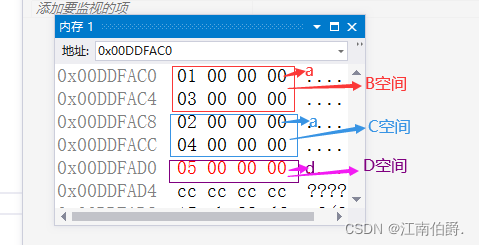

At this time, we check in memory

At this time we can find BC There is no space _a The data of , stay D In the space of class 2, but BC Two addresses are generated in

When we enter two addresses , Found out 14 and 0c Two figures
So what is this ？
In fact, these two values are called offsets ,0x14=20,0x0c=12, At this time, we can calculate ,D Space address -B Space address =20,D Space address -C Space address =12, So we can store the offset , So we can only save 1 Share _a 了 .
02 yes A Storage space of class member variables ,05 yes D The storage space of class member variables
The above two tables are called virtual base tables , We go through B and C Two pointers to a table , Pointers are called virtual base table pointers
But in fact, because we need to add extra pointers to find variables , So the efficiency is reduced , More complicated

B b=d;
B* p=&d;
B& r=&d;// In this way, you can also get _a

summary

In multi inheritance, we can feel C++ Complexity , Therefore, we generally do not recommend designing multiple inheritance , There must be no diamond inheritance
We should give priority to using combinations , Instead of class inheritance , The inner details of the base class in inheritance are visible to subclasses , Inheritance must destroy the encapsulation of the base class , Make the coupling degree of base class and derived class very high
So we try to use combination , Reduce coupling , Combination is called black box reuse , The interior is invisible . Inheritance is called white box reuse
Finally, thank you for seeing here ！！ If you like, you can like it ！

Students who want to know about polymorphism can click here , Simple and easy to understand ：【 polymorphic 】 A detailed introduction to polymorphism , Simple and easy to understand
