Preface

• File selection (PathDiaglog) It is also a commonly used control
• Demonstrate hardware and software environment Win11 x64 ; CANoe 11 SP2 x64


File selection (PathDiaglog)

1️⃣ Here's the picture ,Path Diaglog Control in ToolsBox Position in

---

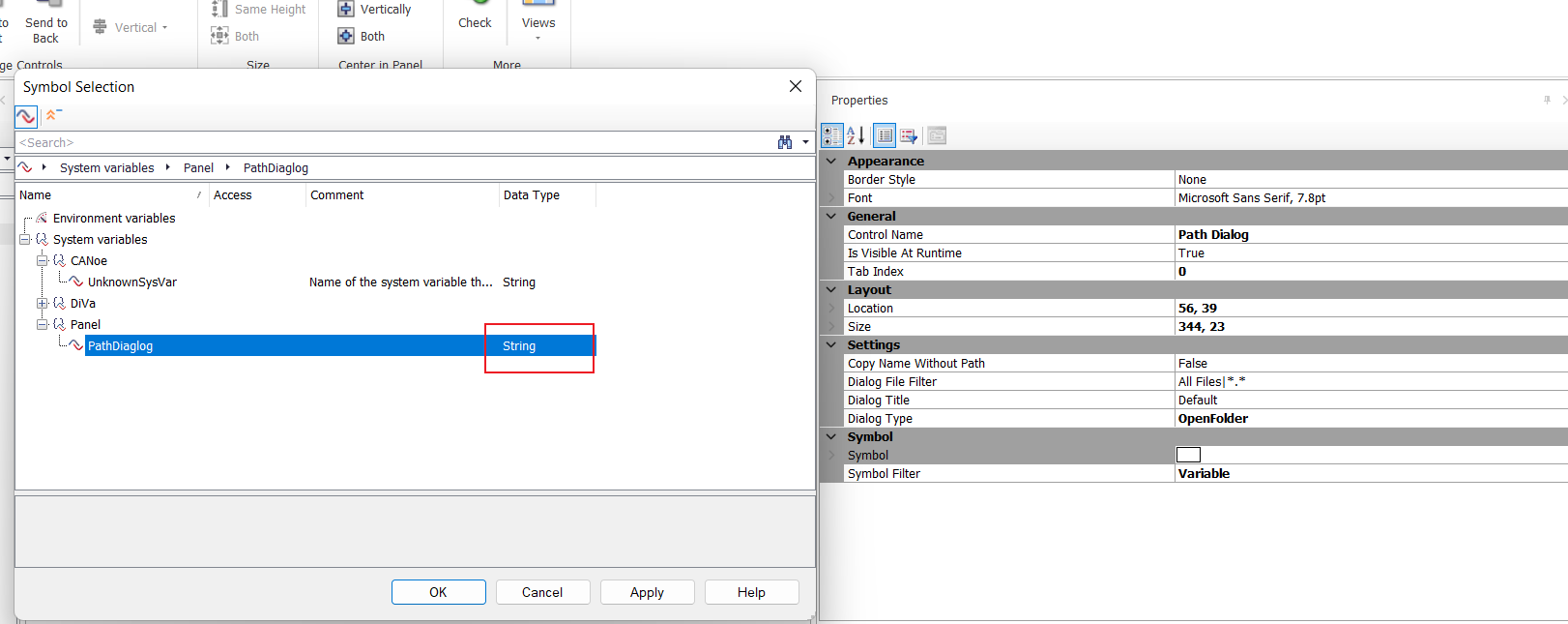

2️⃣ Here you need the main binding symbol when , Choose character string type

---

File selection type attribute

Select File

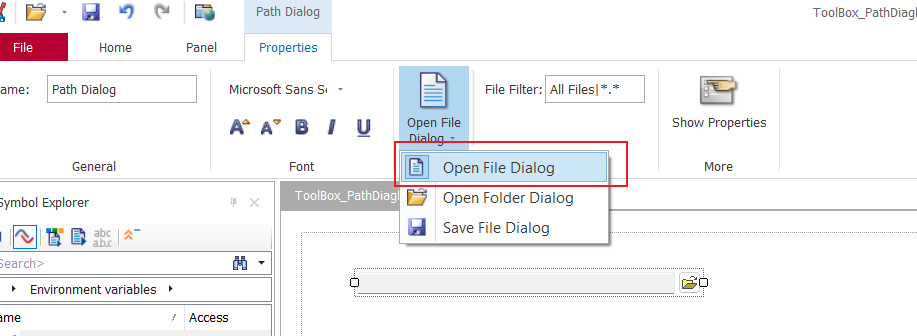

1️⃣ Here's the picture , The default is Open File Diaglog, And File Filter The attribute is All Files

---

2️⃣ Select only one format file

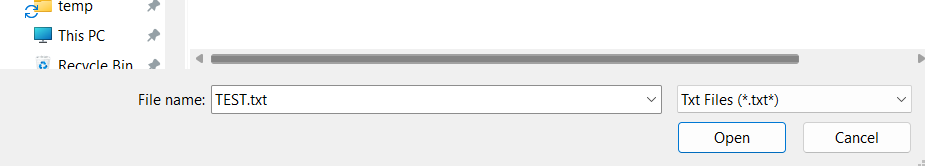

• Only choose .txt Format file

---

3️⃣ Select two format files

• At the same time specified xlsx and txt file type ：Excel Files|.XLSX|Txt Files|.txt*

---

4️⃣ Whether to display all paths , Or just show the file name

• Copy Name Without Path Attribute achievement False , Then all paths are displayed ,True , Show only filename


---

• Below trace Feel under ,False and True Different

---

Select the folder

• Only folders can be selected


---

Save the file

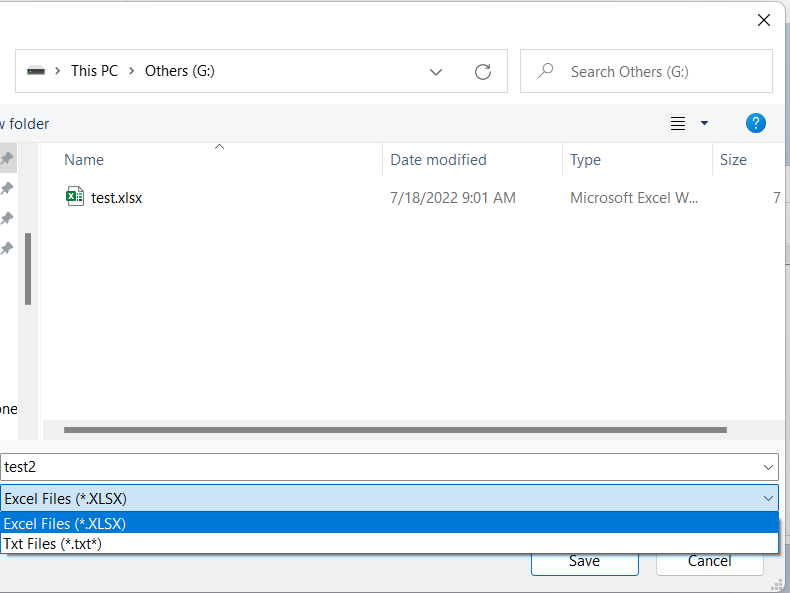

• Save a file , Also affected by File Filter Property constraints




---

Open file （FileButton)

• Open a file . The figure below is official demo common , open help file


summary

• It needs to be used in the demonstration demo engineering , You can follow the official account online disk below to get it by yourself , Thank you for reading .
