Typeorm framework

TypeORM frame

know TypeORM

• TypeORM It's a ORM (opens new window) frame , It can run in NodeJS、Browser、Cordova、PhoneGap、Ionic、React Native、Expo and Electron On the platform , It can be done with TypeScript and JavaScript (ES5,ES6,ES7,ES8) Use it together . Its goal is to always support the latest JavaScript Features and provide additional features to help you develop anything that uses a database （ Whether it's a small application with only a few tables or a large enterprise application with multiple databases ） Applications .
• It's different from all the other things that exist JavaScript ORM frame ,TypeORM Support Active Record and Data Mapper Pattern , This means that you can write high-quality 、 Loosely coupled 、 Extensible 、 Maintainable applications .

TypeORM Characteristics of

• Support DataMapper and ActiveRecord ( It's up to you )
• Entities and columns
• Database property column type
• Entity management
• Repositories and custom repositories
• Clear object relationship model
• relation （ Relationship ）
• Greed and procrastination
• One way , Bidirectional and self referential relationships
• Support multiple inheritance mode
• cascade
• Indexes
• Business
• Migration and automatic migration
• Connection pool
• Master slave copy
• Use multiple database types
• Cross database and cross schema queries
• Elegant grammar , Flexible and powerful QueryBuilder
• Left join and inner join
• Use the appropriate paging of the associated query
• The query cache
• Raw result stream
• journal
• Listeners and subscribers （ hook ）
• Support closure table mode
• Declare the schema in the model or separate configuration file
• json / xml / yml / env Format connection configuration
• Support MySQL / MariaDB / Postgres / SQLite / Microsoft SQL Server / Oracle / sql.js
• Support MongoDB NoSQL database
• Can be found in NodeJS / browser / Ionic / Cordova / React Native / Expo / Electron On the platform
• Support TypeScript and JavaScript
• Generate high performance 、 flexible 、 Clear and maintainable code
• Follow all possible best practices
• Command line tools

install （ One ）

• adopt npm install :
  • npm install typeorm --save
• You also need to install reflect-metadata:
  • npm install reflect-metadata --save
• And you need to import... In the global location of the application （ For example, in app.ts in ）
  • import "reflect-metadata";
• You may also need to install node typings( To use Node Smart tips for ):
  • npm install @types/node –save
• Install database driver MySQL
  • npm install mysql --save( You can also install mysql2)
• Besides , Please make sure you are using TypeScript Compiler Version 2.3 Or later , And already in tsconfig.json The following settings are enabled in :
  • "emitDecoratorMetadata": true,
  • "experimentalDecorators": true,
• You may also need to add the compiler options in the lib Enable es , Or from @types install es6-shim

install （ Two ）

• Start using TypeORM The quickest way to do this is to use its CLI command （ The scaffold ） Build startup project . Only in NodeJS Used in applications TypeORM when , This operation is effective .

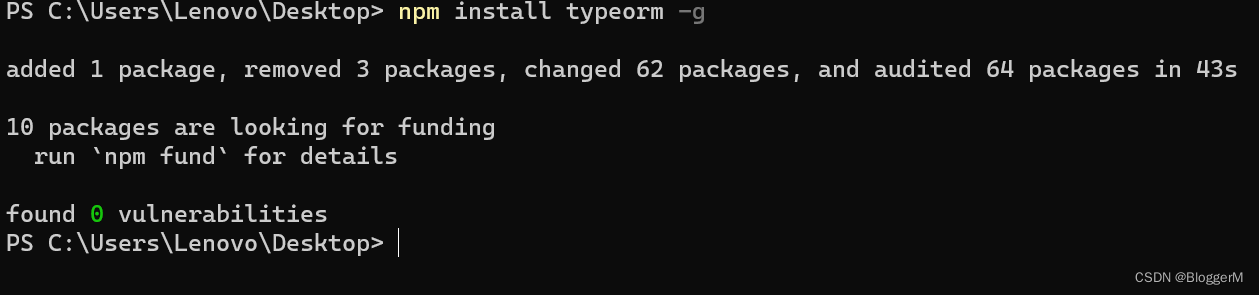

• First, install it globally TypeORM:

  • npm install typeorm –g



• Then go to the directory where you want to create the new project and run the command ：

  • typeorm init --name LearnTypeorm --database mysql



• among name Is the name of the project ,database Is the database you will use .

  • The database can be one of the following values : mysql, mariadb, postgres, sqlite, mssql, oracle, mongodb, cordova, react-native, expo, nativescript.
  • You can also use existing node Running on the project typeorm init, But should pay attention to , This operation may overwrite some existing files .

• Then open the created project with the editing software , One will appear first md Documentation



  • First step ：npm i



  • The second step ： Delete src Under the folder migration file

  • The third step ： To configure tsconfig.json file （ hold "module":"ESNext" Switch to "module": "CommonJS"）



  • Step four ： To configure ormconfig.json



    {

      "type": "mysql",
      "host": "localhost",
      "port": 3306,
      "username": "root",
      "password": "123456",
      "database": "mall",
      "synchronize": true,
      "logging": false,
      "entities": [
        "src/entity/**/*.ts"
      ],
      "cli": {

        "entitiesDir": "src/entity"
      }
    }


Package dependency （package.json）

• Note that version ： If an error occurs in the execution of the following file , Maybe your package version is too high

  {

     "name": "learn_typeorm",
     "version": "0.0.1",
     "description": "Awesome project developed with TypeORM.",
     "devDependencies": {

        "ts-node": "3.3.0",
        "@types/node": "^8.0.29",
        "typescript": "3.3.3333"
     },
     "dependencies": {

        "mysql": "^2.14.1",
        "reflect-metadata": "^0.1.10",
        "ts-node-dev": "^1.1.8",
        "typeorm": "0.2.37"
     },
     "scripts": {

        "start": "ts-node-dev src/find advanced options .ts"
     }
  }


Database configuration file

• Most of the time , We want to store the connection options in a separate configuration file , Because this way makes management more convenient and easy . TypeORM Support multiple configuration sources . You just need to be in the root directory of the application （package.json near ） Create a ormconfig.[format] File storage connection configuration , And call... In the application createConnection(), Without passing any parameter configuration
• Supported by ormconfig The file format is ：.json, .js, .env, .yml and .xml

Typeorm Which profile to use

• Sometimes you may want to use multiple configurations in different formats . When calling getConnectionOptions() Or try using... Without the connection option createConnection() when ,Typeorm Will attempt to load the configuration in the following order ：
• From the other ormconfig.[format] file , In this order ：[js,ts,json,yml,yaml,xml].
• Be careful ,Typeorm The first effective method found will be used , Instead of loading other methods . for example , If the configuration is found in the environment ,Typeorm Will not load ormconfig.[format] file .

ConnectionOptions（ One ）

• The connection option is what you pass to createConnection Or in the ormconfig Connection configuration defined in the file . Different databases have their own specific connection options .
• Common connection options ：
  • type - Database type . You must specify the database engine to use . The value can be "mysql....". This option is required .
  • name - Connection name . In the use of getConnection(name: string) or ConnectionManager.get(name: string) You need to use . The connection names of different connections cannot be the same , They must all be unique . If no connection name is given , Then it will be set to "default".
  • entities - The entity to load and use for this connection . Accept the entity class and directory path to load . Directory Support glob Pattern . Example ：entities: [Post, Category, "entity/*.js", "modules/**/entity/*.js"].
  • subscribers - Subscribers to load and use for this connection . Accept the entity classes and directories to load .
  • migrations - To load and migrate for this connection . Accept the migration classes and directories to load
  • logging - Indicates whether logging is enabled . If set to true, Query and error logging will be enabled . You can also specify different types of logging to enable , for example ["query", "error", "schema"]

ConnectionOptions（ Two ）

• maxQueryExecutionTime - If the query execution time exceeds the given maximum execution time （ In Milliseconds ）, be logger This query will be logged .
• entityPrefix - To all tables on this database connection （ Or set ） Prefix added .
• dropSchema - Delete the schema every time a connection is established . Note this option , Don't use it in a production environment , Otherwise, all production data will be lost . But this option is very useful during debugging and development .
• synchronize - Indicates whether the database schema is automatically created every time the application starts . Note this option , Don't use it in a production environment , Otherwise, all production data will be lost . But this option is very useful during debugging and development .
• cache - Enable entity result caching .
• cli.entitiesDir - CLI By default, create the directory of entities .
• cli.migrationsDir - CLI Create the migrated directory by default .
• cli.subscribersDir - CLI Create a directory for subscribers by default .

Connect Connection

• from ormconfig File load all connection options

  import 'reflect-metadata'
  import {
        createConnection} from "typeorm";
  import {
        User} from "./entity/User";

  const getConnection = async ()=>{

      //  Create database connection
      const connection = await createConnection()
      console.log(connection)
  }

  getConnection()


Use EntityManager

• Repository It's like EntityManager equally , But its operation is limited to specific entities .

  // User.ts

  import {
         Entity, PrimaryGeneratedColumn, Column } from "typeorm"

  @Entity()
  export class User {


      @PrimaryGeneratedColumn()
      id: number

      @Column()
      firstName: string

      @Column()
      lastName: string

      @Column()
      age: number

      //  Constructors
      constructor(firstName: string, lastName: string, age: number,id?:number) {

          this.firstName = firstName;
          this.lastName = lastName;
          this.age = age;
          this.id = id
      }
  }


  // index.ts

  import 'reflect-metadata'
  import {
        createConnection, getManager} from "typeorm";
  import {
        User} from "./entity/User";

  createConnection().then(()=>{

      //  Get entity manager
      const entityManger = getManager()
      /** *  add to  */
      const save = async ()=>{

          const user:User = new User(' Zhang ',' 3、 ... and ',20)
          //  Add users through entity manager
          const res = await entityManger.save<User>(user)
          console.log(res)
      }
      // save()


      /** *  Query all  */
      const queryAll = async ()=>{

          //  Query all
          const [users]:User[] = await entityManger.find<User>(User)
          console.log(users)
      }
      // queryAll()

      /** *  modify  */
      const edit = async () => {

          const user:User = new User(' Li ',' Four ',20,1)
          const res = await entityManger.save<User>(user)
          console.log(res)
      }
      // edit()

      /** *  Delete  */
      const del = async ()=>{

          const {
        affected} = await entityManger.delete<User>(User,[3,4])
          console.log(affected?' Delete successful ':' Delete failed ')
      }
      // del()
  })


Use Repository

• Repository It's like EntityManager equally , But its operation is limited to specific entities .

  // User.ts

  import {
         Entity, PrimaryGeneratedColumn, Column } from "typeorm"

  @Entity()
  export class User {


      @PrimaryGeneratedColumn()
      id: number

      @Column()
      firstName: string

      @Column()
      lastName: string

      @Column()
      age: number

      //  Constructors
      constructor(firstName: string, lastName: string, age: number,id?:number) {

          this.firstName = firstName;
          this.lastName = lastName;
          this.age = age;
          this.id = id
      }
  }


  // index.ts

  import 'reflect-metadata'
  import {
        createConnection, getRepository} from "typeorm";
  import {
        User} from "./entity/User";

  /** * Repository */

  createConnection().then((connection)=>{

      //  Get repository
      const userRepository = getRepository(User)

      /** *  add to  */
      const save = async ()=>{

          const user:User = new User(' Liu ',' can ',30)
          const res = await userRepository.save(user)
          console.log(res)
      }
      // save()

      /** *  Query all  */
      const queryAll = async ()=>{

          const users:User[] = await userRepository.find()
          console.log(users)
      }
      // queryAll()

      /** *  modify  */
      const edit = async () => {

          const user:User = new User(' Liu ',' can ',11,7)
          const res = await userRepository.save(user)
          console.log(res)
      }
      // edit()

      /** *  Delete  */
      const del = async ()=>{

          const {
        affected} = await userRepository.delete(5)
          console.log(affected?' Delete successful ':' Delete failed ')
      }
      del()
  })


Custom Repository

• You can create a custom repository , It should include methods for using the database . You typically create custom repositories for individual entities , And include its specific queries

  import "reflect-metadata";   //  Using the decorator requires importing
  import {
        EntityRepository, Repository, getCustomRepository, createConnection} from 'typeorm';
  import {
        User} from "./entity/User";

  //  Decorator   Custom user storage inventory Repository
  @EntityRepository(User)
  class UserRepository extends Repository<User>{

      //  Custom methods
      findByName(firstName: string, lastName: string) {

          return this.findOne({
        firstName,lastName})
      }
  }

  createConnection().then(()=>{

      //  Get an instance of the custom Repository   Parameters are custom repositories
      const userRepository= getCustomRepository(UserRepository)

      // const save = async()=>{

      // const user:User = new User(' king ',' 5、 ... and ',18)
      // const res = await userRepository.save(user)
      // console.log(res)
      // }
      // save()

      const queryByName = async ()=>{

          const user = await userRepository.findByName(' king ',' 5、 ... and ')
          console.log(user)
      }
      queryByName()
  })


Find Options - Basic options

• All repositories and managers find Methods accept special options that can be used to query the required data , Without having to use QueryBuilder

  // index.ts

  import "reflect-metadata";
  import {
        createConnection, getRepository} from "typeorm";
  import {
        User} from "./entity/User";   //  Using the decorator requires importing

  createConnection().then(async ()=>{

      const userRepository = getRepository(User)

      const res = await userRepository.find({

          //  Limit query fields
          select:['id','firstName','lastName','age'],

          //  Query criteria
          // where:{firstName:' Zhang '}

          // or  Using arrays
          where:[{
        firstName:' Zhang '},{
        firstName: ' Liu '}],

          // order  Sort
          // ASC 1  Ascending
          // DESC -1  Descending
          order:{
        id:'DESC'},

          //  Pagination
          // skip  The starting position
          skip:0,
          // take  Number
          take:1,

          //  Open cache or not
          cache:true
      })
      console.log(res)
  })


Find Options - advanced options

• TypeORM Provides many built-in operators , Can be used to create more complex queries

  import "reflect-metadata";
  import {

      createConnection,
      getRepository,
      LessThan,
      LessThanOrEqual,
      Not,
      MoreThan,
      MoreThanOrEqual,
      Equal, Like, Between, In
  } from "typeorm";
  import {
        User} from "./entity/User";

  /** * find  Options  -  Advanced  */

  //  Create database connection
  createConnection().then(async()=> {

      //  Get the user's Repository
      const userRepository = getRepository(User)

      // Not：SELECT * FROM "user" WHERE "firstName" != ' Zhang ';
      // user  The table does not contain  firstName  by   Zhang   Of
      const users: User[] = await userRepository.find({

          firstName:Not(' Zhang ')
      })
      console.log(" List of no messages ",users)

      // LessThan：SELECT * FROM "user" WHERE "age" < 15
      // user  In the table  age  Less than  15  A list of
      const users1: User[] = await userRepository.find({

          age:LessThan(15)
      })
      console.log(" Age is less than 15 A list of ",users1)

      // LessThanOrEqual：SELECT * FROM "user" WHERE "age" <= 11
      // user  In the table  age  Less than or equal to  11  A list of
      const users2: User[] = await userRepository.find({

          age:LessThanOrEqual (11)
      })
      console.log(" The age is less than or equal to 11 A list of ",users2)

      // MoreThan：SELECT * FROM "user" WHERE "age" > 10
      // user  In the table  age  Greater than  10  A list of
      const users3: User[] = await userRepository.find({

          age:MoreThan (10)
      })
      console.log(" Older than 10 A list of ",users3)

      // MoreThanOrEqual: SELECT * FROM "user" WHERE "age" > = 20
      // user  In the table  age  Greater than or equal to  20  A list of
      const users4: User[] = await userRepository.find({

          age:MoreThanOrEqual (20)
      })
      console.log(" Older than or equal to 20 A list of ",users4)

      // Equal: SELECT * FROM "user" WHERE "age" = 11
      // user  In the table  age  Greater than or equal to  20  A list of
      const users5: User[] = await userRepository.find({

          age:Equal (11)
      })
      console.log(" Age equals 11 A list of ",users5)

      // Like：SELECT * FROM "user" WHERE "firstName" LIKE '% Zhang %'
      //  Fuzzy query  user  In the table  firstName  surname   Zhang   A list of
      const users6: User[] = await userRepository.find({

          firstName:Like ('% Zhang %')
      })
      console.log(" Fuzzy query the list of surnames Zhang ",users6)

      // Between：SELECT * FROM "user" WHERE "age" BETWEEN 1 AND 10
      //  Inquire about  user  In the table  age  stay  1  To  11  Between   Include 1 and 11
      const users7: User[] = await userRepository.find({

          age:Between (1,11)
      })
      console.log(" Check age 1 To 11 Between ",users7)

      // In: SELECT * FROM "user" WHERE "age" IN (11,20)
      //  Inquire about  user  In the table  age  stay  11 and 20
      const users8: User[] = await userRepository.find({

          age:In([11,20])
      })
      console.log(users8)
  })


Entity

• Entity ： Is a class that maps to database tables . You can create an entity by defining a new class , And use @Entity() To mark

• Entity Columns ： Because the database table consists of columns , So entities must also consist of columns . Be marked with @Column Each entity class attribute of will be mapped to the database table column

  • Main column ： Each entity must have at least one primary column . There are several types of main columns ：

    • @PrimaryColumn() Create a primary column , It can get any value of any type . You can also specify the column type . If no column type is specified , Will be automatically inferred from the attribute type .
    • @PrimaryGeneratedColumn() Create a primary column , This value is automatically generated using the auto increment value .
    • @PrimaryGeneratedColumn("uuid") Create a primary column , This value will use uuid Automatic generation ,(Uuid Is a unique string id)

  • Special column ：

    • @CreateDateColumn Automatically insert date for entity . There is no need to set this column , This value will be set automatically .
    • @UpdateDateColumn Every time the entity manager or repository is called save when , Automatically update entity date . There is no need to set this column , This value will be set automatically .

  • Column type

    • @Column(“int”) perhaps @Column({ type: "int" })
    • If you want to specify other type parameters , You can perform... Through column options ： Example ：@Column("varchar", { length: 200 })

    import {
            Column, CreateDateColumn, Entity, PrimaryGeneratedColumn, UpdateDateColumn} from "typeorm";

    /** *  Entity class  =>  Database table  *  Added  @Entity  The decorator will be  typeorm  Demapping , Determine if the table exists , No tables will be created , There is no treatment  *  If you want to create a table structure of a class , You need to create  @Entity() */

    @Entity()
    export default class Person {

        //  Primary key ：PrimaryColumn
        // @PrimaryGeneratedColumn('uuid')  Pass in uuid It will generate automatically uuid A primary key
        //  Auto growing primary key
        @PrimaryGeneratedColumn()
        id:number

        //  Automatically add creation time
        @CreateDateColumn()
        createAt:Date

        //  Automatically modify the time
        @UpdateDateColumn()
        updateAt:Date

        //  Column  name varchar(255)
        //  Added  @Column()  Will be mapped to fields in the table
        //  You can specify the type of column   You can also limit the length
        @Column('varchar',{
            length:20})
        name:string

        //  You can specify the type of column
        @Column('int')
        gander:number

        constructor(name: string) {

            this.name = name;
        }
    }


mysql Column type for （ One ）

• int, tinyint, smallint, mediumint, bigint, float, double, dec, decimal, numeric, date, datetime, timestamp, time, year, char, varchar, nvarchar, text, tinytext, mediumtext, blob, longtext, tinyblob, mediumblob, longblob, enum, json, binary, geometry, point, linestring, polygon, multipoint, multilinestring, multipolygon, geometrycollection

• enum Column type

  import {
        Column, CreateDateColumn, Entity, PrimaryGeneratedColumn, UpdateDateColumn} from "typeorm";

  export enum PersonRole {

      STUDENT = 'student',
      TEACHER = 'teacher'
  }

  /** *  Entity class  =>  Database table  *  Added  @Entity  The decorator will be  typeorm  Demapping , Determine if the table exists , No tables will be created , There is no treatment  *  If you want to create a table structure of a class , You need to create  @Entity() */

  @Entity()
  export default class Person {

      //  Primary key ：PrimaryColumn
      // @PrimaryGeneratedColumn('uuid')  Pass in uuid It will generate automatically uuid A primary key
      //  Auto growing primary key
      @PrimaryGeneratedColumn()
      id:number

      //  Automatically add creation time
      @CreateDateColumn()
      createAt:Date

      //  Automatically modify the time
      @UpdateDateColumn()
      updateAt:Date

      //  Column  name varchar(255)
      //  Added  @Column()  Will be mapped to fields in the table
      //  You can specify the type of column   You can also limit the length
      @Column('varchar',{
        length:20})
      name:string

      //  You can specify the type of column
      @Column('int')
      gander:number

      @Column({

          type:"enum",
          enum:PersonRole
      })
      role:PersonRole

      constructor(name: string, gander: number, role: PersonRole) {

          this.name = name;
          this.gander = gander;
          this.role = role;
      }
  }


• simple-array Column type for : It can store the original array values in a single string column . All values are separated by commas . return , Will also be returned as an array

  import {
        Column, CreateDateColumn, Entity, PrimaryGeneratedColumn, UpdateDateColumn} from "typeorm";

  export enum PersonRole {

      STUDENT = 'student',
      TEACHER = 'teacher'
  }

  /** *  Entity class  =>  Database table  *  Added  @Entity  The decorator will be  typeorm  Demapping , Determine if the table exists , No tables will be created , There is no treatment  *  If you want to create a table structure of a class , You need to create  @Entity() */

  @Entity()
  export default class Person {

      //  Primary key ：PrimaryColumn
      // @PrimaryGeneratedColumn('uuid')  Pass in uuid It will generate automatically uuid A primary key
      //  Auto growing primary key
      @PrimaryGeneratedColumn()
      id:number

      //  Automatically add creation time
      @CreateDateColumn()
      createAt:Date

      //  Automatically modify the time
      @UpdateDateColumn()
      updateAt:Date

      //  Column  name varchar(255)
      //  Added  @Column()  Will be mapped to fields in the table
      //  You can specify the type of column   You can also limit the length
      @Column('varchar',{
        length:20})
      name:string

      //  You can specify the type of column
      @Column('int')
      gander:number

      @Column({

          type:"enum",
          enum:PersonRole
      })
      role:PersonRole

      @Column({

          //  A column is an array
          type:'simple-array'
      })
      nickName:Array<string>

      constructor(name: string, gander: number, role: PersonRole) {

          this.name = name;
          this.gander = gander;
          this.role = role;
      }
  }


mysql Column type for （ Two ）

• simple-json Column type ： Can store anything that can be passed JSON.stringify Values stored in the database . When there is no json Type and you want to store and load objects , This type is useful

  import {
        Column, CreateDateColumn, Entity, PrimaryGeneratedColumn, UpdateDateColumn} from "typeorm";

  export enum PersonRole {

      STUDENT = 'student',
      TEACHER = 'teacher'
  }

  /** *  Entity class  =>  Database table  *  Added  @Entity  The decorator will be  typeorm  Demapping , Determine if the table exists , No tables will be created , There is no treatment  *  If you want to create a table structure of a class , You need to create  @Entity() */

  @Entity()
  export default class Person {

      //  Primary key ：PrimaryColumn
      // @PrimaryGeneratedColumn('uuid')  Pass in uuid It will generate automatically uuid A primary key
      //  Auto growing primary key
      @PrimaryGeneratedColumn()
      id:number

      //  Automatically add creation time
      @CreateDateColumn()
      createAt:Date

      //  Automatically modify the time
      @UpdateDateColumn()
      updateAt:Date

      //  Column  name varchar(255)
      //  Added  @Column()  Will be mapped to fields in the table
      //  You can specify the type of column   You can also limit the length
      @Column('varchar',{
        length:20})
      name:string

      //  You can specify the type of column
      @Column('int')
      gander:number

      @Column({

          type:"enum",
          enum:PersonRole
      })
      role:PersonRole

      @Column({

          //  A column is an array
          type:'simple-array'
      })
      nickName:Array<string>

      @Column('simple-json')
      perfile:{
        name:string,nickName:string}

      constructor(name: string, gander: number, role: PersonRole) {

          this.name = name;
          this.gander = gander;
          this.role = role;
      }
  }


Column options

• Column options define other options for entity columns . You can @Column Specify column options on ：

  • ColumnOptions List of options available in ：

  • type: ColumnType - Column type .

  • name: string - Column names in database tables . By default , The column name is generated from the name of the attribute . You can also change it by specifying your own name .

  • length: number - Length of column type . for example , If you want to create varchar（150） type , Please specify the column type and length options .

  • nullable: boolean - Make Columns... In the database NULL or NOT NULL. By default , The column is nullable：false.

  • update: boolean - instructions "save" Whether the operation updates the column value . If false, The value can only be written when the object is first inserted . The default value is "true".

  • select: boolean - Defines whether to hide this column by default when querying . Set to false when , Column data does not display standard queries . By default , The column is select：true

  • default: string - Add database level columns DEFAULT value .

  • primary: boolean - Mark the column as the primary column . Usage and @PrimaryColumn identical .

  • unique: boolean- Mark the column as unique （ Create a unique constraint ）.

  • comment: string - Database column comments , Not all database types support .

  • enum: string[]|AnyEnum - stay enum Used in column types , To specify a list of allowed enumeration values . You can also specify an array or an enumeration class .

    import {
            Column, Entity, PrimaryGeneratedColumn} from "typeorm";

    @Entity()
    export class Student {

        @PrimaryGeneratedColumn()
        id:number

        @Column({


            //  Type of custom field
            type:'varchar',

            //  The name of the custom field
            name:'sname',

            //  Length of custom field
            length:20,

            // not null  Allow null  false  Not empty
            nullable:true,

            update:true,

            // false  Query does not show
            select:false,

            //  Default value of column
            default:'123',

            //  Unique constraint
            unique:false,

            //  Column comment
            comment:' full name ',
        })
        name:string


        constructor(name: string) {

            this.name = name;
        }
    }


    import 'reflect-metadata'
    import {
            createConnection, getRepository} from "typeorm";
    import {
            Student} from "./entity/Student";


    createConnection().then(async ()=>{

        const studentRepository  = getRepository(Student)

        //  add to
        const stu = new Student(' Zhang San ')
        await studentRepository.save(stu)

        //  Inquire about
        const student:Student[] = await studentRepository.find()
        console.log(student)
    })


Embed entity classes

• By using embedded columns, It can reduce repetition in applications
• An embedded column is a column , It accepts classes with its own columns , And merge these columns into the database table of the current entity .

Relationship

• What is relationship
• Relationships can help you easily work with related entities . There are several types of relationships
  • one-on-one Use @OneToOne
  • For one more Use @ManyToOne
  • One to many Use @OneToMany
  • Many to many Use @ManyToMany
• Relational options
  • eager: boolean - If set to true, Then use find * or QueryBuilder when , The primary entity will always be used to load the relationship
  • cascade: boolean - If set to true, The related objects will be inserted and updated in the database .
  • onDelete: "RESTRICT"|"CASCADE"|"SET NULL" - Specify how foreign keys behave when deleting referenced objects
  • primary: boolean - Indicates whether the column of this relationship is the primary column .
  • nullable: boolean - Indicates whether the columns of this relationship can be empty . It is nullable by default .
  • orphanedRowAction: "nullify" | "delete" - After deleting a child row from its parent row , Confirm that the child row is orphaned （ The default value is ） Or deleted .

One-to-one relationship （ One ）

• One on one is a kind of A Contains only one B example , and B Contains only one A The relationship of examples . We use Users and Profile Entity as an example .

• Users can only have one profile , And a profile is owned by only one user .

  // Profile.ts
  import {
        Column, Entity, PrimaryGeneratedColumn} from "typeorm";

  @Entity()
  export class Profile {

      @PrimaryGeneratedColumn()
      id:number

      @Column()
      gander:number


      constructor(gander: number) {

          this.gander = gander;
      }
  }


  // Users.ts
  import {
        Column, Entity, JoinColumn, OneToOne, PrimaryGeneratedColumn} from "typeorm";
  import {
        Profile} from "./Profile";

  @Entity()
  export class Users {

      @PrimaryGeneratedColumn()
      id:number

      @Column()
      name:string

      // OneToOne  one-on-one   Specify the relationship
      @OneToOne(()=>Profile)
      //  Foreign keys
      @JoinColumn()
      profile:Profile


      constructor(name: string, profile: Profile) {

          this.name = name;
          this.profile = profile;
      }
  }


• Here we will @OneToOne Add to profile And specify the target relationship type as Profile. We also added @JoinColumn, This is required and can only be set on one side of the relationship . You set up @JoinColumn Which side , Which side of the table will contain a "relation id" And the foreign key of the target entity table .

One-to-one relationship （ Two ）

• Again ,@JoinColumn Must be set only on one side of the relationship and must have a foreign key on the side of the database table .

  //  one-on-one .ts
  import {
        createConnection, getRepository} from "typeorm";
  import {
        Profile} from "./entity/Profile";
  import {
        Users} from "./entity/Users";

  createConnection().then(()=>{

      const usersRepository = getRepository(Users)
      const profileRepository = getRepository(Profile)

      const save = async ()=>{

          //  establish  profile  object
          const profile = new Profile(20)
          //  add to  profile  Information to database
          await profileRepository.save(profile)

          //  establish  users  object
          const users = new Users(' Zhang San ',profile)
          //  add to  users  Information to database
          const res = await usersRepository.save(users)
          console.log(res)
      }
      // save()

      //  Inquire about
      const queryOne = async () =>{

          const users = await  usersRepository.findOne({

              relations:['profile'],
              where:{
        id:1}
          })
          console.log(users)
      }
      queryOne()
  })


For one more / One to many relationship （ One ）

• For one more / One to many Refer to A Contains multiple B The relationship of examples , but B Contains only one A example . Let's take User and Photo Entity as an example . User You can have multiple photos, But each photo By only one person user Have

  // Photo.ts

  import {
        Column, Entity, ManyToOne, PrimaryGeneratedColumn} from "typeorm";
  import {
        User} from "./User";

  @Entity()
  export class Photo{

      @PrimaryGeneratedColumn()
      id:number

      @Column()
      url:string

      @ManyToOne(()=>User,person =>person.photos)
      person:User


      constructor(url: string) {

          this.url = url;
      }
  }


  // User.ts

  import {
        Column, Entity, OneToMany, PrimaryGeneratedColumn} from "typeorm";
  import {
        Photo} from "./Photo";
  @Entity()
  export class User {

      @PrimaryGeneratedColumn()
      id:number

      @OneToMany(()=>Photo,photo=> photo.person)
      photos:Photo[]


      constructor(photos: Photo[]) {

          this.photos = photos;
      }
  }


• Here we will @OneToMany Add to photos Properties of the , And specify the target relationship type as Photo. You can @ManyToOne / @OneToMany Omit @JoinColumn, Unless you need to customize the name of the associated column in the database . @ManyToOne Can be used alone , but @OneToMany It has to go with @ManyToOne Use . If you want to use

  @OneToMany, You need to @ManyToOne. Before you set up @ManyToOne The place of , Related entities will have " relation id" and Foreign keys .

For one more / One to many relationship （ Two ）

• You need to query with photos Of user, Must be in FindOptions Specify the relationship in

  import {
        createConnection, getRepository} from "typeorm";
  import {
        User} from "./entity/User";
  import {
        Photo} from "./entity/Photo";

  createConnection().then(()=>{

      const userRepository = getRepository(User)
      const photoRepository = getRepository(Photo)

      const save = async () => {

          const photo1 = new Photo('./img/01.jpg')
          const photo2 = new Photo('./img/02.jpg')
          await photoRepository.save([photo1,photo2])

          const user = new User([photo1,photo2])
          const res = await userRepository.save(user)
          console.log(res)
      }
      // save()

      const queryAll = async () =>{

          const res = await userRepository.find({

              relations:['photos']
          })
          console.log(res)
      }
      queryAll()
  })


many-to-many （ One ）

• Many to many is a kind of A Contains multiple B example , and B Contains multiple A The relationship of examples . We use Question and Category Entity as an example . Question There can be multiple categories, Every category There can be multiple questions

  // Category  Category
  import {
        Column, Entity, PrimaryGeneratedColumn} from "typeorm";

  @Entity()
  export class Category {

      @PrimaryGeneratedColumn()
      id:number

      @Column()
      name:string


      constructor(name: string) {

          this.name = name;
      }
  }


  // Question  problem
  import {
        Column, Entity, JoinTable, ManyToMany, PrimaryGeneratedColumn} from "typeorm";
  import {
        Category} from "./Category";

  @Entity()
  export class Question {

      @PrimaryGeneratedColumn()
      id:number

      @Column()
      title:string

      @Column()
      text:string

      @ManyToMany(()=>Category)
      @JoinTable()
      categories:Category[]

      constructor(title: string, text: string, categories: Category[]) {

          this.title = title;
          this.text = text;
          this.categories = categories;
      }
  }


• @JoinTable() yes @ManyToMany Necessary for a relationship

many-to-many （ Two ）

• To be in categories Loading inside question, You must be there. FindOptions Specify the relationship in

  import {
        createConnection, getRepository} from "typeorm";
  import {
        Category} from "./entity/Category";
  import {
        Question} from "./entity/Question";

  createConnection().then(()=>{

      const categoryRepository = getRepository(Category)
      const questionRepository = getRepository(Question)

      const save = async () =>{

          const category1 = new Category('animals')
          const category2 = new Category('zoo ')
          await categoryRepository.save([category1,category2])

          const question = new Question(' title ',' Text ',[category1,category2])
          const res =  await questionRepository.save(question)
          console.log(res)
      }
      // save()

      const queryAll = async ()=>{

          const res = await questionRepository.find({

              relations:['categories']
          })
          console.log(res)
      }
      queryAll()
  })


Use Query Builder

• QueryBuilder yes TypeORM One of the most powerful features , It allows you to build with elegant and convenient syntax SQL Inquire about , Execute and get automatically transformed entities .

Reverse generate database model

• First, install it globally ：npm install typeorm-model-generator
• Then reverse generate the code ：typeorm-model-generator -h localhost -d mall -u root -x 123456 -e mysql -o entity
  • -h localhost -d Database name -p port -u user name -x password -e Database type
  • -o entities Indicates output to the specified folder
