Hcip day 3 Wan topology experiment

Catalog

One 、 The experiment purpose

Two 、 The experimental requirements

3、 ... and 、 The experimental steps

1、 Configuration of each interface IP Address

2、HDLC encapsulation

3、PaP authentication

4、Chap authentication

5、 structure MGRE Environmental Science

6、  Default route and RIP Configuration of

7、nat address translation

Four 、 test

---

One 、 The experiment purpose

Make the topology environment as shown in the figure below accessible throughout the network

---

Two 、 The experimental requirements

1.R2 by ISP, stay R2 The above can only be configured IP Address ,R2 There is a loop road

2.R1-R2 Between for HDLC encapsulation

3.R2-R3 Between for PPP encapsulation ,pap authentication ,R2 Main certifier ,R3 For the certified party

4.R2-R4 Between for PPP encapsulation ,chap authentication ,R2 Main certifier ,R4 For the certified party

5.R1、R3、R4 Build between MGRE Environmental Science , only R1 Of IP Fixed address

6. Intranet usage RIP Routing information protocol gets routes , all PC Can access each other , And accessible R2 The loopback of

---

3、 ... and 、 The experimental steps

1、 Configuration of each interface IP Address

1)AR1

[R1]int GigabitEthernet 0/0/1

[R1-GigabitEthernet0/0/1]ip address 192.168.1.2 24

[R1-GigabitEthernet0/0/1]int Serial 4/0/0

[R1-Serial4/0/0]ip address 12.1.1.1 24

2)AR2

[R2]int Serial 4/0/0

[R2-Serial4/0/0]ip add 12.1.1.2 24

[R2-Serial4/0/0]int Serial 4/0/1

[R2-Serial4/0/1]ip address 32.1.1.1 24

[R2-Serial4/0/1]int s 3/0/0

[R2-Serial3/0/0]ip address 42.1.1.1 24

[R2]interface LoopBack 0

[R2-LoopBack0]ip address 1.1.1.1 24

3）AR3

[R3]int Serial 4/0/0

[R3-Serial4/0/0]ip address 32.1.1.2 24

[R3]interface g0/0/1

[R3-GigabitEthernet0/0/1]ip add 192.168.2.1 24

4）AR4

[R4]interface Serial 4/0/0

[R4-Serial4/0/0]ip address 42.1.1.2 24

[R4]interface g0/0/1

[R4-GigabitEthernet0/0/1]ip address 192.168.3.1 24

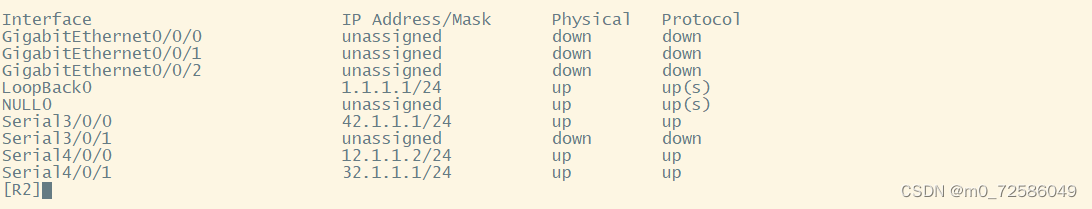

IP The allocation is shown in the figure below



2、HDLC encapsulation

1）AR1

[R1]int Serial  4/0/0

[R1-Serial4/0/0]link-protocol hdlc

Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]:y

2）AR2

[R2]int Serial 4/0/0

[R2-Serial4/0/0]link-protocol hdlc

Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]:y

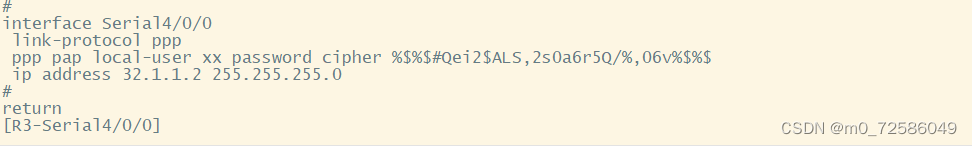

3、PaP authentication

1）AR2

[R2]aaa

[R2-aaa]local-user xx privilege level 15 password cipher 123456

Info: Add a new user.

[R2-aaa]local-user xx service-type ppp

[R2-aaa]int s4/0/1

[R2-Serial4/0/1]ppp authentication-mode pap

2）AR3

[R3]int s4/0/0

[R3-Serial4/0/0]ppp pap local-user xx password cipher 123456

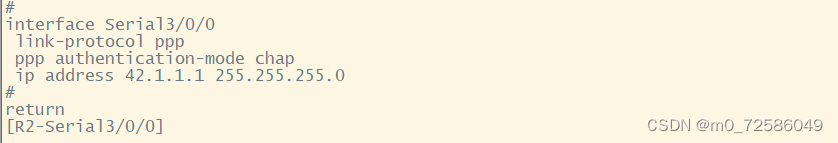

4、Chap authentication

1）AR2

[R2]aaa

[R2-aaa]local-user hh privilege level 15 password cipher 123456

Info: Add a new user.

[R2-aaa]local-user hh service-type ppp

[R2-aaa]q

[R2]int s3/0/0

[R2-Serial3/0/0]ppp authentication-mode chap

2）AR4

[R4]int s4/0/0

[R4-Serial4/0/0]ppp chap password cipher 123456

[R4-Serial4/0/0]ppp chap user hh

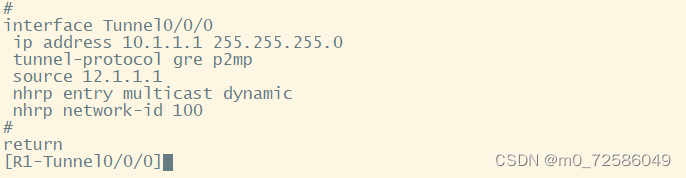

5、 structure MGRE Environmental Science

1）AR1

[R1]interface Tunnel 0/0/0

[R1-Tunnel0/0/0]ip address 10.1.1.1 24

[R1-Tunnel0/0/0]tunnel-protocol gre p2mp

[R1-Tunnel0/0/0]source 12.1.1.1

[R1-Tunnel0/0/0]nhrp entry multicast dynamic

[R1-Tunnel0/0/0]nhrp network-id 100

2）AR3

[R3]interface Tunnel 0/0/0

[R3-Tunnel0/0/0]ip address 10.1.1.2 24

[R3-Tunnel0/0/0]tunnel-protocol gre p2mp

[R3-Tunnel0/0/0]source Serial 4/0/0

[R3-Tunnel0/0/0]nhrp network-id 100

[R3-Tunnel0/0/0]nhrp entry 10.1.1.1 12.1.1.1 register

3）AR4

[R4]interface Tunnel 0/0/0

[R4-Tunnel0/0/0]ip address 10.1.1.3 24

[R4-Tunnel0/0/0]tunnel-protocol gre p2mp

[R4-Tunnel0/0/0]source Serial 4/0/0

[R4-Tunnel0/0/0]nhrp network-id 100

[R4-Tunnel0/0/0]nhrp entry 10.1.1.1 12.1.1.1 register

6、  Default route and RIP Configuration of

1）AR1

[R1]ip route-static 0.0.0.0 0 12.1.1.2

[R1]rip 1

[R1-rip-1]version 2

[R1-rip-1]network 10.0.0.0

[R1-rip-1]network 192.168.1.0

[R1-Tunnel0/0/0]undo rip split-horizon

2）AR3

[R3]ip route-static 0.0.0.0 0 32.1.1.1

[R2-rip-1]network 10.0.0.0

[R3]rip 1

[R3-rip-1]ver 2

[R3-rip-1]network 10.0.0.0

[R3-rip-1]network 192.168.2.0

3）AR4

[R4]ip route-static 0.0.0.0 0 42.1.1.1

[R4]rip 1

[R4-rip-1]ver 2

[R4-rip-1]network 10.0.0.0

[R4-rip-1]network 192.168.3.0

7、nat address translation

1）AR1

[R1]acl 2000

[R1-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255

[R1-Serial4/0/0]nat outbound 2000

2）AR3

[R3]acl 2000

[R3-acl-basic-2000]rule permit source 192.168.2.0 0.0.0.255

[R3-Serial4/0/0]nat outbound 2000

3）AR4

[R4]acl 2000

[R4-acl-basic-2000]rule permit source 192.168.3.0 0.0.0.255

[R4-Serial4/0/0]nat outbound 2000

---

Four 、 test
