Based on LSM tree idea Net 6.0 C ＃ write a kV database (case version)

2022-07-27 10:14:00 【Dotnet cross platform】

It's a little long , After reading it patiently, you should be able to understand what the actual principle is .

This is a KV Database C# Realization , Currently used .NET 6.0 Realized , At present, it belongs to the embryonic form , The skeleton is complete , After all, it was just completed less than a week .

Of course , This is actually NoSQL The prototype of , It is helpful to deeply understand the internal principles and concepts of relevant databases , It also helps to get started .

Suitable for friends who are interested in the principle and implementation of database .

The overall code , Probably 1500 That's ok , The core code is about 500 That's ok .

Why should we implement a database

Probably 2018 In the year , I came up with the idea of developing a database by myself , although , Making wheels may not be as powerful as existing products , however , Few people can make it , and , There are even fewer books to build databases , Of course , It's not just that there are few books to build databases , But there are few creative books of various advanced products .

although , Now there are all kinds of open source , however , Like me with a thin foundation , You can't easily understand , The architectural design of these frameworks , And related concepts , Just look at the code , Not for a long time , It is not easy to understand the meaning of its existence .

timely , I saw 【 The fool works well 】 An article by a big man 《【 Ten thousand words long text 】 Use LSM Tree Thought realizes a KV database 》 The article touched me a lot , Let my stagnant heart , It jumped up again , Although the boss uses GO The realization of language , however , For me , Is language still a problem , As long as the technical ideas are consistent , I can use it C# Come true , That's right. 【 The fool works well 】 Big guy's salute , My side followed closely .

Of course , My own research on data also takes a long time , After all , To study anything, we must start with the principle , Three papers from Google 《GFS,MapReduce,BigTable》 Start , however , The paper , After all, it's a paper , I can't understand , I also read the articles of all kinds of big men on the Internet , Still very deceived , When it's done , No one communicates , Cause all kinds of miscarriages .

occasionally , When implementing a product framework by yourself , Always thinking , Why? BUG Let me deal with it all , Then a want to , Make a new product by yourself , Nor can we learn from the technical points , That's not from scratch , Naturally encounter one by one BUG.

The picture below is , I want to be a database , Write and draw by yourself , however , When it's actually done , Logic is not always that good , Of course , This is a relational database , It's more difficult , Let's take a look at the previous manuscript , If you have an idea, just draw it .

The implementation is a little difficult , Now the implementation is KV database , It's a columnar database , big-name HBase, The underlying database engine is LSM-Tree Technical thought of .

LSM-Tree What is it

LSM-Tree The full English name is Log Structured Merge Tree （ chinese ： Log structure merge tree ）, It's a kind of layering , Orderly , Disk oriented data structures , Its core idea is to make full use of , The technical feature of disk batch sequential write is much higher than random write , To realize the core of storage system with high write throughput .

specifically , The principle is for hard disk , Try to add data , Instead of writing data randomly , Appending is faster than random writing , This structure is suitable for writing more and reading less , therefore ,LSM-Tree Designed to provide more than traditional B+ Trees or ISAM Better write throughput , Achieve this performance goal by eliminating random local update operations .

Related technical products include Hbase、Cassandra、Leveldb、RocksDB、MongoDB、TiDB、Dynamodb、Cassandra 、Bookkeeper、SQLite etc.

therefore ,LSM-Tree The core of is to add data , Instead of modifying the data .

LSM-Tree Architecture analysis

In fact, this drawing has expressed the overall design idea , The main body is actually surrounded by red lines and black lines , In two parts , Red is written , Black is reading , Arrows indicate the direction of the data , Numbers indicate logical order .

The whole consists of roughly three parts , Database operation part （ Mainly for reading and writing ）, Memory part ( Cache table and invariant cache table ) And hard disk (WAL Log and SSTable), These three parts .

First explain the key words

MemoryTable

Memory tables , A temporary cache data table , It can be used Implementation of binary sort tree , You can also use a dictionary , I use dictionary to realize .

WAL Log

WAL english (Write Ahead LOG) It is a kind of pre write log , Used to provide data persistence during system failure , This means that when a write request arrives , Data is first added to WAL file （ Sometimes called logs ） And refresh to the disk before updating the memory data structure .

If used Mysql, I should know BinLog file , They are a truth , First write to WAL Log in , Record it , then , Write to memory table , If the computer suddenly crashes , Something in the memory must have been lost , that , Next restart , From WAL Log In the record sheet , Restore the data to the current data state .

Immutable MemoryTable

Immutable( constant ), Compared with the memory table , It cannot write new data , Is read-only .

SSTable

SSTable english (Sorted Strings Table) , Ordered string table , Is an ordered list of strings , The advantage of using it is that it can achieve the effect of sparse index , and , Merging files is simpler and more convenient , I want to check some Key, however , It is based on Some order Key Between , You can check directly in the document , Instead of saving everything in memory .

Here I use hash table , I think it's worth wasting a little memory , After all, in order to be fast , It's worth wasting some space , therefore , At present, the full index is loaded into memory , And the data is stored in SSTable in , Of course , If it is for better design , You can also implement the ordered table by yourself to use binary search .

After I realize this convenience , Memory will load a large number of indexes , Relatively speaking, it is fast , however , Memory will be larger , Space for time .

Now let's start the specific process analysis

LSM-Tree Write Route analysis

Look at the picture below , Data write analysis

Follow the red line , Pay attention to me and never get lost .

LSM-Tree Write The first step of route analysis

First step , There are only two parts to note , They are memory table and WAL.Log

Store the memory table before writing data , In order to quickly store data in the database .

Store in WAL.Log, To prevent data loss under abnormal conditions .

Under normal circumstances , Write to WAL.Log One copy , then , Will be written to memory .

When the program crashes , perhaps , The computer is out of power , After repeated service , It will load first WAL.Log, In order from beginning to end , Restore data to memory table , Until the end , Back to WAL.Log The final state , That is, the final state of the memory table data .

notes

What we should pay attention to here is , When the following invariant table (Immutable MemoryTable) Write to SSTable When , It will be emptied WAL.Log file , And write the data of the memory table directly to the WAL.log In the table .

LSM-Tree Write The second step of route analysis

The second step , Relatively simple , In the memory table count When it is greater than a certain number , Just add a memory table at the same time , Turn it into Immutable MemoryTable （ Invariant table ）, wait for SSTable The operation of dropping the plate , This is the time ,Immutable MemoryTable There will be multiple tables .

LSM-Tree Write The third step of route analysis

The third step , The database will check regularly Immutable MemoryTable （ Invariant table ） Whether the invariant table exists , If there is , It will fall directly to SSTable surface , No matter how much there is in the current memory Immutable MemoryTable （ Invariant table ）.

By default, it falls from the first level of memory SSTable All are Level 0, then , Built in the current time , So it's a two-level sort , First grade , then , Time .

LSM-Tree Write The fourth step of route analysis

Step four , In fact, it is segment merging or level merging compression , It is judgement. level0 All of this level SSTable file (SSTable0,SSTable1,SSTable2), Judge their total size or their total number , Do they need to be merged .

among Level 0 If the size is 10M, that ,Level 1 The size of 100M, And so on .

When Level0 All of the SSTable The file exceeds 10M, Or a limited size , Will start from WAL.Log Sequential thinking , Re merge into a large file , Traverse and merge the old data first and then the new data , If you have deleted , Then it is directly excluded , Keep only the latest status .

If Level1 Of （ All SSTable） size exceed 100M, that , Trigger Level1 Contraction of , The execution process follows Level0 Same operation , Just different levels .

The advantage of this compression is to minimize the amount of data and files , After all , There are many documents , Management is not very convenient .

thus , The written route has been analyzed

notes

When querying , New data first , Post old data , When merging and compressing by segments , Old data should be at the bottom first , New data brush status , This is a point to pay attention to when implementing .

LSM-Tree Read Route analysis

This is the process of finding data , Follow the black line and the number mark , It's easy to see the access order

1. MemoryTable ( Memory tables )
2. Immutable MemoryTable ( Invariant table )
3. Level 0-N (SSTableN-SSTable1-SSTable0) ( Ordered string table )

Basically, these three parts , And the level table is from 0 Level began to look down , And inside each level SSTable It's from the new to the old , Find and return , Regardless of key Is it deleted or normal .

LSM-Tree Architecture analysis and implementation

The core idea ：

In fact, it is a chronological record table , Each operation will be recorded , It is equivalent to a message queue , Record a series of actions , then , Playback action , Get the latest data status , Also similar CQRS Medium Event Store（ The event store ）, The concept is the same , So when it comes to implementation , Just understand what essence it is .

Wal.log and SSTable, All to ensure that the data can be ground and persistent without loss , and MemoryTable, The concept of temporary cache , Of course , It also has the function of accelerating access .

therefore , From these points of view , It is divided into the following major objects

1. Database database ( Play a right role Wal.log,SSTable and MemoryTable Management responsibilities )
2. Wal.log( Record temporary data log )
3. MemoryTable( Record data to memory , At the same time, it provides interface services for the database search function )
4. SSTable( management SSTable file , And provide SSTable Query function of )

therefore , Design relevant class interface design for these objects .

KeyValue ( Structure of specific data )

When designing , First design the structure of the actual data , I designed it like this

There are three main messages ,key, DataValue,Deleted , among DataValue yes Byte[] Type of , If I write it in the file , It is written directly .

/// <summary>
///  Data and information  kv
/// </summary>
public class KeyValue
{
    public string Key { get; set; }
    public byte[] DataValue { get; set; }
    public bool Deleted { get; set; }
    private object Value;
    public KeyValue() { }
    public KeyValue(string key, object value, bool Deleted = false)
    {
        Key = key;
        Value = value;
        DataValue = value.AsBytes();
        this.Deleted = Deleted;
    }
    public KeyValue(string key, byte[] dataValue, bool deleted)
    {
        Key = key;
        DataValue = dataValue;
        Deleted = deleted;
    }

    /// <summary>
    ///  Is there valid data , Non deletion status
    /// </summary>
    /// <returns></returns>
    public bool IsSuccess()
    {
        return !Deleted || DataValue != null;
    }
    /// <summary>
    ///  The value does not exist , Whether delete or not
    /// </summary>
    /// <returns></returns>
    public bool IsExist()
    {
        if (DataValue != null && !Deleted || DataValue == null && Deleted)
        {
            return true;
        }
        return false;
    }
    public T Get<T>() where T : class
    {
        if (Value == null)
        {
            Value = DataValue.AsObject<T>();
        }
        return (T)Value;
    }

    public static KeyValue Null = new KeyValue() { DataValue = null };
}

IDataBase ( Database interface )

The main body class for external interaction , The database class , Add delete check interface , Use both get,set,delete performance .

/// <summary>
///  Database interface
/// </summary>
public interface IDataBase : IDisposable
{
    /// <summary>
    ///  Database configuration
    /// </summary>
    IDataBaseConfig DataBaseConfig { get; }
    /// <summary>
    ///  get data
    /// </summary>
    KeyValue Get(string key);
    /// <summary>
    ///  Save the data ( Or update the data )
    /// </summary>
    bool Set(KeyValue keyValue);
    /// <summary>
    ///  Save the data ( Or update the data )
    /// </summary>
    bool Set(string key, object value);
    /// <summary>
    ///  Access to all key
    /// </summary>
    List<string> GetKeys();
    /// <summary>
    ///  Delete specified data , And return the existing data
    /// </summary>
    KeyValue DeleteAndGet(string key);
    /// <summary>
    ///  Delete data
    /// </summary>
    void Delete(string key);
    /// <summary>
    ///  Timing check
    /// </summary>
    void Check(object state);
    /// <summary>
    ///  Clear all data in the database
    /// </summary>
    void Clear();
}

IDataBase.Check ( Regular inspection )

This is a regular check Immutable MemoryTable( Invariant table ) The timing operation of , Mainly depends on IDataBaseConfig.CheckInterval Parameter configures its trigger interval .

Its responsibility is to check the memory table and check SSTable Whether to trigger the operation of segmented merge compression .

public void Check(object state)
{
    //Log.Info($" Regular heartbeat check !");
    if (IsProcess)
    {
        return;
    }
    if (ClearState)
    {
        return;
    }
    try
    {
        Stopwatch stopwatch = Stopwatch.StartNew();
        IsProcess = true;
        checkMemory();
        TableManage.Check();
        stopwatch.Stop();
        GC.Collect();
        Log.Info($" Timed heartbeat processing takes time :{stopwatch.ElapsedMilliseconds} millisecond ");
    }
    finally
    {
        IsProcess = false;
    }
}

IDataBaseConfig ( Database configuration file )

Profile of the database , Where is the database stored , And generate SSTable Threshold configuration at , There is also the configuration of detection interval .

/// <summary>
///  Database related configuration
/// </summary>
public interface IDataBaseConfig
{
    /// <summary>
    ///  Database data directory
    /// </summary>
    public string DataDir { get; set; }
    /// <summary>
    /// 0  Layer of   all  SsTable  The maximum sum of file sizes , Company  MB, Beyond this value , This layer  SsTable  Will be compressed to the next layer
    ///  The data size of each layer is that of the upper layer N times
    /// </summary>
    public int Level0Size { get; set; }
    /// <summary>
    ///  Multiple between layers
    /// </summary>
    public int LevelMultiple { get; set; }
    /// <summary>
    ///  Threshold number per layer
    /// </summary>
    public int LevelCount { get; set; }
    /// <summary>
    ///  Of the memory table  kv  The largest number , Beyond this threshold , The memory table will be saved to  SsTable  in
    /// </summary>
    public int MemoryTableCount { get; set; }
    /// <summary>
    ///  Compress memory 、 File interval , How often is the inspection done
    /// </summary>
    public int CheckInterval { get; set; }
}

IMemoryTable ( Memory tables )

This table is actually a management table for memory data , Mainly management MemoryTableValue object , This object is implemented through hash dictionary , Of course , You can also choose other structures , Such as ordered binary tree .

/// <summary>
///  Memory tables ( Sort tree , Binary tree )
/// </summary>
public interface IMemoryTable : IDisposable
{
    IDataBaseConfig DataBaseConfig { get; }
    /// <summary>
    ///  Get total
    /// </summary>
    int GetCount();
    /// <summary>
    ///  Search for ( From new to old , From big to small )
    /// </summary>
    KeyValue Search(string key);
    /// <summary>
    ///  Set new value
    /// </summary>
    void Set(KeyValue keyValue);
    /// <summary>
    ///  Delete key
    /// </summary>
    void Delete(KeyValue keyValue);
    /// <summary>
    ///  Get all  key  Data list
    /// </summary>
    /// <returns></returns>
    IList<string> GetKeys();
    /// <summary>
    ///  Get all the data
    /// </summary>
    /// <returns></returns>
    (List<KeyValue> keyValues, List<long> times) GetKeyValues(bool Immutable);
    /// <summary>
    ///  Get the number of invariant tables
    /// </summary>
    /// <returns></returns>
    int GetImmutableTableCount();
    /// <summary>
    ///  Start swapping
    /// </summary>
    void Swap(List<long> times);
    /// <summary>
    ///  Clear all the data
    /// </summary>
    void Clear();
}

MemoryTableValue ( Object implementation )

Mainly through Immutable This attribute implements the marking of immutable memory tables , The specific implementation is through judgment IDataBaseConfig.MemoryTableCount ( Of the memory table kv The largest number ) To realize the marked .

public class MemoryTableValue : IDisposable
{
    public long Time { get; set; } = IDHelper.MarkID();
    /// <summary>
    ///  Is it immutable
    /// </summary>
    public bool Immutable { get; set; } = false;
    /// <summary>
    ///  data
    /// </summary>
    public Dictionary<string, KeyValue> Dic { get; set; } = new();

    public void Dispose()
    {
        Dic.Clear();
    }

    public override string ToString()
    {
        return $"Time {Time} Immutable：{Immutable}";
    }
}

What time table state changes to Immutable MemoryTable( Invariant table ) Of

What I realize here is from Set At the entrance of , If the number is greater than IDataBaseConfig.MemoryTableCount ( Of the memory table kv The largest number ) Just change its state

public void Check()
{
    if (CurrentMemoryTable.Dic.Count() >= DataBaseConfig.MemoryTableCount)
    {
        var value = new MemoryTableValue();
        dics.Add(value.Time, value);
        CurrentMemoryTable.Immutable = true;
    }
}

IWalLog

wallog, It's much simpler , Just put KeyValue Write to file , In order to ensure WalLog Continued writing , therefore , The handle of this file is reserved inside the object . and SSTable, There is no need , Read at any time .

/// <summary>
///  journal
/// </summary>
public interface IWalLog : IDisposable
{
    /// <summary>
    ///  Database configuration
    /// </summary>
    IDataBaseConfig DataBaseConfig { get; }
    /// <summary>
    ///  load Wal Log to memory table
    /// </summary>
    /// <returns></returns>
    IMemoryTable LoadToMemory();
    /// <summary>
    ///  Write the log
    /// </summary>
    void Write(KeyValue data);
    /// <summary>
    ///  Write the log
    /// </summary>
    void Write(List<KeyValue> data);
    /// <summary>
    ///  Reset log file
    /// </summary>
    void Reset();
}

ITableManage (SSTable The management of the table )

For better management SSTable, There needs to be a management , This interface is its management , among SSTable There will be multiple layers , Each time Level+ Time stamp +db As the file name , For external identification .

/// <summary>
///  Table management items
/// </summary>
public interface ITableManage : IDisposable
{
    IDataBaseConfig DataBaseConfig { get; }
    /// <summary>
    ///  Search for ( From new to old , From big to small )
    /// </summary>
    KeyValue Search(string key);
    /// <summary>
    ///  Access to all key
    /// </summary>
    List<string> GetKeys();
    /// <summary>
    ///  Check the database file , If the file is invalid, there is too much data , Will trigger the integration of files
    /// </summary>
    void Check();
    /// <summary>
    ///  Create a new Table
    /// </summary>
    void CreateNewTable(List<KeyValue> values, int Level = 0);
    /// <summary>
    ///  Clean up a certain level of data
    /// </summary>
    /// <param name="Level"></param>
    public void Remove(int Level);
    /// <summary>
    ///  Clear data
    /// </summary>
    public void Clear();
}

ISSTable(SSTable file )

SSTable Content management for , It should be LSM-Tree The core. , Data consolidation , And data query , write in , load , They are all low-level operations , You need a lot of database knowledge .

/// <summary>
///  File information table  （ Stored in IO in ）
///  Metadata  |  Index list  |  Data area ( Data modification will only add , And modify the index list data )
/// </summary>
public interface ISSTable : IDisposable
{
    /// <summary>
    ///  Data address
    /// </summary>
    public string TableFilePath();
    /// <summary>
    ///  Rewrite file
    /// </summary>
    public void Write(List<KeyValue> values, int Level = 0);
    /// <summary>
    ///  Data location
    /// </summary>
    public Dictionary<string, DataPosition> DataPositions { get; }
    /// <summary>
    ///  Get total
    /// </summary>
    /// <returns></returns>
    public int Count { get; }
    /// <summary>
    ///  Metadata
    /// </summary>
    public ITableMetaInfo FileTableMetaInfo { get; }
    /// <summary>
    ///  Query data
    /// </summary>
    /// <param name="key"></param>
    /// <returns></returns>
    public KeyValue Search(string key);
    /// <summary>
    ///  Orderly key list
    /// </summary>
    /// <returns></returns>
    public List<string> SortIndexs();
    /// <summary>
    ///  To obtain position
    /// </summary>
    DataPosition GetDataPosition(string key);
    /// <summary>
    ///  Read the value of a position
    /// </summary>
    public object ReadValue(DataPosition position);
    /// <summary>
    ///  Load all the data
    /// </summary>
    /// <returns></returns>
    public List<KeyValue> ReadAll(bool incloudDeleted = true);
    /// <summary>
    ///  Get all keys
    /// </summary>
    /// <returns></returns>
    public List<string> GetKeys();
    /// <summary>
    ///  Get table name
    /// </summary>
    /// <returns></returns>
    public long FileTableName();
    /// <summary>
    ///  File size
    /// </summary>
    /// <returns></returns>
    public long FileBytes { get; }
    /// <summary>
    ///  Get levels
    /// </summary>
    public int GetLevel();
}

IDataPosition( Data sparse index is )

Convenient data query is convenient and convenient from SSTable Read the actual data content in .

/// <summary>
///  The location of the data
/// </summary>
public interface IDataPosition
{
    /// <summary>
    ///  Index start position
    /// </summary>
    public long IndexStart { get; set; }
    /// <summary>
    ///  Start address
    /// </summary>
    public long Start { get; set; }
    /// <summary>
    ///  Data length
    /// </summary>
    public long Length { get; set; }
    /// <summary>
    /// key The length of
    /// </summary>
    public long KeyLength { get; set; }
    /// <summary>
    ///  Whether it has been deleted
    /// </summary>
    public bool Deleted { get; set; }
    public byte[] GetBytes();
}

Data structure analysis

Needless to say, the structure of the internal table , It's simple , Is a hash dictionary , There are two structures that need to be specifically analyzed , That's it WALLog and SSTable file .

WALLog structural analysis

This picture is difficult to draw horizontally , I drew it vertically ,WalLog What is stored in it is the chronological KeyValue data , When it is loaded into Memory Table When , In fact, it is superimposed to the final state in the order of the numbers I marked .

Empathy ,SSTable When data is segmented, merged and compressed , In fact, it is the same principle .

SSTable structural analysis

SSTable, It itself is a file The name is roughly as follows :

0_16586442986880000.db

The format is Hierarchy _ Time stamp .db The naming rules are made in this way , For this reason, I also made a generation time sequence without repetition ID Simple algorithm .

SSTable Data area

The data area is very simple , hold KeyValue.DataValue direct ToJson That's all right. , then , Write files directly .

SSTable Sparse index area

This area corresponds to the data area key Written in order , It's mainly about DataValue The corresponding start address and end address are put into this data area , Another one key Also written in .

The advantage is to , When this SSTable Load index (IDataPosition) To the memory , Save loading the contents of the data area , It's much easier to find , This is also the function of index .

Metadata area

According to the agreement , It belongs to the agreement header , But why put it at the back , In fact, it is for the convenience of calculation , This is also a small coup .

It not only includes the beginning and end of the data area , Start and end of sparse index area , It also contains , this SSTable Version and creation time of , And current SSTable At the same level .

SSTable Segment merge compression

When I first read this functional logic , The brain is muddled , I watched it hard for a long time , Analyzed for a long time , I still wrote it out , I didn't understand at first , Later I understood , It's much easier to write .

Look at the picture below :

In fact, consolidation is stateful , This is the intermediate state , I put him in the middle of the picture , then , It is indicated by a white dashed box .

The whole logic is , First, generate the invariant table from memory at a fixed time into 0 Class SSTable, then ,0 There will be many files at level , If these file sizes exceed the threshold , Merge this level of file into a large file , according to WalLog The principle of merging , Then write the information back to the local as 1 level SSTable that will do .

And so on .

The following dynamic diagram illustrates the merging effect .

This dynamic diagram also shows some things , There is this picture , It is estimated that you will know more about the principle .

LSMDatabase Performance testing

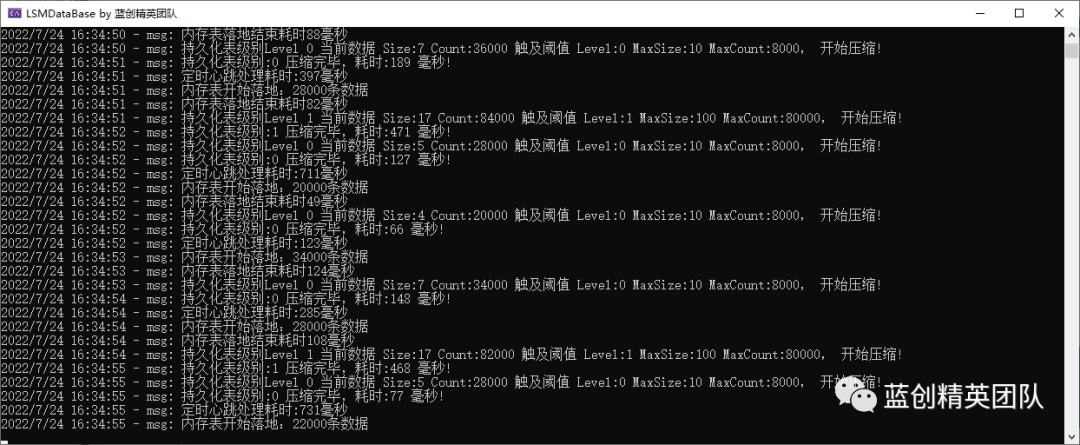

At present, my test cases are quite simple , If there is bug, Just change it directly . My test here is , Write onemillion pieces of data directly , The test results are as follows :

keyvalue Data length :151 Actual file size :217 MB Insert 1000000 Data Time consuming :79320 millisecond or 79.3207623 second , Average inserts per second :52631 strip

keyvalue Data length :151 Actual file size :221 MB Insert 1000000 Data Time consuming :27561 millisecond or 27.5616519 second , Average inserts per second :37037 strip

1. keyvalue Data length :176
2. Actual file size :215 MB
3. Insert 1000000 Data Time consuming :29545 millisecond or 29.5457999 second ,
4. Average inserts per second :34482 strip or 30373 etc. ( Different configuration , The environment is different , It will be different , But roughly )
5. The length of data inserted multiple times is different , Different configurations , The insertion speed will be affected

load 215 MB 1000000 Data bar data Time consuming :2322 millisecond , That is to say 2 second ( load SSTable)

The memory is occupied after it is stable 500MB about .

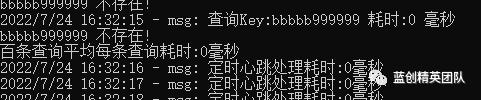

Stable query takes time : Hundreds of queries take an average of : 0 millisecond . Maybe it's because of the dictionary , The query speed will be faster , however , Special point query will have 0.300 About the time-consuming individual phenomenon .

Inquire about keys, A million time consuming 3 second , This is a little time-consuming , It should be that the amount of data is too large .

thus , This project is over , although , Have not experienced stress testing , however , The overall skeleton and content are complete , It can be repaired and improved according to specific conditions . At present, there is nothing wrong with me .

summary

Everything starts hard , Across the river of time , Step by step , It was born today , Yes, it is , that , It will be much easier to deal with the next related problem , I call such barriers , The barrier of knowledge .

Have one's view of the important overshadowed by the trivial , It really exists , How to break through , Only curiosity , Hold the line , Dig a little .

Reference material

【 Ten thousand words long text 】 Use LSM Tree Thought realizes a KV database
https://www.cnblogs.com/whuanle/p/16297025.html

Xiao Hansong ：《 from 0 Start ：500 Line code implementation LSM database 》
https://mp.weixin.qq.com/s/kCpV0evSuISET7wGyB9Efg

cstack : Let's build a simple database
https://cstack.github.io/db_tutorial/

Database kernel - One hour to achieve a basic function of the database
https://www.jianshu.com/p/76e5cb53c864

Google's three papers GFS,MapReduce,BigTable Medium GFS and BigTable

Thank you list

1. The fool works well
2. Todd

Although there is not much in-depth communication with the above leaders , After all, the coffee level is still a little high , however , Through articles and simple communication , Let me further study the database , Even the real one , Thank you again for .
