New BPMN file used by activiti workflow

Activiti Workflow use new bpmn file

One 、bpmn The file is introduced

Business process modeling and annotation （Business Process Model and Notation,BPMN) , The basic symbols that describe the process , Including how these elements are combined into a business flow chart （Business Process Diagram）

idea Draw the process , There are two files bpmn Document and png file , among bpmn File can also be called process definition file , It needs to follow BPMN language norm .png: It's just a simple picture , It doesn't work .

Two 、 Process drawing

2.1 Use activiti-app Drawing process

Process instance ： Points approval process

2.2 The process node specifies an agent

Each process node needs to specify an agent , That is, the process executes to a task , A designated user is required to approve

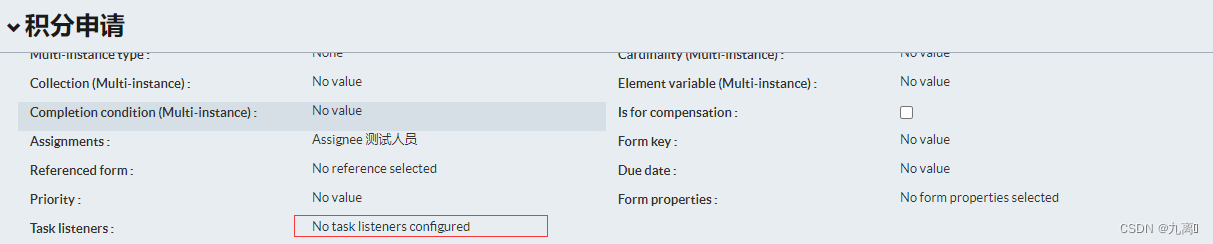

Click the task node , Select an agent

There are three ways to appoint agents ：

• 1、 Fixed agent



• 2、 Use url Expressions dynamically set delegates



• 3、 Use listeners to dynamically set up agents



2.3 Except for agents , Node can also set other types of node auditing

Follow up articles to explain

3、 ... and 、 Process saving and Export

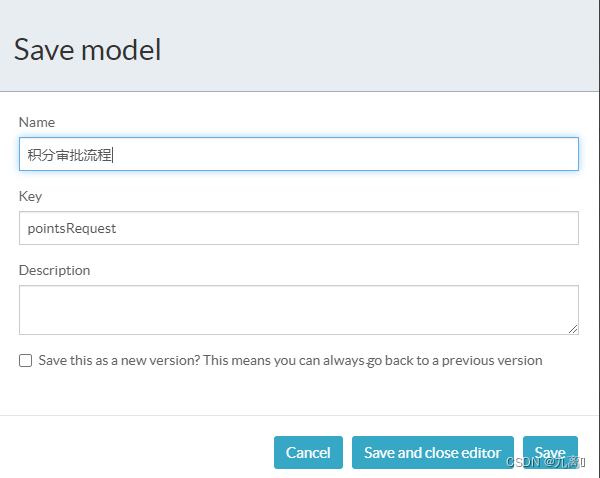

preservation ：

export ：

Four 、 technological process bpmn file

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:activiti="http://activiti.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.activiti.org/processdef">
<process id="pointsRequestProcesses" name=" Points approval process " isExecutable="true">
   <startEvent id="startEventPoint" name=" Start " />
   <userTask id="userTaskPointsRequest" name=" Points application " activiti:assignee="${applicantUser}" activiti:exclusive="true">
     <outgoing>Flow_0z08cw6</outgoing>
   </userTask>
   <userTask id="userTaskCompanyApproval" name=" Provincial company approval " activiti:candidateUsers="${reviewerUser}" activiti:exclusive="true">
     <incoming>Flow_0z08cw6</incoming>
   </userTask>
   <exclusiveGateway id="exclusivegateway02" name=" Provincial company approval exclusivegateway02" />
   <endEvent id="endEventPoint" />
   <sequenceFlow id="flow1" sourceRef="startEventPoint" targetRef="userTaskPointsRequest" />
   <sequenceFlow id="flow4" sourceRef="userTaskCompanyApproval" targetRef="exclusivegateway02" />
   <sequenceFlow id="flowrightexclusivegateway2" name=" Approved by the provincial company " sourceRef="exclusivegateway02" targetRef="endEventPoint">
     <extensionElements>
       <activiti:executionListener class="com.awifi.capacity.project.manager.activiti.provider.listener.MyTaskListener" event="take" />
     </extensionElements>
     <conditionExpression xsi:type="tFormalExpression">
                    ${isOk == true}
               </conditionExpression>
   </sequenceFlow>
   <sequenceFlow id="flowleftexclusivegateway2" name=" The provincial company failed to pass the approval " sourceRef="exclusivegateway02" targetRef="userTaskPointsRequest">
     <extensionElements>
       <activiti:executionListener class="com.awifi.capacity.project.manager.activiti.provider.listener.MyTaskListener" event="take" />
     </extensionElements>
     <conditionExpression xsi:type="tFormalExpression">
                    ${isOk == false}
               </conditionExpression>
   </sequenceFlow>
   <sequenceFlow id="Flow_0z08cw6" sourceRef="userTaskPointsRequest" targetRef="userTaskCompanyApproval" />
 </process>
 <bpmndi:BPMNDiagram id="BPMNDiagram_pointsRequest">
   <bpmndi:BPMNPlane id="BPMNPlane_pointsRequest" bpmnElement="pointsRequestProcesses">
     <bpmndi:BPMNEdge id="BPMNEdge_flowleftexclusivegateway2" bpmnElement="flowleftexclusivegateway2">
       <omgdi:waypoint x="769.402004454343" y="69.40200445434299" />
       <omgdi:waypoint x="383.75" y="162.88046485888214" />
       <bpmndi:BPMNLabel>
         <omgdc:Bounds x="533" y="91" width="88" height="14" />
       </bpmndi:BPMNLabel>
     </bpmndi:BPMNEdge>
     <bpmndi:BPMNEdge id="BPMNEdge_flowrightexclusivegateway2" bpmnElement="flowrightexclusivegateway2">
       <omgdi:waypoint x="798.9766063630692" y="71.02339363693075" />
       <omgdi:waypoint x="1056.795793598862" y="176.69071224016682" />
       <bpmndi:BPMNLabel>
         <omgdc:Bounds x="889" y="99" width="77" height="14" />
       </bpmndi:BPMNLabel>
     </bpmndi:BPMNEdge>
     <bpmndi:BPMNEdge id="BPMNEdge_flow4" bpmnElement="flow4">
       <omgdi:waypoint x="785" y="135" />
       <omgdi:waypoint x="785" y="85" />
     </bpmndi:BPMNEdge>
     <bpmndi:BPMNEdge id="BPMNEdge_flow1" bpmnElement="flow1">
       <omgdi:waypoint x="189.99732231181528" y="177.7165860350523" />
       <omgdi:waypoint x="283.75" y="175.9448818897638" />
     </bpmndi:BPMNEdge>
     <bpmndi:BPMNEdge id="Flow_0z08cw6_di" bpmnElement="Flow_0z08cw6">
       <omgdi:waypoint x="384" y="175" />
       <omgdi:waypoint x="735" y="175" />
     </bpmndi:BPMNEdge>
     <bpmndi:BPMNShape id="BPMNShape_startEvent1" bpmnElement="startEventPoint">
       <omgdc:Bounds x="160" y="163" width="30" height="30" />
       <bpmndi:BPMNLabel>
         <omgdc:Bounds x="164" y="193" width="22" height="14" />
       </bpmndi:BPMNLabel>
     </bpmndi:BPMNShape>
     <bpmndi:BPMNShape id="BPMNShape_userTask1" bpmnElement="userTaskPointsRequest">
       <omgdc:Bounds x="284" y="135" width="100" height="80" />
     </bpmndi:BPMNShape>
     <bpmndi:BPMNShape id="BPMNShape_userTask3" bpmnElement="userTaskCompanyApproval">
       <omgdc:Bounds x="735" y="135" width="100" height="80" />
     </bpmndi:BPMNShape>
     <bpmndi:BPMNShape id="BPMNShape_exclusivegateway02" bpmnElement="exclusivegateway02" isMarkerVisible="true">
       <omgdc:Bounds x="765" y="45" width="40" height="40" />
       <bpmndi:BPMNLabel>
         <omgdc:Bounds x="742" y="85" width="86" height="27" />
       </bpmndi:BPMNLabel>
     </bpmndi:BPMNShape>
     <bpmndi:BPMNShape id="BPMNShape_sid-5477B73E-9754-4A01-B13D-B6B61CC509E0" bpmnElement="endEventPoint">
       <omgdc:Bounds x="1056" y="168" width="28" height="28" />
     </bpmndi:BPMNShape>
   </bpmndi:BPMNPlane>
 </bpmndi:BPMNDiagram>
</definitions>
