Practice of curve replacing CEPH in Netease cloud music

Curve Block storage has been used online in the production environment for nearly three years , It has withstood the test of various abnormal and extreme scenes , Performance and stability exceed core business requirements

Netease cloud music background

Netease cloud music is one of the leading online music platforms in China , Provide an interactive content community for music lovers . Netease cloud music has created a large 、 Energetic and strong 、 Fast growing business , Provide users with community-centered online music services and social entertainment services . Its iconic key products include “ NetEase cloud music ” And affiliated social entertainment products , Such as “LOOK live broadcast ”、“ acoustic wave ” And “ Yinjie ”, Let music lovers explore independently through technology driven tools 、 enjoy 、 Share and create different music and music derivative content , And interact with others .

Cloud music cloud disk business background

Cloud music services using cloud disk mainly include the main station 、UGC、 Qu Ku, etc Java application , The main station is the core business of cloud music , The highest level of SLA guarantee （ Annual availability >=99.99%）, In the face of providing a stable cloud music experience with hundreds of millions of users , This has always been our key and difficult point .2019 Before, cloud music mainly used Ceph Cloud disk , as everyone knows ,Ceph Performance defects exist in large-scale scenarios , And it's hard to guarantee that we are in all kinds of anomalies ( Bad disk slow disk 、 Storage downtime 、 Storage network congestion, etc ) The cloud disk in the scene IO Response delay is not affected ;Ceph Cloud disk IO Jitter problem , We have tried to spend a lot of manpower on Optimization and transformation , But they are only slightly relieved , It can't be solved completely ; Performance problems are also analyzed and optimized with a lot of manpower , But it still can not meet the expectations , because This is why we have established a project to understand Curve Block storage distributed storage system .

Curve Introduction to block storage

Curve Block storage can be well adapted to mainstream cloud computing platforms , And it has high performance 、 Easy operation and maintenance 、 Stable without jitter . We are in practical application , Use Curve Block storage docking Cinder As the backend of virtual machine cloud disk storage , docking Nova As a virtual machine system disk , docking Glance As a mirror storage backend . In the process of creating virtual machine ,Nova Will pass Curve Block storage provides Python SDK Clone a new volume for use as a virtual machine system disk . In the process of creating the cloud disk ,Cinder Will pass Python SDK Create an empty volume or clone a new volume from an existing volume snapshot , After that, it can be attached to the virtual machine and used as a cloud disk . Virtual machine uses Libvirt As a virtualization control service , Use QEMU/KVM As a virtualization engine .Curve The block is stored as Libvirt/QEMU Provides a driver library , After compilation, you can directly use Curve Volume as remote storage , There is no need to put Curve Block storage volumes are mounted locally .

Why choose Curve

1.  Business side

i. According to our cloud music application scenarios ,Ceph There are two main cloud disks Pain points ：

• Poor performance ： Due to the poor performance of a single volume （ Mainly IO High delay ,IOPS Couldn't get on , And vulnerable to other high load volumes in the cluster ）, Therefore, it can only be used for the system disk , Or it can be used to print logs for cloud disk supply , Unable to support the use of middleware business .

• IO shake ： After our observation, we found that IO Delay exceeds 2s It may cause disk util 100%, The business will alarm in a large area , Request to pile up , In severe cases, it will cause avalanche effect ; According to the former 2 Years of observation ,Ceph Cloud disk IO Jitter is very frequent （ Basically every month ）, The duration of jitter also reaches the level of minutes , Therefore, many core applications have switched to local storage to avoid similar problems .

ii. Curve Cloud disk advantage ：

• shake ： Since using Curve After cloud disk , disk IO util Monitoring has never been caused by distributed storage systems 100% The alarm , The stability of business operation has been greatly improved , The core business has gradually moved back to Curve Cloud disk （ After all, the high space utilization of cloud disk 、 reliability 、 Portability 、 Rapid recovery capability is also highly valued by the business ）.

• performance ： Under the same hardware ,Curve Single volume performance is Ceph Roll up 2 times +, The delay is also much lower than Ceph, Refer to the following figure for specific performance comparison ：

2. Operation and maintenance side

i. According to our cloud music operation and maintenance scenario ,Ceph Of Pain points Mainly as follows ：

• Service upgrade ： Common scenarios that require upgrading the client include bug Repair 、 New function enhancement and version upgrade , We met a Ceph Community message module 32 Bit sequence number overflow bug, The bug It will appear on the long-running client , cause IO hang, Both the client and the server need to be updated to solve the problem . There are two options for updating the client , First, restart the virtual machine QEMU process , Second, perform hot migration operations on virtual machines live migration, These two operations are relatively feasible in a few virtual machine scenarios , But if you do this for hundreds of virtual machines , Obviously, the operability is very low , Business is clearly unacceptable . In addition, the server upgrade is restarting OSD Process will also cause certain IO shake , It is necessary to operate in the low peak period of business , And the business needs to shut down the disk temporarily util The alarm .

• performance ： The O & M personnel mainly focus on the overall performance of the storage cluster , If the total capacity of the cluster does not match the total performance , This can easily lead to insufficient performance when the capacity is sufficient , Or create fewer volumes, resulting in a waste of capacity , You can either continue to create volumes that will affect a single volume IO Delay and throughput , in addition Ceph When the number of cluster volumes reaches a certain scale , As the number of volumes increases , The overall performance of the cluster is also declining , This results in a greater impact on the performance of a single volume .

• Algorithm ： Limited by CRUSH Algorithmic limitations ,Ceph Of  OSD  The data distribution is very uneven , Serious waste of space , According to our observation , The highest and lowest  OSD  The difference in space utilization can reach 50%, Data balancing is often required , However, a large number of data migration operations will occur in the process of data balancing , Lead to IO shake , In addition, data balance cannot be solved perfectly  OSD  Unbalanced capacity utilization .

• IO shake ： Change the bad plate , The node is down , high IO load , Capacity expansion （ No new pool, Too many new pool It can lead to OpenStack Maintenance becomes complicated ） Data equalization , Network card packet loss , Slow disk, etc .

ii. relatively speaking Curve It has remarkable advantages in the above aspects advantage ：

• Service upgrade ： The client supports hot upgrade , In operation QEMU The process does not need To restart , There is no need to migrate , The millisecond impact is almost insensitive to the business in the virtual machine , For architecture design related to thermal upgrade, please refer to ①.Curve When upgrading the server , Thanks to the  quorum Mechanism Consistency agreement for raft, As long as you upgrade by replica domain , It can guarantee the business IO The effect is on the second level ,IO The delay does not exceed 2s It won't lead to util 100%.

• performance ：Curve The cluster can operate at the same capacity , Create more volumes , And maintain stable performance output .

• count Law ：Curve Data distribution is centralized MDS The service is carried out , It can guarantee a very high balance , The highest and lowest chunkserver The deviation of space utilization rate shall not exceed 10%, There is no need to perform data balancing operation .

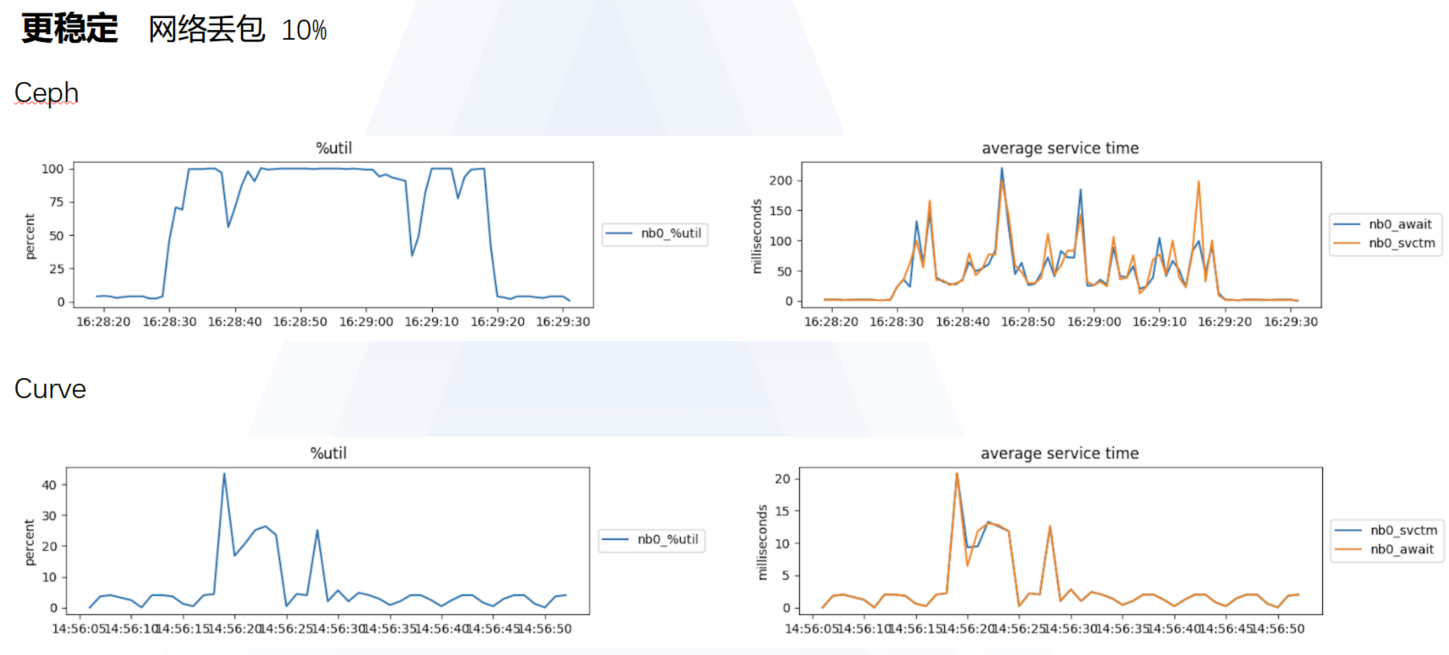

• IO shake ：Ceph Cloud disks are prone to IO Jittery scene ,Curve Cloud disk performance is more stable ,Curve VS Ceph The details are as follows: ：

Use Curve  The result of landing

Curve Block storage has been used online in the production environment for nearly three years , It has withstood the test of various abnormal and extreme scenes , Performance and stability exceed core business requirements , No obvious fault occurs under common fault scenarios IO shake , The upgrade of the server and client versions has not affected the normal operation of the business , This fully proves that our choice at that time was correct , Also thank you Curve The help given by the students of the team in the process of our use . at present ： Cloud music use Curve Block storage serves as the cloud disk and system disk of the virtual machine , The system disk is usually of fixed capacity 40GB or 60GB Two specifications , The cloud disk has the smallest capacity 50GB, The biggest support 4TB（ This is a soft limitation ,Curve The cloud disk actually supports the creation of PB Level volume ）.

Follow up planning

combination Curve Block storage ：

• Exploration is based on Curve Cloud native middleware scenario of block storage , For example, the transformed Redis、Kafka、 Services such as message queuing run in Curve Block storage on a volume , Reduce failover time .

• Online based on CurveBS+PolarFS+MySQL Cloud native database .

• Other stock uses Ceph Cloud disk 、 The local storage virtual machine is switched to Curve Block storage volume .

at present Curve The team is also fully developing the shared file storage service , Netease is based on OpenStack Private cloud 2.0 The platform has evolved to be based on Kubernetes Of 3.0 platform , Business for ReadWriteMany The type of PVC The demand for volumes has become more and more urgent ,Curve Team developed Curve Distributed shared file system , The system supports storing data in Curve Block storage backend or compatible S3 Protocol object storage service , It will also be launched as soon as possible .

Reference resources ：

① https://github.com/opencurve/curve/blob/master/docs/cn/nebd.md



• GitHub：https://github.com/opencurve/curve

• Wechat group ： Please search add or search group assistant wechat  OpenCurve_bot
