Review of static routing

  Design topology ,ip Distribute ：

  Set up valn：[sw1]vlan batch 2 to 3

sw1]interface Ethernet0/0/1

[sw1-Ethernet0/0/1]port link-type access

[sw1-Ethernet0/0/1]port default vlan 2

sw1]interface Ethernet0/0/2

[sw1-Ethernet0/0/2]port link-type access

[sw1-Ethernet0/0/2]port default vlan 3

establish truck main rd （sw1 Two article ）

[sw1]interface e0/0/1

[sw1-Ethernet0/0/1]port link-type trunk

[sw1-Ethernet0/0/2]port trunk allow-pass vlan 2 to 3

Same reason sw2 To operate ;

Conduct sub interface operation ：

router]interface g0/0/0.1

[router-GigabitEthernet0/0/0.1]dot1q termination vid 2

[router-GigabitEthernet0/0/0.1]ip address 192.168.0.113 28

[router-GigabitEthernet0/0/0.1]arp broadcast enable

[router-GigabitEthernet0/0/0.1]q

[router]interface g0/0/0.2

[router-GigabitEthernet0/0/0.2]dot1q  termination vid 3

[router-GigabitEthernet0/0/0.2]ip address  192.168.0. 225 28

[router-GigabitEthernet0/0/0.2]arp broadcast enable

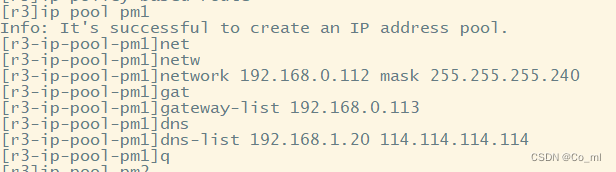

To configure dhcp

  And assigned to 2.1 2.2 Interface

  Check pc1

Configure static routing ;

Configure floating static ：[r1]ip route-static 100.100.100.0 24 13.1.1.2 preference 61

Default route settings ：[r3]ip route-static 0.0.0.0 0 192.168.0.50

[r4]ip route-static 0.0.0.0 0 192.168.0.98

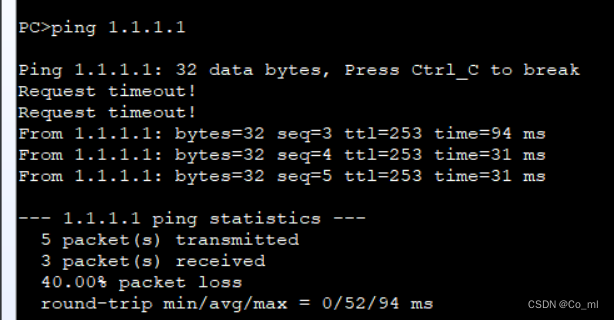

ping1.1.1.1
