JMeter recording interface automation

One 、 install Jmeter（ Refer to the last post ）

1. install JDK, Configure environment variables JAVA_HOME, The computer Java The environment is normal
2. To configure Jmeter environment variable ：JMETER_HOME; CLASSPATH normal
3. Official website address ：Apache JMeter - Download Apache JMeter





Two 、Jmeter Recording web End script

1. open Jmeter, To configure Jmeter Tools

（1） add to 【 Thread group 】

test plan ( Right click ) - add to - Thread group

（2） add to 【 Simple controller 】

Thread group ( Right click ) - add to - Logic controller - Simple controller

（3） add to 【HTTP proxy server 】

test plan ( Right click ) - add to - Non test elements - HTTP proxy server

 (4)  HTTP proxy server - Troubleshooting mode

  .*\.(js|css|PNG|jpg|ico)

  .*\.css

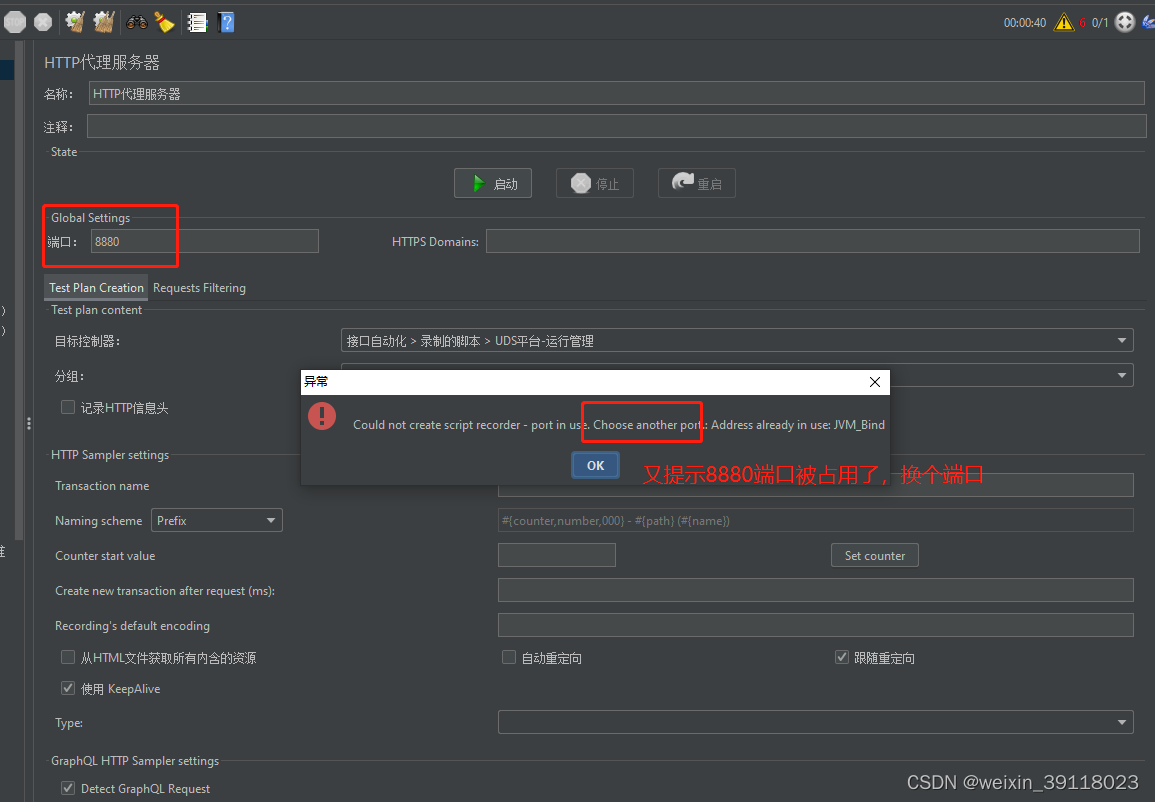

 2.HTTP The port number can be seen in the proxy settings , The agent network information it sends is ： ip： Port number （ Such as 127.0.0.1：8880）

 3. Open browser proxy network settings , Desktop notification bar network connection icon ---> The Internet and internet attribute ---> agent ---> Set up agent manually

Use Jmeter Agent network , start-up HTTP After the proxy server, you can start recording HTTP request （ Some browser agents follow the system , Some are set independently ）

 4. If you need to record https request , You need to configure certificates . When starting the proxy server ,Jmeter Under the bin The directory will generate a certificate named ApacheJMeterTemporaryRootCA.crt file . You need to import the certificate Jmeter And browser （ The method of importing browser certificate is the same as fiddler Agreement ）  Make sure 2 After installing the certificate on both ends , Before you can record

3、 ... and 、 Installation certificate

1. Jmeter Options -SSL After the manager successfully imports the certificate , stay Jmeter The installation path bin You'll see it in the directory ApacheJMeterTemporaryRootCA.crt This certificate （ Now start HTTP proxy server , Then go to the directory to see whether the certificate is generated ）

2. start-up HTTP proxy server

Follow the prompts to install the certificate , You can open the browser and enter the address you want to visit , Start recording interface

3. Turn on HTTP proxy server





 4. Then close the browser proxy , You can visit the web page normally
