Tkinter GUI address book management system

tkinter GUI Version address book management system

The experimental requirements

To design a GUI Address book of version , Connect data.db database （ The database is QQ Group file ）, Read out the address book records in the database , Place a table on the window to display the address book information , Use Treeview Component implementation , Then display the name, etc. in the form 6 A field , And add （ You can't add someone's information repeatedly ） And delete records . Improving the function requires error handling and information prompt when adding records . The interface is as follows ：

---

Tips ： The following is the main body of this article , The following cases can be used for reference

Complete code

import sqlite3
import tkinter
import tkinter.ttk
import tkinter.messagebox

def doSql(sql):
    ''' Used to perform SQL sentence , In especial INSERT and DELETE sentence '''
    with sqlite3.connect('data.db') as conn:
        cur = conn.cursor()
        cur.execute(sql)
        conn.commit()

#  establish tkinter Application window
root = tkinter.Tk()
#  Set window size and position
root.geometry('500x500+400+300')
#  It is not allowed to change the window size
root.resizable(False, False)
#  Set the window title
root.title(' Address book management system ')

#  Place a label component and a text box component for entering names on the window
lbName = tkinter.Label(root, text=' full name ：')
lbName.place(x=10, y=10, width=40, height=20)
entryName = tkinter.Entry(root)
entryName.place(x=60, y=10, width=150, height=20)

#  Place the label component and combo box component for selecting gender on the window
lbSex = tkinter.Label(root, text=' Gender ：')
lbSex.place(x=220, y=10, width=40, height=20)
comboSex = tkinter.ttk.Combobox(root,
                                values=(' male ', ' Woman '))
comboSex.place(x=270, y=10, width=150, height=20)

#  Place a label component and a text box component for entering age on the window
lbAge = tkinter.Label(root, text=' Age ：')
lbAge.place(x=10, y=50, width=40, height=20)
entryAge = tkinter.Entry(root)
entryAge.place(x=60, y=50, width=150, height=20)

#  Place a label component and a text box component for entering departments on the window
lbDepartment = tkinter.Label(root, text=' department ：')
lbDepartment.place(x=220, y=50, width=40, height=20)
entryDepartment = tkinter.Entry(root)
entryDepartment.place(x=270, y=50, width=150, height=20)


#  Place a label component and a text box component for entering a phone number on the window
lbTelephone = tkinter.Label(root, text=' Telephone ：')
lbTelephone.place(x=10, y=90, width=40, height=20)
entryTelephone = tkinter.Entry(root)
entryTelephone.place(x=60, y=90, width=150, height=20)

#  Place the label component on the window and use it for input QQ Text box component of number
lbQQ = tkinter.Label(root, text='QQ：')
lbQQ.place(x=220, y=90, width=40, height=20)
entryQQ = tkinter.Entry(root)
entryQQ.place(x=270, y=90, width=150, height=20)

#  Place a table on the window to display the address book information , Use Treeview Component implementation
frame = tkinter.Frame(root)
frame.place(x=0, y=180, width=480, height=280)
#  Scroll bar
scrollBar = tkinter.Scrollbar(frame)
scrollBar.pack(side=tkinter.RIGHT, fill=tkinter.Y)
#Treeview Components
treeAddressList = tkinter.ttk.Treeview(frame,
                                       columns=('c1', 'c2', 'c3','c4', 'c5', 'c6'),
                                       show="headings",
                                       yscrollcommand = scrollBar.set)
treeAddressList.column('c1', width=70, anchor='center')
treeAddressList.column('c2', width=50, anchor='center')
treeAddressList.column('c3', width=50, anchor='center')
treeAddressList.column('c4', width=110, anchor='center')
treeAddressList.column('c5', width=100, anchor='center')
treeAddressList.column('c6', width=100, anchor='center')
treeAddressList.heading('c1', text=' full name ')
treeAddressList.heading('c2', text=' Gender ')
treeAddressList.heading('c3', text=' Age ')
treeAddressList.heading('c4', text=' department ')
treeAddressList.heading('c5', text=' Telephone ')
treeAddressList.heading('c6', text='QQ')
treeAddressList.pack(side=tkinter.LEFT, fill=tkinter.Y)
# Treeview Component combined with vertical scroll bar
scrollBar.config(command=treeAddressList.yview)

#  Definition Treeview Left click event of component , And bind to Treeview Components
#  Click the left mouse button , Set a variable nameToDelete Value , And then you can use “ Delete ” Button to delete
nameToDelete = tkinter.StringVar('')
def treeviewClick(event):
    if not treeAddressList.selection():
        return
    item = treeAddressList.selection()[0]
    nameToDelete.set(treeAddressList.item(item, 'values')[0])
treeAddressList.bind('<Button-1>', treeviewClick)

def bindData():
    ''' Read out the address book records in the database , Then display in the table '''
    #  Delete all the original rows in the table
    for row in treeAddressList.get_children():
        treeAddressList.delete(row)

    #  Read all data in the database
    with sqlite3.connect('data.db') as conn:
        cur = conn.cursor()
        cur.execute('select * from addressList order by id')
        temp = cur.fetchall()

    #  Insert the data into the table
    for i, item in enumerate(temp):
        treeAddressList.insert('', i, values=item[1:])

#  Call function , Display the records in the database in the table
bindData()

#  Place a button on the window to add the address book , And set the button click event function
def buttonAddClick():
    #  Check name
    name = entryName.get().strip()
    if name == '':
        tkinter.messagebox.showerror(title=' I'm sorry ', message=' Name cannot be empty ！')
        return

    #  The name cannot be repeated
    with sqlite3.connect('data.db') as conn:
        cur = conn.cursor()
        cur.execute('select COUNT(id) FROM addressList WHERE name="{}"'.format(name))
        c = cur.fetchone()[0]

    if c!=0:
        tkinter.messagebox.showerror(title=' I'm sorry ', message=' The name cannot be repeated ！')
        return

    #  Get the selected gender
    sex = comboSex.get()
    if sex not in (' male ', ' Woman '):
        tkinter.messagebox.showerror(title=' I'm sorry ', message=' Gender cannot be empty ！')
        return

    #  Age of examination
    age = entryAge.get().strip()
    if age == '':
        tkinter.messagebox.showerror(title=' I'm sorry ', message=' Age cannot be empty ！')
        return

    #  Inspection department
    department = entryDepartment.get().strip()
    if department == '':
        tkinter.messagebox.showerror(title=' I'm sorry ', message=' Department cannot be empty ！')
        return

    #  Check the phone number
    telephone = entryTelephone.get().strip()
    if telephone=='' or (not telephone.isdigit()):
        tkinter.messagebox.showerror(title=' I'm sorry ', message=' The phone number is empty or wrong ！')
        return

    #  Check QQ number
    qq = entryQQ.get().strip()
    if qq=='' or (not qq.isdigit()):
        tkinter.messagebox.showerror(title=' I'm sorry ', message='QQ The number is empty or wrong ！')
        return

    #  All inputs passed the check , Insert database
    sql = 'INSERT INTO addressList(name,sex,age,department,telephone,qq) VALUES("'\
              + name + '","' + sex + '",' + str(age) + ',"' + department + '","'\
              + telephone + '","' + qq + '")'
    doSql(sql)

    #  After adding records , Update the data in the table
    bindData()
buttonAdd = tkinter.Button(root, text=' add to ', command=buttonAddClick)
buttonAdd.place(x=100, y=140, width=80, height=20)

#  Place a button on the window to delete the address book , And set the button click event function
def buttonDeleteClick():
    name = nameToDelete.get()
    if name == '':
        tkinter.messagebox.showerror(title=' I'm sorry ', message=' No record selected ！')
        return

    #  If you have selected an address book , perform SQL Statement to delete
    sql = 'DELETE FROM addressList WHERE name="{}"'.format(name)
    doSql(sql)
    tkinter.messagebox.showinfo(' Congratulations ', ' Delete successful ')

    #  Reset the variable to an empty string
    nameToDelete.set('')

    #  Update the data in the table
    bindData()
buttonDelete = tkinter.Button(root, text=' Delete ', command=buttonDeleteClick)
buttonDelete.place(x=240, y=140, width=80, height=20)

root.mainloop()

Running results

Set parameters ： full name ： Wang Wu , Gender ： male , Age ：20, department ： Finance Department , Telephone ：666,QQ：888
experimental result ：

Set parameters ： full name ： Zhang San , Gender ： male , Age ：35, department ： The personnel department , Telephone ：[phone],QQ：101010
experimental result ：

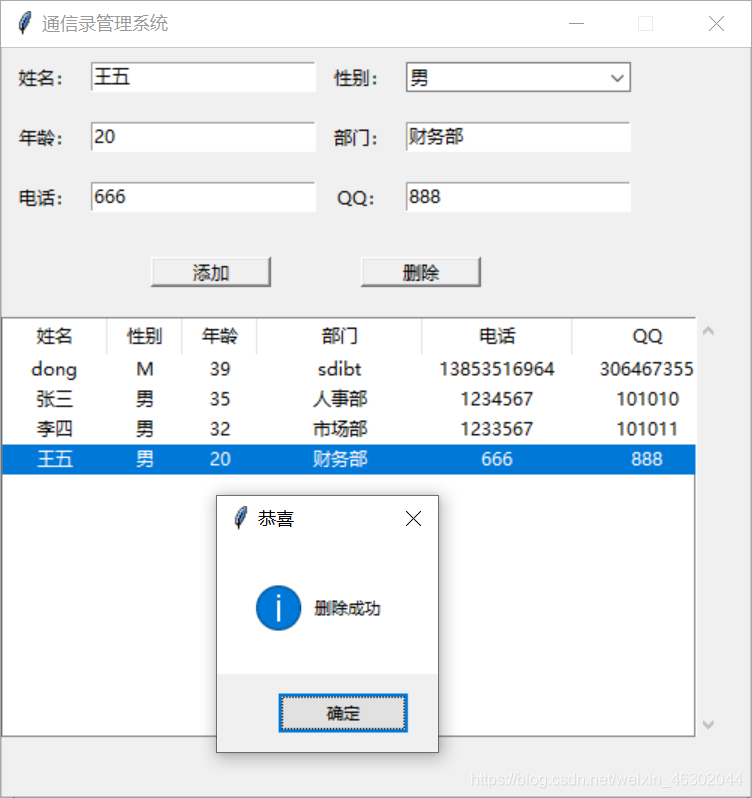

Select a record , Delete them
experimental result ：
