MySQL index failure scenarios and Solutions

One 、 Preface

In the face of SQL Statement will encounter index invalidation , It has a crucial impact on the feasibility and performance efficiency of the statement , This analysis Why does the index fail , What will happen Cause index to fail And when the index fails Optimize the solution , It focuses on Leftmost prefix matching principle 、MySQL Logical architecture and optimizer 、 Index failure scenarios and why .

Two 、 Leftmost prefix matching principle

I wrote an article about The basic concept of index and the use of index Articles on , Next, we will introduce the relevant contents of index invalidation .

First, introduce a principle that will be used in the subsequent causes of index failure ： Leftmost prefix matching principle .

The bottom principle of the leftmost prefix ： stay MySQL The leftmost prefix matching principle is followed when building a union index , That is, the leftmost priority , Match from the far left of the union index when retrieving data .

What is the leftmost prefix matching principle ？ To understand the leftmost matching principle of a union index , Let's first understand the underlying principles of indexing ： At the bottom of the index is a B+ Trees , So the bottom layer of the union index is a B+ Trees , It's just a joint index B+ The tree node stores key values . Because of building a B+ The tree can only determine the index relationship based on one value , So the database relies on the leftmost field of the union index to build .

give an example ： Create a （a,b） Joint index of , So its index tree looks like the following figure .

You can see a The values of are ordered ,1,1,2,2,3,3, and b There is no order in the values of 1,2,1,4,1,2. But we can find that a In the case of equivalence ,b The values are in order again , But this order is relative . This is because MySQL The rule for creating a union index is to sort the first field on the leftmost side of the union index first , Based on the sorting of the first field , Then sort the second field . therefore b=2 There is no way to make use of the index for this query condition .

Because the whole process is based on explain Result analysis , Next, let's understand explain Medium type Fields and key_lef Field .

1.type： Connection type .

• system： There is only one line in the table （ It's equal to the system table ）, This is a const Special case of type , Not usually , Negligible
• const： Indicates that it is found through index once ,const For comparison primary key perhaps unique Indexes . Because only one row of data needs to be matched , All very soon . If you put the primary key in where In the list ,mysql You can convert the query to a const.
• eq_ref： Unique index scan , For each index key , Only one record in the table matches it . Common in primary keys or Unique index scan . Be careful ：ALL The tables scanned by the whole table record the least t1 surface
• ref： Non unique index scan , Returns all rows that match a single value . In essence, it is also an index access , It returns all rows that match a single value , However, he may find more than one qualified line , So it should be a mixture of search and scan .
• range： Retrieve only rows in the given range , Use an index to select rows .key Column shows which index is used . It's usually in where In the sentence bettween、<、>、in And so on . The range scan on this index column is better than the full index scan . Just start at a certain point , End at another point , Don't scan all indexes .
• index：Full Index Scan,index And ALL The difference for index Type only traverses the index tree . This is usually ALL block , The index file should usually be smaller than the data file .（Index And ALL Even though they read the whole watch , but index Read from index , and ALL Read from hard disk ）
• ALL：Full Table Scan, Traverse the entire table to find the matching rows

2.key_len： Show MySQL Actually determine the length of the index used . If the index is NULL, The length of NULL. If not NULL, Is the length of the index used . So from this field, you can infer which index is used .
Calculation rules ：

1. Fixed length field ,int Occupy 4 Bytes ,date Occupy 3 Bytes ,char(n) Occupy n Characters .

2. Variable length field varchar(n), Take up n Characters + Two bytes .

3. Different character sets , The number of bytes occupied by a character is different .Latin1 Coded , One character takes one byte ,gdk Coded , One character takes two bytes ,utf-8 Coded , One character takes three bytes .

（ Because my database uses Latin1 Encoding format , So in the later calculation , A character is counted as a byte ）

4. For all index fields , If set to NULL, It will take 1 Bytes .

After understanding the leftmost prefix matching principle, let's take a look at the scenario of index failure and analyze why it fails .

3、 ... and 、MySQL Logical architecture and optimizer

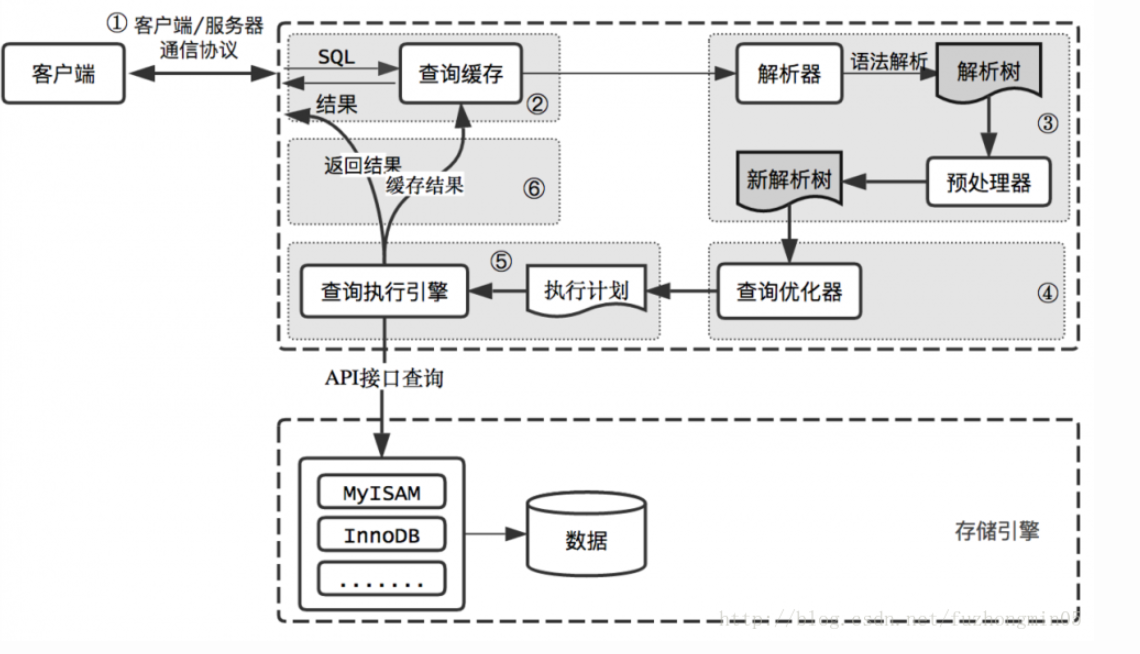

MySQL Logical architecture ：

mysql The architecture can be roughly divided into 4 layer , Namely ：

1. client ： Various languages provide connections mysql Database method , such as jdbc、php、go etc. , You can choose Select the corresponding method or framework connection mysql

2.server layer ： Including connectors 、 The query cache 、 analyzer 、 Optimizer 、 Actuators etc. , cover mysql Most of the core service functions of , And all the built-in functions （ For example, date 、 aristocratic family 、 Count Learning and encryption functions ）, All cross-storage engine functionality is implemented in this layer , Like stored procedures 、 trigger 、 View etc. .

3. Storage engine layer ： Responsible for data storage and extraction , It is a component that really deals with the underlying physical files . Data is essentially stored on disk , Store data in an organized way through a specific storage engine and extract data according to business needs . The architecture mode of storage engine is plug-in , Support Innodb,MyIASM、Memory Wait for multiple storage engines . Now the most commonly used storage engine is Innodb, It is from mysql5.5.5 Version began to be the default storage engine .

4. Physical file layer ： Store the real table data of the database 、 Log etc. . Physical documents include ：redolog、undolog、binlog、errorlog、querylog、slowlog、data、index etc. .

server Introduction to important components of layer ：

1. The connector

The connector is responsible for the connection from the client 、 Get user rights 、 Maintaining and managing connections .

After a user successfully establishes a connection , Even if you use the administrator account to modify the permissions of this user , It does not affect the permissions of existing connections . After the modification is completed , Only when you create a new connection can you use the new permission settings .

2. The query cache

mysql After getting a query request , You will go to the query cache to check whether this statement has been executed before . The statements executed before and their results may be expressed in key-value On the form of , Is directly cached in memory .key Is the statement of the query ,value Is the result of a query . If at present sql Queries can be found directly in the query cache key, So this value Will be returned directly to the client .

In fact, it is recommended not to use query caching in most cases , Why? ？ Because query caching often does more harm than good . The query cache is very vulnerable to invalidation , Just update a table , All query caches associated with this table will be emptied . Therefore, it is likely that after struggling to save the results , It is cleared by an update operation before it is used . For databases with many update operations , The hit rate for the query cache will be very low . Unless the business needs a static table , It takes a long time to update . such as , A system configuration table , Then the query cache is suitable for the query of this table .

3. analyzer

Lexical analysis （ Identify keywords , operation , Table name , Name ）
Syntax analysis ( Judge whether it conforms to the grammar ）

4. Optimizer

The optimizer is when there are multiple indexes in a table , Decide which index to use ; Or there are multiple table associations in a statement （join） When , Determine the join order of the tables . After the optimizer phase is complete , The execution of this statement is determined , Then we go to the executor phase .

5. actuator

At the beginning of execution , First judge the user's satisfaction with this table T Do you have permission to execute the query . without , An error with no permissions is returned . If you hit the query cache , When the query cache returns results , Do authority verification . Queries will also be called before the optimizer precheck Verify permissions . If you have authority , Open the table and continue . When I open my watch , The actuator is defined according to the engine of the table , Call the interface provided by this engine . In some cases , The executor is called once , Inside the engine, it scans multiple lines , So the engine scans the number of rows followed rows_examined It's not exactly the same .

MySQL Optimizer ：

MySQL The optimizer uses a cost based optimization approach （Cost-based Optimization）, With SQL Statement as input , Use the built-in cost model, data dictionary information and the statistical information of the storage engine to decide which steps to use to implement the query statement , That is, query plan .

At a high level ,MySQL Server It can be divided into two parts ： Server layer and storage engine layer . among , The optimizer works at the server layer , Located in the storage engine API above . The working process of the optimizer can be semantically divided into four stages ：

1. Logical transformation , Including negation and elimination 、 Equivalence transfer and constant transfer 、 Constant expression evaluation 、 The outer connection is converted to the inner connection 、 Subquery transformation 、 View merging, etc ;
2. Optimize preparation , For example index ref and range Access method analysis 、 Query condition fan out value （fan out, Number of filtered records ） analysis 、 Constant table detection ;
3. Cost based optimization , Including the selection of access method and connection order ;
4. Implement the plan to improve , For example, push... Under table conditions 、 Access method adjustment 、 Avoid sorting and push down under index conditions .

Four 、 Index failure scenarios and why

1.like Use wildcards % Invalid start index . The bottom principle of leftmost prefix matching is introduced above , We know that the commonly used index data structure is B+ Trees , And the index is arranged in order . If the type of index keyword is Int type , The index is arranged in the following order ：

Data is only stored in Leaf node , And it's Orderly The emissions of .

If the type of index keyword is String type , The order is as follows ：
It can be seen that , The order of the index is based on the comparison string The first letter Sort of .
When we do fuzzy query , If you put % Put it in front , Leftmost n A letter is ambiguous , Unable to accurately locate an index according to the order of the index , Only a full table scan can be performed , Find the right data .( The bottom principle of the leftmost prefix )

In the use of Joint index It's the same when , If you violate the rule of orderly index arrangement , It will also cause index invalidation , Conduct Full table scanning .
Example : surface example There are composite indexes in ：（A,B,C）
SELECT * FROM example WHERE A=1 and B =1 and C=1; Sure Go to the index ;
SELECT A FROM example WHERE C =1 and B=1 ORDER BY A; Sure Go to the index （ Override index used ）
SELECT * FROM example WHERE C =1 and B=1 ORDER BY A; Can not be Go to the index

Overlay index : The index contains all the indexes of the data needed for the query , Called overlay index (Covering Index)

There are two ways Optimize ：
One is Use overlay index , The second is hold % Put it back .

2. The field type is string ,where It is not enclosed in quotation marks . The fields in the table are of string type , yes B+ The general index of the tree , If the query condition passes a number , It's not indexed .
Example : surface example There are fields in pid yes varchar type .

// Execute the statement at this time type by ALL A full table query
explain SELECT * FROM example WHERE pid = 1

// Execute the statement at this time type by ref Index query
explain SELECT * FROM example WHERE pid = '1'

Why doesn't the first sentence go without a single quotation mark ？ This is because when single quotes are not added , It's a comparison of strings and numbers , They don't match ,MySQL Would like to be doing Implicit Type conversion of , Convert them to floating-point numbers and compare them .

3.OR As long as there are non indexed columns before and after , Will lead to index invalidation . The query criteria include or, It may lead to index invalidation .
Example : surface example There are fields in pid yes int type ,score yes int type .

// Execute the statement at this time type by ref Index query
explain SELECT * FROM example WHERE pid = 1

// hold or Condition plus no index score, It's not going to be indexed , by ALL A full table query
explain SELECT * FROM example WHERE pid = 1 OR score = 10

Here for OR Add those without index score This situation , Suppose it's gone p_id The index of , But go to score When querying conditions , It's got to scan the whole table , It's a three-step process ： Full table scan + An index scan + Merge .
mysql There is an optimizer , In efficiency and cost , encounter OR Conditions , It is also reasonable that the index may fail .

Be careful : If or Condition columns are indexed , Index may go .

4. Joint index ( Composite index ), The condition column in the query is not the first column in the union index , Index failure . In the union index , When the query criteria meet the leftmost matching principle , The index works normally .
When we create a federated index , Such as (k1,k2,k3), It's equivalent to creating （k1）、(k1,k2) and (k1,k2,k3) Three indexes , This is the left most matching principle .
Example : There is a joint index idx_pid_score,pid before ,score After .

// Execute the statement at this time type by ref Index query ,idx_pid_score Indexes
explain SELECT * FROM example WHERE pid = 1 OR score = 10

// Execute the statement at this time type by ref Index query ,idx_pid_score Indexes
explain SELECT * FROM example WHERE pid = 1

// Execute the statement at this time type by ALL A full table query
explain SELECT * FROM example WHERE score = 10

Union index does not satisfy the leftmost principle , Indexes generally fail , But this one still follows Mysql Optimizer related .

5. Calculation 、 function 、 Type conversion ( Automatic or manual ) Cause index to fail , Use... On index fields （！= perhaps < >,not in） when , May cause index to fail .
birthtime Indexed , But because of the use of mysql Built in functions for Date_ADD(), I didn't go to the index .
Example ： In the table example There is idx_birth_time The index for datetime Type of birthtime Field

// Execute the statement at this time type by ALL A full table query
explain SELECT * FROM example WHERE Date_ADD(birthtime,INTERVAL 1 DAY) = 6

There are also operations on index columns （ Such as ,+、-、*、/）, Index failure .
Example ： In the table example There is int Type of score Field index idx_score

// Execute the statement at this time type by ALL A full table query
explain SELECT * FROM example WHERE score-1=5

And it doesn't mean (!= perhaps <>) Cause index to fail .
Example ： In the table example There is int Type of score Field index idx_score

// Execute the statement at this time type by ALL A full table query
explain SELECT * FROM example WHERE score != 2

// Execute the statement at this time type by ALL A full table query
explain SELECT * FROM example WHERE score <> 3

although score Indexed , But it did ！= perhaps < >,not in These times , The index is like a fake .
6. is null You can use index ,is not null Index not available .
Example : In the table example There is varchar Type of name Field index idx_name,varchar Type of card Field index idx_card.

// Execute the statement at this time type by range Index query
explain SELECT * FROM example WHERE name is not null

// Execute the statement at this time type by ALL A full table query
explain SELECT * FROM example WHERE name is not null OR  card is not null

7. The coding format of fields associated with left connection query or right connection query is different . If the field code format of the same field of two tables is different, the index query will not be carried out .

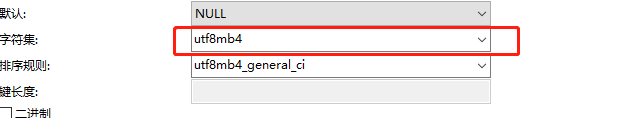

Example : In the table example There is varchar Type of name The field code is utf8mb4, The index for idx_name
In the table example_two There is varchar Type of name The field code is utf8, The index for idx_name.

// Execute the statement at this time example Watch can go type by index Type index ,example_two Then for ALL Full table search without index
explain SELECT e.name,et.name FROM example e LEFT JOIN example_two et on e.name = et.name

When the field types of the two tables are changed to be consistent :

// Execute the statement at this time example Watch can go type by index Type index ,example_two Will go type by ref Type index
explain SELECT e.name,et.name FROM example e LEFT JOIN example_two et on e.name = et.name

So the field type will also lead to index invalidation
8.mysql It is estimated that full table scanning is faster than indexing , Index is not used . When the index of a table is queried , Will use the best index , Unless the optimizer uses full table scanning more effectively . The optimizer optimizes the complete table scan depending on whether the data found using the best index exceeds the table 30% The data of .
Suggest : Don't give ’ Gender ’ Wait for the index to be added . If a data column contains "0/1" or “Y/N” equivalence , That is, there are many duplicate values , Even if it's indexed , Indexing doesn't work very well , It can also cause a full table scan .
Mysql For efficiency and cost , Estimate full table scan and use index , Which is fast , It's about its optimizer .

5、 ... and 、 summary

Here's a list of mysql The scenario of index invalidation will occur during the execution of the statement , If there are other welcome messages to add ~
