Use VRRP technology to realize gateway equipment redundancy, with detailed configuration experiments

---

Preface

In the enterprise network, layer-3 switches or routers are generally used as gateway devices , The gateway device is connected with an exit router or firewall to access the external network , If the gateway device in the enterprise fails , As a result, the terminal equipment of the intranet cannot access the public network . To avoid this happening ,VRRP（ Virtual router redundancy protocol ） Technology can realize redundant backup of gateway equipment , Even if one gateway device goes down , The other can also forward traffic , Ensure that the intranet terminal can access the Internet normally .

---

One 、VRRP The principle of Technology

Because a network card can only be configured with one gateway address , So the two gateway devices jointly create one ip Address , When one of the devices goes down , Another device can also continue to maintain this virtual ip, Realize the redundant backup effect of gateway equipment .

Two 、VRRP Experiment and configuration

1、 The topology

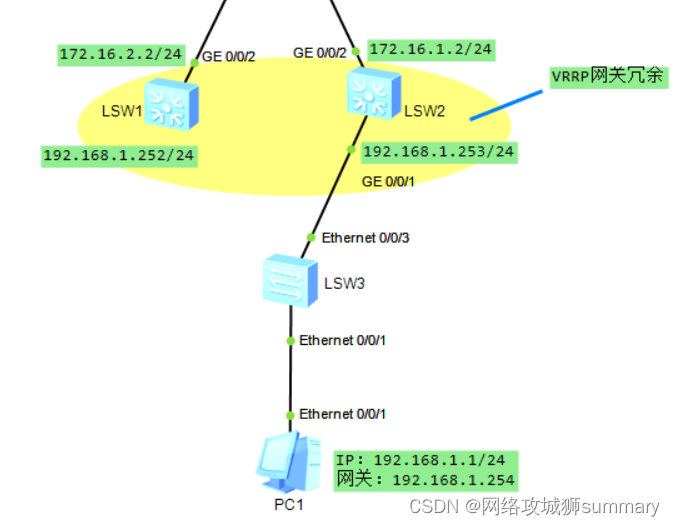

2、 Introduction to experimental topology

• PC1 It is the terminal equipment of the intranet .LSW3 It's the access switch .
• LSW1 and LSW2 It's a gateway device , Used to realize gateway redundancy .LSW1 Of GE0/0/1 Oral ip The address is 192.168.1.252/24,LSW2 Of GE0/0/1 Oral IP The address is 192.168.1.253/24, They use VRRP Technology jointly virtualizes a gateway address 192.168.1.254/24.
• Above the gateway device is an exit router .
• Router AR3 Simulate operator network , The loopback port simulates an address in the public network .

3、 Experimental configuration

VRRP Configuration command

command	remarks
vrrp vrid 10 virtual-ip 192.168.1.254	Configure under this port VRRP, And set the virtual address to 192.168.1.254
vrrp vrid 10 priority 200	Set the primary routing priority of this port to 200, The default priority is 100
vrrp vrid 10 track interface g0/0/2 reduced 150	When an uplink port failure is detected , Automatically reduce priority 150, Make the standby port the primary port
display vrrp	Show vrrp Configuration result

Device configuration

LSW3:
vlan 10
int e0/0/2
port link-type trunk
port trunk allow-pass vlan 10 // Allow labeling VLAN10 The data frame passes through

int e0/0/3
port link-type trunk
port trunk allow-pass vlan 10 // Allow labeling VLAN10 The data frame passes through

int e0/0/1
port link-type access
port de v 10

LSW1:
vlan 10
int vlanif 10 // establish vlanif Interface
ip add 192.168.1.252 24
int g0/0/1
port link-type trunk
port trunk allow-pass v 10
int vlanif 10
vrrp vrid 10 virtual-ip 192.168.1.254 // Configure under this port VRRP, And set the virtual address to 192.168.1.254
 vrrp vrid 10 priority 200 // Set the primary routing priority of this port to 200, The default priority is 100

// When an uplink port failure is detected , Automatically reduce priority 150, Make the standby port the primary port
vrrp vrid 10 track interface g0/0/2 reduced  150

vlan 20
int vlanif 20
ip add 172.16.2.2 24
int g0/0/2
port link-type access
p d v 20

// Configure dynamic routing protocol in the intranet OSPF, Ensure intranet communication
ospf 1 router-id 2.2.2.2
area 0
network 172.16.2.0 0.0.0.255
network 192.168.1.0 0.0.0.255

ip route-s 0.0.0.0 0 172.16.2.1  // Configure the default route with static route

LSW2:
vlan 10
int vlanif 10
ip add 192.168.1.253 24
int g0/0/1
port link-type trunk
port trunk allow-pass v 10
int vlanif 10
 vrrp vrid 10 virtual-ip 192.168.1.254  // Configure under this port VRRP, And set the virtual address to 192.168.1.254

vlan 20
int vlanif 20
ip add 172.16.1.2 24
int g0/0/2
port link-type access
p d v 20

// Configure dynamic routing protocol in the intranet OSPF, Ensure intranet communication
ospf 1 router-id 1.1.1.1
area 0
network 172.16.1.0 0.0.0.255
network 192.168.1.0 0.0.0.255

ip route-s 0.0.0.0 0 172.16.1.1  // Configure the default route with static route

 Exit router ：
int g0/0/0
ip add 172.16.2.1 24
int g0/0/1
ip add 172.16.1.1 24
int g0/0/2
ip add 100.1.1.2 24

// To configure easy ip, Convert the packet source address of the intranet accessing the public network into the public network address of the interface
acl number 2000
 rule 5 permit
int g0/0/2
nat outbound 2000

ip route-s 0.0.0.0 0 100.1.1.1

// Configure dynamic routing protocol in the intranet OSPF, Ensure intranet communication , Two gateway devices ,OSPF It can also play the role of equipment redundancy
ospf 1 router-id 3.3.3.3
area 0
network 172.16.2.0 0.0.0.255
network 172.16.1.0 0.0.0.255

 Operator router ：
int g0/0/0
ip add 100.1.1.1 24
int loo0
ip add 3.3.3.3 32

3、 ... and 、 experimental result

• Use command display vrrp You can see vrrp The state of the interface , You can see that in the picture LSW1 yes Master Main equipment , fictitious ip yes 192.168.1.254, Priority is 200.

• LSW2 The state of is Backup Spare equipment , fictitious ip yes 192.168.1.254, Priority is the default 100.

• Use PC1ping The address of the public network , Discovery is through .

• When the main link is disconnected, simulate the main equipment downtime , After a period of time, the backup device will automatically forward traffic .



summary

Use VRRP Redundancy of gateway equipment , Avoid a single point of failure , Suitable for deployment in the enterprise network . Of course, it's not just gateways , Any important node ip Both devices can be used for redundancy , So as to increase the stability of the system .
