[31. Maze walking (BFS)]

• When asked When the shortest path , also The weight of the edge is 1 when Use BFS( Breadth first search .)

Ideas

• use g[n][m] Store maps ,d[n][m] Store starting point to n,m Distance of .

• From the starting point, breadth first traverse the map .

• When the map is traversed , The distance from the starting point to each point is calculated , Output d[n][m] that will do .

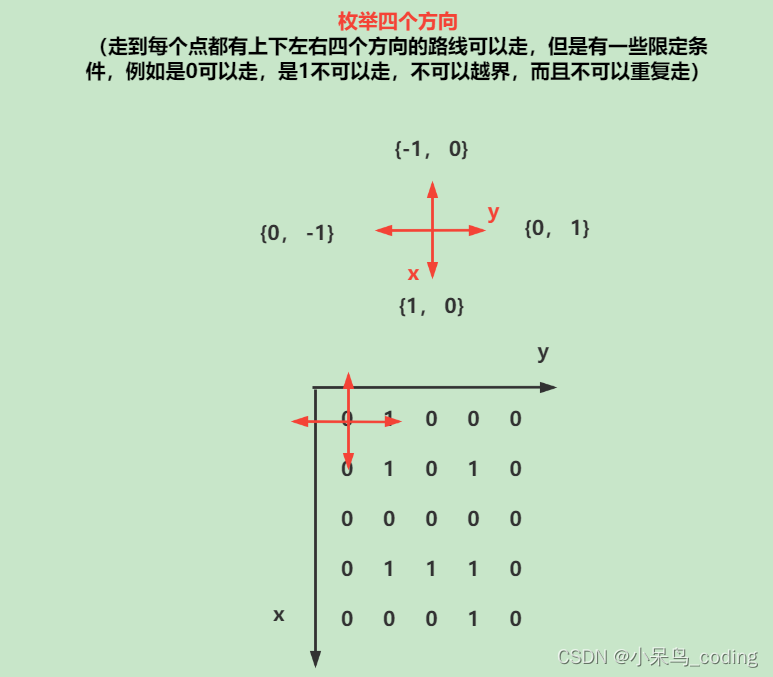

Figure explanation

Reasons for using queues

• Because when you reach a point , There are four choices , We must walk in four directions at the same time , But the computer can only perform one step at a time , So put the directions to be processed into the queue in turn
• Go to the corresponding point every time , Just take it out of the queue , Look in which direction

subject

Method 1： Simulation queue

#include <iostream>
#include<cstring>
#include<algorithm>
using namespace std;

typedef pair<int, int> PII;
 const int N = 110;

 int n, m;
 int g[N][N];  // Stored is a map
 int d[N][N];  // Save the distance from this point to the starting point

 PII q[N * N]; // Handwriting queue



int bfs()
 {

    int hh = 0, tt = 0;    // Define team head and tail
    q[0] = {
    0, 0};          // To initialize
    memset(d, -1, sizeof(d)); // The distance is initialized to - 1 It means you haven't walked
    d[0][0] = 0;             // It means the starting point has passed

    int dx[4] = {
    -1, 0, 1, 0}, dy[4] = {
    0, 1, 0, -1}; // Definition x Vector sum of directions y Vector of direction

    while (hh <= tt)  // The queue is not empty
    {


      PII t = q[hh ++];  //  Take out the team leader element

        for (int i = 0; i < 4; i ++)     // Enumerate four directions
        {

            int x = t.first + dx[i], y =t.second + dy[i];   x Indicates the point you will reach when you walk in this direction
            if (x >= 0 && x < n && y >= 0 && y < m && g[x][y] == 0 && d[x][y] == -1)// Within the boundary   And it's an open space for walking   And I haven't walked before

            {

                d[x][y] = d[t.first][t.second] + 1;  // The distance to the starting point
                q[ ++ tt] = {
    x, y};                 // New coordinates join the team
            }

        }
    }
    return d[n - 1][m - 1];      Output the distance between the lower right corner and the starting point


 }



 int main()
 {

     cin >> n >> m;
     for (int i = 0; i < n; i ++)
     {

         for (int j = 0; j < m; j ++)
         {

            cin >> g[i][j];
         }
     }

     cout << bfs() << endl;
     return 0;
 }

Method 2：STL

#include <iostream>
#include <cstring>
#include <queue>

using namespace std;

const int N = 110;

typedef pair<int, int> PII;

int n, m;
int g[N][N], d[N][N];

int bfs()
{

    queue< pair<int, int> > q;

    q.push({
    0, 0});

    memset(d, -1, sizeof(d));

    d[0][0] = 0;


    int dx[4] = {
    -1, 0, 1, 0}, dy[4] = {
    0, 1, 0, -1};

    while (q.size())// The queue is not empty
    {

        PII t = q.front();// Take the team leader element

        q.pop();// Out of the team

        for (int i = 0; i < 4; i++)
        {

            int x = t.first + dx[i], y = t.second + dy[i];

            if (x >= 0 && x < n && y >= 0 && y < m && g[x][y] == 0 && d[x][y] == -1)
            {

                d[x][y] = d[t.first][t.second] + 1;// The distance from the current point to the starting point
                q.push({
    x, y});// New team
            }
        }
    }

    return d[n - 1][m -1];
}

int main()
{

    cin >> n >> m;
    for (int i = 0; i < n; i++)
        for (int j = 0; j < m; j++)
            cin >> g[i][j];

    cout << bfs() << endl;

    return 0;
}

return d[n-1][m-1] Is the minimum path

• When I first found this point ( The shortest distance ) This point is marked If you visit this point next time, you won't be able to visit ( So don't jump out of the loop when you find it ）
• After access is unavailable , The elements in the queue will pop up in turn , Exit the loop when the queue is empty .

Print path

#include<iostream>
#include<cstring>
#include<algorithm>
using namespace std;
const int N = 110;
typedef pair<int, int> PII;
PII q[N*N],Prev[N][N];         // Open more arrays , Record the previous point
int g[N][N], d[N][N];
int n, m;
int bfs()
{

    int hh = 0, tt = 0;
    q[0] = {
    0, 0};
    memset(d, -1, sizeof d);

    int dx[4] = {
    -1, 0, 1, 0}, dy[4] = {
    0, 1, 0, -1};
    d[0][0] = 0;
    while(hh <= tt)
    {

        PII t = q[hh ++ ];
        for(int i = 0; i < 4; i ++ )
        {

            int x = dx[i] + t.first, y = t.second + dy[i];

            if(x >= 0 && x < n && y >= 0 && y < m && g[x][y] == 0 && d[x][y] == -1)
            {

                d[x][y] = d[t.first][t.second] + 1;
                Prev[x][y] = t;                   // Store the previous point
                q[++ tt] = {
    x, y};
            }
        }
    }
    int x = n - 1, y = m - 1;
    while(x || y)// One is not d be equal to 0
    {

        cout << x << ' ' << y << endl;          // Print the current point
        PII t = Prev[x][y];                    // Look for the previous point , Continue printing
        x = t.first, y = t.second;
    }

    return d[n - 1][m - 1];
}
int main()
{

    cin >> n >> m;
    for(int i = 0; i < n; i ++ )
        for(int j = 0; j < m;j ++)
            cin >> g[i][j];

    cout << bfs() << endl;

    return 0;
}
