OASYS system of code audit

---

Preface

    oasys It's a OA Office automation system , be based on springboot Framework development , Use Maven A project to manage , The source code can be downloaded by visiting the link ：https://github.com/misstt123/oasys perhaps github Search for oasys download .

---

One 、 Local project deployment

    1） After downloading and decompressing the project, it is shown in the following figure ：

    2） Because the project is based on SpringBoot Developed by the system , So you just need to import the database . Use of this project phpstudy Turn on mysql8.

    3） Connect to database .

    4） establish oasys Database and use .

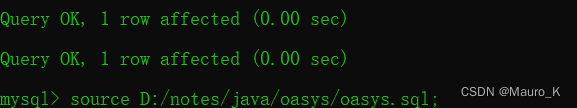

    5） take oasys.sql File import to oasys In the database , Pay attention to the use of forward slashes .

    6） Use IDEA open oasys project , wait for Maven Automatically load dependencies , If pom.xml File error , Dependency was not successfully installed , See the figure below maven How to configure , It may not be configured properly maven Environmental Science .

    7） Modify according to the documentation application.properties Profile contents .

    8） Start project .

    9） Visit the project , The project address of this article is ：http://127.0.0.1:25001/logins, According to the instructions, there are two accounts in the document, which are ：admin/123456,soli/123456.

Two 、 Vulnerability mining

1. At the user panel - There are notes XSS

    1） User panel — There is a storage type in the memo XSS Loophole , The pop-up window is 111 It can be seen that there are loopholes in the title .


    2） Search the source code according to the page information , Found the form action by writep, Search for elements in the source code writep.

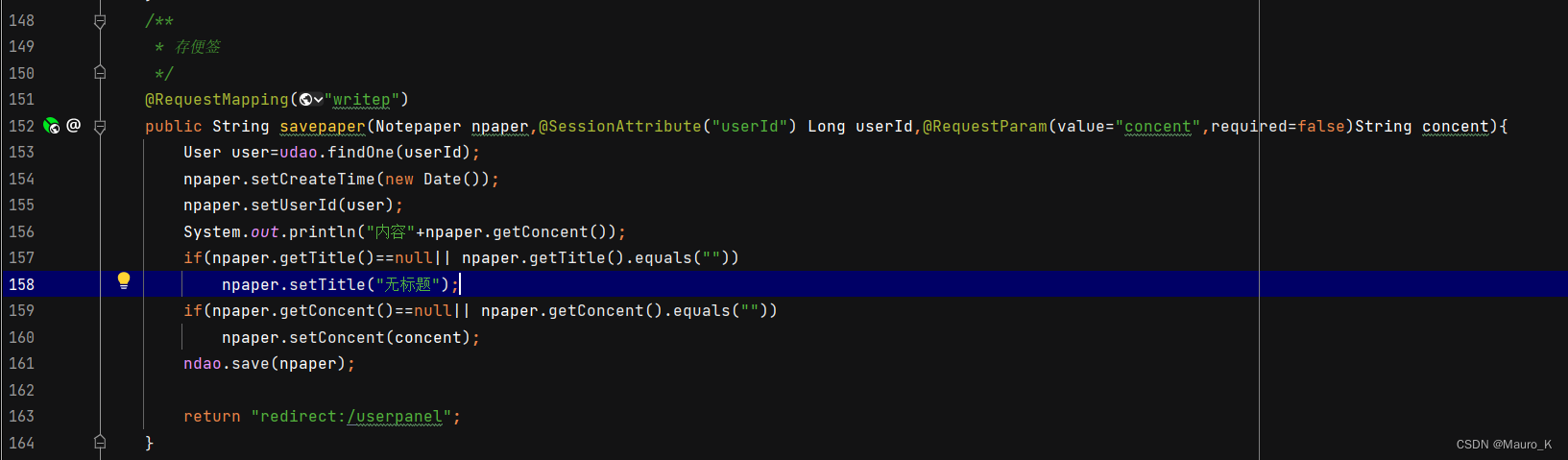

    3） Locate the UserpanelController Document No. 151 That's ok , View source code .

    4） Looking at the source code, I found that only the string was judged to be non empty , Empty and then saved , There are no filtering operations , So trigger XSS, It can also be found that content can also trigger XSS Of , Because there is no filtering .

2. file management — The new folder exists XSS

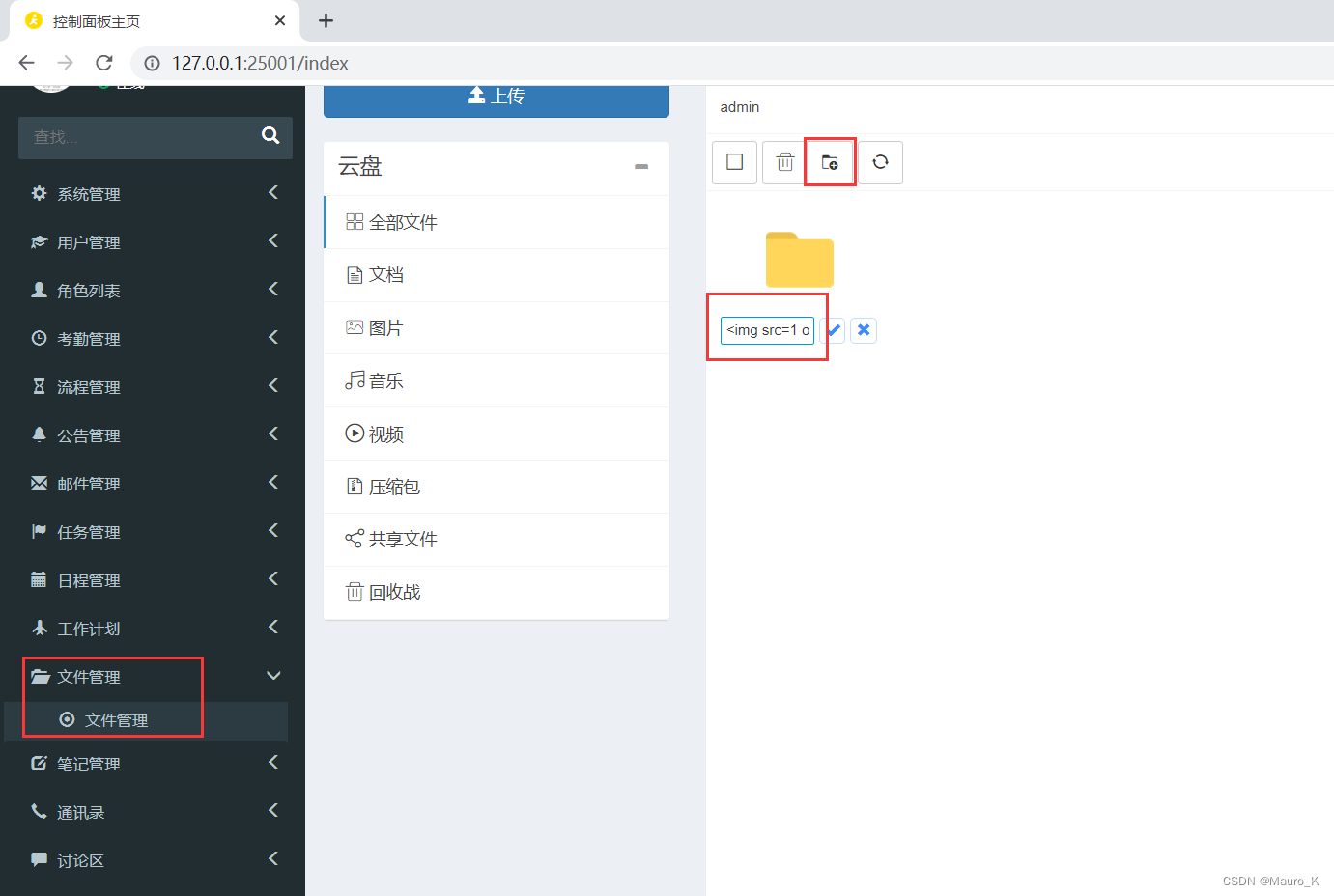

    1） file management — New folder input XSS Of payload, If you find it after saving, you can pop it up .

    2） Search the source code according to the page information , Found the form action by createpath, Search for elements in the source code createpath.

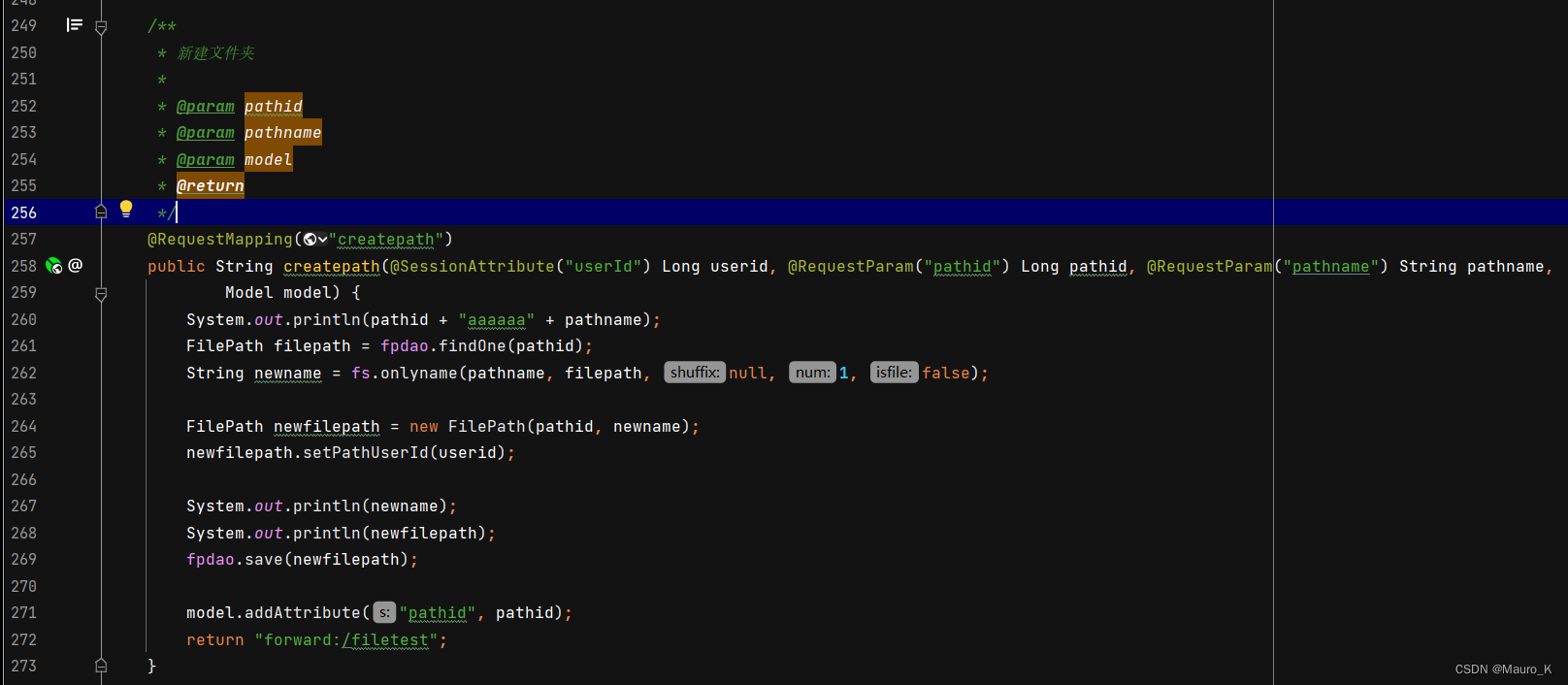

    3） Locate the FileController Document No. 257 That's ok , View source code .

    4） Check the source code and find that after receiving the parameters, rewrite the output directly and save , There is no protection , So it created XSS Loophole .

3. System management — Type management office exists XSS

    1） System management — Type management adds three places to enter XSS Of payload, After saving, the module name and type can pop up , There are many more in this system XSS Not digging .



    2） Ditto search and locate action, Found the form action by typecheck, Search for elements in the source code typecheck.

    3） Locate the TypeSysController Document No. 96 That's ok , View source code .

    4） Check the source code and find that only the verification status code has been verified , Just passing session Determine whether to enter from the editing interface , If so, save it , There are no protective measures , Led to xss.

4. At the user panel - There are notes CSRF

    1） User panel — There are notes CSRF Loophole , Record the latest notes now , Compare later to verify whether it exists CSRF Loophole .

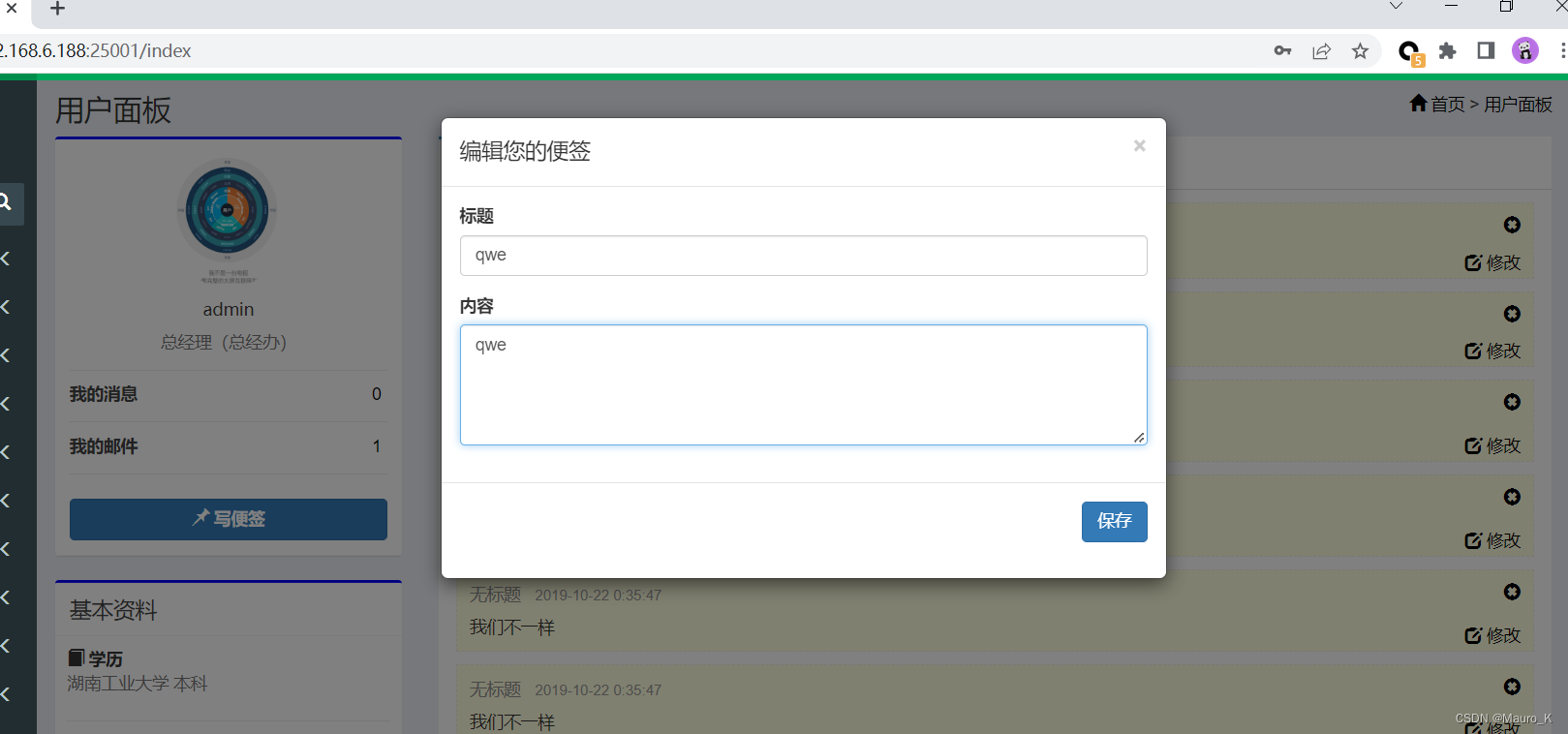

    2） Write a note , Then input the content at will , Then save .

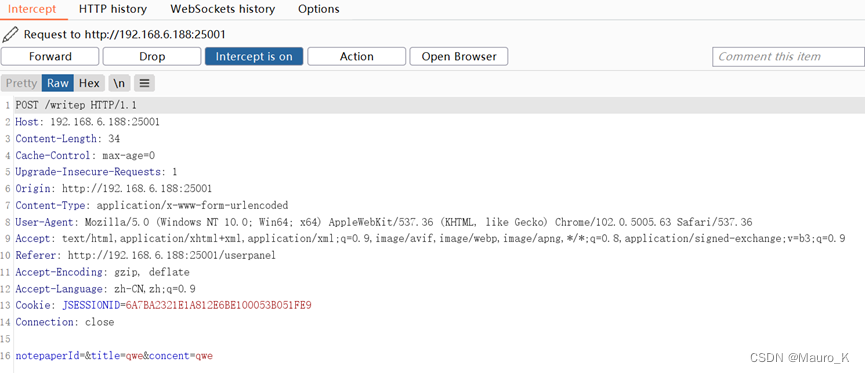

    3） Capture packets when saving .

    4） Right click , choice Engagement tools - Generate CSRF POC, Generate CSRF Of POC

    5） Click to test and copy the link in the browser , Paste the copied link into the browser to access .

    6） Throw away the bag you caught , And turn off interception .

    7） Go back to the browser and click Submit request.

    8） Make good use of CSRF Add a note .

5.CSRF+XSS Combined vulnerabilities

    1） User panel — Create a new note at the note , Output content at will , Then grab the packet and send it to repeater Module .

    2） hold title and concent Replace all contents in with XSS Pop-up windows payload.

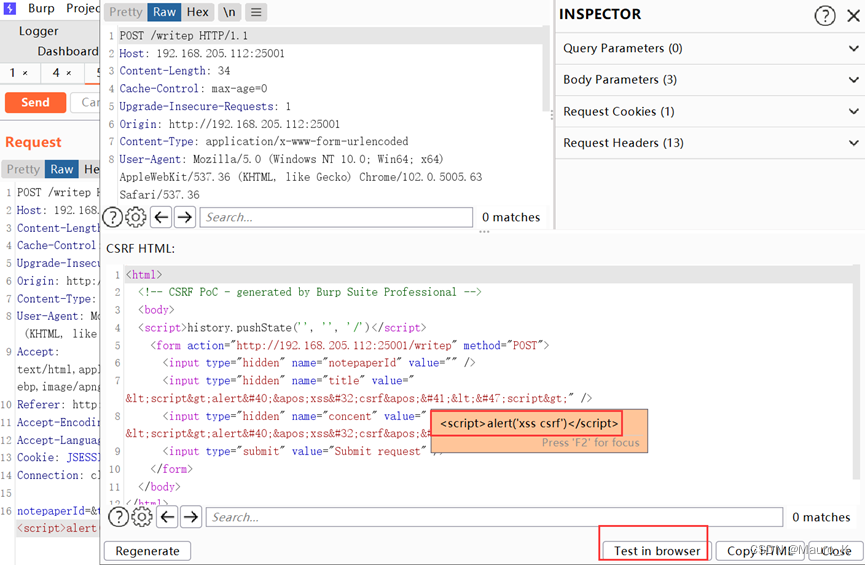

    3） Then use generate CSRF Tools for .

    4） Generate CSRF Of poc And copy its links , Paste into the browser to access , return Burpsuite Turn off interception .

    5） Go back to the browser and click Submit request.

    6） Pop up occurs , Use success .

6. Schedule management — Ultra vires

    1） You can delete the schedule of any account beyond your authority , First create two test schedules .

    2） In user management, randomly find a user to change the permission to a low permission account , The preparation is done .

    3） Sign in admin account number , Delete a schedule reminder for testing , Click delete and then grab the package , Keep the parameters in the copy red box , Then throw away the bag you caught .

    4） Log in to a low authority account and directly splice and delete the parameters in the red circle in the above figure , Then press enter to visit .

    5） Switch back to the admin account number . Found ultra vires test 2 This schedule reminds , Has been successfully deleted by the low authority account .

    6） Analyze it from the code level , open f12 The discovery was called dayremove The interface of .

    7） Locate this interface from the source code .

    8） View source discovery , Made a query and then deleted it directly , And there is no interceptor or filter in the whole process , Therefore, there is an ultra vires loophole .

7.SQL Inject

    1）SpringBoot Search items first $ Symbols to see if there is direct splicing SQL sentence , Found three , Try one by one , See if the parameters are controllable , Whether there are interceptors and other defensive measures in the process .

    2） Locate the pinyin, Look online and find out what it belongs to allDirector.

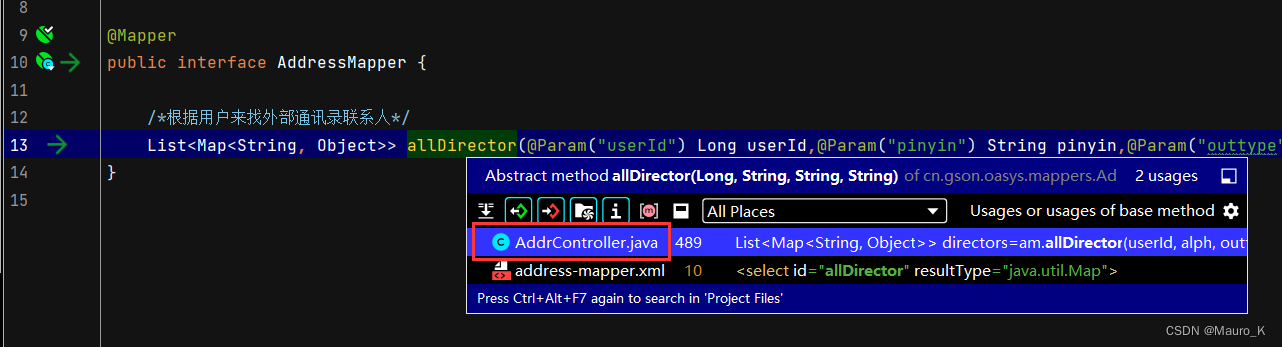

    3） Follow up on allDirector, Hold down ctrl Add the left mouse button , Continue to follow up to see who called allDirector, Found to be AddressMapper Interface called allDirector Method .

    4） stay allDirector, Hold down ctrl Add the left mouse button , Find the controller

    5） The discovery is in AddController.java In file , Parameter values alph Namely pinyin, Find out pinyin Parameters are controllable and not prevented SQL Injected defense measures , So it exists here SQL Inject .

    6） Direct splicing access function points .

    7） Find page changes .

    8） Use sqlmap Run , Because it is the injection point of the background , So I need to bring it cookie,level Set to 2 above .
sqlmap command ：

sqlmap -u "http://192.168.205.112:25001/outaddresspaging?alph=123" --batch
--random-agent --current-db --cookie="JSESSIONID=14158525C7A72E637E83328E0148359B"
--level 2

    9） Use fortify Tool detection , Found three SQL Injection point , This article only looks at the first pinyin The point of , According to the detection tool, the other two points should also exist SQL Injected .

3、 ... and 、 Summary record

1.MySQL In the database No operations allowed after connection closed Resolution of connection exceptions

    1） When creating low privilege users , Found no response after creation , Connect to the database to view the manual addition , The following error pops up , After Baidu solve , Found to be MySQL5.0 In the future, for a very long time DB The connection is processed , That's if one DB The connection passed without any operation 8 After one hour (Mysql Server default “wait_timeout” yes 8 Hours ),Mysql Will automatically close this connection . This is the problem , In the connection pool connections If more than 8 Hours ,mysql Disconnect it , The connection pool itself does not know what to connection It's invalid , If there is Client request connection, The connection pool will invalidate Connection Provide to Client, Will cause the above exception .

No operations allowed after connection closed

    2） The solution is application.properties Add the following code to the file ：

spring.datasource.primary.max-idle=10
spring.datasource.primary.max-wait=10000
spring.datasource.primary.min-idle=5
spring.datasource.primary.initial-size=5
spring.datasource.primary.validation-query=SELECT 1
spring.datasource.primary.test-on-borrow=false
spring.datasource.primary.test-while-idle=true
spring.datasource.primary.time-between-eviction-runs-millis=18800
