Your appearance is amazing! Two JSON visualization tools are recommended for use with swagger. It's really fragrant

Regular use Swagger My little partner should have some experience ,Swagger about JSON Your support is really unfriendly ！ Recently, I found two very good looks JSON Visualization tools , Can be displayed gracefully JSON Data to improve development efficiency , I recommend it to you ！

Chat Swagger

Let's talk first Swagger Yes JSON Support what is unfriendly , Why do we need JSON Visualization tools ！

• When we use Swagger Submit POST request , Input JSON When requesting parameters , It doesn't support JSON format checks , Formatting is not supported , It's very inconvenient to use ;

• When we use Swagger Acquired JSON When the data is long ,Swagger Folding data is not supported , Sometimes we can only copy the data to other tools to view , For example, find an online JSON Parsing tool .

• For the above two Swagger Use pain points , Use JsonHero and JsonVisio All can be solved , And they are more distinctive JSON Visualization tools .

JsonHero

brief introduction

JsonHero It's an open source JSON Visualization tools , Currently in Github existing 2.9K+Star, adopt JsonHero You can easily view JSON data , It supports column views 、 Tree view and edit view , There's always one for you ！

install

• JsonHero It's a front-end project , Downloading and installing is still very simple , First download its installation package , Download address ：https://github.com/jsonhero-io/jsonhero-web

• After downloading, extract to the specified directory , Create in the root directory .env file , The contents of the document are as follows ;

SESSION_SECRET=abc123


• Then use the following command to install the dependency and start , It needs to be installed before use node.js Environmental Science ;

npm install
npm start


• After successful startup, the console will display the following information ;

• You can use JsonHero To visualize JSON Data. , Access address ：http://localhost:8787

Use

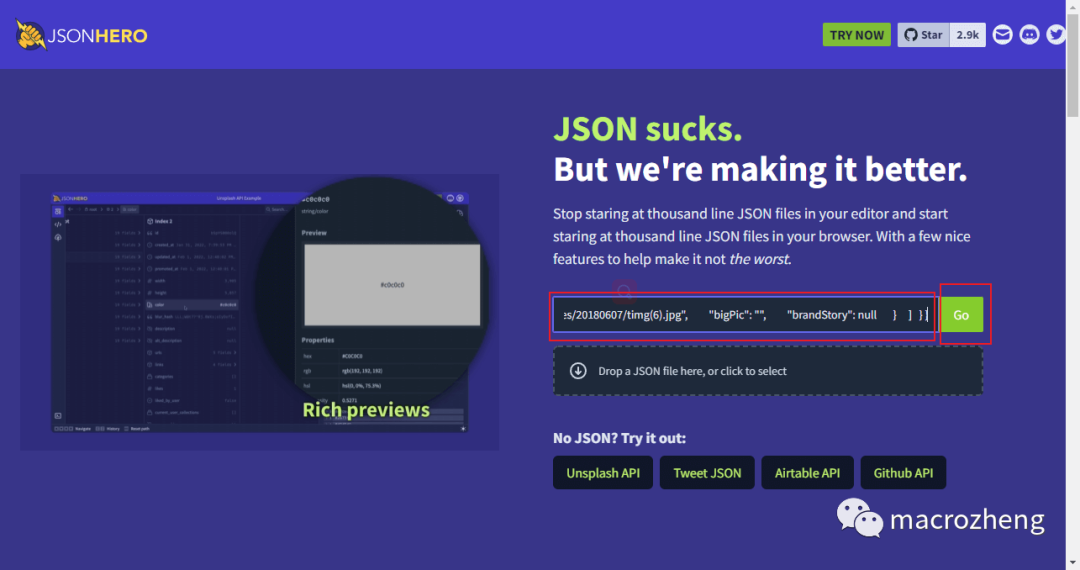

• JsonHero Is very simple to use , Put... Directly JSON Data or acquisition JSON Of URL Copy to input box , And then click Go button ;

• We can Swagger The length obtained in JSON Copy the data , Through the column view, we can go deep into JSON data ;

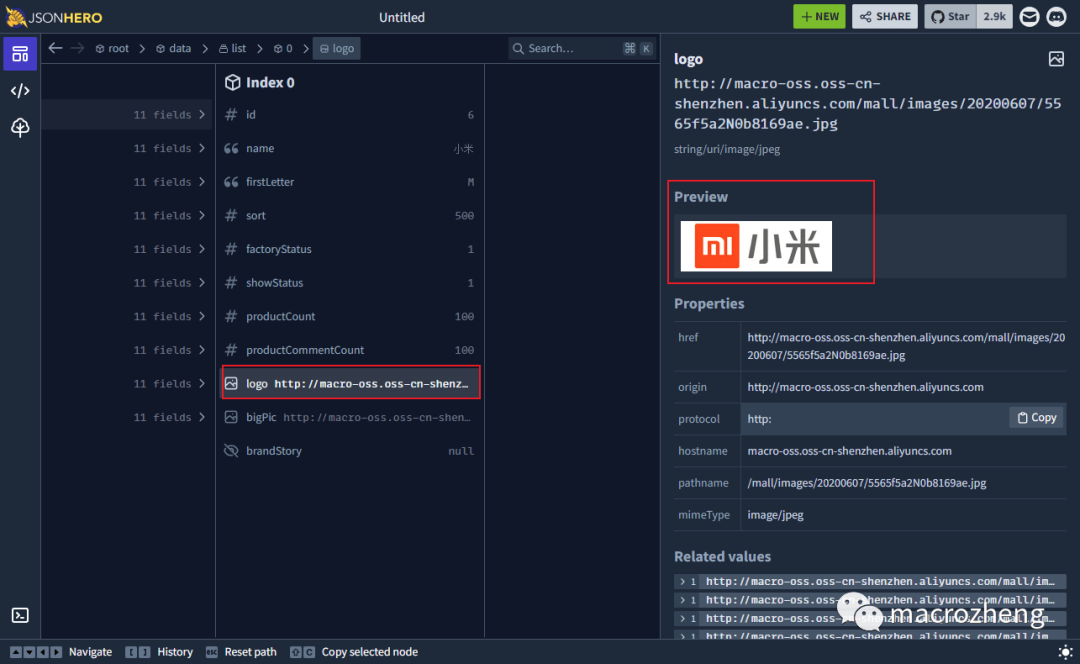

• When we select a JSON Object time , The... Will be displayed directly on the right JSON Object's data ;

• adopt JSON View we can view the formatted JSON data , Also select a JSON Object time , The... Will be displayed directly on the right JSON Object's data ;

• The tree view allows you to JSON Collapse the data , Data can be viewed more easily ;

• We can also use the search function , Yes JSON Global search for data ;

• JsonHero It also supports previewing data in different formats , Such as the picture 、 Time 、 date 、 Website and other data .

JsonVisio

brief introduction

JsonVisio It is a simple and easy to use JSON Visualization tools , Currently in Github existing 4.1K+Star, Can support JSON format 、 Edit and verify , And according to JSON Generate a tree view .

install

• First we need to download JsonVisio Installation package , Pay attention to download 1.6.0 edition , Download address ：https://github.com/AykutSarac/jsonvisio.com/releases

• After downloading successfully, unzip it to the specified directory , And then use npm Command to install and start ;

npm install
npm run dev


• After successful startup, the console will output the following information ;

• Next we can visit JsonVisio The page , Click on Start Generating Start using JSON Editor , Access address ：http://localhost:3000

Use

• Put what we need in Swagger Copy the request parameters edited in ,JsonVisio Can support editing 、 format 、 Operations such as emptying and saving ;

• When our JSON Error in format , Will give a hint ;

• It can also support according to JSON Format to generate a tree view .

summary

By using the above two JSON Visualization tools , Even if only Swagger There's no need to worry about debugging the interface ！ Careful partners should be able to find ,JsonHero Only view is supported JSON, Editing is not supported , So the editor JSON You have to use JsonVisio. But the project author is Issues Reply inside , Later versions will support .

Project address

• JsonHero：https://github.com/jsonhero-io/jsonhero-web

• JsonVisio：https://github.com/AykutSarac/jsonvisio.com
