Nacos win10 installation and configuration tutorial

1、Nacos brief introduction

1.1、Nacos brief introduction

Nacos It's Alibaba's product , Now it is SpringCloud One of the components in . comparison Eureka More features , It is highly popular in China .

Official website address ： https://nacos.io

1.2、 Download installation package

Nacos Installation package for GitHub, You can download the source code perhaps compiled Nacos Server side .

GitHub Home page ：https://github.com/alibaba/nacos

GitHub Of Release Download page ：https://github.com/alibaba/nacos/releases

2、 Package catalog description

As shown in the figure above , Package directory ：

• bin： The startup script
• conf： The configuration file

2.1、bin Catalog （ The startup script ）

bin Catalog The startup script is divided into window and linux Startup and shutdown scripts .

2.2、conf Catalog （ The configuration file ）

Nacos Configure related directories .

1） port configuration

Nacos The default port is 8848, If you change the default port , stay application.properties Modify in process . As shown in the figure below .

2）Nacos stay win10 Upper The log output is garbled

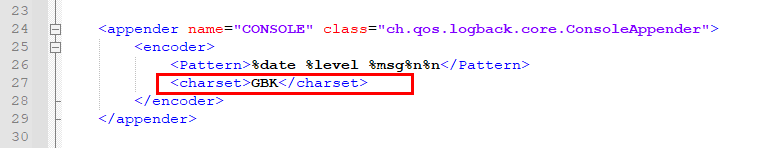

stay nacos-logback.xml file CONSOLE The output code is changed to GBK . As shown in the figure below .

3、 start-up （ Stand-alone version ）

nacos There are two startup modes ： cluster Cluster pattern and standalone standalone mode .

If you start in stand-alone mode , There are two ways ,

• Modify the script file The startup mode is standalone
• When command mode starts , The specified mode is standalone

3.1、 Modify the script , With standalone Stand alone mode starts

1） stay bin The directory startup.cmd In file , find MODE , Fix it to standalone .

2） double-click startup.cmd You can start .

3.2、 When command mode starts , The specified mode is standalone

stay bin Catalog open cmd , Input startup.cmd -m standalone , enter , You can start .

Operation strategy

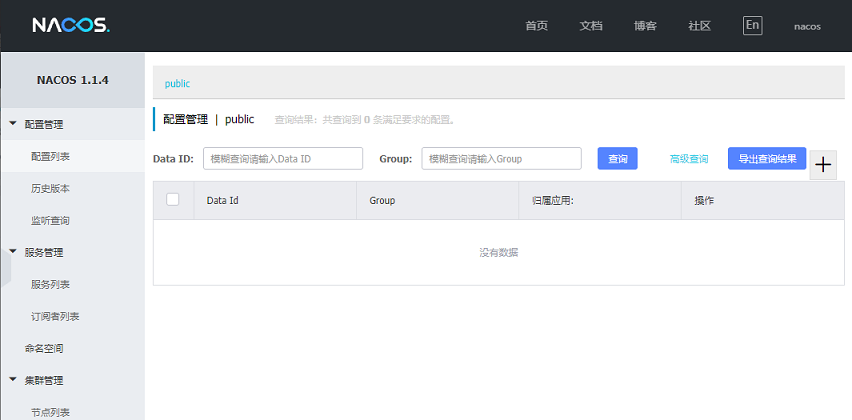

4、 Sign in Nacos Management platform

Nacos Management platform address ： http://127.0.0.1:8848/nacos （ Be careful , The default port is 8848 , If there is any change , Then use the latest port number ）
The default username and password are both nacos .
