Q-tester 3.2: applicable to development, production and after-sales diagnostic test software

Q-Tester It is a simple diagnostic test software . The diagnostic test software adopts ODX (ASAM MCD-2D/ISO22901-1) and OTX (ISO 13209) programme , It depends on the core ODX The diagnostic database is on the diagnostic instrument and ECU Data interaction between . The advantages of this scheme are , After determining and completing relevant development work in terms of function , There is no need to maintain the software , And for new models 、 The support of the new platform can be upgraded ODX In the form of database . Because the workload of maintaining database is much smaller than that of maintaining software , So this virtually reduces the workload of suppliers , And reduced OEM Cost of .

at present ,Q-Tester 3.2 The new version is online , newly added QSL Sequential language , The function is extended to production 、 after-sales .Softing In this update, the interface and functions are optimized , So as to bring a better experience for users .

One Q-Tester There are two kinds of UI To choose from

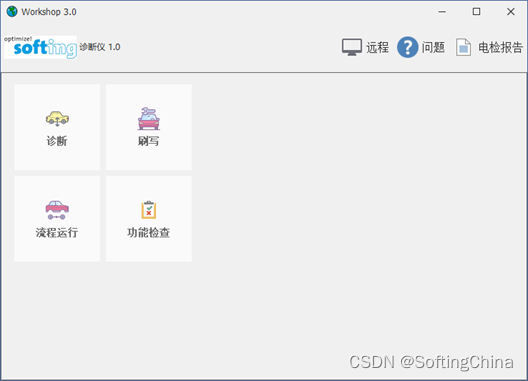

1. Q-Tester.Workshop, Suitable for production or after-sales use , The operation is relatively simple .

2. Q-Tester.Expert, Suitable for use in the development process .

Two New process data storage function

In the top right corner of the Save All current controls can be selected ECU、 The filled parameters and the executed services and other information are saved as xml file , And stored in SnapShotData Folder , And in a single control Save You can save the record of this control .

If the project is not closed , And multiple controls 、 The service is switching , The filled data will not be lost , If the project or software needs to be shut down , You can go through Save To keep records , And through Open Open up Save Successful data files .

3、 ... and newly added DoIP Traffic Viewer function

Traffic Viewer,DoIP Message real-time monitoring , You can resize the window , And can be opened with a new window .

Four newly added TCP Automatic reconnection function

Support DoIP Functional ECU When entering Boot Mode time , Some will restart, resulting in ECU To break off , This requires the diagnostic instrument to re-establish the connection . Use 11.30.010 Version of D-PDU API, The hardware can be automatically reconnected , There is no need to pass Q-Tester To reconnect , Thus, the efficiency can be greatly improved .

5、 ... and newly added Sequence Control (QSL Sequential language )

Sequence Control support QSL Sequential language , And the diagnostic sequence can be customized by dragging , And different... Can be executed in one sequence ECU Different services .

6、 ... and Optimize DataDisplay Control , Support curve or instrument panel display

DataDisplay Control , The data read out is supported by charts 、 Curve or instrument panel to display data , And it can read circularly ......

Please click on here , Check out the rest 30% Wonderful content ！
