One 、 subject

• Experimental content ： Write a program to calculate the expression ｗ=v-（ｘ+ｙ+ｚ-51） Value .
• The experimental requirements ：
  1、 Variable x,y,z,v, The value of is a number in memory ;
  2、 Will use debug In debugging , Modify variables x,y,z,v Value ;
  3、 The result of the calculation is saved in the variable w in , The initial value is 0.

Two 、 Code

notes ： Assembly language programming is not case sensitive

DATAS SEGMENT
	x DW 5	; Set variables and assign initial values
	y DW 5
	z DW 5
	v DW 5
	W DW 0
DATAS ENDS

STACKS SEGMENT
	; Enter the stack segment code here
STACKS ENDS

CODES SEGMENT
	ASSUME CS:CODES,DS:DATAS,SS:STACKS
START:
	MOV AX,DATAS
	MOV DS,AX

	MOV CX,0		;CX=0
	MOV AX,X		;AX=X
	ADD AX,Y		;AX=X+Y
	ADD AX,Z		;AX=X+Y+Z
	SUB AX,51		;AX=X+Y+Z-51
	MOV BX,V		;BX=V
	SUB BX,AX		;BX=V-(X+Y+Z-51)
	MOV CX,BX		;CX=V-(X+Y+Z-51)
	MOV W,CX		;W=V-(X+Y+Z-51)

	MOV AH,4CH
	INT 21H
CODES ENDS
	END START

3、 ... and 、 Operation flow chart

1、 Don't change xyzv Operation of initial value

Analysis of operation results ：

• ｗ=v-（ｘ+ｙ+ｚ-51） take x=y=z=v=5 Brought in ,w=41
• Because will w Value deposit CX,CX In the end, it's equal to 0029, Hexadecimal 0029 Convert to decimal 2*16+9=41
• So the calculation is correct

2、 modify xyzv Operation of initial value

notes ： It's execution （ The following codes work ： That is, initialize variables ）

MOV AX,DATAS
MOV DS,AX

Then execute （ The following codes work ： Change the value of the variable ）

-e 143f:0 0 0 0 0

Analysis of experimental results ：

• take x=y=z=v=0, ｗ=v-（ｘ+ｙ+ｚ-51） Brought in ,w=51
• Running results w=CX=0033, Hexadecimal 0033 Convert to decimal to ：3*16+3=51
• So the calculation is correct

Four 、 The understanding of variables

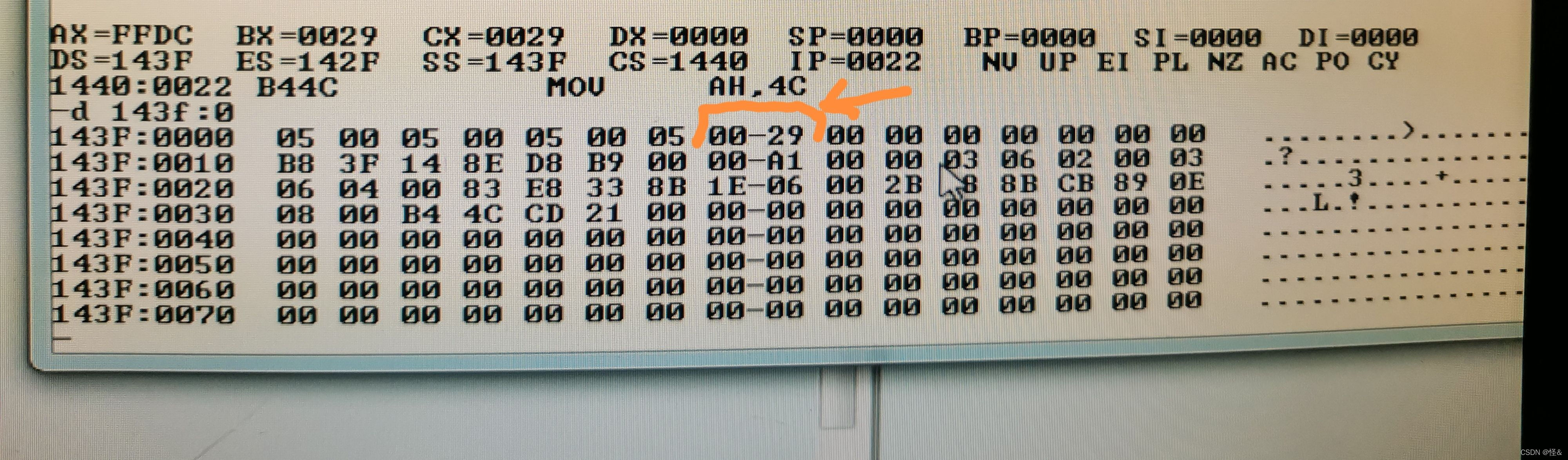

Take the operation without changing the initial value as an example ：
There is still one graph after the four graphs given above ：

• Data register DS=143F

• Variables set in the code ：X,Y,Z,V,W Stored in... In turn 143F:00 In memory at the beginning

• Storage compliance “ Gaogao village, Gaogao village , Low save low ”

• DW： word ,DB: byte ; A word is two bytes ,143D:0000 For a byte
  for example ：
  143F:0000 Deposited 05,143F:0001 Deposited 00, When combined, what is saved is 0005 That is, the first variable X The initial value of the 5
  143F:0002 Deposited 05,143F:0003 Deposited 00, When combined, what is saved is 0005 That is, the first variable Y The initial value of the 5
  By analogy

So we can use the following code , Separate to change X,Y,Z,V Value

-e 143f:0 0 0 0 0
