C language: 13. Pointer and memory

The code debugging below is centos64 Bit system

1、 Data representation in computer

Base number

Use... In a computer 2 Base number 、8 Base number 、16 Hexadecimal represents data ;
Computers process data in binary , The computer calculation results are displayed to people in decimal , When programming to represent binary data , Because the content is too long , So use hexadecimal

2、 memory management

No matter how many memory modules are inserted into the computer, the computer will calculate the memory size as a whole ;

	32 Bit system can only be used even if more memory is inserted 4G Memory , because 32 Bit hardware platform cpu The address bus has only 32 position , That is, the address space of the operating system is only 32 position .32 Bit means that the memory number can only be numbered to 32 Binary bits , Therefore, it can only be operated in the end 4G Of memory space . Detailed interested friends can search by themselves .
	64 The bit operating system has 2^64, Therefore, theoretically enough for our current use .

Memory management of operating system

Memory is managed by the operating system ; In addition to numbering the memory , You can also plan the memory , For example 64 Bit operating system , As long as the memory used by the user program has the previous one 48 Just a bit .

The operating system isolates user memory from operating system memory , front 48 Bits are used by the user , Called user memory , The latter is used by the operating system .

After isolation , Even if the user's memory is unreasonably full , It will not affect the memory of the operating system , You can also use the operating system to shut down unreasonable memory consuming processes . Make memory safer .

C The syntax of the language does not allow us to directly manipulate the code segment memory ;

standard C Language syntax does not support direct operation on a memory address , The operating system will be deemed as illegal operation . Because it may operate on the memory of the operating system or the memory of other applications , This is not reasonable , Only the memory allocated by the operating system to the application is a reasonable operation .

The division of memory by the operating system ：

The memory address of the code segment is allocated from bottom to top , The data segment is also , Stack memory is allocated from top to bottom .
Therefore, the variable memory address in the code segment and data segment is the smaller the memory address allocated first , The variables in the stack memory are the larger the address allocated first .

3、 The nature of variables and pointers

The nature of variables ：
The variable name is just a code , The essence of variables is memory .
When writing a program , The computer processes all binary data , When the program runs, binary data is loaded into memory CPU To take it out .
CPU To get data from memory , that CPU You must know from which memory unit , And the variable is to play a role of identification , tell CPU Where to get data , Or write the data somewhere . This is the nature of variables .

The nature of the pointer ：
The pointer stores the memory address , So a pointer is essentially an address .

Proof of memory continuity ：
The debugging example below proves that the memory is continuous ：

#include <stdio.h>
int main()
{

    int a = 3;
    int b = 2;
    int array[3];
    array[0] = 1;
    array[1] = 10;
    array[2] = 100;
    int *p = &a;
    int i;
    for(i=0; i<6; i++){

        printf("*p=%d\n",*p);
        p++;
    }
    printf("------------------------------\n");
    p=&a;
    for(i=0; i<6; i++){

        printf("p[%d]=%d\n", i, p[i]);
    }
    return 0;
}

4、 Program in memory debug

4.1、 To write main.c

#include <stdio.h>
int global = 0;

int rect(int a, int b)
{

    static int count =0;
    count++;
    global++;
    int s=a*b;
    return s;
}

int quadrate(int a)
{

    static int count=0;
    count++;
    global++;
    int s=rect(a,a);
    return s;
}

4.2、 Compile code

gcc -g main.c

4.3、gdb Debugging program

analysis

It can be seen from the above figure , The source code is loaded into memory （ In the memory code segment ） after , Be able to rely on gdb Wait for debugging tools to debug , So the program is running , Program except in code segment , The information below is recorded in memory Stack in ：

1. Which function is being called
2. How many lines does the currently called function run , And what variables are in this function , What are the values of these variables

Memory is allocated in the memory stack to the currently running function , And all the states in the function execution process are recorded in the memory stack （ It's like taking a picture ）, For example, the above figure records the current code running to 27 That's ok

A function in the memory stack can be called many times , When called many times , Each call is a separate stack .

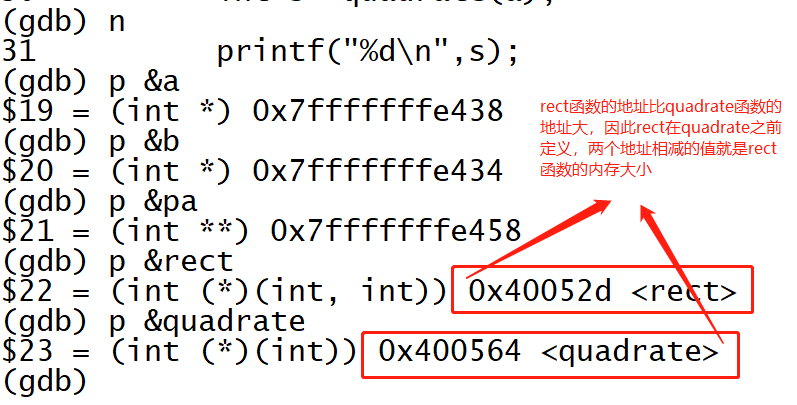

4.4、 Function memory

In the code segment, the memory address is transferred from low address to high address , The function address declared first is small , The function address declared after is large .

4.5、 Variable memory size

4.6、 Memory size of pointer variable

5、 How function stacks work

Continue debugging 4 The code in step

The characteristics of the stack ： First in, then out
The stack address first allocated in the stack memory is the largest

6、 Debugging of pointer self addition

6.1、 debugging

#include <stdio.h>
int main()
{

    int a = 3;
    int b = 2;
    int array[3];
    array[0] = 1;
    array[1] = 10;
    array[2] = 100;
    int *p = &a[0];
    int i;
    for(i=0; i<6; i++){

        printf("*p=%d\n",*p);
        p++;
    }
    return 0;
}

#include <stdio.h>
int main()
{

    int a = 3;
    int b = 2;
    int array[3];
    array[0] = 1;
    array[1] = 10;
    array[2] = 100;
    int *p = &array[0];
    p += 3;
    *p = 101;
    /* p += 3; *p = 101; And p[4]=101; Equivalent , Pointers can also be accessed in the form of arrays  */
    p = &array[0];
    int i;
    for(i=0; i<6; i++){

        printf("*p=%d\n",*p);
        p++;
    }
    return 0;
}

Run the code above , give the result as follows

6.2 Pointers are essentially arrays

Such as the operation of the lower two pointer offsets , Pointers can be manipulated in the form of arrays ,
It can be understood as ： In essence, pointer type is array variable 、 Array data types are like array constants ;

int a = 2;
int *p = &a;
p += 3;
*p = 101
// The upper two lines of code are equivalent to the lower one
p[4] = 101;

Character array types and pointer types can also be mixed

#include <stdio.h>
int main()
{

    char str[] = "hello";
    char *str2 = "world";
    char str3[10];
    printf("input the value \n");
    // Character array types and pointer types can also be mixed , below str3 It's an array of characters
    scanf("%s", str3);
    printf("str is %s\n", str);
    printf("str2 is %s\n", str2);
    printf("str3 is %s\n", str3);
}

The result of debugging the above code is as follows ：

7、 A character array

#include <stdio.h>
int main()
{

    char str[] = "hello";
    char *str2 = "world";
    char str3[10];
    printf("input the value \n");
    scanf("%s", str3);
    printf("str is %s\n", str);
    printf("str2 is %s\n", str2);
    printf("str3 is %s\n", str3);
    return 0;
}
