One 、 The plugin is introduced

Exploder It's a Unity3D plug-in unit , It can explode any game object with grid . On the game object tag Set to “Exploder”, You can see the explosion ！

Plugin Download ：

https://download.csdn.net/download/q764424567/13110741

Two 、 How plug-ins work

This plug-in contains a powerful mesh cutter , You can find the grid in your game object .

after , It recursively cuts the mesh into small pieces , Assign rigid bodies and velocities to each block , And make an explosion .

For best performance , Fragments are pre allocated in a pool .

The cutting algorithm is very fast , The calculation time runs in one frame at most , So it won't be right FPS And memory , And you can also see a very powerful explosion effect .

3、 ... and 、 Quick start

It's easy to use ：1、 add to Exploder Prefabricate into your hierarchy

2、 Set the parameters of the component

3、 Add script call ​ExplodeObject function

using UnityEngine;
using Exploder.Utils;

public class ExplodeTest : MonoBehaviour
{
 public GameObject TagerObject;
 void Start()
 {
 ExploderSingleton.Instance.ExplodeObject(TagerObject);
 }
}


Four 、Demo Introduce

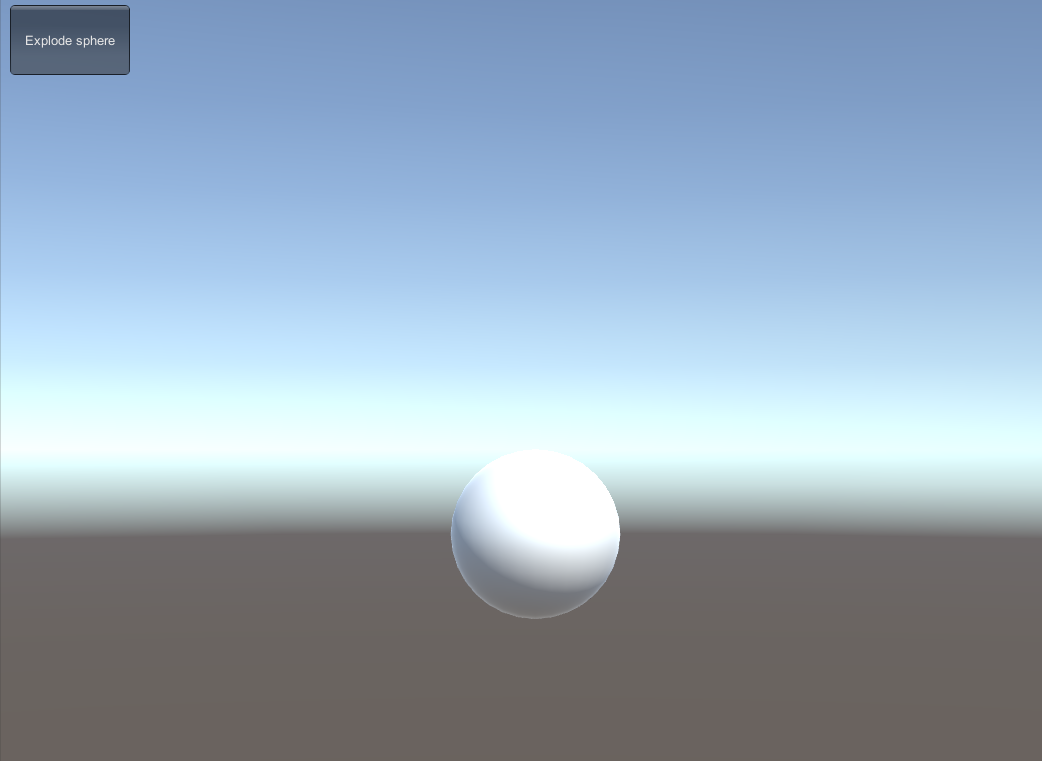

DemoQuickStart

Quick start Demo

Make a ball , Click on Explods sphere Button , The ball will explode .

DemoClickExplode

Click any game object , This game object will explode

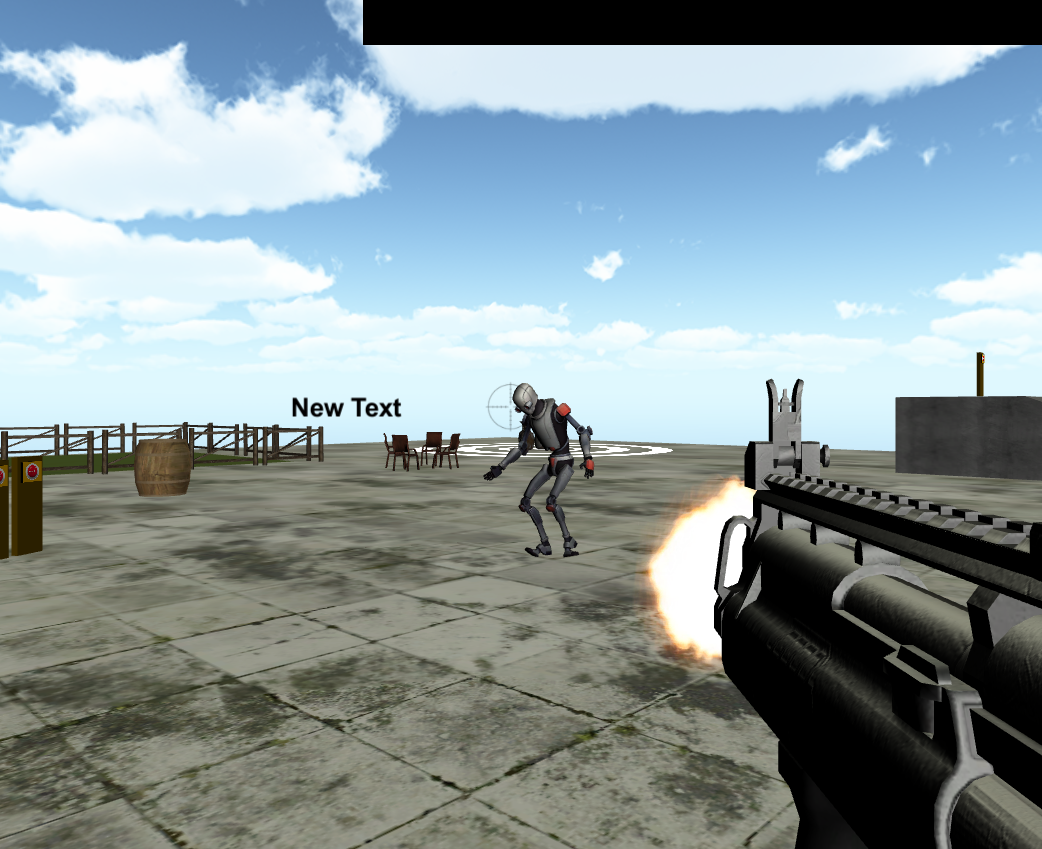

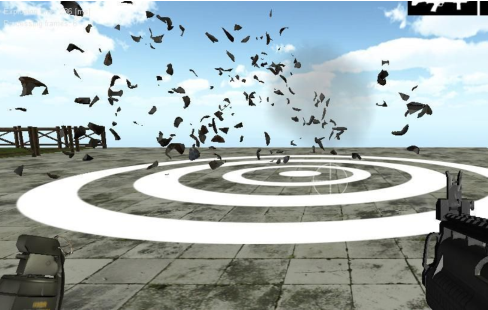

DemoShooter

First person shooter scene

The basic idea is this ：（1） Add explosion presets to the scene .（2） Set up your weapons and camera ), Shoot with the mouse （3） At the same time, run ray casting from the direction of the camera .（4） Get a clicked game object ( For example, a vase ).（5） take Exploder The prefab moves to the position of the clicked game object ( for example , Now? ExploderObiect The position is the same as the vase ).（6） Set up Exploder Explosion range of prefabricated body , call ExplodeRadius(), Range explosion ; If you want to shoot an object, you can use ExplodeObject()（7） The explosion

5、 ... and 、ExploderObject Setting instructions

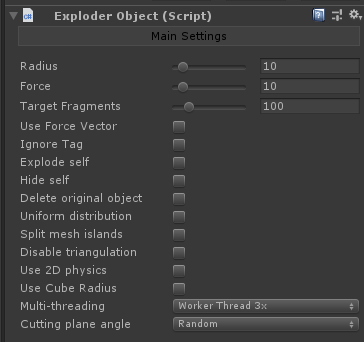

Main Settings

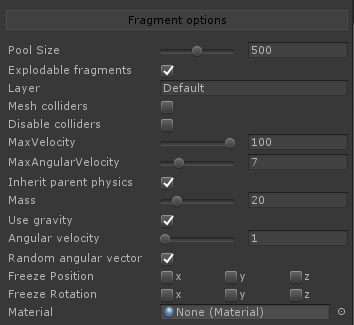

Fragment options Set up

6、 ... and 、 Summary

Feel easy to use, remember to click three times
