Best practices of opentelemetry in service grid architecture

【 Baidu cloud native guide 】OpenTelemetry By the famous OpenTracing、 OpenCensus Two products in 2019 Merged in , It has a wide range of application scenarios and a strong development team .2021 year ,OpenTelemetry The use of has become a new industry standard , By establishing consistency between data sources , Make data collection and processing more convenient . that , How to introduce OpenTelemetry And then get observable trace Ability , What problems will you encounter in the process of practice ？ This paper summarizes the related problems and gives the solution , Finally, a Demo Hand in hand Istio Install in OpenTelemetry.



1. OpenTelemetry Introduce

OpenTelemetry（ abbreviation OTel） Is a series of tools 、APIs and SDKs. Use OpenTelemetry Can produce 、 collect 、 Output a series of telemetry data （telemetry data Such as trace、metrics and log） Help users analyze the performance and behavior of applications .

OpenTelemetry It has nothing to do with the manufacturer , And as an industrial standard, it is supported by a large number of manufacturers . in addition ,OpenCensus（Google） and  OpenTracing（Uber） It's its predecessor .

The architecture is as follows ：



It mainly includes the following parts ：

• Instrumentation： Including automatic mode API 、SDK Mode access OpenTelemetry.

• OTLP:  OpenTelemetry Defined Transport Protocol .

• OpenTelemetry Collector： Provide vendor independent solutions , Used to implement Data reception （receive）, Handle （process） and Output （export） The function of .



2. OpenTelemetry stay Service Mesh Practice under the framework

at present Istio Achieve observability trace programme It can be summarized as ：

1. Business transparent transmission is required header Information （ Get the corresponding... From the incoming request header Information 、 And add a response to the outgoing request header Information ）.

2. Sidecar Automatically send to the monitoring system Span Information .



Through to Istio The scheme is observable trace Analysis of , Several problems can be found ：

1. There is intrusion into business code Trace Context propagation （Trace Context propagation）, Business penetration is required for corresponding header Information .

2. be-all Span The data are all by Sidecar Side generation , Internal method level monitoring information cannot be collected .



In the industry APM In the technical scheme ,JavaAgent（ A bytecode Technology , No invasion of business ） As a mainstream technical solution . Again OpenTelemetry auto-instrumentation  adopt Java Agent The technology of dynamically injecting bytecode provided can realize any Java Application telemetry data acquisition , It supports many popular libraries and frameworks .

2.1 Non intrusive Trace Context propagation



about Java Applications ,OpenTelemetry JavaAgent Supported by  Trace context propagation  as follows ：

• "tracecontext": W3C Trace Context (add baggage as well to include W3C baggage)

• "baggage": W3C Baggage

• "b3": B3 Single

• "b3multi": B3 Multi

• "jaeger": Jaeger (includes Jaeger baggage)

• "xray": AWS X-Ray

• "ottrace": OT Trace



Above  b3multi/b3（ With x-b3 start ） Exactly Istio Which requires transparent transmission header Information .

2.2 Business Internal method level monitoring

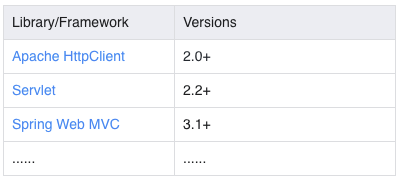

at present OpenTelemetry JavaAgent A large number of libraries are supported 、 Framework and application server , It can collect the internal method level execution logic of the business .



2.3 trace Information is associated with business logs



Usually in business troubleshooting , Not only to check the corresponding trace Link information , At the same time, it should also be based on the corresponding trace_id、span_id View the corresponding business log information .

OpenTelemetry Java Agent A lot has been preset about the current span Information on log Of MDC（Mapped Diagnostic Context） in , Businesses can easily configure this information , Businesses can easily print the corresponding trace_id、span_id Information . The following for SpringBoot Use in logback Configuration example for ：

•

logging.pattern.level = trace_id=%mdc{trace_id} span_id=%mdc{span_id} trace_flags=%mdc{trace_flags} %5p



2.4 System architecture





• JavaAgent Send the collected data to OpenTelemetry Collector .

• Sidecar The generated trace span Message sent to OpenTelemetry Collector.

• OpenTelemetry Collector Output the data to the monitoring system, such as jaeger or Kafka in .

• Users can use the corresponding UI see trace data .



2.5 practice

This article is mainly used to demonstrate , No high availability deployment .

2.5.1 install istio

download istio Installation package （ This article takes 1.13.2 For example ）：https://github.com/istio/istio/releases

•

$ istioctl install -f istio-opentelemtry-iop.yaml

istio-opentelemetry-iop.yaml The contents of are as follows ：

apiVersion: install.istio.io/v1alpha1kind: IstioOperatorspec: meshConfig: defaultConfig: holdApplicationUntilProxyStarts: truetracing: sampling: 100 enablePrometheusMerge: false #  Define extended providers extensionProviders: - name: otel-trace zipkin: service: otel-collector.istio-system.svc.cluster.local port: 9411 maxTagLength: 56 components: ingressGateways: - name: istio-ingressgateway enabled: true

In particular ： Above extensionProviders Property defines otel-trace, The information is opentelemetry Collector The address of （ It can receive zipkin Format trace, Therefore, what is defined here is zipkin Information about ）

2.5.2 install OpenTelemetry Collector

according to https://github.com/open-telemetry/opentelemetry-operator install OpenTelemetry Collector. Suppose installed K8S Service by ：otel-collector.istio-system.svc.cluster.local:9411,9411 For receiving zipkin Data format port .

opentelemetry-collector-config.yaml The contents of are as follows ：



# collector Of receivers To configure receivers: otlp: protocols: grpc: http: zipkin:processors: batch: memory_limiter:# collector Of exporters To configure ,exporters: zipkin: endpoint: "http://zipkin.istio-system.svc.cluster.local:9411/api/v2/spans"service: pipelines: traces: #  about trace data , Turn on otlp、zipkin The protocol port provides services  receivers: [otlp, zipkin] processors: [memory_limiter, batch] #  about trace data , Last output to zipkin in  exporters: [zipkin]

2.5.3 install jaeger

•

kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-1.14/samples/addons/jaeger.yaml

because collector exporters Output trace The data format is zipkin,jaege compatible zipkin Format trace data , So the final trace Data can be obtained through jaeger Exhibition .

2.5.4 Submit Telemetry CRD

Submit Telemetry CRD, take envoy Butted trace The information of is changed to otel-trace, That is to say Opentelemetry Collector.

•

$ kubectl apply -f mesh-trace-telemetry.yaml

mesh-trace-telemetry.yaml The contents of are as follows ：

apiVersion: telemetry.istio.io/v1alpha1kind: Telemetrymetadata: name: mesh-trace-telemtry namespace: istio-systemspec: tracing: - providers: - name: otel-trace randomSamplingPercentage: 100

2.5.5 Deploy Mesh application

For the corresponding namespace default Turn on auto Sidecar Injection function ：

•

$ kubectl label namespace default istio-injection=enabled --overwrite

according to K8S To deploy microservice applications consumer-demo and provider-demo. Application description ：

• consumer-demo： Service consumer , To provide with HTTP Interface , This interface will call the service provider provider-demo Provided HTTP Interface , call provider-dem The call forms of include RestTemplate and Fegin.

• provider-demo： service provider , Provide HTTP Interface .



You need to add the corresponding parameters to start the application , As shown below ：

#  When starting, specify javaagent# -Dotel.resource.attributes=service.name=provider-demo  stay span Medium service Information # -Dotel.propagators=b3multi  transparent transmission b3multi headerjava -javaagent:/opentelemetry-javaagent.jar -Dotel.resource.attributes=service.name=provider-demo -Dotel.propagators=b3multi -jar provider-demo-1.0-SNAPSHOT.jar

When deploying, you need to add the corresponding configuration in the container environment ：

•

env: - name: OTEL_TRACES_EXPORTER # javaagent Output otlp Protocol type data  value: otlp - name: OTEL_EXPORTER_OTLP_ENDPOINT # collector Address  value: http://otel-collector.istio-system.svc.cluster.local:4317 - name: OTEL_JAVAAGENT_ENABLED #  Turn on javaagent function     value: 'true'

2.5.6 Observe Mesh Monitoring data

The following figure shows this article consumer-demo and provider-demo Monitoring data generated in business access （ To monitor the system Jaeger For example ）：



3. summary



By means of Service Mesh Introduce... Into the architecture OpenTelemetry, The business benefits can be summarized as follows ：

1. adopt OpenTelemtry auto-instrumentation The mechanism can realize non intrusive Trace Context propagation , Make the service insensible Service Mesh Observability .

2. adopt OpenTelemtry auto-instrumentation The mechanism can realize the monitoring data collection at the internal method level of the business , make up Service Mesh Only in Sidecar The defect of side collecting monitoring data .

3. adopt OpenTelemetry Logger MDC auto-instrumentation The mechanism can correspond the monitoring information to trace_id、span_id Such information is configured and output in the business log , Facilitate business troubleshooting .



To serve more customers , Baidu AI Cloud has launched service grid products CSM（Cloud Service Mesh）, Provide users with high reliability 、 No operation and maintenance 、 Open Cloud native microservice governance products , In the hot public beta , Developers interested in service grid are welcome to discuss and practice with us .



For more product introduction and use, please click to read the original text or directly visit the following links ：

https://cloud.baidu.com/product/csm.html
