Malicious code analysis practice -- using apatedns and inetsim to simulate network environment

Malicious code analysis practice —— Use Apatedns and Inetsim Simulate the network environment

notes ： This experiment is mainly 《 Malicious code analysis practice 》 The beginning of the chapter of dynamic malicious code analysis , Mainly through Apatedns as well as Inetsim To simulate the network environment for malicious code , This experiment is based on Lab01-03.exe For example .

One 、 Experimental environment and tools .
Vmware virtual machine ：win10（win7）、kali（ This experiment does not involve physical machines , following win10 Are all win10 virtual machine ）
Main tools ：Apatedns、Inetsim
Two 、 Installation and download of tools
1、Apatedns： To be installed to windows Virtual machine client （win10,win7,winxp All possible , however winxp Need to be .net Framework 2.0 Support ）
Apatedns Download address ：https://www.fireeye.com/services/freeware/apatedns.html
.net Framework 2.0 Download address https://www.microsoft.com/en-us/download/confirmation.aspx?id=16614
2、Inetsim：kali Bring this tool with you
3、 ... and 、 Tool is introduced
1、Apatedns：ApateDNS It's a device for controlling DNS Response tools , Mainly used on the local system DNS The server . ApateDNS Can spoof the malware generated DNS Request to UDP port 53 Specified on IP Address .
2、Inetsim：INetSim It's based on Linux Tools for , Mainly used for malware analysis , It can simulate the most common Internet services , Such as http、https、DNS、FTP And others . stay Windows When performing dynamic Malware Analysis on the machine , You can use a virtual machine in the same network as the malware analysis machine to run INetSim. INetSim It can forge common Internet services that malicious software may use , And answer the corresponding request .（ Need configuration /etc/inetsim Under folder inetsim.conf File to start the corresponding service , This experiment mainly uses dns service ）
Four 、 Virtual machine network environment configuration
notes ： utilize VMware Custom network configuration mode , Multiple virtual machines can be interconnected to form a virtual LAN , A virtual machine running malicious code , The other virtual machine provides the necessary network services . But VLANs and host computers are not interconnected , Host still connected to Internet On , Not affected by malicious code .

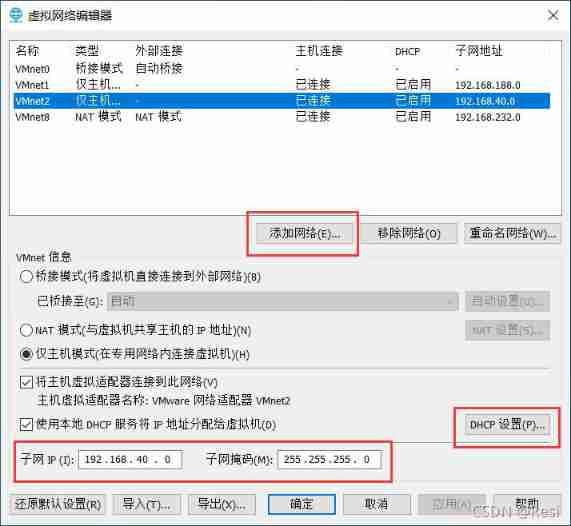

1、win10 virtual machine ： edit → Virtual Network Editor → change setting → Add network → Set the virtual network IP Address

On the subnet IP Modify the network address at , Note that after the modification, it should be in DHCP In the setup DHCP To get the address range, you need to modify it , And then ip The configuration should be within this range .

After saving, it will win10 Virtual machine added to Vmnet2 in

After that, we can see the results to win10 Allocated 192.168.40.128 The address of （ It can also be in win10 Set your own static in ip Address ）

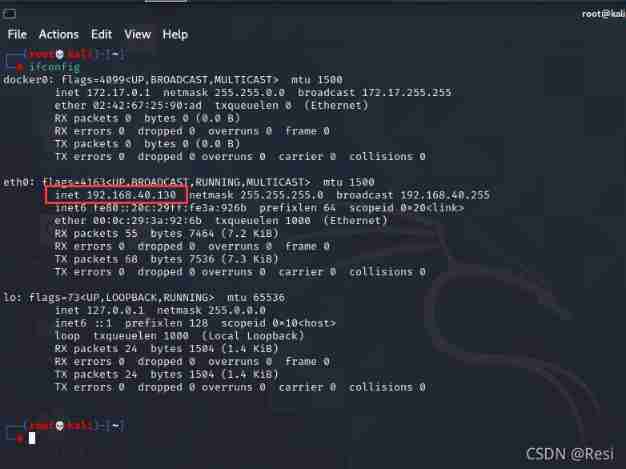

2、kali virtual machine ：
Direct will kali Add to Vmnet2 in , We need to configure kali Virtual machines will DNS Set the address to your own ip Address , So you need to configure static ip

And then we'll talk to each other ping once , See if you can connect , Pay attention to win10 Firewall shutdown for , otherwise kali virtual machine ping no win10, If both can ping through , The network configuration between the two virtual machines has been completed , And the two virtual machines have formed a closed network （ It's like a sandbox ）, Provides a closed environment for malicious code analysis .
5、 ... and 、 Experimental operation
1、kali Bring their own Inetsim Tools , So we don't need to download any more , Just go into /etc/inetsim Folder modification inetsim.conf File can

cd /etc/inetsim
vi inetsim.conf

stay vi Edit in the editor inetsim.conf The following contents of the file can start DNS service
service_bind_address： 192.168.40.130（Kali virtual machine IP）
dns_default_ip： 192.168.40.130
redirect_enabled yes
redirect_exclude_port tcp:22
redirect_external_address 192.168.40.130

The following are the configured file contents

#############################################################
#
# INetSim configuration file
#
#############################################################


#############################################################
# Main configuration
#############################################################

#########################################
# start_service
#
# The services to start
#
# Syntax: start_service <service name>
#
# Default: none
#
# Available service names are:
# dns, http, smtp, pop3, tftp, ftp, ntp, time_tcp,
# time_udp, daytime_tcp, daytime_udp, echo_tcp,
# echo_udp, discard_tcp, discard_udp, quotd_tcp,
# quotd_udp, chargen_tcp, chargen_udp, finger,
# ident, syslog, dummy_tcp, dummy_udp, smtps, pop3s,
# ftps, irc, https
#
start_service dns
start_service http
start_service https
start_service smtp
start_service smtps
start_service pop3
start_service pop3s
start_service ftp
start_service ftps
start_service tftp
start_service irc
start_service ntp
start_service finger
start_service ident
start_service syslog
start_service time_tcp
start_service time_udp
start_service daytime_tcp
start_service daytime_udp
start_service echo_tcp
start_service echo_udp
start_service discard_tcp
start_service discard_udp
start_service quotd_tcp
start_service quotd_udp
start_service chargen_tcp
start_service chargen_udp
start_service dummy_tcp
start_service dummy_udp
#########################################
# service_bind_address
#
# IP address to bind services to
#
# Syntax: service_bind_address <IP address>
#
# Default: 127.0.0.1
#
service_bind_address    xx.xx.xx.xx


#########################################
# service_run_as_user
#
# User to run services
#
# Syntax: service_run_as_user <username>
#
# Default: nobody
#
#service_run_as_user inetsim
#########################################
# service_max_childs
#
# Maximum number of child processes (parallel connections)
# for each service
#
# Syntax: service_max_childs [1..30]
#
# Default: 10
#
#service_max_childs 15


#########################################
# service_timeout
#
# If a client does not send any data for the number of seconds
# given here, the corresponding connection will be closed.
#
# Syntax: service_timeout [1..600]
#
# Default: 120
#
#service_timeout 60
#########################################
# create_reports
#
# Create report with a summary of connections
# for the session on shutdown
#
# Syntax: create_reports [yes|no]
#
# Default: yes
#
#create_reports no


#########################################
# report_language
#
# Set language for reports
# Note: Currently only languages 'en' and 'de' are supported
#
# Syntax: report_language <language>
#
# Default: en
#
#report_language de
#############################################################
# Faketime
#############################################################
#########################################
# faketime_init_delta
#
# Initial number of seconds (positive or negative)
# relative to current date/time for fake time used by all services
#
# Syntax: faketime_init_delta <number of seconds>
#
# Default: 0 (use current date/time)
#
#faketime_init_delta 1000


#########################################
# faketime_auto_delay
#
# Number of seconds to wait before incrementing fake time
# by value specified with 'faketime_auto_increment'.
# Setting to '0' disables this option.
#
# Syntax: faketime_auto_delay [0..86400]
#
# Default: 0 (disabled)
#
#faketime_auto_delay 1000
#########################################
# faketime_auto_increment
#
# Number of seconds by which fake time is incremented at
# regular intervals specified by 'faketime_auto_delay'.
# This option only takes effect if 'faketime_auto_delay'
# is enabled (not set to '0').
#
# Syntax: faketime_auto_increment [-31536000..31536000]
#
# Default: 3600
#
#faketime_auto_increment 86400


#############################################################
# Service DNS
#############################################################

#########################################
# dns_bind_port
#
# Port number to bind DNS service to
#
# Syntax: dns_bind_port <port number>
#
# Default: 53
#
#dns_bind_port 53
#########################################
# dns_default_ip
#
# Default IP address to return with DNS replies
#
# Syntax: dns_default_ip <IP address>
#
# Default: 127.0.0.1
#
dns_default_ip      xx.xx.xx.xx


#########################################
# dns_default_hostname
#
# Default hostname to return with DNS replies
#
# Syntax: dns_default_hostname <hostname>
#
# Default: www
#
#dns_default_hostname somehost
#########################################
# dns_default_domainname
#
# Default domain name to return with DNS replies
#
# Syntax: dns_default_domainname <domain name>
#
# Default: inetsim.org
#
#dns_default_domainname some.domain


#########################################
# dns_static
#
# Static mappings for DNS
#
# Syntax: dns_static <fqdn hostname> <IP address>
#
# Default: none
#
#dns_static www.foo.com 10.10.10.10
#dns_static ns1.foo.com 10.70.50.30
#dns_static ftp.bar.net 10.10.20.30
#########################################
# dns_version
#
# DNS version
#
# Syntax: dns_version <version>
#
# Default: "INetSim DNS Server"
#
#dns_version "9.2.4"


#############################################################
# Service HTTP
#############################################################

#########################################
# http_bind_port
#
# Port number to bind HTTP service to
#
# Syntax: http_bind_port <port number>
#
# Default: 80
#
#http_bind_port 80
#########################################
# http_version
#
# Version string to return in HTTP replies
#
# Syntax: http_version <string>
#
# Default: "INetSim HTTP server"
#
#http_version "Microsoft-IIS/4.0"


#########################################
# http_fakemode
#
# Turn HTTP fake mode on or off
#
# Syntax: http_fakemode [yes|no]
#
# Default: yes
#
#http_fakemode no
#########################################
# http_fakefile
#
# Fake files returned in fake mode based on the file extension
# in the HTTP request.
# The fake files must be placed in <data-dir>/http/fakefiles
#
# Syntax: http_fakefile <extension> <filename> <mime-type>
#
# Default: none
#
http_fakefile       txt sample.txt  text/plain
http_fakefile       htm sample.html text/html
http_fakefile       html    sample.html text/html
http_fakefile       php sample.html text/html
http_fakefile       gif sample.gif  image/gif
http_fakefile       jpg sample.jpg  image/jpeg
http_fakefile       jpeg    sample.jpg  image/jpeg
http_fakefile       png sample.png  image/png
http_fakefile       bmp sample.bmp  image/x-ms-bmp
http_fakefile       ico favicon.ico image/x-icon
http_fakefile       exe sample_gui.exe  x-msdos-program
http_fakefile       com sample_gui.exe  x-msdos-program


#########################################
# http_default_fakefile
#
# The default fake file returned in fake mode if the file extension
# in the HTTP request does not match any of the extensions
# defined above.
#
# The default fake file must be placed in <data-dir>/http/fakefiles
#
# Syntax: http_default_fakefile <filename> <mime-type>
#
# Default: none
#
http_default_fakefile   sample.html text/html
#########################################
# http_static_fakefile
#
# Fake files returned in fake mode based on static path.
# The fake files must be placed in <data-dir>/http/fakefiles
#
# Syntax: http_static_fakefile <path> <filename> <mime-type>
#
# Default: none
#
#http_static_fakefile /path/ sample_gui.exe x-msdos-program
#http_static_fakefile /path/to/file.exe sample_gui.exe x-msdos-program


#############################################################
# Service HTTPS
#############################################################

#########################################
# https_bind_port
#
# Port number to bind HTTPS service to
#
# Syntax: https_bind_port <port number>
#
# Default: 443
#
#https_bind_port 443
#########################################
# https_version
#
# Version string to return in HTTPS replies
#
# Syntax: https_version <string>
#
# Default: "INetSim HTTPs server"
#
#https_version "Microsoft-IIS/4.0"


#########################################
# https_fakemode
#
# Turn HTTPS fake mode on or off
#
# Syntax: https_fakemode [yes|no]
#
# Default: yes
#
#https_fakemode no
#########################################
# https_fakefile
#
# Fake files returned in fake mode based on the file extension
# in the HTTPS request.
# The fake files must be placed in <data-dir>/http/fakefiles
#
# Syntax: https_fakefile <extension> <filename> <mime-type>
#
# Default: none
#
https_fakefile      txt sample.txt  text/plain
https_fakefile      htm sample.html text/html
https_fakefile      html    sample.html text/html
https_fakefile      php sample.html text/html
https_fakefile      gif sample.gif  image/gif
https_fakefile      jpg sample.jpg  image/jpeg
https_fakefile      jpeg    sample.jpg  image/jpeg
https_fakefile      png sample.png  image/png
https_fakefile      bmp sample.bmp  image/x-ms-bmp
https_fakefile      ico favicon.ico image/x-icon
https_fakefile      exe sample_gui.exe  x-msdos-program
https_fakefile      com sample_gui.exe  x-msdos-program


#########################################
# https_default_fakefile
#
# The default fake file returned in fake mode if the file extension
# in the HTTPS request does not match any of the extensions
# defined above.
#
# The default fake file must be placed in <data-dir>/http/fakefiles
#
# Syntax: https_default_fakefile <filename> <mime-type>
#
# Default: none
#
https_default_fakefile  sample.html text/html
#########################################
# https_static_fakefile
#
# Fake files returned in fake mode based on static path.
# The fake files must be placed in <data-dir>/http/fakefiles
#
# Syntax: https_static_fakefile <path> <filename> <mime-type>
#
# Default: none
#
#https_static_fakefile /path/ sample_gui.exe x-msdos-program
#https_static_fakefile /path/to/file.exe sample_gui.exe x-msdos-program


#########################################
# https_ssl_keyfile
#
# Name of the SSL private key PEM file.
# The key MUST NOT be encrypted!
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: https_ssl_keyfile <filename>
#
# Default: default_key.pem
#
#https_ssl_keyfile https_key.pem
#########################################
# https_ssl_certfile
#
# Name of the SSL certificate file.
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: https_ssl_certfile <filename>
#
# Default: default_cert.pem
#
#https_ssl_certfile https_cert.pem


#########################################
# https_ssl_dhfile
#
# Name of the Diffie-Hellman parameter PEM file.
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: https_ssl_dhfile <filename>
#
# Default: none
#
#https_ssl_dhfile https_dh1024.pem
#############################################################
# Service SMTP
#############################################################
#########################################
# smtp_bind_port
#
# Port number to bind SMTP service to
#
# Syntax: smtp_bind_port <port number>
#
# Default: 25
#
#smtp_bind_port 25


#########################################
# smtp_fqdn_hostname
#
# The FQDN hostname used for SMTP
#
# Syntax: smtp_fqdn_hostname <string>
#
# Default: mail.inetsim.org
#
#smtp_fqdn_hostname foo.bar.org
#########################################
# smtp_banner
#
# The banner string used in SMTP greeting message
#
# Syntax: smtp_banner <string>
#
# Default: "INetSim Mail Service ready."
#
#smtp_banner "SMTP Mailer ready."


#########################################
# smtp_helo_required
#
# Client has to send HELO/EHLO before any other command
#
# Syntax: smtp_helo_required [yes|no]
#
# Default: no
#
#smtp_helo_required yes
#########################################
# smtp_extended_smtp
#
# Turn support for extended smtp (ESMTP) on or off
#
# Syntax: smtp_extended_smtp [yes|no]
#
# Default: yes
#
#smtp_extended_smtp no


#########################################
# smtp_service_extension
#
# SMTP service extensions offered to client.
# For more information, see
# <http://www.iana.org/assignments/mail-parameters>
#
# Syntax: smtp_service_extension <extension [parameter(s)]>
#
# Supported extensions and parameters:
# VRFY
# EXPN
# HELP
# 8BITMIME
# SIZE # one optional parameter
# ENHANCEDSTATUSCODES
# AUTH # one or more of [PLAIN LOGIN ANONYMOUS CRAM-MD5 CRAM-SHA1]
# DSN
# SEND
# SAML
# SOML
# TURN
# ETRN
# ATRN
# VERP
# MTRK
# CHUNKING
# STARTTLS
# DELIVERBY # one optional parameter
# SUBMITTER
# CHECKPOINT
# BINARYMIME
# NO-SOLICITING # one optional parameter
# FUTURERELEASE # two required parameters
#
# Default: none
#
smtp_service_extension      VRFY
smtp_service_extension      EXPN
smtp_service_extension      HELP
smtp_service_extension      8BITMIME
smtp_service_extension      SIZE 102400000
smtp_service_extension      ENHANCEDSTATUSCODES
smtp_service_extension      AUTH PLAIN LOGIN ANONYMOUS CRAM-MD5 CRAM-SHA1
smtp_service_extension      DSN
smtp_service_extension      ETRN
smtp_service_extension      STARTTLS
#
#########################################
# smtp_auth_reversibleonly
#
# Only offer authentication mechanisms which allow reversing
# the authentication information sent by a client
# to clear text username/password.
# This option only takes effect if 'smtp_extended_smtp' is
# enabled and 'smtp_service_extension AUTH' is configured.
#
# Syntax: smtp_auth_reversibleonly [yes|no]
#
# Default: no
#
#smtp_auth_reversibleonly yes


#########################################
# smtp_auth_required
#
# Force the client to authenticate.
# This option only takes effect if 'smtp_extended_smtp' is
# enabled and 'smtp_service_extension AUTH' is configured.
#
# Syntax: smtp_auth_required [yes|no]
#
# Default: no
#
#smtp_auth_required yes
#########################################
# smtp_ssl_keyfile
#
# Name of the SSL private key PEM file.
# The key MUST NOT be encrypted!
#
# This option only takes effect if 'smtp_extended_smtp' is
# enabled and 'smtp_service_extension STARTTLS' is configured.
#
# The file must be placed in <data-dir>/certs/
#
# Note: If no key file is specified, the extension STARTTLS
# will be disabled.
#
# Syntax: smtp_ssl_keyfile <filename>
#
# Default: default_key.pem
#
#smtp_ssl_keyfile smtp_key.pem


#########################################
# smtp_ssl_certfile
#
# Name of the SSL certificate PEM file.
#
# This option only takes effect if 'smtp_extended_smtp' is
# enabled and 'smtp_service_extension STARTTLS' is configured.
#
# The file must be placed in <data-dir>/certs/
#
# Note: If no cert file is specified, the extension STARTTLS
# will be disabled.
#
# Syntax: smtp_ssl_certfile <filename>
#
# Default: default_cert.pem
#
#smtp_ssl_certfile smtp_cert.pem
#########################################
# smtp_ssl_dhfile
#
# Name of the Diffie-Hellman parameter PEM file.
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: smtp_ssl_dhfile <filename>
#
# Default: none
#
#smtp_ssl_dhfile smtp_dh1024.pem



#############################################################
# Service SMTPS
#############################################################

#########################################
# smtps_bind_port
#
# Port number to bind SMTPS service to
#
# Syntax: smtps_bind_port <port number>
#
# Default: 465
#
#smtps_bind_port 465
#########################################
# smtps_fqdn_hostname
#
# The FQDN hostname used for SMTPS
#
# Syntax: smtps_fqdn_hostname <string>
#
# Default: mail.inetsim.org
#
#smtps_fqdn_hostname foo.bar.org


#########################################
# smtps_banner
#
# The banner string used in SMTPS greeting message
#
# Syntax: smtps_banner <string>
#
# Default: "INetSim Mail Service ready."
#
#smtps_banner "SMTPS Mailer ready."
#########################################
# smtps_helo_required
#
# Client has to send HELO/EHLO before any other command
#
# Syntax: smtps_helo_required [yes|no]
#
# Default: no
#
#smtps_helo_required yes


#########################################
# smtps_extended_smtp
#
# Turn support for extended smtp (ESMTP) on or off
#
# Syntax: smtps_extended_smtp [yes|no]
#
# Default: yes
#
#smtps_extended_smtp no
#########################################
# smtps_service_extension
#
# SMTP service extensions offered to client.
# For more information, see
# <http://www.iana.org/assignments/mail-parameters>
#
# Syntax: smtp_service_extension <extension [parameter(s)]>
#
# Supported extensions and parameters:
# VRFY
# EXPN
# HELP
# 8BITMIME
# SIZE # one optional parameter
# ENHANCEDSTATUSCODES
# AUTH # one or more of [PLAIN LOGIN ANONYMOUS CRAM-MD5 CRAM-SHA1]
# DSN
# SEND
# SAML
# SOML
# TURN
# ETRN
# ATRN
# VERP
# MTRK
# CHUNKING
# DELIVERBY # one optional parameter
# SUBMITTER
# CHECKPOINT
# BINARYMIME
# NO-SOLICITING # one optional parameter
# FUTURERELEASE # two required parameters
#
# Default: none
#
smtps_service_extension     VRFY
smtps_service_extension     EXPN
smtps_service_extension     HELP
smtps_service_extension     8BITMIME
smtps_service_extension     SIZE 102400000
smtps_service_extension     ENHANCEDSTATUSCODES
smtps_service_extension     AUTH PLAIN LOGIN ANONYMOUS CRAM-MD5 CRAM-SHA1
smtps_service_extension     DSN
smtps_service_extension     ETRN
#


#########################################
# smtps_auth_reversibleonly
#
# Only offer authentication mechanisms which allow reversing
# the authentication information sent by a client
# to clear text username/password.
# This option only takes effect if 'smtps_extended_smtp' is
# enabled and 'smtps_service_extension AUTH' is configured.
#
# Syntax: smtps_auth_reversibleonly [yes|no]
#
# Default: no
#
#smtps_auth_reversibleonly yes
#########################################
# smtps_auth_required
#
# Force the client to authenticate.
# This option only takes effect if 'smtps_extended_smtp' is
# enabled and 'smtp_service_extension AUTH' is configured.
#
# Syntax: smtps_auth_required [yes|no]
#
# Default: no
#
#smtps_auth_required yes


#########################################
# smtps_ssl_keyfile
#
# Name of the SSL private key PEM file.
# The key MUST NOT be encrypted!
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: smtps_ssl_keyfile <filename>
#
# Default: default_key.pem
#
#smtps_ssl_keyfile smtps_key.pem
#########################################
# smtps_ssl_certfile
#
# Name of the SSL certificate PEM file.
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: smtps_ssl_certfile <filename>
#
# Default: default_cert.pem
#
#smtps_ssl_certfile smtps_cert.pem


#########################################
# smtps_ssl_dhfile
#
# Name of the Diffie-Hellman parameter PEM file.
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: smtps_ssl_dhfile <filename>
#
# Default: none
#
#smtps_ssl_dhfile smtps_dh1024.pem
#############################################################
# Service POP3
#############################################################
#########################################
# pop3_bind_port
#
# Port number to bind POP3 service to
#
# Syntax: pop3_bind_port <port number>
#
# Default: 110
#
#pop3_bind_port 110


#########################################
# pop3_banner
#
# The banner string used in POP3 greeting message
#
# Syntax: pop3_banner <string>
#
# Default: "INetSim POP3 Server ready"
#
#pop3_banner "POP3 Server ready"
#########################################
# pop3_hostname
#
# The hostname used in POP3 greeting message
#
# Syntax: pop3_hostname <string>
#
# Default: pop3host
#
#pop3_hostname pop3server


#########################################
# pop3_mbox_maxmails
#
# Maximum number of e-mails to select from supplied mbox files
# for creation of random POP3 mailbox
#
# Syntax: pop3_mbox_maxmails <number>
#
# Default: 10
#
#pop3_mbox_maxmails 20
#########################################
# pop3_mbox_reread
#
# Re-read supplied mbox files if POP3 service was inactive
# for <number> seconds
#
# Syntax: pop3_mbox_reread <number>
#
# Default: 180
#
#pop3_mbox_reread 300


#########################################
# pop3_mbox_rebuild
#
# Rebuild random POP3 mailbox if POP3 service was inactive
# for <number> seconds
#
# Syntax: pop3_mbox_rebuild <number>
#
# Default: 60
#
#pop3_mbox_rebuild 120
#########################################
# pop3_enable_apop
#
# Turn APOP on or off
#
# Syntax: pop3_enable_apop [yes|no]
#
# Default: yes
#
#pop3_enable_apop no


#########################################
# pop3_auth_reversibleonly
#
# Only offer authentication mechanisms which allow reversing
# the authentication information sent by a client
# to clear text username/password
#
# Syntax: pop3_auth_reversibleonly [yes|no]
#
# Default: no
#
#pop3_auth_reversibleonly yes
#########################################
# pop3_enable_capabilities
#
# Turn support for pop3 capabilities on or off
#
# Syntax: pop3_enable_capabilities [yes|no]
#
# Default: yes
#
#pop3_enable_capabilities no


#########################################
# pop3_capability
#
# POP3 capabilities offered to client.
# For more information, see
# <http://www.iana.org/assignments/pop3-extension-mechanism>
#
# Syntax: pop3_capability <capability [parameter(s)]>
#
# Supported capabilities and parameters:
# TOP
# USER
# UIDL
# SASL # one or more of [PLAIN LOGIN ANONYMOUS CRAM-MD5 CRAM-SHA1]
# RESP-CODES
# EXPIRE # one required parameter and one optional parameter
# LOGIN-DELAY # one required parameter and one optional parameter
# IMPLEMENTATION # one required parameter
# AUTH-RESP-CODE
# STLS
#
# Default: none
#
pop3_capability     TOP
pop3_capability     USER
pop3_capability     SASL PLAIN LOGIN ANONYMOUS CRAM-MD5 CRAM-SHA1
pop3_capability     UIDL
pop3_capability     IMPLEMENTATION "INetSim POP3 server"
pop3_capability     STLS
#
#########################################
# pop3_ssl_keyfile
#
# Name of the SSL private key PEM file.
# The key MUST NOT be encrypted!
#
# This option only takes effect if 'pop3_enable_capabilities' is
# true and 'pop3_capability STLS' is configured.
#
# The file must be placed in <data-dir>/certs/
#
# Note: If no key file is specified, capability STLS will be disabled.
#
# Syntax: pop3_ssl_keyfile <filename>
#
# Default: default_key.pem
#
#pop3_ssl_keyfile pop3_key.pem


#########################################
# pop3_ssl_certfile
#
# Name of the SSL certificate PEM file.
#
# This option only takes effect if 'pop3_enable_capabilities' is
# true and 'pop3_capability STLS' is configured.
#
# The file must be placed in <data-dir>/certs/
#
# Note: If no cert file is specified, capability STLS will be disabled.
#
# Syntax: pop3_ssl_certfile <filename>
#
# Default: default_cert.pem
#
#pop3_ssl_certfile pop3_cert.pem
#########################################
# pop3_ssl_dhfile
#
# Name of the Diffie-Hellman parameter PEM file.
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: pop3_ssl_dhfile <filename>
#
# Default: none
#
#pop3_ssl_dhfile pop3_dh1024.pem


#############################################################
# Service POP3S
#############################################################

#########################################
# pop3s_bind_port
#
# Port number to bind POP3S service to
#
# Syntax: pop3s_bind_port <port number>
#
# Default: 995
#
#pop3s_bind_port 995
#########################################
# pop3s_banner
#
# The banner string used in POP3 greeting message
#
# Syntax: pop3s_banner <string>
#
# Default: "INetSim POP3 Server ready"
#
#pop3s_banner "POP3 Server ready"


#########################################
# pop3s_hostname
#
# The hostname used in POP3 greeting message
#
# Syntax: pop3s_hostname <string>
#
# Default: pop3host
#
#pop3s_hostname pop3server
#########################################
# pop3s_mbox_maxmails
#
# Maximum number of e-mails to select from supplied mbox files
# for creation of random POP3 mailbox
#
# Syntax: pop3s_mbox_maxmails <number>
#
# Default: 10
#
#pop3s_mbox_maxmails 20


#########################################
# pop3s_mbox_reread
#
# Re-read supplied mbox files if POP3S service was inactive
# for <number> seconds
#
# Syntax: pop3s_mbox_reread <number>
#
# Default: 180
#
#pop3s_mbox_reread 300
#########################################
# pop3s_mbox_rebuild
#
# Rebuild random POP3 mailbox if POP3S service was inactive
# for <number> seconds
#
# Syntax: pop3s_mbox_rebuild <number>
#
# Default: 60
#
#pop3s_mbox_rebuild 120


#########################################
# pop3s_enable_apop
#
# Turn APOP on or off
#
# Syntax: pop3s_enable_apop [yes|no]
#
# Default: yes
#
#pop3s_enable_apop no
#########################################
# pop3s_auth_reversibleonly
#
# Only offer authentication mechanisms which allow reversing
# the authentication information sent by a client
# to clear text username/password
#
# Syntax: pop3s_auth_reversibleonly [yes|no]
#
# Default: no
#
#pop3s_auth_reversibleonly yes


#########################################
# pop3s_enable_capabilities
#
# Turn support for pop3 capabilities on or off
#
# Syntax: pop3s_enable_capabilities [yes|no]
#
# Default: yes
#
#pop3s_enable_capabilities no
#########################################
# pop3s_capability
#
# POP3 capabilities offered to client.
# For more information, see
# <http://www.iana.org/assignments/pop3-extension-mechanism>
#
# Syntax: pop3s_capability <capability [parameter(s)]>
#
# Supported capabilities and parameters:
# TOP
# USER
# UIDL
# SASL # one or more of [PLAIN LOGIN ANONYMOUS CRAM-MD5 CRAM-SHA1]
# RESP-CODES
# EXPIRE # one required parameter and one optional parameter
# LOGIN-DELAY # one required parameter and one optional parameter
# IMPLEMENTATION # one required parameter
# AUTH-RESP-CODE
#
# Default: none
#
pop3s_capability    TOP
pop3s_capability    USER
pop3s_capability    SASL PLAIN LOGIN ANONYMOUS CRAM-MD5 CRAM-SHA1
pop3s_capability    UIDL
pop3s_capability    IMPLEMENTATION "INetSim POP3s server"
#


#########################################
# pop3s_ssl_keyfile
#
# Name of the SSL private key PEM file.
# The key MUST NOT be encrypted!
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: pop3s_ssl_keyfile <filename>
#
# Default: default_key.pem
#
#pop3s_ssl_keyfile pop3s_key.pem
#########################################
# pop3s_ssl_certfile
#
# Name of the SSL certificate PEM file.
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: pop3s_ssl_certfile <filename>
#
# Default: default_cert.pem
#
#pop3s_ssl_certfile pop3s_cert.pem


#########################################
# pop3s_ssl_dhfile
#
# Name of the Diffie-Hellman parameter PEM file.
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: pop3s_ssl_dhfile <filename>
#
# Default: none
#
#pop3s_ssl_dhfile pop3s_dh1024.pem
#############################################################
# Service TFTP
#############################################################
#########################################
# tftp_bind_port
#
# Port number to bind TFTP service to
#
# Syntax: tftp_bind_port <port number>
#
# Default: 69
#
#tftp_bind_port 69


#########################################
# tftp_allow_overwrite
#
# Allow overwriting of existing files
#
# Syntax: tftp_allow_overwrite [yes|no]
#
# Default: no
#
#tftp_allow_overwrite yes
#########################################
# tftp_enable_options
#
# Turn support for tftp options on or off
#
# Syntax: tftp_enable_options [yes|no]
#
# Default: yes
#
#tftp_enable_options no


#########################################
# tftp_option
#
# TFTP extensions offered to client.
# For more information, see RFC 2347
#
# Syntax: tftp_option <option [parameter(s)]>
#
# Supported extensions and parameters:
# BLKSIZE # two optional parameters
# TIMEOUT # two optional parameters
# TSIZE # one optional parameter
#
# Default: none
#
tftp_option     BLKSIZE 512 65464
tftp_option     TIMEOUT 5 60
tftp_option     TSIZE 10485760
#
#############################################################
# Service FTP
#############################################################
#########################################
# ftp_bind_port
#
# Port number to bind FTP service to
#
# Syntax: ftp_bind_port <port number>
#
# Default: 21
#
#ftp_bind_port 21


#########################################
# ftp_version
#
# Version string to return in replies to the STAT command
#
# Syntax: ftp_version <string>
#
# Default: "INetSim FTP Server"
#
#ftp_version "vsFTPd 2.0.4 - secure, fast, stable"
#########################################
# ftp_banner
#
# The banner string used in FTP greeting message
#
# Syntax: ftp_banner <string>
#
# Default: "INetSim FTP Service ready."
#
#ftp_banner "FTP Server ready"


#########################################
# ftp_recursive_delete
#
# Allow recursive deletion of directories,
# even if they are not empty
#
# Syntax: ftp_recursive_delete [yes|no]
#
# Default: no
#
#ftp_recursive_delete yes
#############################################################
# Service FTPS
#############################################################
#########################################
# ftps_bind_port
#
# Port number to bind FTP service to
#
# Syntax: ftp_bind_port <port number>
#
# Default: 990
#
#ftps_bind_port 990


#########################################
# ftps_version
#
# Version string to return in replies to the STAT command
#
# Syntax: ftps_version <string>
#
# Default: "INetSim FTPs Server"
#
#ftps_version "vsFTPd 2.0.4 - secure, fast, stable"
#########################################
# ftps_banner
#
# The banner string used in FTP greeting message
#
# Syntax: ftps_banner <string>
#
# Default: "INetSim FTP Service ready."
#
#ftps_banner "FTP Server ready"


#########################################
# ftps_recursive_delete
#
# Allow recursive deletion of directories,
# even if they are not empty
#
# Syntax: ftps_recursive_delete [yes|no]
#
# Default: no
#
#ftps_recursive_delete yes
#########################################
# ftps_ssl_keyfile
#
# Name of the SSL private key PEM file.
# The key MUST NOT be encrypted!
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: ftps_ssl_keyfile <filename>
#
# Default: default_key.pem
#
#ftps_ssl_keyfile ftps_key.pem


#########################################
# ftps_ssl_certfile
#
# Name of the SSL certificate PEM file.
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: ftps_ssl_certfile <filename>
#
# Default: default_cert.pem
#
#ftps_ssl_certfile ftps_cert.pem
#########################################
# ftps_ssl_dhfile
#
# Name of the Diffie-Hellman parameter PEM file.
#
# The file must be placed in <data-dir>/certs/
#
# Syntax: ftps_ssl_dhfile <filename>
#
# Default: none
#
#ftps_ssl_dhfile ftps_dh1024.pem


#############################################################
# Service NTP
#############################################################

#########################################
# ntp_bind_port
#
# Port number to bind NTP service to
#
# Syntax: ntp_bind_port <port number>
#
# Default: 123
#
#ntp_bind_port 123
#########################################
# ntp_server_ip
#
# The IP address to return in NTP replies
#
# Syntax: ntp_server_ip <IP address>
#
# Default: 127.0.0.1
#
#ntp_server_ip 10.15.20.30


#########################################
# ntp_strict_checks
#
# Turn strict checks for client packets on or off
#
# Syntax: ntp_strict_checks [yes|no]
#
# Default: yes
#
#ntp_strict_checks no
#############################################################
# Service IRC
#############################################################
#########################################
# irc_bind_port
#
# Port number to bind IRC service to
#
# Syntax: irc_bind_port <port number>
#
# Default: 6667
#
#irc_bind_port 6667


#########################################
# irc_fqdn_hostname
#
# The FQDN hostname used for IRC
#
# Syntax: irc_fqdn_hostname <string>
#
# Default: irc.inetsim.org
#
#irc_fqdn_hostname foo.bar.org
#########################################
# irc_version
#
# Version string to return
#
# Syntax: irc_version <string>
#
# Default: "INetSim IRC Server"
#
#irc_version "Unreal3.2.7"


#############################################################
# Service Time
#############################################################

#########################################
# time_bind_port
#
# Port number to bind time service to
#
# Syntax: time_bind_port <port number>
#
# Default: 37
#
#time_bind_port 37
#############################################################
# Service Daytime
#############################################################
#########################################
# daytime_bind_port
#
# Port number to bind daytime service to
#
# Syntax: daytime_bind_port <port number>
#
# Default: 13
#
#daytime_bind_port 13


#############################################################
# Service Echo
#############################################################

#########################################
# echo_bind_port
#
# Port number to bind echo service to
#
# Syntax: echo_bind_port <port number>
#
# Default: 7
#
#echo_bind_port 7
#############################################################
# Service Discard
#############################################################
#########################################
# discard_bind_port
#
# Port number to bind discard service to
#
# Syntax: discard_bind_port <port number>
#
# Default: 9
#
#discard_bind_port 9


#############################################################
# Service Quotd
#############################################################

#########################################
# quotd_bind_port
#
# Port number to bind quotd service to
#
# Syntax: quotd_bind_port <port number>
#
# Default: 17
#
#quotd_bind_port 17
#############################################################
# Service Chargen
#############################################################
#########################################
# chargen_bind_port
#
# Port number to bind chargen service to
#
# Syntax: chargen_bind_port <port number>
#
# Default: 19
#
#chargen_bind_port 19


#############################################################
# Service Finger
#############################################################

#########################################
# finger_bind_port
#
# Port number to bind finger service to
#
# Syntax: finger_bind_port <port number>
#
# Default: 79
#
#finger_bind_port 79
#############################################################
# Service Ident
#############################################################
#########################################
# ident_bind_port
#
# Port number to bind ident service to
#
# Syntax: ident_bind_port <port number>
#
# Default: 113
#
#ident_bind_port 113


#############################################################
# Service Syslog
#############################################################

#########################################
# syslog_bind_port
#
# Port number to bind syslog service to
#
# Syntax: syslog_bind_port <port number>
#
# Default: 514
#
#syslog_bind_port 514
#########################################
# syslog_trim_maxlength
#
# Chop syslog messages at 1024 bytes.
#
# Syntax: syslog_trim_maxlength [yes|no]
#
# Default: no
#
#syslog_trim_maxlength yes


#########################################
# syslog_accept_invalid
#
# Accept invalid syslog messages.
#
# Syntax: syslog_accept_invalid [yes|no]
#
# Default: no
#
#syslog_accept_invalid yes
#############################################################
# Service Dummy
#############################################################
#########################################
# dummy_bind_port
#
# Port number to bind dummy service to
#
# Syntax: dummy_bind_port <port number>
#
# Default: 1
#
#dummy_bind_port 1


#########################################
# dummy_banner
#
# Banner string sent to client if no data has been
# received for 'dummy_banner_wait' seconds since
# the client has established the connection.
# If set to an empty string (""), only CRLF will be sent.
# This option only takes effect if 'dummy_banner_wait'
# is not set to '0'.
#
# Syntax: dummy_banner <string>
#
# Default: "220 ESMTP FTP +OK POP3 200 OK"
#
#dummy_banner ""
#########################################
# dummy_banner_wait
#
# Number of seconds to wait for client sending any data
# after establishing a new connection.
# If no data has been received within this amount of time,
# 'dummy_banner' will be sent to the client.
# Setting to '0' disables sending of a banner string.
#
# Syntax: dummy_banner_wait [0..600]
#
# Default: 5
#
#dummy_banner_wait 3


#############################################################
# Redirect
#############################################################

#########################################
# redirect_enabled
#
# Turn connection redirection on or off.
#
# Syntax: redirect_enabled [yes|no]
#
# Default: no
#
redirect_enabled    yes
#########################################
# redirect_unknown_services
#
# Redirect connection attempts to unbound ports
# to dummy service
#
# Syntax: redirect_unknown_services [yes|no]
#
# Default: yes
#
#redirect_unknown_services no


#########################################
# redirect_external_address
#
# IP address used as source address if INetSim
# acts as a router for redirecting packets to
# external networks.
# This option only takes effect if static rules
# for redirecting packets to external networks
# are defined (see 'redirect_static_rule' below).
#
# Syntax: redirect_external_address <IP address>
#
# Default: none
#
redirect_external_address   xx.xx.xx.xx
#########################################
# redirect_static_rule
#
# Static mappings for connection redirection.
# Note: Currently only protocols tcp, udp and icmp are supported.
#
# Syntax: redirect_static_rule tcp|udp <IP address:port> <IP address:port>
# redirect_static_rule tcp|udp <IP address:> <IP address:>
# redirect_static_rule tcp|udp <:port> <IP address:>
# redirect_static_rule tcp|udp <:port> <:port>
# redirect_static_rule icmp <IP address:icmp-type> <IP address>
# redirect_static_rule icmp <IP address:> <IP address>
# redirect_static_rule icmp <:icmp-type> <IP address>
#
# Default: none
#
# Examples:
#
# WWW caching service
#redirect_static_rule tcp :8080 :80
#
# Submission [RFC4409]
#redirect_static_rule tcp :587 :25
#
# Echo-Request [RFC792]
#redirect_static_rule icmp 10.10.10.20:echo-request 10.1.0.25
#
# Redirection based on IP address and/or port:
#redirect_static_rule tcp 10.10.10.55:88 10.10.10.1:80
#redirect_static_rule tcp :99 192.168.1.1:25
#redirect_static_rule tcp 10.10.10.20: 172.16.1.2:


#########################################
# redirect_change_ttl
#
# Change the time-to-live header field to a random value
# in outgoing IP packets.
#
# Syntax: redirect_change_ttl [yes|no]
#
# Default: no
#
#redirect_change_ttl yes
#########################################
# redirect_exclude_port
#
# Connections to <service_bind_address> on this port
# are not redirected
#
# Syntax: redirect_exclude_port <protocol:port>
#
# Default: none
#
redirect_exclude_port       tcp:22
#redirect_exclude_port udp:111


#########################################
# redirect_ignore_bootp
#
# If set to 'yes', BOOTP (DHCP) broadcasts will not be redirected
# (UDP packets with source address 0.0.0.0, port 68 and
# destination address 255.255.255.255, port 67 or vice versa)
#
# Syntax: redirect_ignore_bootp [yes|no]
#
# Default: no
#
#redirect_ignore_bootp yes
#########################################
# redirect_ignore_netbios
#
# If set to 'yes', NetBIOS broadcasts will not be redirected
# (UDP packets with source/destination port 137/138
# and destination address x.x.x.255 on the local network)
#
# Syntax: redirect_ignore_netbios [yes|no]
#
# Default: no
#
#redirect_ignore_netbios yes


#########################################
# redirect_icmp_timestamp
#
# If set to 'ms', ICMP Timestamp requests will be answered
# with number of milliseconds since midnight UTC according
# to faketime.
# If set to 'sec', ICMP Timestamp requests will be answered
# with number of seconds since epoch (high order bit of the
# timestamp will be set to indicate non-standard value).
# Setting to 'no' disables manipulation of ICMP Timestamp
# requests.
#
# Syntax: redirect_icmp_timestamp [ms|sec|no]
#
# Default: ms
#
#redirect_icmp_timestamp sec
#############################################################
# End of INetSim configuration file
#############################################################

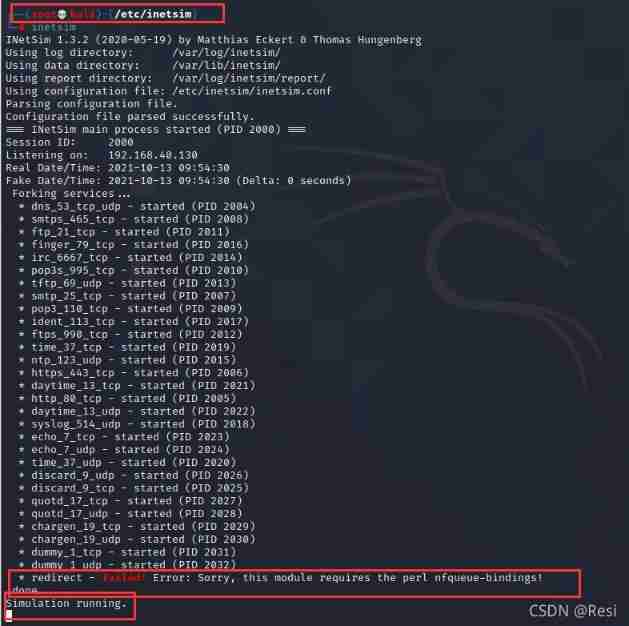

Then type the command inetsim Start the service （ Pay attention to some Linux You need to be in the root directory to start ）
At the end Simulation running It starts successfully , An error will be reported on it , This is a inetsim The lack of another service results in , It doesn't affect the experiment , So don't worry .

2、 stay win10 Download and install from Apatedns Open after , stay DNS Reply IP Add the... To which the request package needs to be spoofed IP Address , namely kali dns Server's ip Address , And then click Start Server Open the tool .

3、 stay win10 Double click to run Lab01-03.exe, If the following page appears , The experiment was successful

We can also from ApateDNS You can see that the malicious code requests to access www.malwarenalysisbook.com This web site
