Dynamics 365: explain virtual entity from 0 to 1

2022-07-24 15:40:00 【Stone-hdj】

from Dynamics 365 for Customer Engagement 9.0 Start , Virtual entities pass through Dynamics 365 Customer Engagement Seamlessly represent data as entities in , It realizes the data integration in the external system . It does not require data replication , There is usually no need for custom coding .

Virtual entities have the following limitations , But in addition to the following limitations , It is no different from other custom entities ：

  • The data is read-only . Virtual entity attribute is not supported in Dynamics 365 in CE The changes are being pushed back to the external system
  • Only organization level permissions of entities are supported . Field level security is not supported
  • For external data , Need to be abstractly modeled as D365 Those fields supported by , For example, you want to get the name of a record in the external system , Gender , Age field , So in a virtual entity , You need to create and name , Field types that match the gender and age fields , such as text, number, optionset, date, image, and lookup type
  • The record of external data must have a GUID The primary key of the format is associated with the primary key in the virtual entity
  • Cannot use calculated field , If you need to calculate , Need to be done in an external system or in data provider Intermediate processing .
  • You cannot filter or sort the values of a column
  • I won't support it Audit History
  • Not for queue Enable virtual entities
  • Virtual entities do not support BPF
  • Once a virtual entity is created, it cannot be changed to an ordinary entity

1. Create a plug-in and register

This plug-in will implement Retrieve and Retrieve Multiple, The sample code is connected to another organization D365 in , obtain Account Record in the entity and display it .

Will these hardcode Writing to your plug-in is not a good way , I do this mainly to make it easier for you to see how it works , You need to properly handle these configuration information when writing your own code

For how to use the configuration information in the following code, see Azure Where can I find , You can refer to this blog below

Dynamics 365: How to go from Azure Get connection to D365 Online Authentication information needed _Stone-hdj The blog of -CSDN Blog https://blog.csdn.net/djstone/article/details/124927079?spm=1001.2014.3001.5502

Retrieve:

using Microsoft.Xrm.Sdk;
using Newtonsoft.Json;
using System;
using System.IO;
using System.Net;

namespace VirtualEntityODataProvider
{
    public class Retrieve : IPlugin
    {
        //set these values for your D365 instance, user credentials and Azure AD clientid/token endpoint
        string crmorg = "https://orgeXXXX.crm5.dynamics.com";
        string clientid = "b004872a-XXXX-XXXX-XXXX-4a21868c04db";
        string username = "[email protected]";
        string userpassword = "XXXX";
        string tokenendpoint = "https://login.microsoftonline.com/594a2057-XXXX-XXXX-XXXX-0bc293dfb025/oauth2/token";
        string clientsecret = "mTQ8Q~2bc84~fMK5Z0qc123456XXXdaG";

        //relative path to web api endpoint
        string crmwebapi = "/api/data/v9.2";

        string crmwebapipath = "/accounts({Id})?$select=name,accountid";

        public void Execute(IServiceProvider serviceProvider)
        {
            //basic plugin set-up stuff
            IPluginExecutionContext context = (IPluginExecutionContext)serviceProvider.GetService(typeof(IPluginExecutionContext));
            IOrganizationServiceFactory servicefactory = XXXX(IOrganizationServiceFactory)serviceProvider.GetService(typeof(IOrganizationServiceFactory));
            IOrganizationService service = servicefactory.CreateOrganizationService(context.UserId);
            ITracingService tracingService = (ITracingService)serviceProvider.GetService(typeof(ITracingService));

            tracingService.Trace($"Starting Tracing!");

            try
            {
                EntityReference target = (EntityReference)context.InputParameters["Target"];

                //build the authorization request for Azure AD
                var reqstring = "client_id=" + clientid;
                reqstring += "&client_secret=" + clientsecret;
                reqstring += "&resource=" + Uri.EscapeUriString(crmorg);
                reqstring += "&username=" + Uri.EscapeUriString(username);
                reqstring += "&password=" + Uri.EscapeUriString(userpassword);
                reqstring += "&grant_type=password";

                //make the Azure AD authentication request
                WebRequest req = WebRequest.Create(tokenendpoint);
                req.ContentType = "application/x-www-form-urlencoded";
                req.Method = "POST";
                byte[] bytes = System.Text.Encoding.ASCII.GetBytes(reqstring);
                req.ContentLength = bytes.Length;
                System.IO.Stream os = req.GetRequestStream();
                os.Write(bytes, 0, bytes.Length);
                os.Close();

                tracingService.Trace($"Request token completed");
                HttpWebResponse resp = (HttpWebResponse)req.GetResponse();
                StreamReader tokenreader = new StreamReader(resp.GetResponseStream());
                string responseBody = tokenreader.ReadToEnd();
                tokenreader.Close();

                tracingService.Trace($"Parsing token response");
                //deserialize the Azure AD token response and get the access token to supply with the web api query
                var tokenresponse = JsonConvert.DeserializeObject<Newtonsoft.Json.Linq.JObject>(responseBody);
                var token = tokenresponse["access_token"];
                tracingService.Trace($"token:{token}");
                //make the web api query
                WebRequest crmreq = WebRequest.Create(crmorg + crmwebapi + crmwebapipath.Replace("{Id}", target.Id.ToString()));
                crmreq.Headers = new WebHeaderCollection();

                //use the access token from earlier as the authorization header bearer value
                crmreq.Headers.Add("Authorization", "Bearer " + token);
                crmreq.Headers.Add("OData-MaxVersion", "4.0");
                crmreq.Headers.Add("OData-Version", "4.0");
                crmreq.Headers.Add("Prefer", "odata.maxpagesize=500");
                crmreq.Headers.Add("Prefer", "odata.include-annotations=OData.Community.Display.V1.FormattedValue");
                crmreq.ContentType = "application/json; charset=utf-8";
                crmreq.Method = "GET";

                HttpWebResponse crmresp = (HttpWebResponse)crmreq.GetResponse();
                StreamReader crmreader = new StreamReader(crmresp.GetResponseStream());
                string crmresponseBody = crmreader.ReadToEnd();
                crmreader.Close();
                tracingService.Trace($"Retrieve completed");
                //deserialize the response
                var crmresponseobj = JsonConvert.DeserializeObject<Newtonsoft.Json.Linq.JObject>(crmresponseBody);


                tracingService.Trace($"Retrieve result completed, crmresponseobj = {crmresponseobj}");
                Entity verow = new Entity("cr8e0_otheraccount");
                verow["cr8e0_otheraccountid"] = (Guid)crmresponseobj["accountid"];
                verow["cr8e0_name"] = (string)crmresponseobj["name"];

                //return a result
                context.OutputParameters["BusinessEntity"] = verow;
            }
            catch (Exception e)
            {
                tracingService.Trace($"{e.Message} {e.StackTrace}");
                if (e.InnerException != null)
                    tracingService.Trace($"{e.InnerException.Message} {e.InnerException.StackTrace}");

                throw new InvalidPluginExecutionException(e.Message);
            }
        }
    }
}

Retrieve Multiple:

using Microsoft.Xrm.Sdk;
using Newtonsoft.Json;
using System;
using System.IO;
using System.Net;

namespace VirtualEntityODataProvider
{
    public class RetrieveMultiple : IPlugin
    {
        //set these values for your D365 instance, user credentials and Azure AD clientid/token endpoint
        string crmorg = "https://orgeXXXX.crm5.dynamics.com";
        string clientid = "b004872a-XXXX-XXXX-XXXX-4a21868c04db";
        string username = "[email protected]";
        string userpassword = "XXXX";
        string tokenendpoint = "https://login.microsoftonline.com/594a2057-XXXX-XXXX-XXXX-0bc293dfb025/oauth2/token";
        string clientsecret = "mTQ8Q~2bc84~fMK5Z0qc123456XXXdaG";

        //relative path to web api endpoint
        string crmwebapi = "/api/data/v9.2";

        //web api query to execute - in this case all accounts that start with "A"
        string crmwebapipath = "/accounts?$select=name,accountid&$filter=startswith(name,'A')";

        public void Execute(IServiceProvider serviceProvider)
        {

            //basic plugin set-up stuff
            IPluginExecutionContext context = (IPluginExecutionContext)serviceProvider.GetService(typeof(IPluginExecutionContext));
            IOrganizationServiceFactory servicefactory = (IOrganizationServiceFactory)serviceProvider.GetService(typeof(IOrganizationServiceFactory));
            IOrganizationService service = servicefactory.CreateOrganizationService(context.UserId);
            ITracingService tracingService = (ITracingService)serviceProvider.GetService(typeof(ITracingService));

            tracingService.Trace($"Starting Tracing!");

            try
            {
                EntityCollection results = new EntityCollection();

                //build the authorization request for Azure AD
                var reqstring = "client_id=" + clientid;
                reqstring += "&client_secret=" + clientsecret;
                reqstring += "&resource=" + Uri.EscapeUriString(crmorg);
                reqstring += "&username=" + Uri.EscapeUriString(username);
                reqstring += "&password=" + Uri.EscapeUriString(userpassword);
                reqstring += "&grant_type=password";

                //make the Azure AD authentication request
                WebRequest req = WebRequest.Create(tokenendpoint);
                req.ContentType = "application/x-www-form-urlencoded";
                req.Method = "POST";
                byte[] bytes = System.Text.Encoding.ASCII.GetBytes(reqstring);
                req.ContentLength = bytes.Length;
                System.IO.Stream os = req.GetRequestStream();
                os.Write(bytes, 0, bytes.Length);
                os.Close();

                tracingService.Trace($"Request token completed");
                HttpWebResponse resp = (HttpWebResponse)req.GetResponse();
                StreamReader tokenreader = new StreamReader(resp.GetResponseStream());
                string responseBody = tokenreader.ReadToEnd();
                tokenreader.Close();

                tracingService.Trace($"Parsing token response");
                //deserialize the Azure AD token response and get the access token to supply with the web api query
                var tokenresponse = JsonConvert.DeserializeObject<Newtonsoft.Json.Linq.JObject>(responseBody);
                var token = tokenresponse["access_token"];
                tracingService.Trace($"token:{token}");
                //make the web api query
                WebRequest crmreq = WebRequest.Create(crmorg + crmwebapi + crmwebapipath);
                crmreq.Headers = new WebHeaderCollection();

                //use the access token from earlier as the authorization header bearer value
                crmreq.Headers.Add("Authorization", "Bearer " + token);
                crmreq.Headers.Add("OData-MaxVersion", "4.0");
                crmreq.Headers.Add("OData-Version", "4.0");
                crmreq.Headers.Add("Prefer", "odata.maxpagesize=500");
                crmreq.Headers.Add("Prefer", "odata.include-annotations=OData.Community.Display.V1.FormattedValue");
                crmreq.ContentType = "application/json; charset=utf-8";
                crmreq.Method = "GET";

                HttpWebResponse crmresp = (HttpWebResponse)crmreq.GetResponse();
                StreamReader crmreader = new StreamReader(crmresp.GetResponseStream());
                string crmresponseBody = crmreader.ReadToEnd();
                crmreader.Close();
                tracingService.Trace($"Retrieve multiple completed");
                //deserialize the response
                var crmresponseobj = JsonConvert.DeserializeObject<Newtonsoft.Json.Linq.JObject>(crmresponseBody);

                //loop through the response values
                foreach (var row in crmresponseobj["value"].Children())
                {
                    //create a new virtual entity of type lpa_demove
                    Entity verow = new Entity("cr8e0_otheraccount");
                    verow["cr8e0_otheraccountid"] = (Guid)row["accountid"];
                    verow["cr8e0_name"] = (string)row["name"];

                    //add it to the collection
                    results.Entities.Add(verow);
                }

                tracingService.Trace($"Retrieve results completed, there are {results.Entities.Count} items!");
                //return the results
                context.OutputParameters["BusinessEntityCollection"] = results;
            }
            catch (Exception e)
            {
                tracingService.Trace($"{e.Message} {e.StackTrace}");
                if (e.InnerException != null)
                    tracingService.Trace($"{e.InnerException.Message} {e.InnerException.StackTrace}");

                throw new InvalidPluginExecutionException(e.Message);
            }
        }
    }
}

Note that the code above uses Newtonsoft This third party Nuget package , So we need to use ILMerge perhaps Costura.Fody To pack it into a dll.

Register plug-ins ( No need to register step, Follow up creation Data Provider It will be automatically added when MainOperation This step)

2. register Data Provider

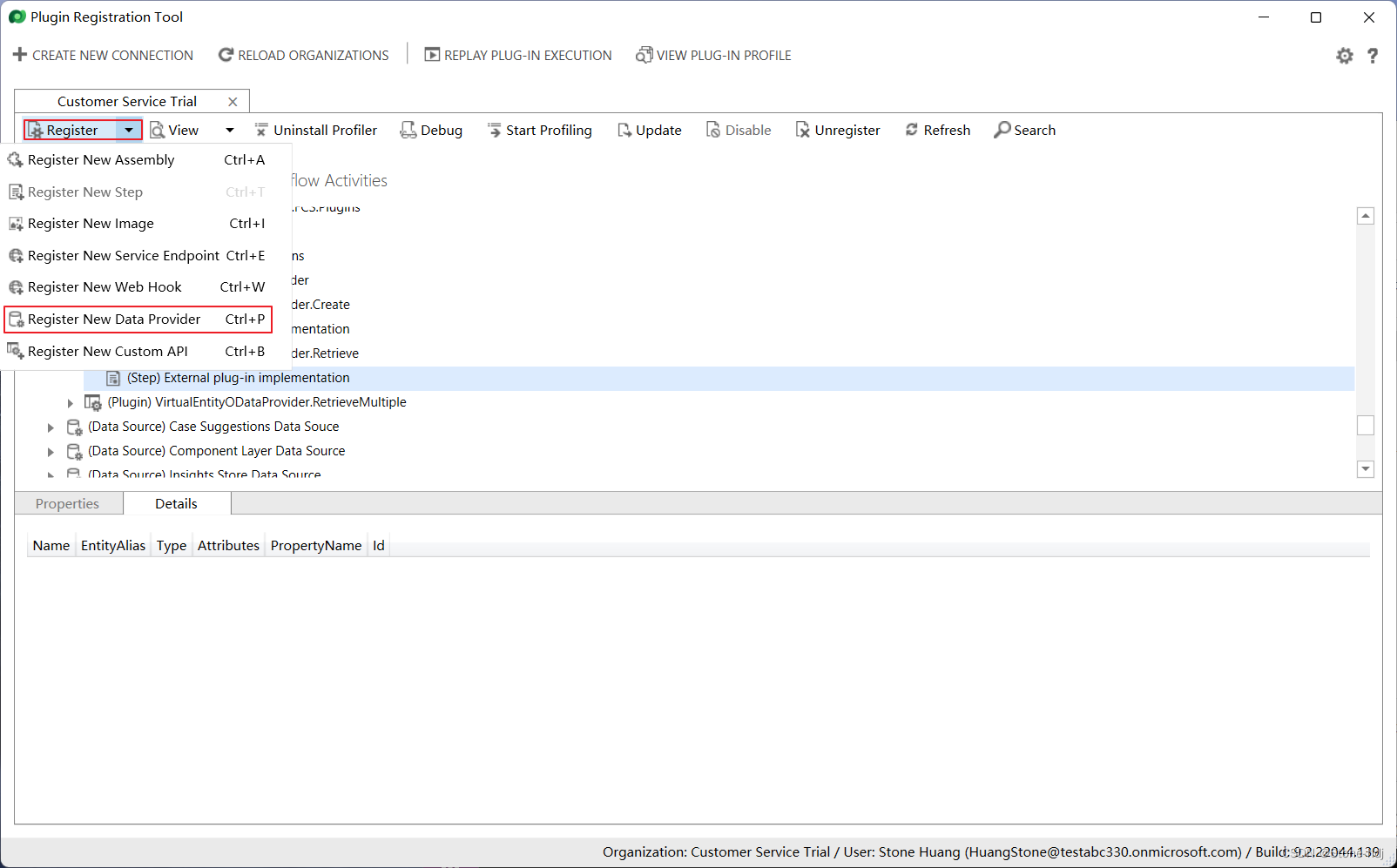

Plugin Registeration Tool: Register -> Register New Data Provider

Solution: Here we choose to create a new solution, It will be filled in by us Data Source Entity（ Virtual entity ）

Data Source Entity： Choose to create a new data source

Assembly: Select the plug-in we just registered

Retrieve and Retrieve Multiple： Also choose what we just created

After registration, we will see , In the first step, the plug-in we created will be automatically filled in

  And we found that the steps inside are not editable

 3. Newly created in the system Data Source

Setting -> Administration -> Virtual Entity Data Sources

Select the... We created in step 2 above Data Provider

  Fill in Name And save

 4. Create virtual entities

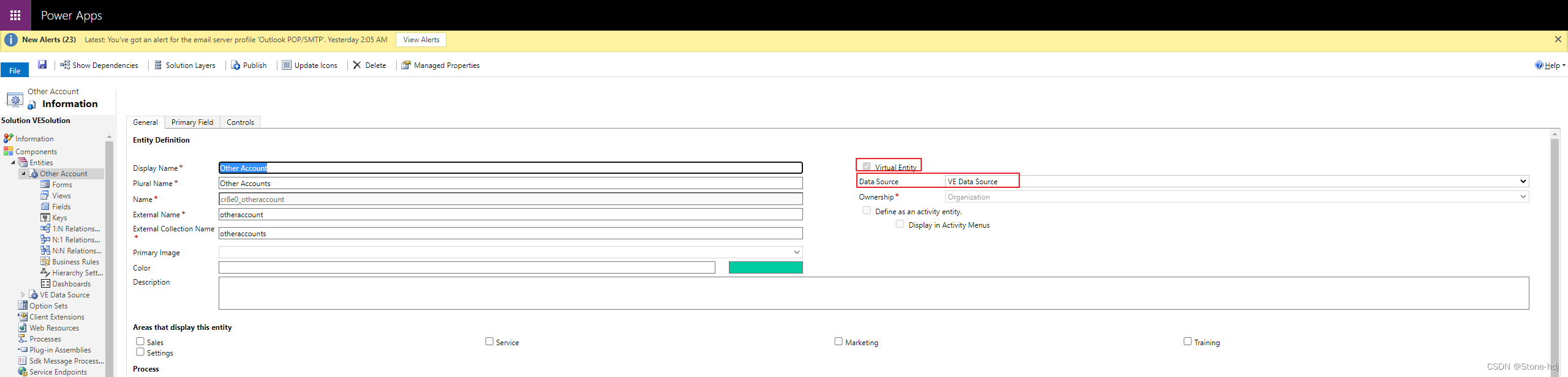

The entity needs to put Virtual Entity Choose ,Data Source Select the data source we just created

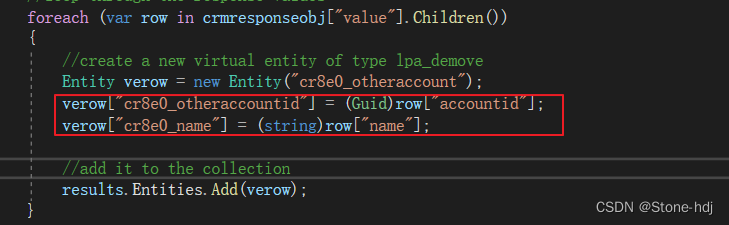

 Note： The fields in this step should correspond to those in the above code , Here's the picture

5. effect

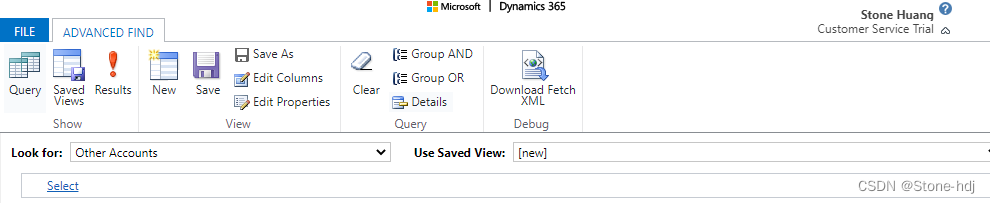

Let's use advanced search to test , Advanced lookup will call Retrieve Multiple

  Because we do filtering in the code , Extract only A At the beginning Account

  When we click on one of the records to open , It will be called Retrieve

Reference link ：

Get started with virtual entities (Developer Guide for Dynamics 365 Customer Engagement) | Microsoft Docshttps://docs.microsoft.com/en-us/dynamics365/customerengagement/on-premises/developer/virtual-entities/get-started-ve?view=op-9-1#limitations-of-virtual-entities Configure virtual entities using custom data sources - Microsoft MVP(15-18) Luo Yong - Blog Garden (cnblogs.com)https://www.cnblogs.com/luoyong0201/p/Dynamics_365_Develop_Virtual_Entity_with_Custom_Data_Provider.htmlUsing Dynamics 365 virtual entities to show data from an external organization (alexanderdevelopment.net)https://alexanderdevelopment.net/post/2018/05/28/using-dynamics-365-virtual-entities-to-show-data-from-an-external-organization/
