Opencv interpolation mode

One 、 Interpolation method and resize() The relationship between

resize() Function contains several ways of interpolation ：

void resize(InputArray src,// Input , Original image , The image to be changed ; OutputArray dst, // Output , Image after resizing , This image has the same content as the original image , It's just that the size is different from the original image ; Size dsize, // The size of the output image . If this parameter is not 0, So it means to zoom the original image to this Size(width,height) Specified size ; If this parameter is zero 0, Then the size of the original image after zooming should be calculated by the following formula ： double fx=0, // width Scale in direction , If it is 0, Then it will follow (double)dsize.width/src.cols To calculate ; double fy=0, //height Scale in direction , If it is 0, Then it will follow (double)dsize.height/src.rows To calculate ; int interpolation=INTER_LINEAR//  This is how to specify interpolation , After image zooming , Be sure to recalculate the pixels , It depends on this parameter to specify how pixels are recalculated , There are the following ： INTER_NEAREST -  Nearest neighbor interpolation  INTER_LINEAR -  Bilinear interpolation , If you don't specify the last parameter , This method is used by default  INTER_AREA - Area interpolation  resampling using pixel area relation. It may be a preferred method for image decimation, as it gives moire’-free results. But when the image is zoomed, it is similar to the INTER_NEAREST method. INTER_CUBIC - 4x4 Bicubic interpolation in the neighborhood of a pixel  INTER_LANCZOS4 - 8x8 Within the neighborhood of a pixel Lanczos interpolation  );
  Precautions for use ：
   dsize and fx/fy You can't do it at the same time 0,

 ​



Two 、 Nearest neighbor interpolation INTER_NEAREST

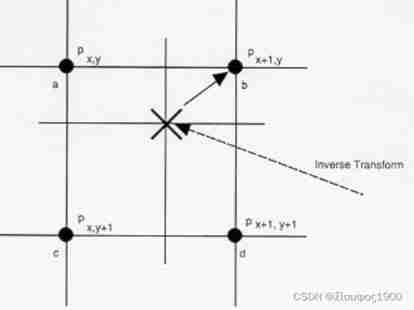

Nearest neighbor interpolation , Find the nearest neighbor （ Existing pixels , Black spot ）, The assignment is the same .

Realization opencv Three interpolation algorithms commonly used in - Simple books

​



// Nearest neighborhood interpolation
// According to the pixel points of the target image （ Floating point coordinates ） Find... In the original image 4 Pixels , Take the original pixel value closest to the pixel point as the value of the point .

#include<opencv2/opencv.hpp>
#include<cassert>

namespace mycv {
    void nearestIntertoplation(cv::Mat& src, cv::Mat& dst, const int rows, const int cols);
}//mycv

double distance(const double x1, const double y1, const double x2, const double y2);// Distance between two points , European distance is used here

int main() {
    cv::Mat img = cv::imread("lena.jpg", 0);
    if (img.empty()) return -1;
    cv::Mat dst;
    mycv::nearestIntertoplation(img, dst, 600, 600);
    cv::imshow("img", img);
    cv::imshow("dst", dst);
    cv::waitKey(0);
    return 0;
    return 0;
}//main

void mycv::nearestIntertoplation(cv::Mat& src, cv::Mat& dst, const int rows, const int cols) {
    // scale
    const double scale_row = static_cast<double>(src.rows) / rows;
    const double scale_col = static_cast<double>(src.rows) / cols;

    // Expand src To dst
    dst = cv::Mat(rows, cols, src.type());
    assert(src.channels() == 1 && dst.channels() == 1);

    for (int i = 0; i < rows; ++i)//dst The line of
        for (int j = 0; j < cols; ++j)//dst The column of
        {
            // Find the four points of interpolation
            double y = (i + 0.5) * scale_row + 0.5;
            double x = (j + 0.5) * scale_col + 0.5;
            int x1 = static_cast<int>(x);//col Corresponding x
            if (x1 >= (src.cols - 2)) x1 = src.cols - 2;// To prevent cross-border
            int x2 = x1 + 1;
            int y1 = static_cast<int>(y);//row Corresponding y
            if (y1 >= (src.rows - 2))  y1 = src.rows - 2;
            int y2 = y1 + 1;
            // According to the pixel points of the target image （ Floating point coordinates ） Find... In the original image 4 Pixels , Take the original pixel value closest to the pixel point as the value of the point .
            assert(0 < x2 && x2 < src.cols && 0 < y2 &&  y2 < src.rows);
            std::vector<double> dist(4);
            dist[0] = distance(x, y, x1, y1);
            dist[1] = distance(x, y, x2, y1);
            dist[2] = distance(x, y, x1, y2);
            dist[3] = distance(x, y, x2, y2);

            int min_val = dist[0];
            int min_index = 0;
            for (int i = 1; i < dist.size(); ++i)
                if (min_val > dist[i])
                {
                    min_val = dist[i];
                    min_index = i;
                }

            switch (min_index)
            {
            case 0:
                dst.at<uchar>(i, j) = src.at<uchar>(y1, x1);
                break;
            case 1:
                dst.at<uchar>(i, j) = src.at<uchar>(y1, x2);
                break;
            case 2:
                dst.at<uchar>(i, j) = src.at<uchar>(y2, x1);
                break;
            case 3:
                dst.at<uchar>(i, j) = src.at<uchar>(y2, x2);
                break;
            default:
                assert(false);
            }
        }
}

double distance(const double x1, const double y1, const double x2, const double y2)// Distance between two points , European distance is used here  {
    return (x1 - x2)*(x1 - x2) + (y1 - y2)*(y1 - y2);// Just compare the size , Just return the square of the distance
}

  3、 ... and 、 linear interpolation

Two known points （ Red ） , Giving a blue dot x coordinate , seek y.



// Linear interpolation （ Bilinear interpolation )
#include<opencv2/opencv.hpp>
#include<opencv2/core/matx.hpp>
#include<cassert>

namespace mycv {
    void bilinearIntertpolatioin(cv::Mat& src, cv::Mat& dst, const int rows, const int cols);
}//mycv

int main() {
    cv::Mat img = cv::imread("lena.jpg", 0);
    if (img.empty()) return -1;
    cv::Mat dst;
    mycv::bilinearIntertpolatioin(img, dst, 600, 600);
    cv::imshow("img", img);
    cv::imshow("dst", dst);
    cv::waitKey(0);
    return 0;
}//main

void mycv::bilinearIntertpolatioin(cv::Mat& src, cv::Mat& dst, const int rows, const int cols) {
    // scale
    const double scale_row = static_cast<double>(src.rows) / rows;
    const double scale_col = static_cast<double>(src.rows) / cols;

    // Expand src To dst
    dst = cv::Mat(rows, cols, src.type());
    assert(src.channels() == 1 && dst.channels() == 1);

    for(int i = 0; i < rows; ++i)//dst The line of
        for (int j = 0; j < cols; ++j)//dst The column of
        {
            // Find the four points of interpolation
            double y = (i + 0.5) * scale_row + 0.5;
            double x = (j + 0.5) * scale_col + 0.5;
            int x1 = static_cast<int>(x);//col Corresponding x
            if (x1 >= (src.cols - 2)) x1 = src.cols - 2;// To prevent cross-border
            int x2 = x1 + 1;
            int y1 = static_cast<int>(y);//row Corresponding y
            if (y1 >= (src.rows - 2))  y1 = src.rows - 2;
            int y2 = y1 + 1;

            assert(0 < x2 && x2 < src.cols && 0 < y2 &&  y2 < src.rows);
            // Interpolation formula , Refer to Wikipedia matrix multiplication formula https://zh.wikipedia.org/wiki/%E5%8F%8C%E7%BA%BF%E6%80%A7%E6%8F%92%E5%80%BC

            cv::Matx12d matx = { x2 - x, x - x1 };
            cv::Matx22d matf = { static_cast<double>(src.at<uchar>(y1, x1)), static_cast<double>(src.at<uchar>(y2, x1)),
                                 static_cast<double>(src.at<uchar>(y1, x2)), static_cast<double>(src.at<uchar>(y2, x2)) };
            cv::Matx21d maty = {
                y2 - y,
                y - y1
            };

            auto  val = (matx * matf * maty);
            dst.at<uchar>(i, j) = val(0,0);
        }

}

Four 、 Bicubic interpolation

In the mathematical branch of numerical analysis , Bicubic interpolation （ English ：Bicubic interpolation） It is the most commonly used interpolation method in two-dimensional space . In this way , function f At point (x, y) The value of can be obtained by the weighted average of the nearest 16 sampling points in the rectangular grid , Here we need to use two polynomials to interpolate cubic functions , Use one... In each direction

Bicubic interpolation calculation formula ​


​



So this a(i, j) It is the weighting coefficient mentioned in the introduction , So the key is to solve it .

The formula for solving the weighting coefficient is as follows ​



 The code for solving the reinforcement coefficient is as follows ：

std::vector<double> mycv::getW(double coor, double a)
{
    std::vector<double> w(4);
    int base = static_cast<int>(coor);// Take rounding as the benchmark
    double e = coor - static_cast<double>(base);// More than the decimal part of the benchmark
    std::vector<double> tmp(4);// Stored in formula  |x| <= 1,  1 < |x| < 2 The four values
    // 4 x 4 Of 16 A little bit , therefore tmp[0] and tmp[4] Far away , Values in [1, 2] Section
    tmp[0] = 1.0 + e;// 1 < x < 2
    tmp[1] = e;//x <= 1
    tmp[2] = 1.0 - e;// x <= 1
    tmp[3] = 2.0 - e;// 1 < x < 2

    // according to bicubic Formula calculation coefficient w
    // x <= 1
    w[1] = (a + 2.0) * std::abs(std::pow(tmp[1], 3)) - (a + 3.0) * std::abs(std::pow(tmp[1], 2)) + 1;
    w[2] = (a + 2.0) * std::abs(std::pow(tmp[2], 3)) - (a + 3.0) * std::abs(std::pow(tmp[2], 2)) + 1;
    // 1 < x < 2
    w[0] = a * std::abs(std::pow(tmp[0], 3)) - 5.0 * a * std::abs(std::pow(tmp[0], 2)) + 8.0*a*std::abs(tmp[0]) - 4.0*a;
    w[3] = a * std::abs(std::pow(tmp[3], 3)) - 5.0 * a * std::abs(std::pow(tmp[3], 2)) + 8.0*a*std::abs(tmp[3]) - 4.0*a;

    return w;
}

 After solving it ,wx and wy Namely 4x4 Composed of 16 A coefficient of , And interpolation 4x4 Of 16 Points match . The key code of interpolation step

                //4x4 Number of points (rr, cc) -> (y, x)
                std::vector<std::vector<int> > src_arr = {
                    { src.at<uchar>(rr - 1, cc - 1), src.at<uchar>(rr, cc - 1), src.at<uchar>(rr + 1, cc - 1), src.at<uchar>(rr + 2, cc - 1)},
                    { src.at<uchar>(rr - 1, cc), src.at<uchar>(rr, cc), src.at<uchar>(rr + 1, cc), src.at<uchar>(rr + 2, cc)},
                    { src.at<uchar>(rr - 1, cc + 1), src.at<uchar>(rr, cc + 1), src.at<uchar>(rr + 1, cc + 1), src.at<uchar>(rr + 2, cc + 1)},
                    { src.at<uchar>(rr - 1, cc + 2), src.at<uchar>(rr, cc + 2), src.at<uchar>(rr + 1, cc + 2), src.at<uchar>(rr + 2, cc + 2)}
                };
                for(int p = 0; p < 3; ++p)
                    for (int q = 0; q < 3; ++q)
                    {
                        //val(p, q) = w(p,q) * src(p, q)
                        val += wr[p] * wc[q] * static_cast<double>(src_arr[p][q]);
                    }
                assert(i < dst.rows && j < dst.cols);
                dst.at<uchar>(i, j) = static_cast<int>(val);















// Bicubic interpolation

#include<opencv2/opencv.hpp>
#include<iostream>
#include<vector>
#include<cassert>

namespace mycv {
    void bicubicInsterpolation(cv::Mat& src, cv::Mat& dst, const int rows, const int cols);
    std::vector<double> getW(double coor, double a = -0.5);//a Default -0.5
}//mycv

int main(void)
{
    cv::Mat img = cv::imread("lena.jpg", 0);
    if (img.empty()) return -1;
    cv::Mat dst;
    mycv::bicubicInsterpolation(img, dst, 600, 600);
    cv::imshow("img", img);
    cv::imshow("dst", dst);
    cv::waitKey(0);
    return 0;
}//main

void mycv::bicubicInsterpolation(cv::Mat& src, cv::Mat& dst, const int rows, const int cols)
{
    dst = cv::Mat(rows, cols, src.type(), cv::Scalar::all(0));// initialization dst
    // scale
    double row_scale = static_cast<double>(src.rows) / rows;
    double col_scale = static_cast<double>(src.cols) / cols;

    switch (src.channels())
    {

    case 1:// Grayscale
        for(int i = 2; i < dst.rows - 2; ++i)
            for (int j = 2; j < dst.cols - 2; ++j)
            {
                // Computing coefficients w
                double r = static_cast<double>(i *  row_scale);
                double c = static_cast<double>(j *  col_scale);

                // To prevent cross-border
                if (r < 1.0) r += 1.0;
                if (c < 1.0) c += 1.0;


                std::vector<double> wr = mycv::getW( r);
                std::vector<double> wc = mycv::getW( c);

                // Finally, calculate the gray value obtained by interpolation
                double val = 0;
                int cc = static_cast<int>(c);
                int rr = static_cast<int>(r);
                // To prevent cross-border
                if (cc > src.cols - 3)
                {
                    cc = src.cols - 3;

                }
                if (rr > src.rows - 3) rr = src.rows - 3;

                assert(0 <= (rr - 1) && 0 <= (cc - 1) && (rr + 2) < src.rows && (cc + 2) < src.cols);

                //4x4 Number of points (rr, cc) -> (y, x)
                std::vector<std::vector<int> > src_arr = {
                    { src.at<uchar>(rr - 1, cc - 1), src.at<uchar>(rr, cc - 1), src.at<uchar>(rr + 1, cc - 1), src.at<uchar>(rr + 2, cc - 1)},
                    { src.at<uchar>(rr - 1, cc), src.at<uchar>(rr, cc), src.at<uchar>(rr + 1, cc), src.at<uchar>(rr + 2, cc)},
                    { src.at<uchar>(rr - 1, cc + 1), src.at<uchar>(rr, cc + 1), src.at<uchar>(rr + 1, cc + 1), src.at<uchar>(rr + 2, cc + 1)},
                    { src.at<uchar>(rr - 1, cc + 2), src.at<uchar>(rr, cc + 2), src.at<uchar>(rr + 1, cc + 2), src.at<uchar>(rr + 2, cc + 2)}
                };
                for(int p = 0; p < 3; ++p)
                    for (int q = 0; q < 3; ++q)
                    {
                        //val(p, q) = w(p,q) * src(p, q)
                        val += wr[p] * wc[q] * static_cast<double>(src_arr[p][q]);
                    }
                assert(i < dst.rows && j < dst.cols);
                dst.at<uchar>(i, j) = static_cast<int>(val);

            }
        break;
    case 3:// colour ( The principle is the same, just two more channels )
        break;
    default:
        break;
    }
}

std::vector<double> mycv::getW(double coor, double a)
{
    std::vector<double> w(4);
    int base = static_cast<int>(coor);// Take rounding as the benchmark
    double e = coor - static_cast<double>(base);// More than the decimal part of the benchmark
    std::vector<double> tmp(4);// Stored in formula  |x| <= 1,  1 < |x| < 2 The four values
    // 4 x 4 Of 16 A little bit , therefore tmp[0] and tmp[4] Far away , Values in [1, 2] Section
    tmp[0] = 1.0 + e;// 1 < x < 2
    tmp[1] = e;//x <= 1
    tmp[2] = 1.0 - e;// x <= 1
    tmp[3] = 2.0 - e;// 1 < x < 2

    // according to bicubic Formula calculation coefficient w
    // x <= 1
    w[1] = (a + 2.0) * std::abs(std::pow(tmp[1], 3)) - (a + 3.0) * std::abs(std::pow(tmp[1], 2)) + 1;
    w[2] = (a + 2.0) * std::abs(std::pow(tmp[2], 3)) - (a + 3.0) * std::abs(std::pow(tmp[2], 2)) + 1;
    // 1 < x < 2
    w[0] = a * std::abs(std::pow(tmp[0], 3)) - 5.0 * a * std::abs(std::pow(tmp[0], 2)) + 8.0*a*std::abs(tmp[0]) - 4.0*a;
    w[3] = a * std::abs(std::pow(tmp[3], 3)) - 5.0 * a * std::abs(std::pow(tmp[3], 2)) + 8.0*a*std::abs(tmp[3]) - 4.0*a;

    return w;
}
